Hikvision DS-7116HQHl-k1 16-CH 1080p Up to 4MB Mini 1U H.265 DVR

Hikvision DS-7116HQHl-k1 - Description

16-CH 1080p Up to 4MB Mini 1U H.265 DVR

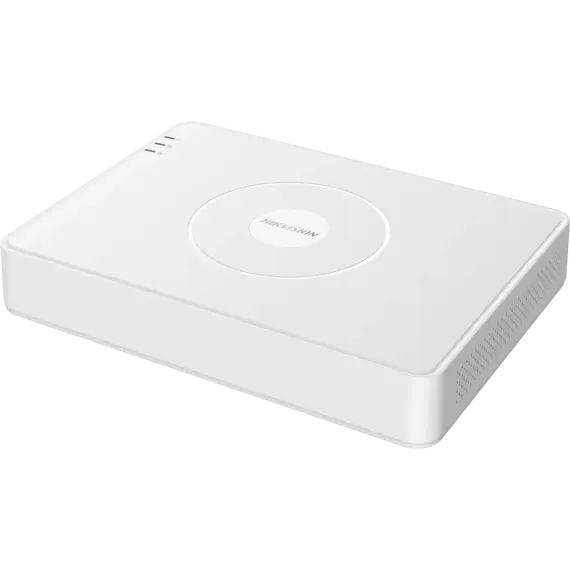

Hikvision DS-7116HQHI-K1 16-Channel 1080p Mini DVR Overview:

The Hikvision DS-7116HQHI-K1 is a powerful 16-channel 1080p Mini 1U DVR designed for professional video surveillance systems. Built with Hikvision’s advanced technology, this DVR delivers reliable performance, flexible compatibility, and efficient storage management. Its compact design makes it ideal for small to medium installations such as shops, offices, warehouses, schools, and residential properties, while still supporting high-definition video recording and multi-channel playback.

Advanced Video Compression with H.265 Pro+:

Equipped with H.265 Pro+, H.265 Pro, H.265, and H.264+ compression, the DS-7116HQHI-K1 significantly reduces bandwidth usage and storage requirements without compromising image quality. This advanced compression technology allows longer recording times on a single hard drive and smoother remote viewing, making it a cost-effective and efficient solution for modern surveillance needs.

Flexible Multi-Format Camera Compatibility:

This DVR supports 5 adaptive input types, including HDTVI, AHD, HDCVI, CVBS, and IP cameras, ensuring seamless integration with both existing and new camera systems. It supports 16 analog channels and can be expanded to up to 24 network cameras in enhanced IP mode. With support for IP cameras up to 6 MP resolution, users gain flexibility to scale their surveillance system as requirements grow.

High-Definition Recording and Playback Performance:

The Hikvision DS-7116HQHI-K1 can encode video up to 1080p at 15 fps, with support for 3K Lite, 5 MP Lite, and 4 MP Lite resolutions. It delivers smooth and reliable recording across all channels and supports 16-channel synchronous playback, allowing users to review multiple camera feeds simultaneously. Dual-stream technology ensures optimized performance for both local recording and remote viewing.

Powerful Network and Remote Access Features:

With an incoming bandwidth of 96 Mbps and total network bandwidth of 128 Mbps, this DVR supports stable live view and playback over the network. It is fully compatible with Hik-Connect, ONVIF, HTTPS, and other standard network protocols, enabling secure remote access via mobile devices and PCs. Support for up to 128 remote connections ensures easy monitoring anytime, anywhere.

Compact Design and Reliable Operation:

The Mini 1U design, measuring only 285 × 210 × 45 mm and weighing less than 1 kg, makes installation quick and convenient. It supports one SATA hard drive up to 6 TB, operates on 12 VDC, and consumes ≤15 W of power. Designed for durability, it performs reliably in temperatures from -10°C to +55°C, making it suitable for various environments.
