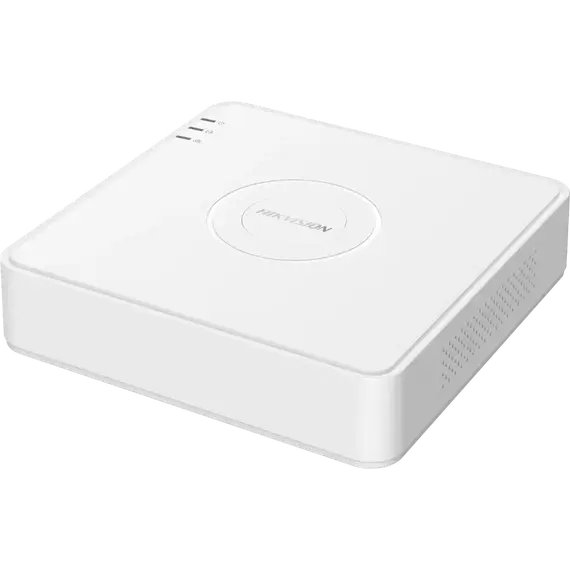

Hikvision DS-7108HGHI-K1 8-ch 1080p Lite Mini 1U H.265 DVR - White

Hikvision DS-7108HGHI-K1 - White - Description

8-ch 1080p Lite Mini 1U H.265 DVR

Advanced Motion Detection 2.0 with Human and Vehicle Classification:

The Hikvision DS-7108HGHI-K1 DVR integrates deep learning-based Motion Detection 2.0, a cutting-edge feature that intelligently distinguishes between human and vehicle movements. This significantly reduces false alarms triggered by irrelevant motion such as tree leaves, shadows, or lights. Motion Detection 2.0 is enabled by default on all analog channels and supports fast and accurate searches by object or event type, enhancing both security and efficiency in video monitoring.

Versatile Video Input Compatibility for Enhanced Flexibility:

This 8-channel DVR supports multiple video formats, including HDTVI, AHD, CVI, CVBS, and IP, making it ideal for integrating with a wide range of surveillance cameras. It supports up to 10 IP channels with up to 5 MP resolution, providing scalability for growing security needs. The BNC interface supports coaxitron connection, and video input resolutions range from 720p to 1080p for all compatible signal types.

High-Efficiency H.265 Pro+ Video Compression Technology:

The DVR utilizes advanced H.265 Pro+ video compression, significantly reducing bandwidth and storage requirements while maintaining excellent video quality. This compression standard supports H.265 Pro/H.265/H.264+/H.264 formats, enabling longer recording times and better use of storage space. Combined with support for 1080p Lite@15 fps encoding, users can achieve high-quality playback without consuming excessive resources.

Dual Video Outputs with HDMI and VGA Support:

The DS-7108HGHI-K1 features simultaneous HDMI and VGA video output, supporting resolutions up to 1920 × 1080@60Hz. This allows for flexible display configurations in both professional and residential settings. It supports 8-channel synchronous playback, making it easy to review footage from multiple cameras simultaneously, an essential feature for effective incident review.

Integrated Audio Over Coaxial and Two-Way Communication:

The DVR includes 8-channel audio input via coaxial cable and one RCA input, allowing synchronized audio and video recording. Additionally, it supports two-way audio communication, making it suitable for applications requiring real-time interaction, such as entrance monitoring or intercom systems. Audio compression is handled through the G.711u codec with a bitrate of 64 Kbps for clear sound.

Reliable Network Features and Remote Access:

Equipped with a 10/100 Mbps RJ45 Ethernet interface, the DVR supports up to 64 remote connections simultaneously. It is compatible with various network protocols, including TCP/IP, PPPoE, DHCP, Hik-Connect, DDNS, and HTTPS. These features enable remote monitoring and management, making it convenient for users to access footage from anywhere using mobile or desktop applications.

Storage, Interface, and Environmental Durability:

The device offers 1 SATA interface supporting up to 4 TB of storage, ideal for extended recording durations. It includes two USB 2.0 ports for data backup and firmware upgrades. The unit is compact (200 × 200 × 48 mm) and lightweight (≤ 1 kg), with low power consumption (≤ 17 W). It operates reliably in temperatures from -10°C to 55°C and humidity levels up to 90%, ensuring stability in varied environments.

Ideal Solution for Homes and Small Businesses:

Compact, efficient, and intelligent, the Hikvision DS-7108HGHI-K1 DVR is perfect for small business or home security setups. It offers robust functionality, advanced analytics, and wide compatibility with various camera types—all in a user-friendly package. Whether upgrading an existing surveillance system or installing a new one, this DVR delivers high-performance security monitoring with reduced maintenance needs.
