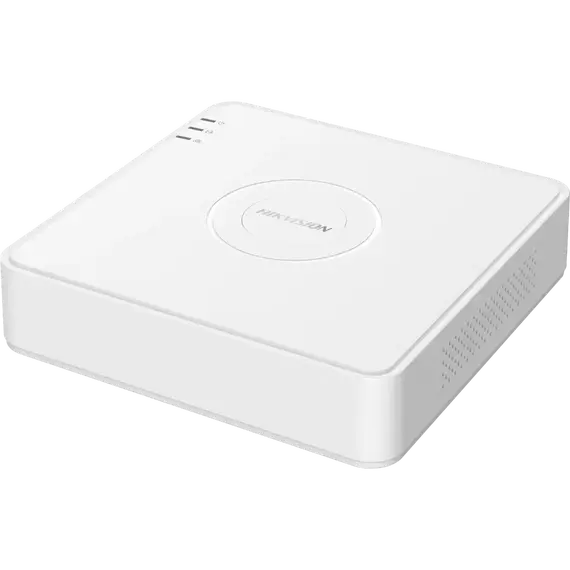

Hikvision DS-7104HUHI-K1

4-ch 5 MP Mini 1U H.265 DVR

4 channels and 1 HDD mini size DVR

Efficient H.265 pro+ compression technology

Encoding ability up to 8 MP lite @ 15 fps, 5 MP @ 12 fps

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Up to 8 network cameras can be connected.

Perimeter Protection

Line Crossing Detection/Intrusion Detection

2-ch

Enhanced VCA mode on: 4-ch

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 8 MP Lite mode is not enabled:

8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

When 8 MP Lite mode is enabled:

8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

When 8 MP Lite mode is not enabled:

8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

*: 8 MP@8 fps is only available for channel 1 of DS-7104HUHI-K1.

When 8 MP Lite mode is enabled:

8 MP Lite/3 MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps

*: 8 MP Lite is only available for DS-7104HUHI-K1.

Sub-stream:

WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bitrate

32 Kbps to 10 Mbps

Dual-Stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video And Audio

IP Video Input

2-ch (up to 6-ch)

Enhanced IP mode on:

4-ch (up to 8-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Incoming Bandwidth

Enhanced IP mode on：up to 32 Mbps

HDTVI Input

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

AHD Input

5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI Input

5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback

4-ch

Network

Remote Connection

32

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Total Bandwidth

96 Mbps

Network Interface

1, RJ45 10M/100M self-adaptive Ethernet interfac

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 6 TB capacity for each disk

Alarm In/Out

N/A

USB Interface

2 × USB 2.0

General

Power Supply

12 VDC, 1.5 A

Consumption

≤ 15 W

Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Weight

≤ 1.16 kg (2.6 lb)
