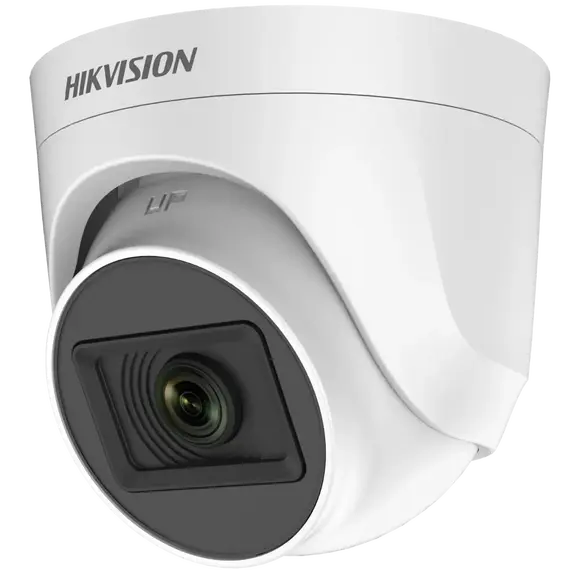

Hikvision DS-2CE76U1T-ITPF

2.8MM 8MP 4K Indoor Fixed Turret Camera

8 MP turret camera

EXIR 2.0: advanced infrared technology with 30 m IR distance

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera

Image Sensor

8.29 megapixel progressive scan CMOS

Max. Resolution

3840 (H) × 2160 (V)

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm, 6 mm fixed focal lens

Focal Length & FOV

Horizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)

Lens Mount

M16

Illuminator

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes


Image Settings

Brightness;Sharpness;AGC

Frame Rate

TVI: [email protected], 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

CVI: [email protected], 8MP@15fps

AHD: [email protected], 8M@15fps

CVBS: 960H P/N

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC;HLC

Noise Reduction

2D DNR

White Balance

Auto/Manual

Interface

Video Output

1 HD analog output;Switchable TVI/AHD/CVI/CVBS

General

Power

12 VDC ±25%, max. 5.3 W

*You are recommended to use one power adapter to supply the power for one camera.

Material

Plastic

Dimension

Ø 70 mm × 159.8 mm (Ø 2.76" × 6.29" )

Weight

Approx. 180 g (0.40 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English
