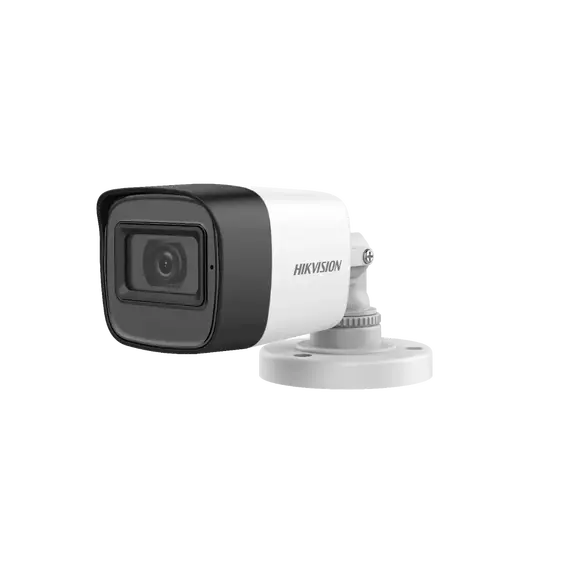

Hikvision DS-2CE16D0T-ITPFS

3.6MM+MIC 2 MP Audio Fixed Mini Bullet Camera

2 MP coaxial audio camera

Enhancing safety with discreet and economical built-in microphone

Transmits audio over the coaxial cable

EXIR 2.0: advanced infrared technology with 25 m IR distance

Water and dust resistant (IP67)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm, 6 mm fixed lens

Focal Length & FOV

2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°,
diagonal FOV: 58.8

Lens Mount

M12


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness, Sharpness, Mirror, Smart IR

Frame Rate

TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

Yes

White Balance

Auto/Manual

AGC

Support

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Material

Plastic

Dimension

58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")

Weight

Approx. 160 g (0.35 lb.)

Operating Condition

‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ± 25%

Consumption

Max. 2.7 W

IR Range

Up to 25 m

Approval

Protection

IP67
