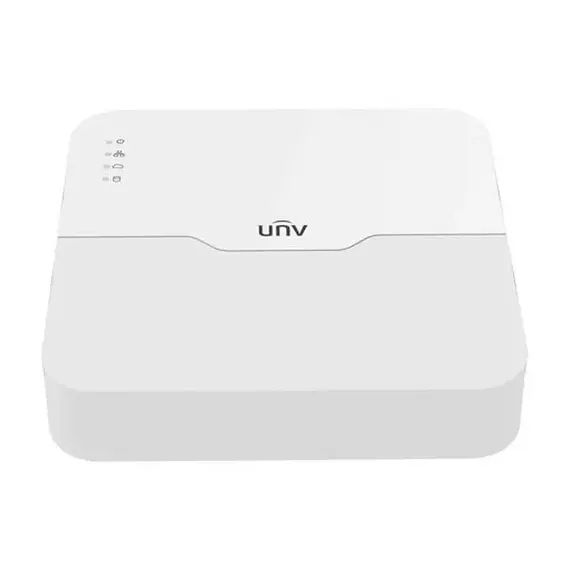

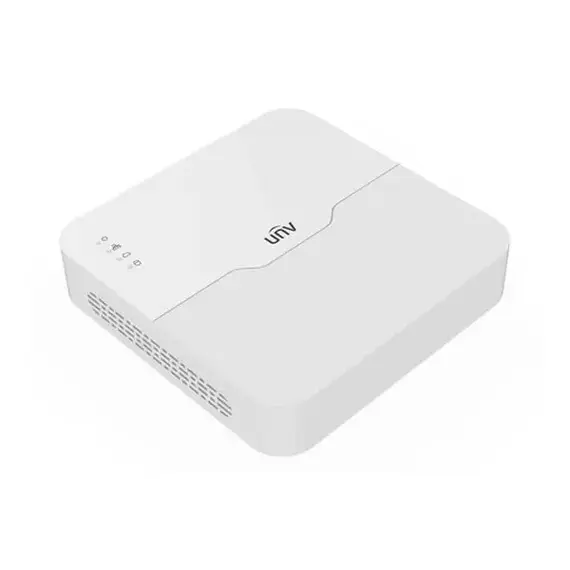

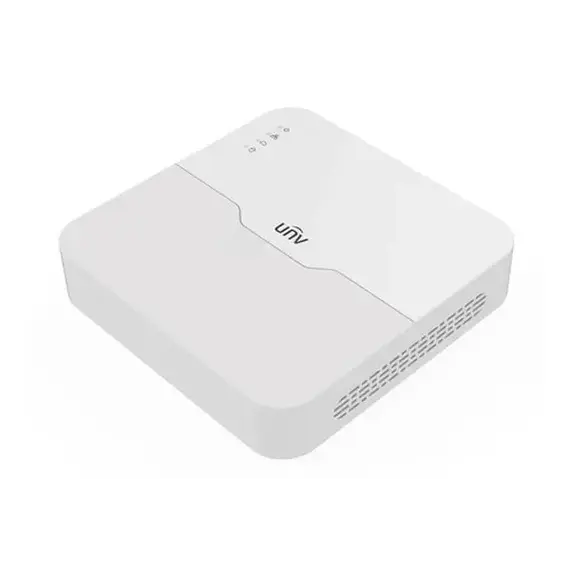

UNV NVR301-04LS3-P4 4-ch PoE 1 HDD NVR

UNV NVR301-04LS3-P4 - Description

4-ch PoE 1 HDD NVR

Reliable Surveillance Performance:

The UNV NVR301-04LS3-P4 4-Channel PoE Network Video Recorder is a powerful yet compact surveillance solution designed for small to medium security systems. Built with advanced video processing and reliable hardware, this NVR ensures smooth monitoring, recording, and playback for IP camera setups. Its 1U design makes it easy to install in network cabinets, offices, retail stores, and residential environments. With support for up to four IP cameras and integrated PoE ports, the device simplifies installation by providing both power and data through a single Ethernet cable. This reduces cabling complexity and installation time, making it an efficient option for modern security deployments.

High-Quality Video Recording and Compression:

This network video recorder supports advanced video compression technologies including Ultra 265, H.265, and H.264, allowing users to save storage space without compromising video quality. It supports multiple recording resolutions such as 4K, 5MP, 4MP, 3MP, and Full HD 1080p, ensuring clear and detailed footage in various monitoring environments. The system also delivers strong decoding performance, enabling playback of high-resolution recordings smoothly. With the ability to handle 4K decoding at 30 frames per second and multiple high-resolution streams simultaneously, the device ensures efficient video management for both live monitoring and recorded footage review.

Flexible Display and Connectivity Options:

For monitoring convenience, the NVR features both HDMI and VGA outputs that can operate simultaneously. The HDMI output supports up to 4K resolution, providing ultra-clear video display on compatible monitors, while the VGA output delivers up to 1080p resolution. In terms of connectivity, the recorder includes one RJ45 Ethernet port and four PoE ports compliant with IEEE 802.3af and IEEE 802.3at standards. Each PoE port can supply up to 30 watts of power, with a total PoE budget of 54 watts, allowing stable connection and power supply for compatible IP cameras. The system also supports multiple network protocols to ensure smooth integration into existing networks.

Smart Detection and Intelligent Video Analytics:

One of the standout features of this NVR is its intelligent video analytics capabilities. Through connected cameras, it supports advanced VCA functions such as intrusion detection, cross-line detection, and enter or leave area alerts. These smart monitoring features help improve security awareness by identifying suspicious activity in real time. Additionally, the device includes audio detection and Ultra Motion Detection (UMD), enabling more accurate event identification. Users can also benefit from smart search tools such as face search and behavior search, which make reviewing recorded footage faster and more efficient.

Storage Capacity and System Reliability:

The UNV NVR301-04LS3-P4 includes a SATA interface that supports one hard disk drive with a maximum capacity of up to 10TB, providing sufficient storage for continuous video recording. Its optimized bandwidth management ensures stable performance with incoming bandwidth of up to 64 Mbps and outgoing bandwidth of 48 Mbps. The system also supports up to 128 remote users, making it suitable for remote monitoring through network applications or cloud services. With cloud upgrade support and ONVIF compatibility, the recorder works seamlessly with a wide range of mainstream IP cameras.
