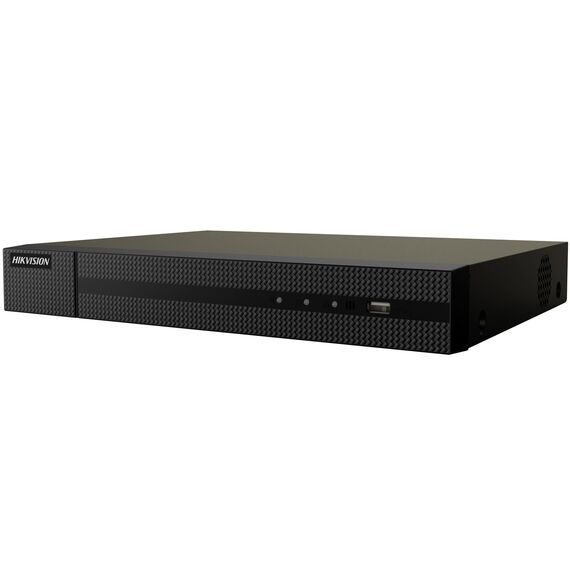

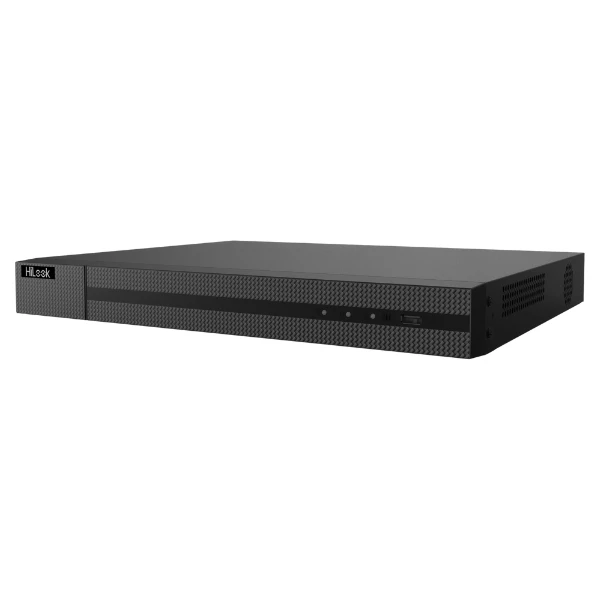

Hilook DVR-216U-K2

16-ch 5 MP 1U H.265 DVR

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Long distance transmission over UTP and coaxial cable

H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs

Encoding abilty up to 8 MP @ 8 fps

Two HDDs for continuous video recording

Smart search for efficient playback.

Perimeter Protection

Line Crossing Detection/Intrusion Detection

2-ch

Enhanced VCA mode on: 16-ch

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bitrate

32 Kbps to 10 Mbps

Dual-Stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video And Audio

IP Video Input

8-ch (up to 24-ch)

Enhanced IP mode on:

16-ch (up to 32-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

AHD Input

5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI Input

4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

HDMI Output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

16-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Synchronous Playback

16-ch

Network

Remote Connection

128

Network Protocol

TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 10 TB capacity for each disk

USB Interface

Front panel: 1 × USB 2.0

Rear panel: 1 × USB 3.0

General

Power Supply

12 VDC, 5 A

Consumption

≤ 25 W (without HDD)

Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)

Weight

≤ 2 kg (4.4 lb.)
