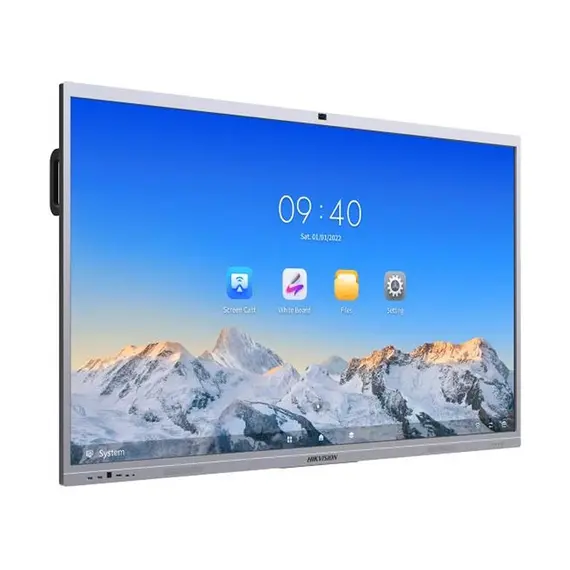

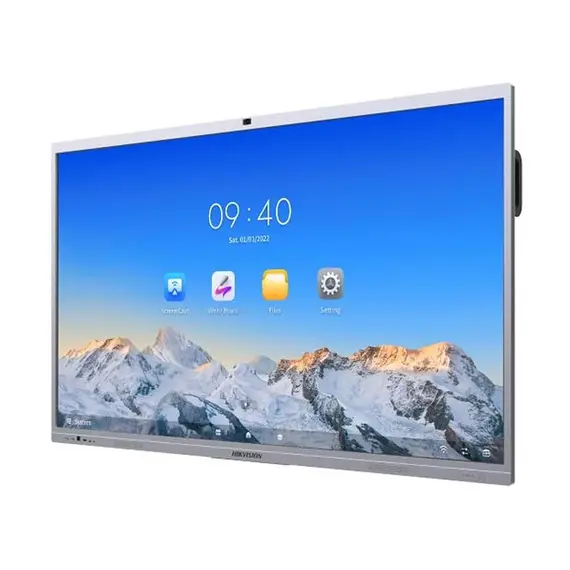

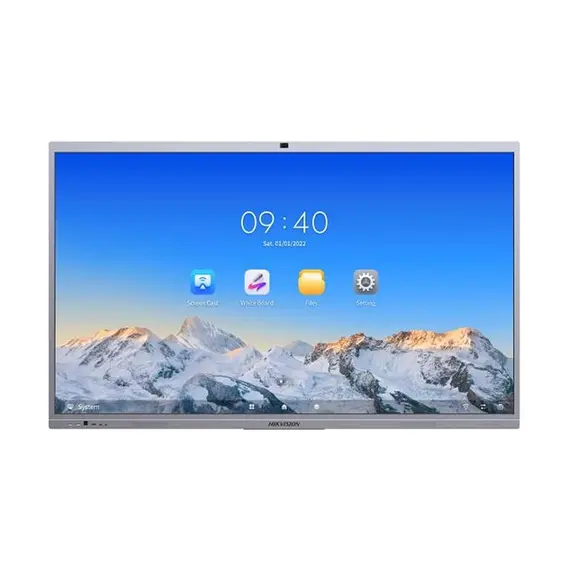

Hikvision DS-D5C75RB/B 75-inch 4K Interactive Display
Please sign in so that we can notify you about a reply
Interactive Display
-
Screen Size 75 inch
-
DLED Backlight
-
Pixel Pitch 0.14325(H) × 0.42975(V) mm
-
Aspect Ratio: 16:9
-
Resolution 3840 × 2160 @60 Hz
-
Brightness 400 cd/m² (Typ.)
-
Color Depth 10 bit
-
Response Time 5ms
-
Contrast Ratio 5000:1 (Static) 30,000:1 (Dynamic)
-
Refresh Rate 60 Hz
-
Color Gamut 72% NTSC (CIE1931) (Typ.)
-
Display Area 1650.24mm x 928.26mm
-
Display Area 1428.48 mm × 803.52 mm
-
Lifespan 50,000 hours
Interactive Platform
-
Processor Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
-
Memory 8 GB
-
Built-in Storage 128 GB
-
HDCP Version 2.3
-
HDCP Version 2.3
Interactive Touch
-
Type Infrared Touch Screen
-
Touch Point Up to 50-point multi-touch
-
Touch Point Up to 50-point multi-touch
-
Touch Resolution 32767 × 32767
Interactive INPUT
-
HDMI In (HDMI 2.0) × 3
-
Audio In × 1
-
VGA In × 1, DP In (DP 1.2) × 1
Interactive OUTPUT
-
Audio Out × 1
-
HDMI Out (HDMI 2.0) × 1
-
SPDIF Out × 1
-
TOUCH-USB 3.0 × 3, RS232 × 1
Interactive LAN
-
LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Interactive USB
-
USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
Interactive SPEAKERS
-
Built-in 2 × 20 W
Interactive Top Camera Plate
-
Pixel 48MP for Photos & 8 MP for Video
Interactive Embedded OS
-
Android 13.0
Interactive Power
-
Power Supply 100 to 240 VAC, 50/60 Hz
-
Average Consumption < 150W
Interactive OPERATING CONDITIONS
-
0 °C to 40 °C (32 °F to 104°F)
-
Working Humidity 10%~90% RH
Interactive DIMENSIONS (W x H x D)
-
Product dimensions 1713.2 mm × 1034.5 mm × 82.5 mm
-
Package Dimensions (W × H × D) 1937 mm × 264 mm × 1222 mm
Interactive WEIGHT
-
Net Weight 51.23 kg
-
Gross Weight 67.62 kg
75-inch 4K Interactive Display
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows（Optional with OPS） saving cost and easy to use, video conference software are recommonded to run under Windows system.
- Quick response, at most 50-points touch control and smooth writing experience.
- Built-in network switch chip saves a network switch.
- All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
- EDLA Certified
