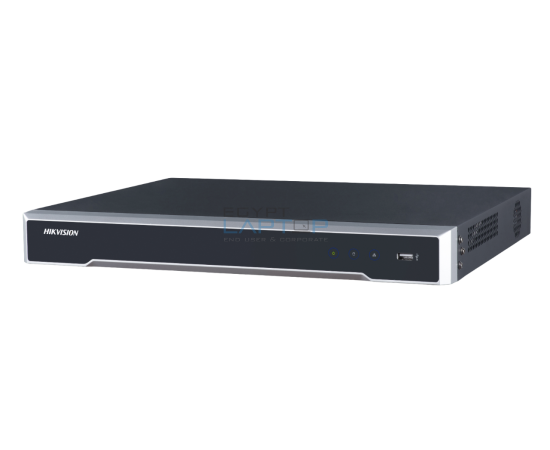

Hikvision DS-7608NI-Q2
8-ch 1U 4K NVR
Up to 8-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
Up to 80 Mbps incoming bandwidth
Motion Detection 2.0
Human/Vehicle Analysis
4-ch
Video And Audio
IP Video Input
8-ch
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
80 Mbps
HDMI Output
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA Output
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Video Output Mode
HDMI/VGA simultaneous output
Decoding
Decoding Format
H.265+,H.265,H.264+,H.264
Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback
8-ch
Decoding Capability
1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Stream Type
Video, Video & Audio
Network
Remote Connection
32
Network Protocol
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
2 SATA interfaces
Capacity
Up to 8 TB capacity for each disk
Alarm In/Out
N/A (4/1 is optional)
USB Interface
2 × USB 2.0
General
Power Supply
12 VDC, 3.33 A
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10 to 90 %
Chassis
1U chassis
Dimension (W × D × H)
385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight
≤ 1.8 kg (without HDD, 4.0 lb.)
