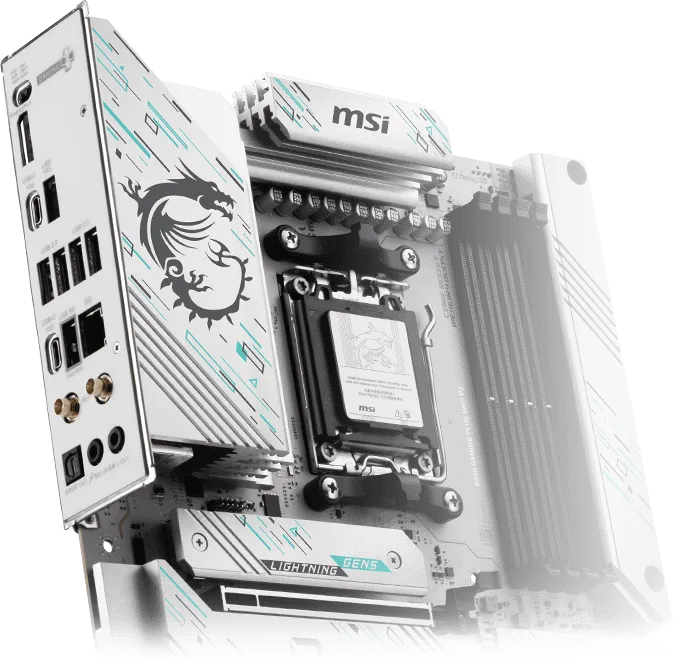

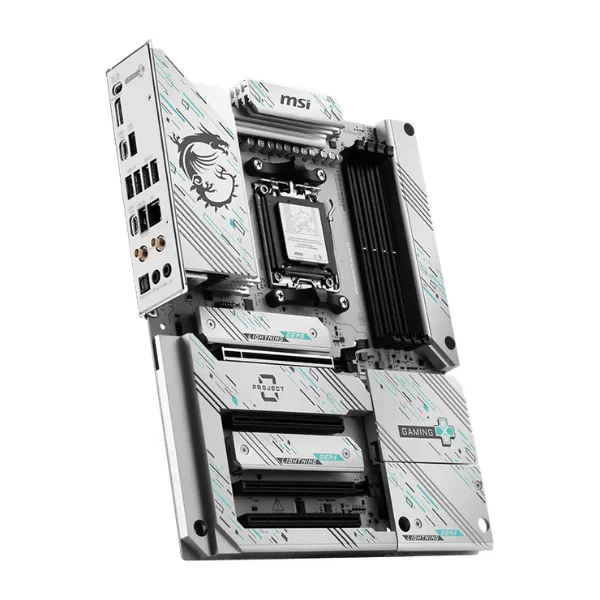

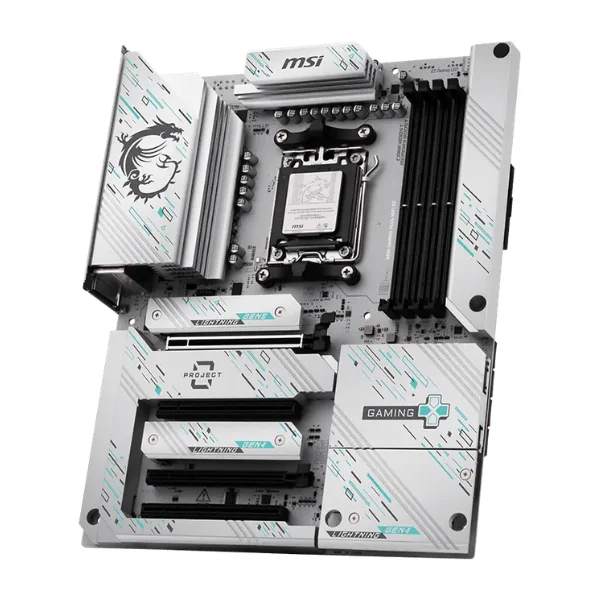

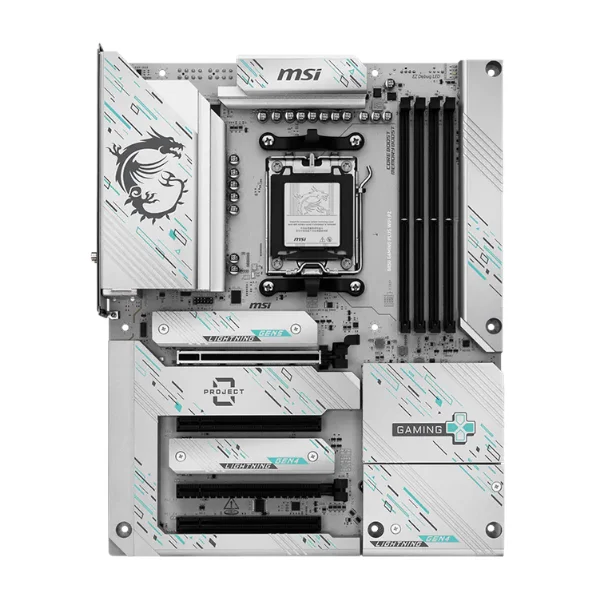

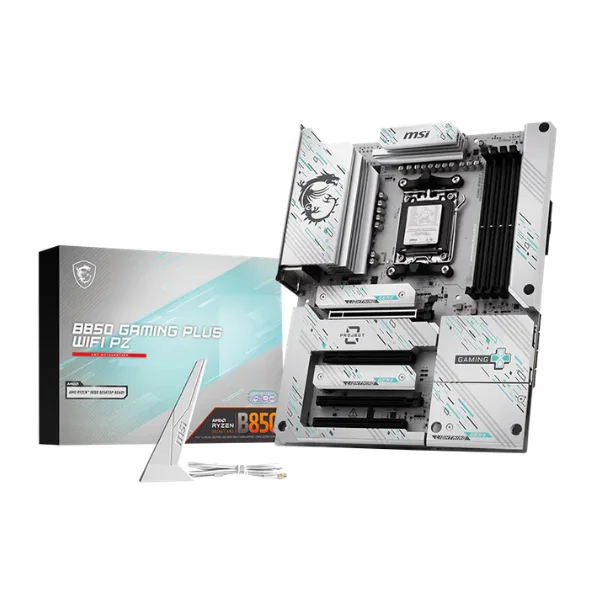

MSI B850 GAMING PLUS WIFI PZ AM5 DDR5 ATX Motherboard

MSI B850 GAMING PLUS WIFI PZ - Description

AM5 DDR5 ATX Motherboard

The MSI B850 GAMING PLUS WIFI PZ Motherboard is designed to deliver extensive connectivity, user-friendly features, and a premium wireless solution for gamers seeking a complete gaming platform. Equipped with Wi-Fi 7, 5G LAN, PCIe 5.0 support, Supplemental PCIe Power, and exclusive EZ DIY features, it is optimized for continuous gaming performance with AMD Ryzen™ 9000 series processors.

Ready for AI PC:

MSI motherboards are built to handle demanding gaming and AI workloads using advanced hardware and intelligent software. Integrated AI functions within MSI Center and BIOS simplify system optimization through automated tuning. AI Engine adjusts settings based on active applications, AI LAN Manager prioritizes network traffic to reduce latency, Frozr AI Cooling dynamically regulates fan speeds, and AI Boost enhances AI computing performance by overclocking the NPU.

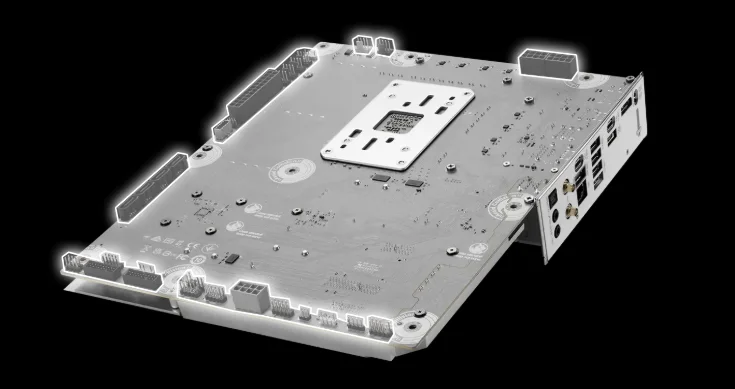

Back-Connect Design:

The back-connect layout relocates power connectors, fan headers, SATA ports, and other interfaces to the rear of the motherboard, enabling cleaner cable routing and a more organized system appearance.

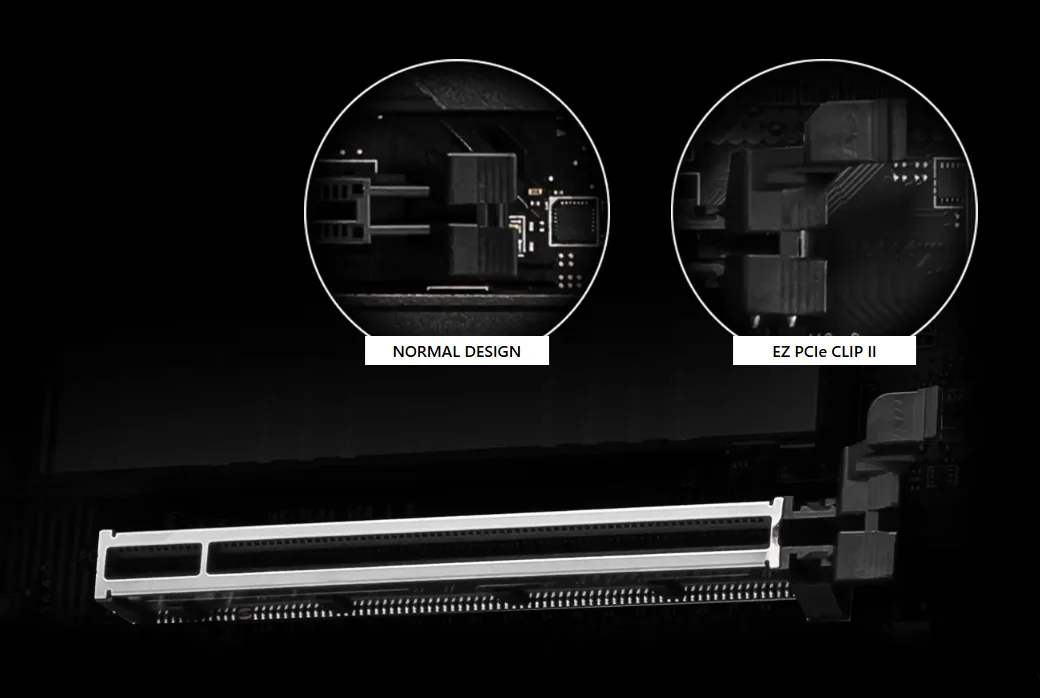

One Finger for EZ GPU Installation:

The EZ PCIe Clip II on the primary PCIe slot uses a spring-assisted mechanism that allows graphics cards to be removed easily with a single finger, even in compact cases.

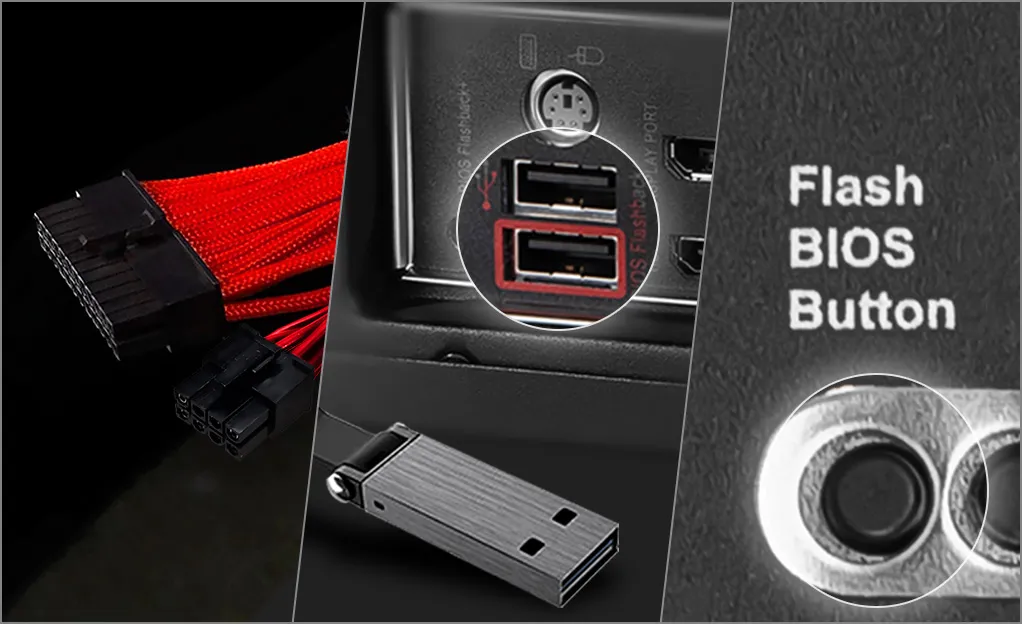

Flash BIOS Button:

Update the BIOS with only the power supply connected, eliminating the need to install a CPU or memory modules.

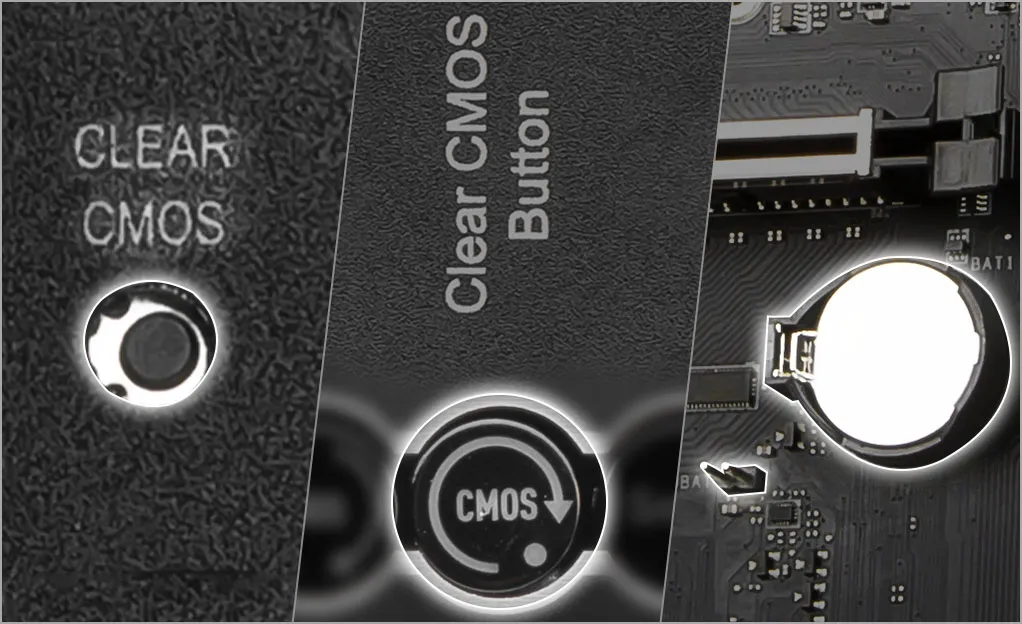

Clear CMOS Button:

Quickly reset BIOS settings to their factory defaults to resolve most boot and configuration problems.

Pre-Installed I/O Shield:

A built-in I/O shield simplifies installation by ensuring proper alignment and eliminating the need for manual fitting while also improving durability.

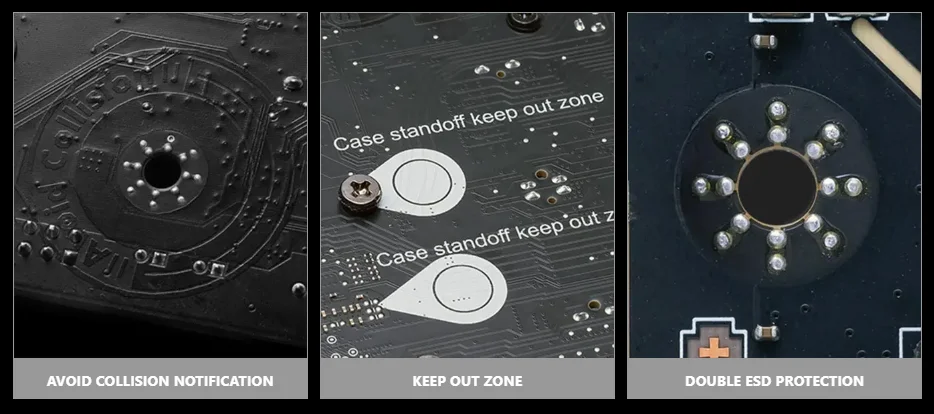

EZ Mounting:

Protective paint surrounding the mounting holes helps prevent scratches and damage during motherboard installation.

MSI EZ Antenna:

The EZ Antenna design allows quick installation by attaching the connectors without the need for twisting or rotation.

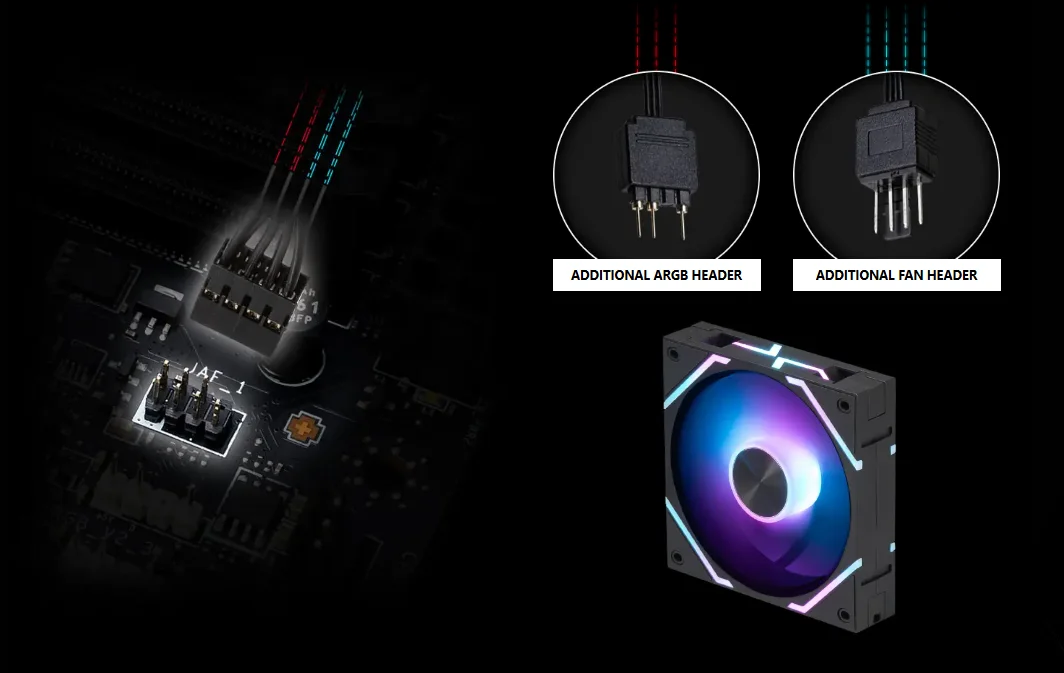

EZ Conn-Design:

The exclusive JAF_1 header enables compatible MSI ARGB fans to operate through a single cable and can be expanded into additional fan and lighting headers with an optional EZ Conn cable.

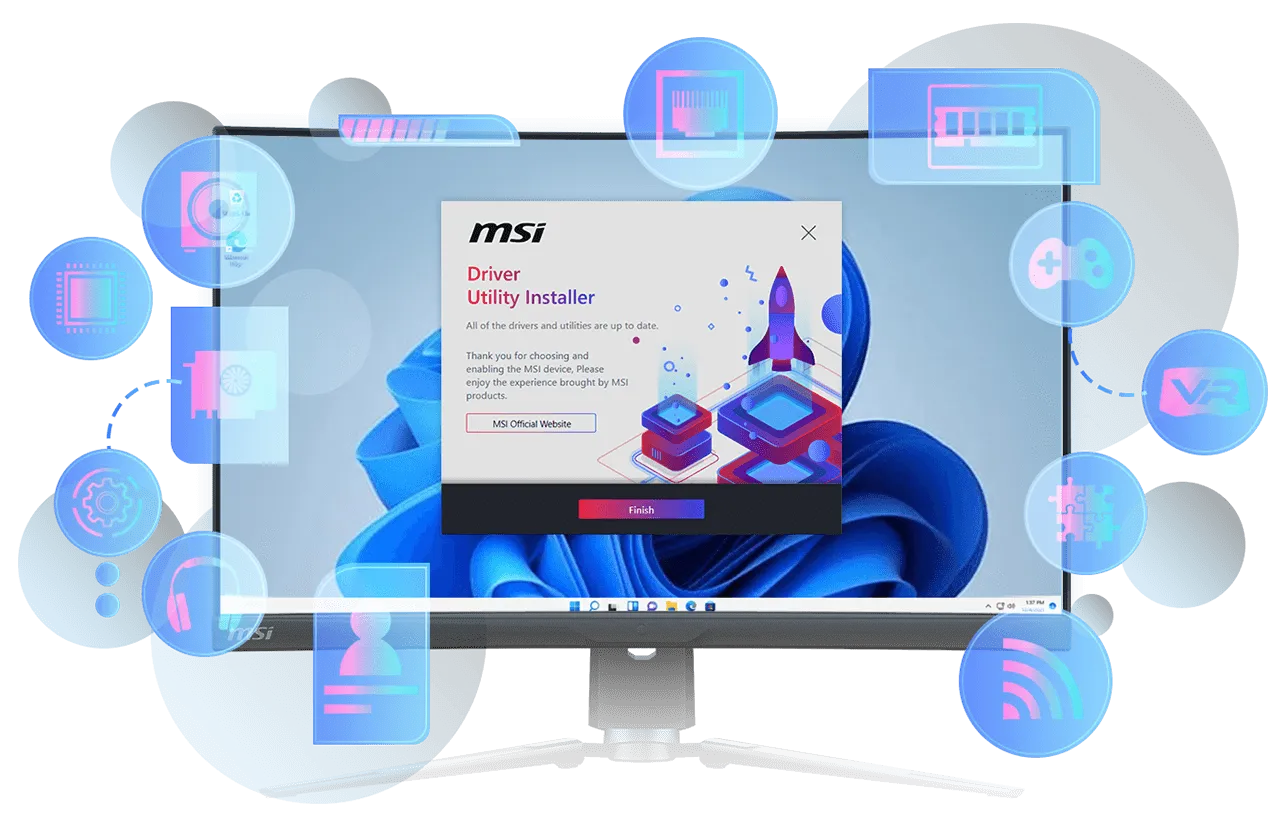

Driver Utility Installer:

After connecting to the internet, MSI Driver Utility Installer automatically detects and suggests suitable drivers and utilities for convenient installation.

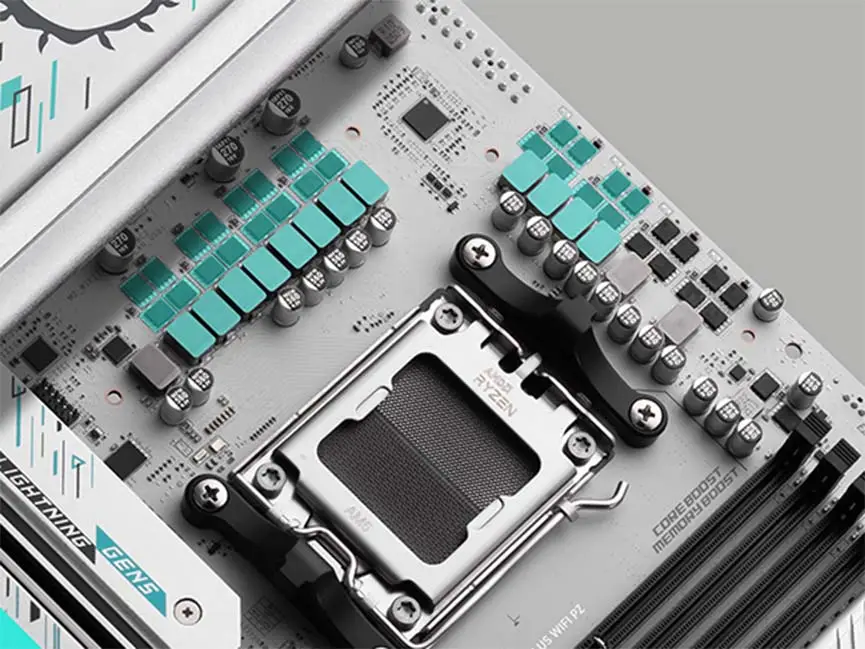

12+2+1 Duet Rail Power System:

Featuring a digital power design with dual 8-pin CPU connectors and Core Boost technology, the motherboard is built to maintain stable performance during demanding gaming sessions.

OPTIMIZED PCB SOLUTION:

A 6-layer PCB with 2oz thickened copper improves signal quality, enhances bandwidth, and ensures stable high-speed data transmission.

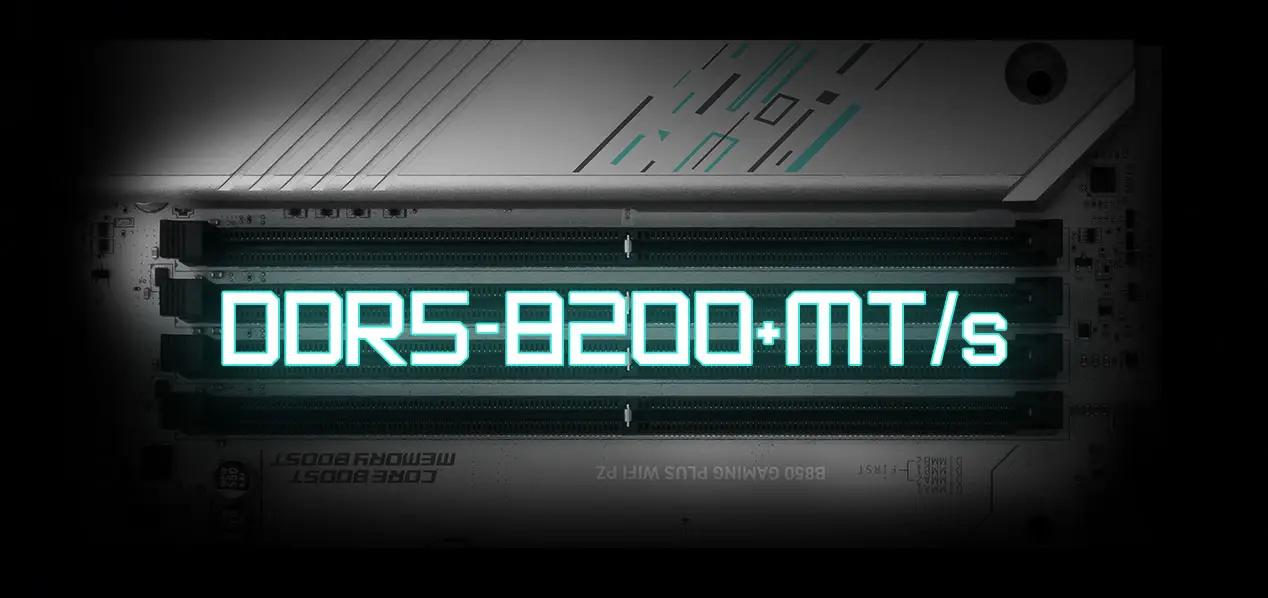

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE:

Support for the latest DDR5 memory, combined with SMT soldering and MSI Memory Boost technology, provides enhanced memory speeds and overall system performance.

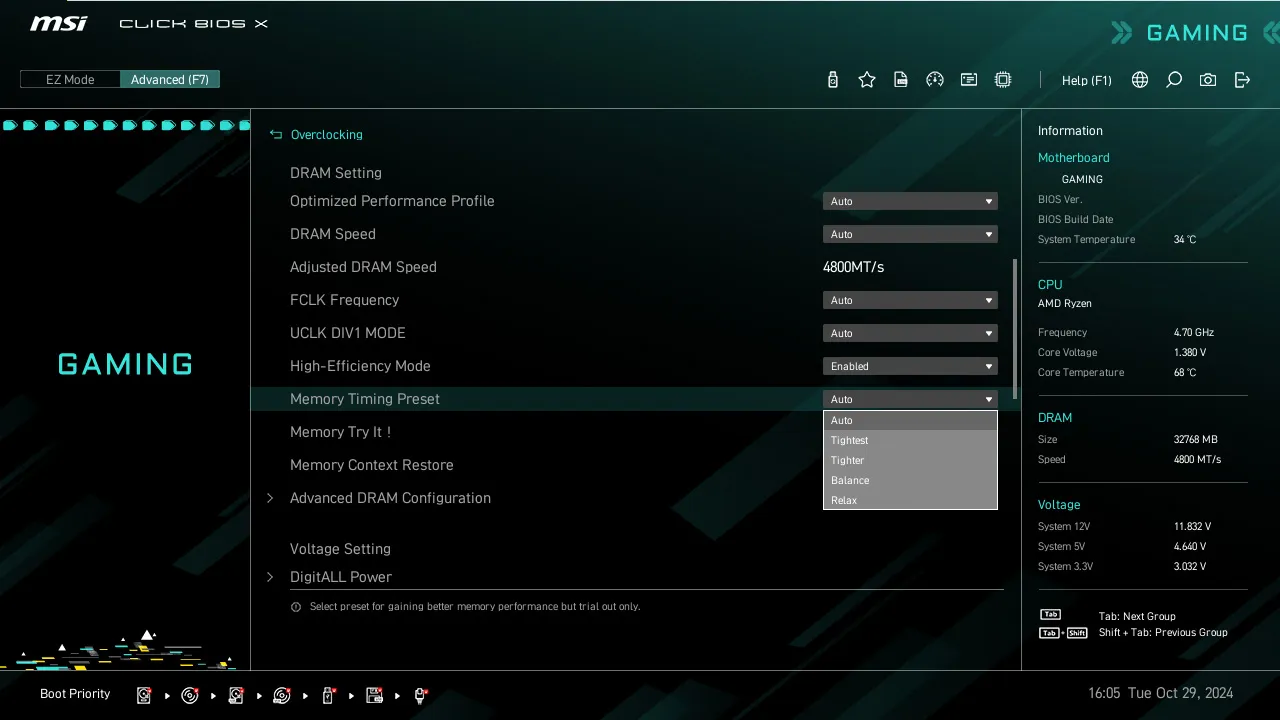

High-Efficiency Mode:

This feature improves memory bandwidth and reduces latency by offering four preset timing configurations, allowing users to optimize settings based on memory quality.

Transient Voltage Suppressors (TVS):

Integrated TVS components protect the motherboard against voltage spikes by safely redirecting excess voltage to ground, helping prevent circuit damage.

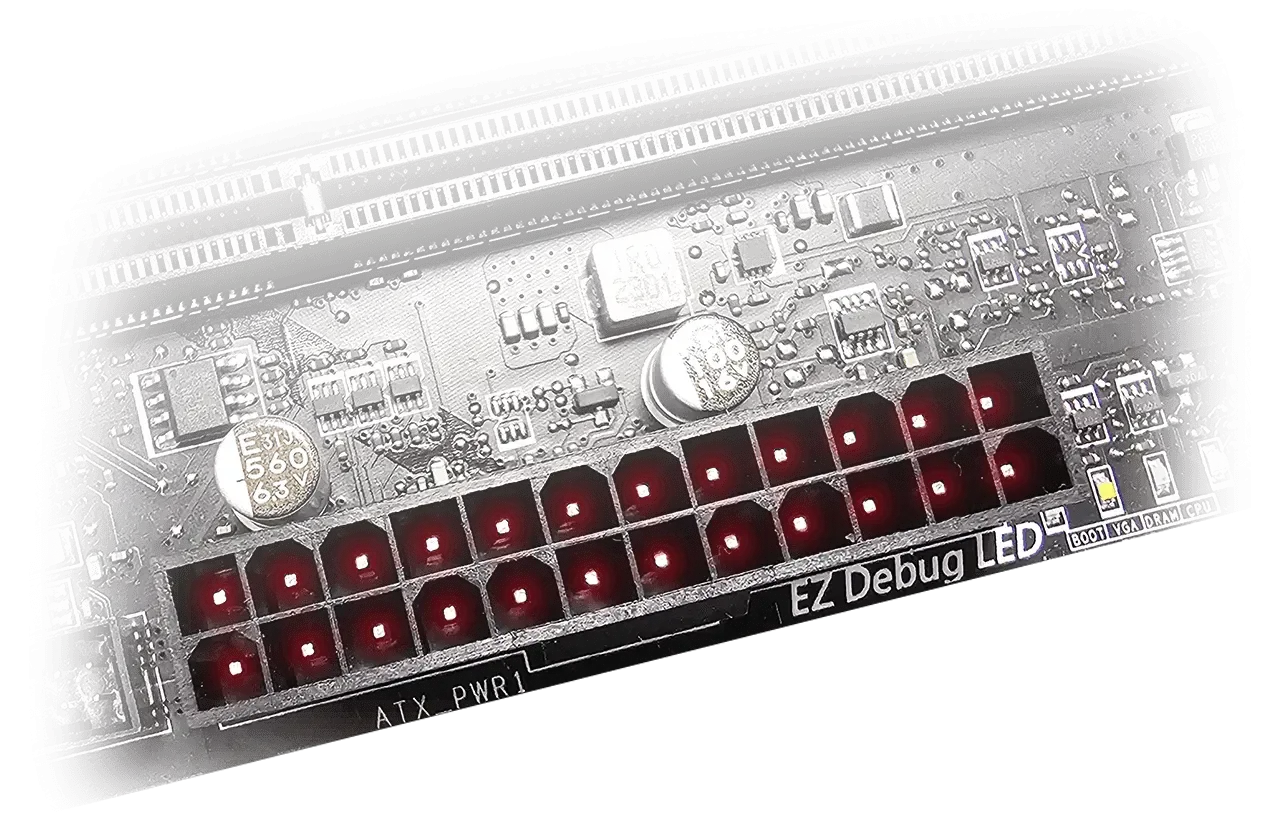

Solid Pin Design:

Solid-pin 8-pin and 24-pin power connectors ensure stable delivery of 12V power to the CPU, even under high-current workloads.

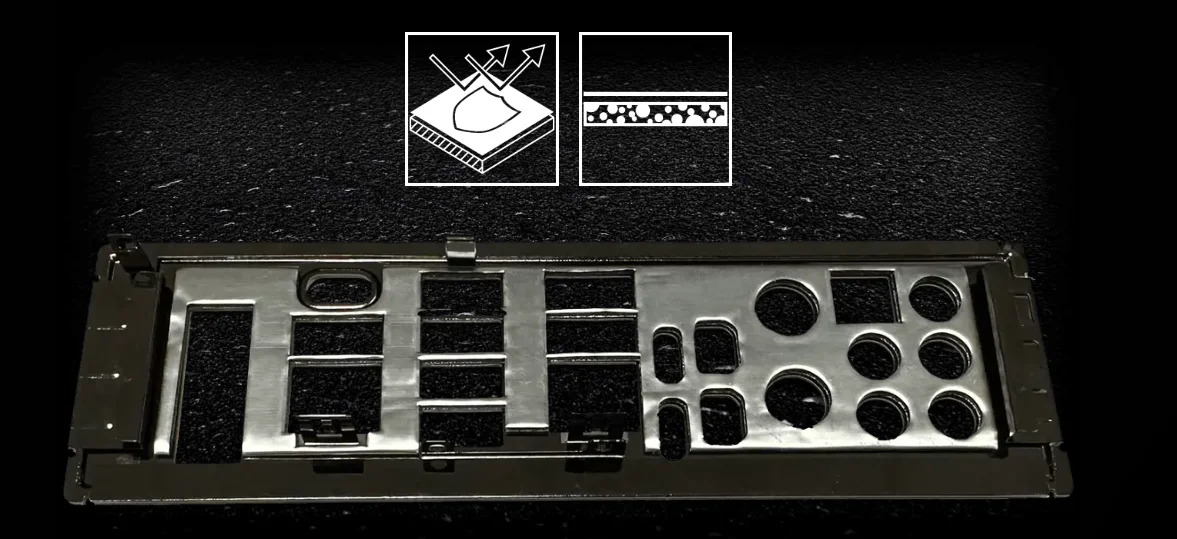

Stainless Steel IO:

A corrosion-resistant I/O shield with an added sponge layer improves durability, reduces electromagnetic interference, and enhances protection against static electricity.

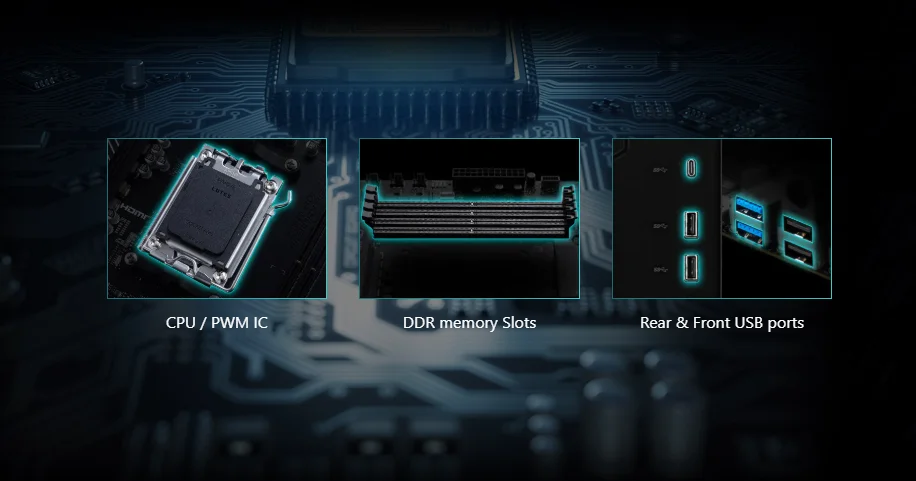

Over Current Protection:

Built-in overcurrent protection safeguards USB ports, memory slots, the PWM controller, and CPU from excessive current, improving long-term reliability.

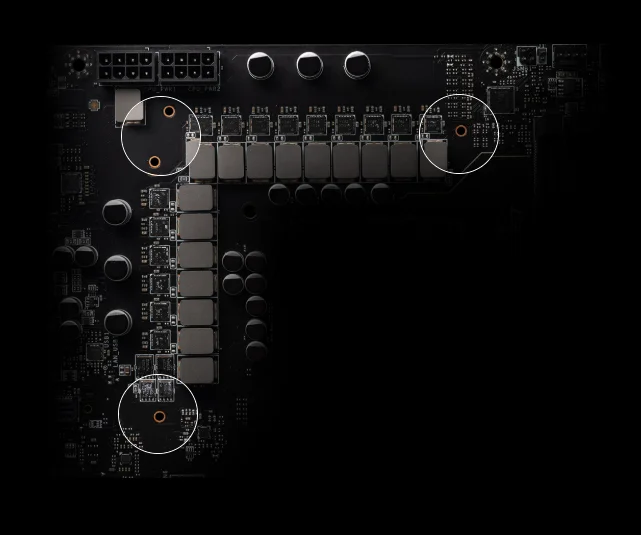

The Grounding Structure of Power Phases:

MSI's exclusive grounding design reduces electromagnetic interference generated by power components while efficiently transferring heat to the PCB's copper layers.

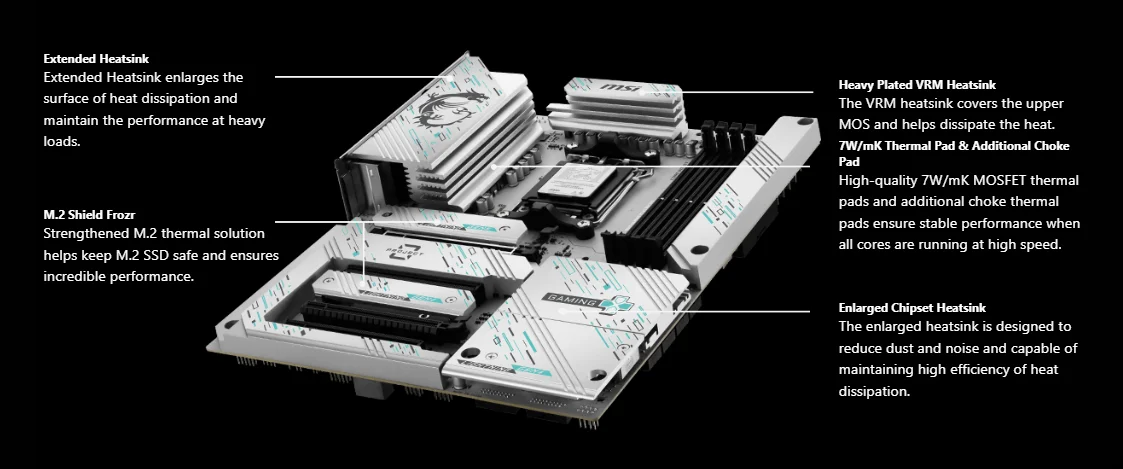

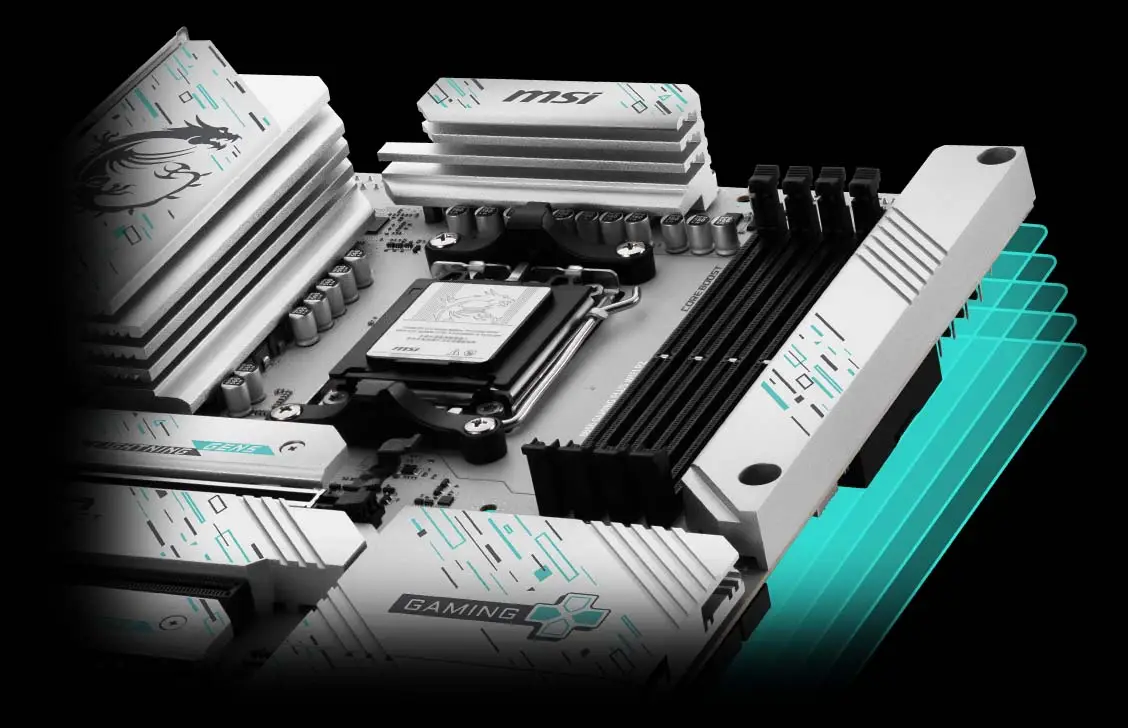

Advanced Cooling Design:

Extended heatsinks, reinforced M.2 cooling solutions, and premium 7W/mK thermal pads provide effective heat dissipation and maintain stable operation under heavy workloads.

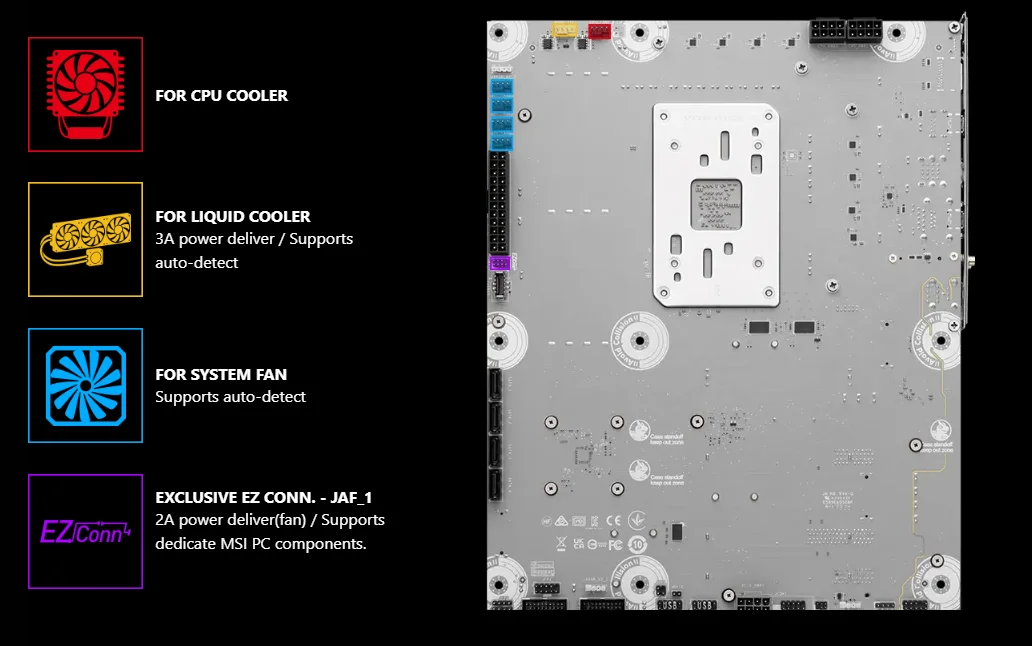

Flexible Cooling and Fan Connectivity:

Dedicated headers support CPU coolers, liquid cooling systems, and case fans, while MSI EZ Conn simplifies compatibility with supported cooling accessories.

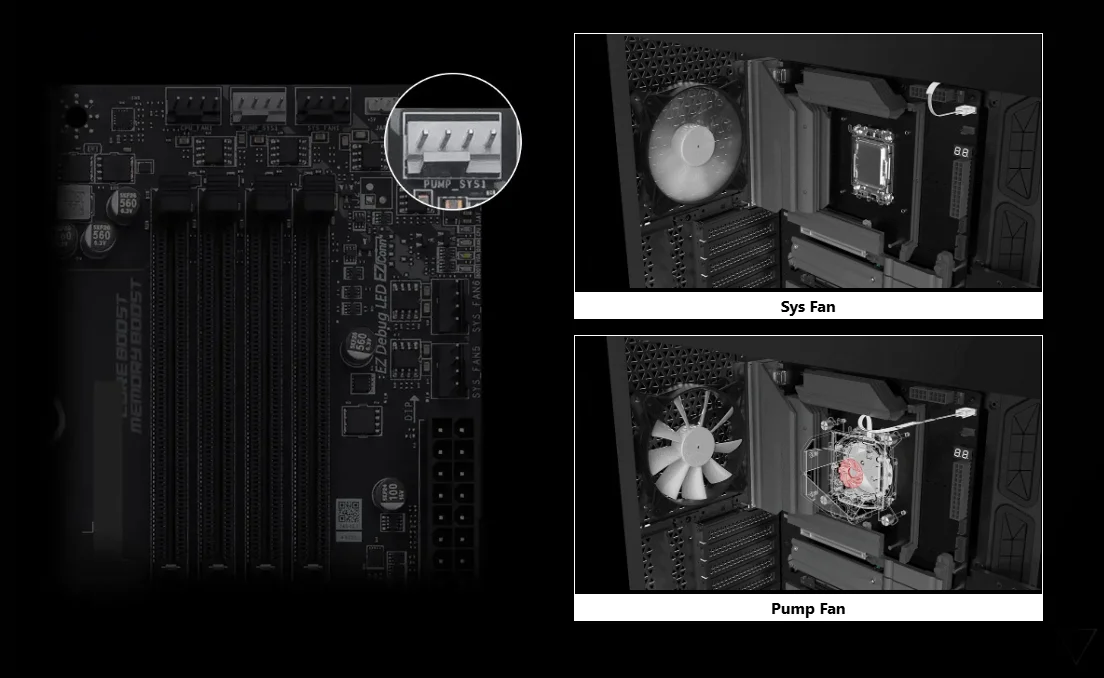

Combo Fan Header:

The Combo Fan Header automatically detects whether a connected device is a pump or PWM/DC fan, offering greater flexibility for cooling configurations.

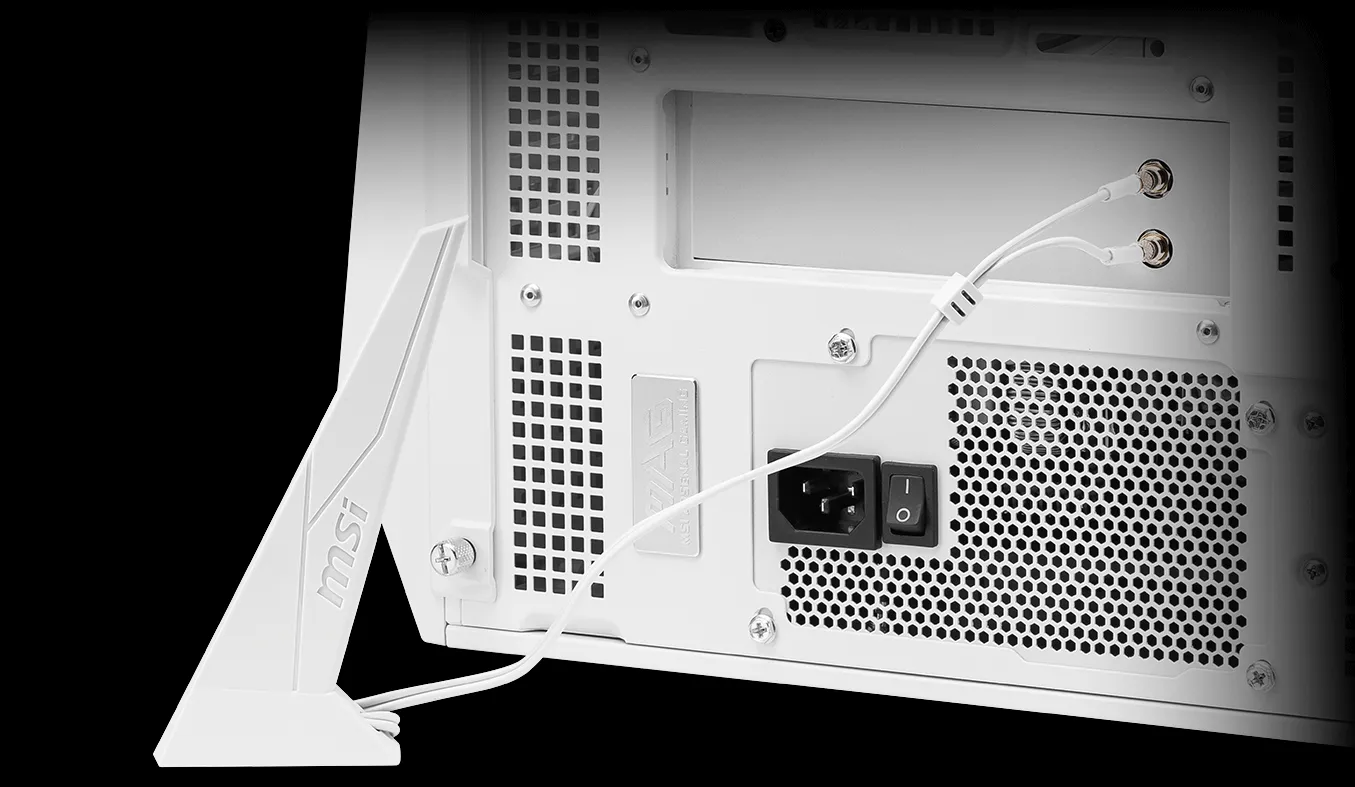

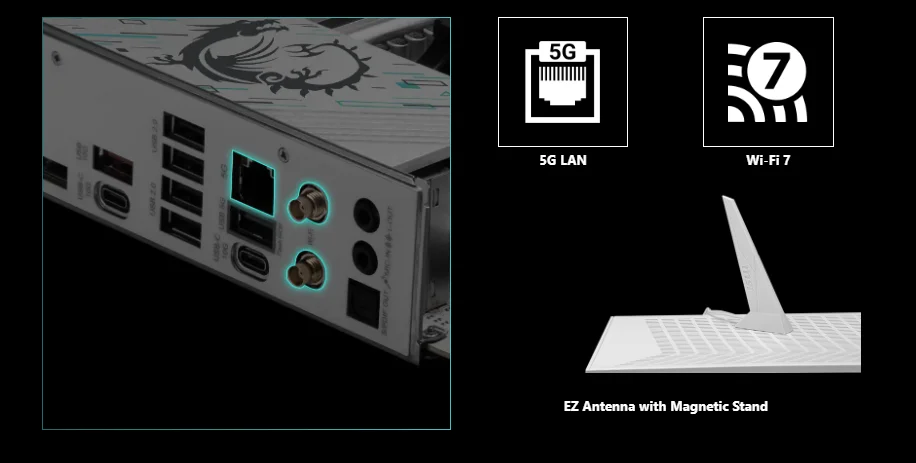

High-Speed Networking:

With 5G LAN, Wi-Fi 7, and an EZ Antenna featuring a magnetic stand, the motherboard delivers fast and responsive networking for gaming, streaming, and other bandwidth-intensive tasks.

Wi-Fi 7 Solution:

Wi-Fi 7 provides wireless speeds of up to 5.8Gbps and introduces 320MHz channels, 4096-QAM modulation, and Multi-Link Operation (MLO) for lower latency and improved efficiency in crowded networks.

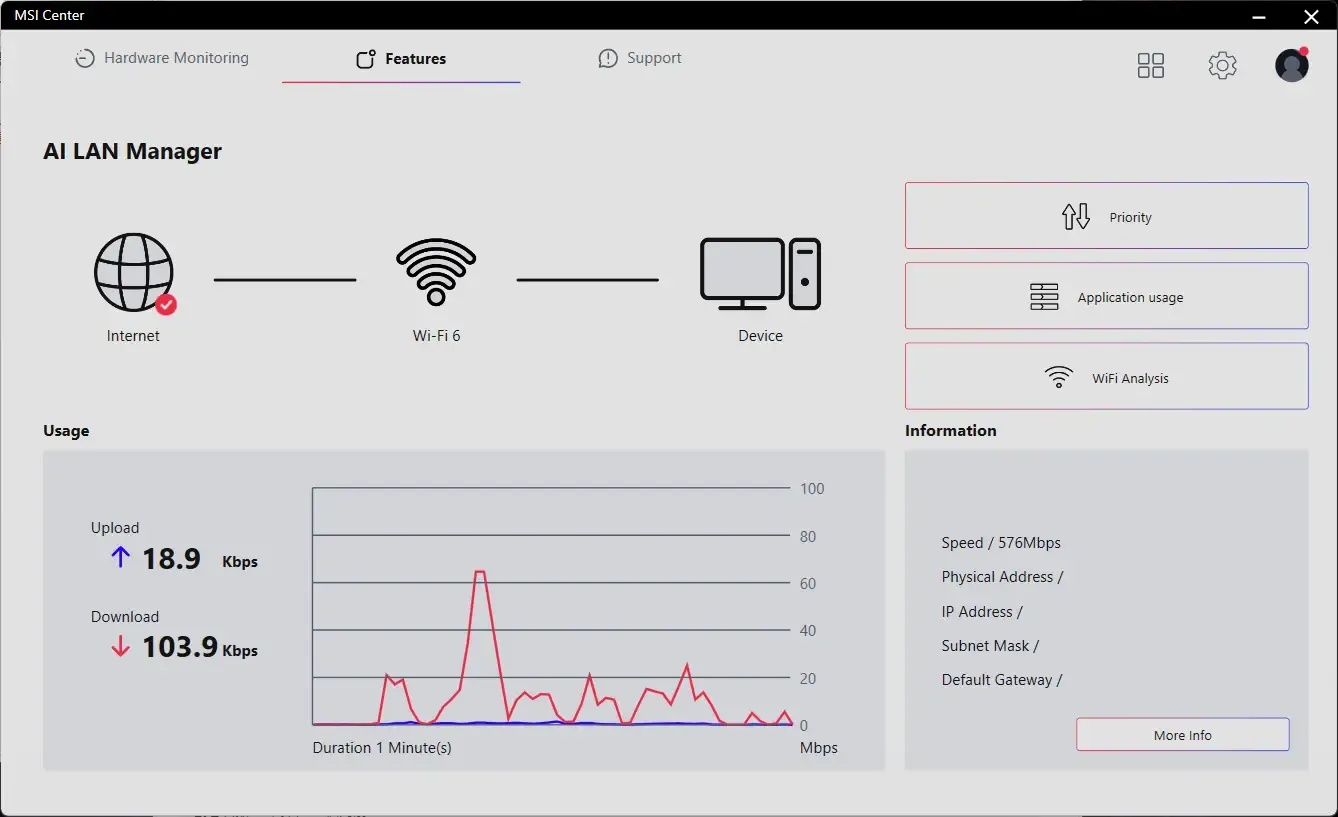

AI LAN Manager:

AI LAN Manager automatically detects and prioritizes latency-sensitive applications, helping maintain smoother online gaming performance.

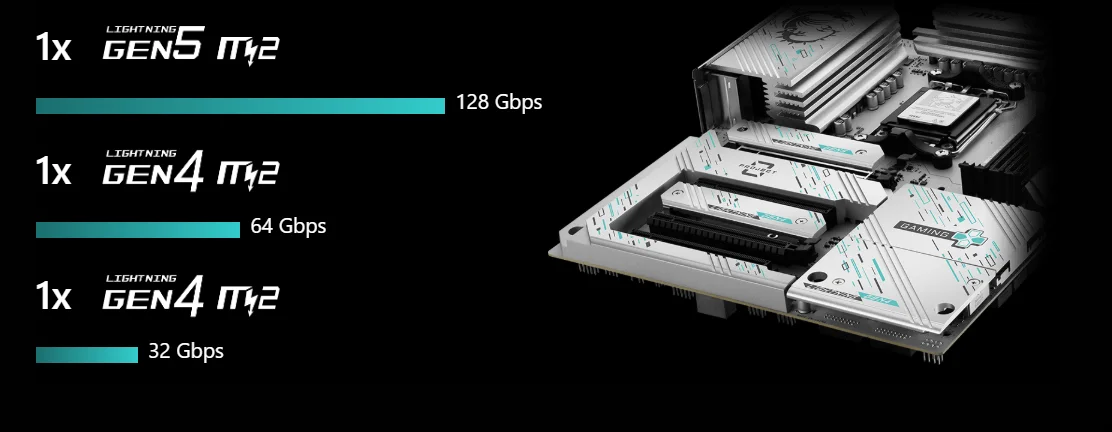

FAST AND FUTURE-READY STORAGE:

Support for the latest storage technologies enables compatibility with ultra-fast SSDs, reducing game loading times and improving overall responsiveness.

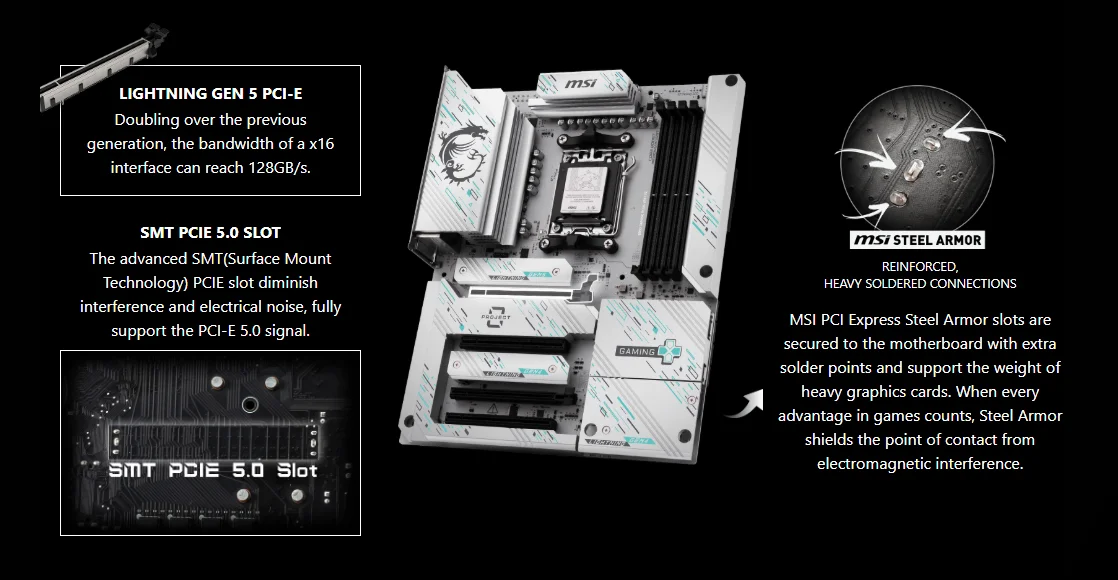

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR:

The PCIe 5.0 x16 slot delivers up to 128GB/s of bandwidth for next-generation graphics cards and expansion devices. An advanced SMT slot design minimizes signal interference, while MSI Steel Armor strengthens the slot with additional solder points to improve durability and support heavy GPUs.

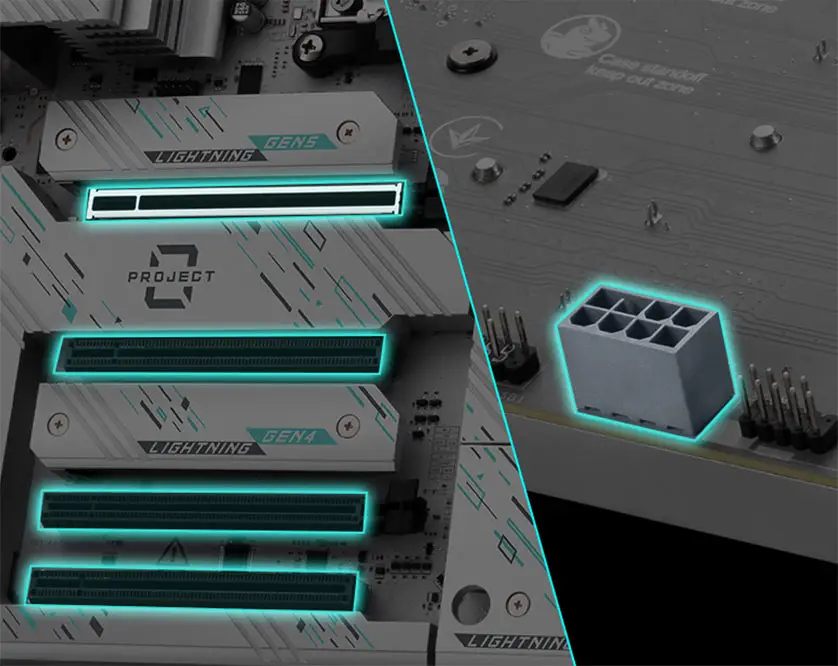

PCIe supplemental power:

A dedicated Supplemental PCIe Power connector supplies additional power for high-performance graphics cards used in gaming and AI applications, ensuring stable and efficient operation.

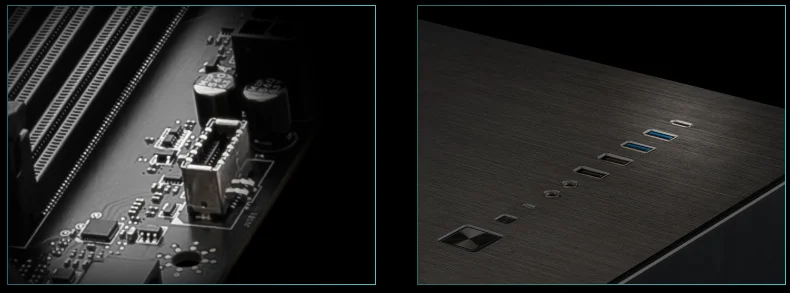

Front USB Type-C:

Front-panel USB Type-C support allows convenient access to modern USB devices and is optimized for use with compatible MSI cases.

The Isolated Analogy Structure for Audio Connectors:

MSI's isolated audio connector design separates the external metal housing from the internal circuitry, helping deliver clearer and more refined sound quality.
