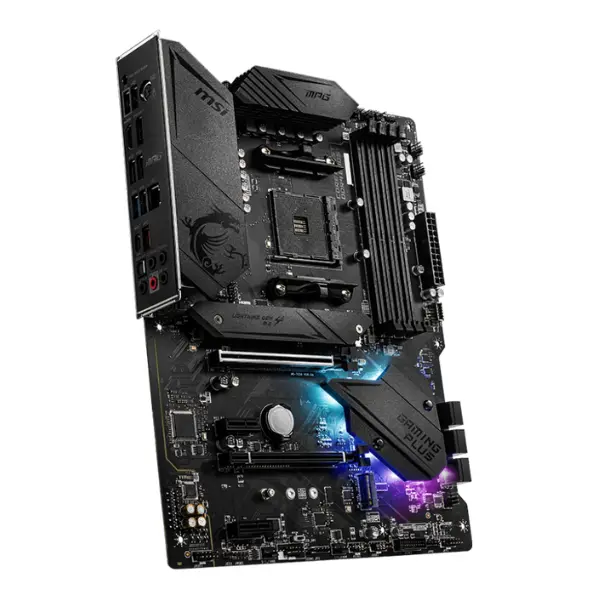

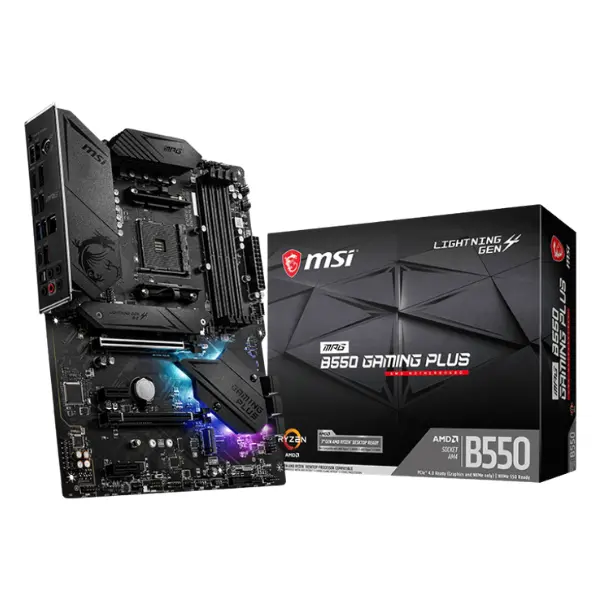

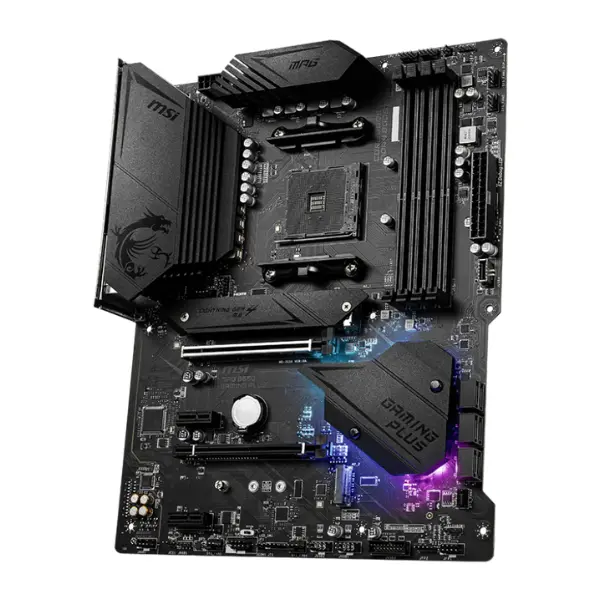

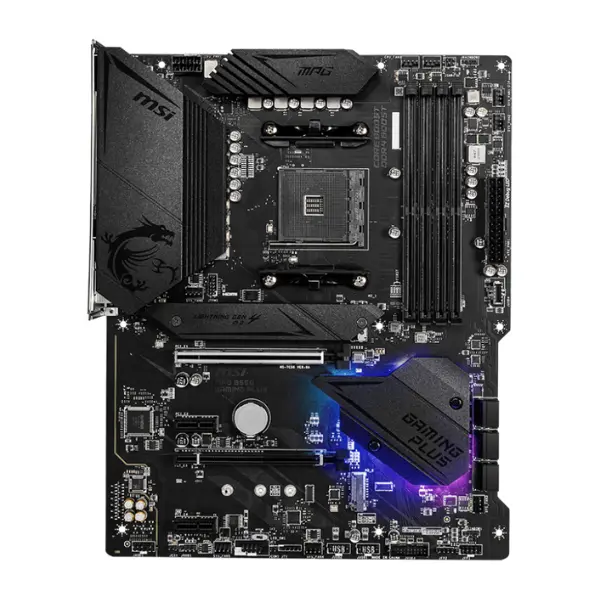

Msi MPG B550 Gaming Plus AM4 DDR4 ATX Motherboard

Msi MPG B550 Gaming Plus - Description

AM4 DDR4 ATX Motherboard

Performance-Driven ATX Gaming Motherboard:

MSI MPG B550 Gaming Plus Motherboard is designed for gamers and PC builders who want reliable performance, advanced features, and future-ready support. Built on the AMD B550 chipset, this motherboard supports AMD Ryzen™ 5000 and 3000 Series desktop processors, as well as Ryzen™ 4000 G-Series desktop processors, making it a versatile choice for modern gaming systems. With its robust power delivery, high-speed connectivity, and gaming-focused optimizations, it ensures a smooth and powerful computing experience.

High-Speed Memory and Overclocking Support:

Equipped with four DDR4 DIMM slots, the MPG B550 Gaming Plus supports up to 128GB of dual-channel memory. It offers JEDEC support for speeds from 1866MHz up to 3200MHz and extends far beyond with A-XMP overclocking modes, reaching speeds of 4400+ MHz depending on configuration. Whether you are gaming, streaming, or multitasking, this motherboard provides the memory bandwidth and stability needed for demanding workloads.

Advanced Expansion and Multi-GPU Support:

For gamers who want flexibility, the board features two PCIe x16 slots and two PCIe x1 slots, with the primary PCIe slot supporting PCIe 4.0 for maximum GPU bandwidth. Multi-GPU setups are supported through 2-Way AMD CrossFire™ Technology, enabling smoother graphics performance for demanding titles. The expansion slots are reinforced for durability, ensuring long-lasting stability for heavy graphics cards.

Fast Storage Options with Dual M.2 and SATA:

The MSI MPG B550 Gaming Plus offers comprehensive storage solutions, including six SATA III ports and two M.2 slots. The primary M.2 slot supports PCIe 4.0/3.0 x4 and SATA drives, while the secondary slot supports PCIe 3.0 x4 SSDs. This combination allows gamers to enjoy lightning-fast boot times and rapid data transfers, ideal for modern NVMe SSDs. RAID configurations (0, 1, and 10) are also supported for enhanced performance and data protection.

Connectivity and USB Options:

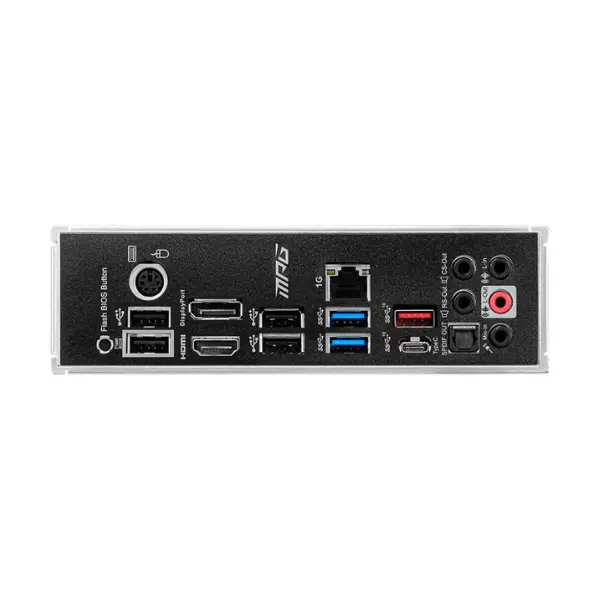

Connectivity is a major highlight of this board, with a wide range of USB 3.2 Gen 2 and Gen 1 ports, including a rear Type-C port and front-panel Type-C header. With multiple USB 2.0 options, gamers can easily connect peripherals and accessories. The motherboard also features HDMI™ 2.1 and DisplayPort outputs, supporting up to 4K resolution at 60Hz for processors with integrated graphics.

Immersive Audio and Reliable Networking:

The MSI MPG B550 Gaming Plus uses the Realtek® ALC892/897 audio codec, providing 7.1-channel high-definition audio for immersive gaming and entertainment. It also includes an optical S/PDIF output for premium sound setups. For networking, the board is powered by a Realtek® 8111H Gigabit LAN controller, ensuring stable and lag-free online gaming performance.

Built for Gamers – Cooling and Aesthetics:

This motherboard is equipped with multiple fan headers, water-pump support, and EZ Debug LEDs for easier troubleshooting. RGB customization is enabled with RGB and RAINBOW LED headers, giving gamers the freedom to create stunning PC lighting setups. The durable ATX form factor design ensures compatibility with a wide range of gaming cases and cooling systems.
