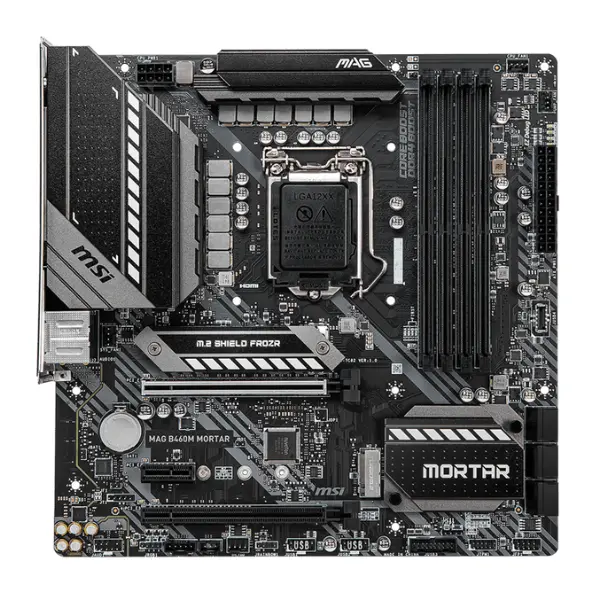

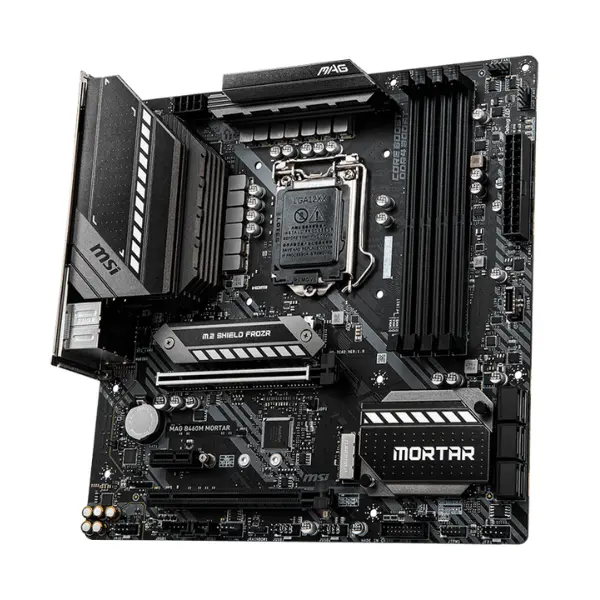

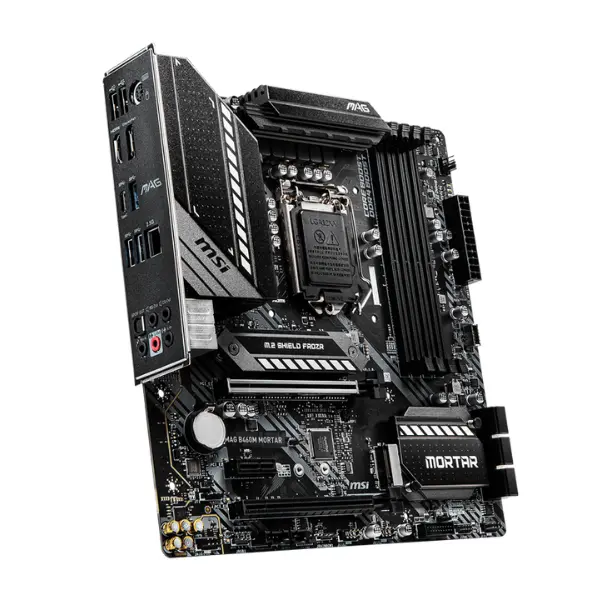

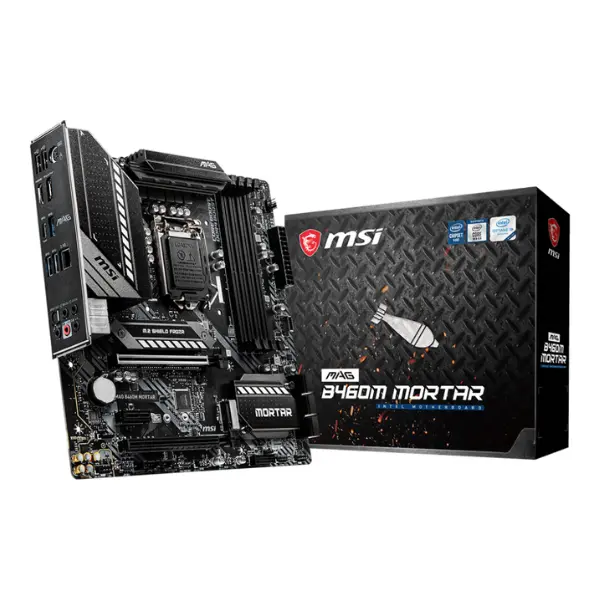

Msi Mag B460M Mortar LGA1200 DDR4 mATX Motherboard

Msi Mag B460M Mortar - Description

LGA1200 DDR4 mATX Motherboard

Compact Power for Gaming and Productivity:

MSI MAG B460M Mortar Motherboard is designed for gamers and professionals who want reliability, speed, and efficiency in a compact micro-ATX form factor. Built to support 10th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, this board delivers outstanding stability and performance for gaming, content creation, and everyday computing needs.

Advanced Memory and Expansion Support:

With four DDR4 DIMM slots supporting up to 128GB of dual-channel memory, the B460M Mortar ensures smooth multitasking and enhanced performance. Speeds reach 2933 MHz with Intel® Core™ i7/i9 CPUs, while Core™ i5 and below support up to 2666 MHz. The board also offers flexible expansion with two PCIe 3.0 x16 slots (one from CPU, one from PCH), and a PCIe 3.0 x1 slot for additional components, making it suitable for gaming GPUs and upgrade options.

High-Speed Storage and Connectivity:

For storage, the motherboard provides six SATA 6Gb/s ports and two M.2 slots. The M2_1 slot supports PCIe 3.0 x4 and SATA SSDs, while M2_2 supports PCIe 3.0 x4 with Intel® Optane™ memory ready. RAID 0, 1, 5, and 10 are supported for added speed and redundancy. Networking is powered by a Realtek® 2.5G LAN controller, ensuring low-latency gaming and fast file transfers.

Premium Features and Cooling Solutions:

MSI equips this board with 12+1+1 power phases, Core Boost technology, and extended heatsinks with M.2 Shield Frozr for maximum stability under heavy loads. Users benefit from Turbo USB 3.2 Gen 1 ports, pre-installed I/O shielding, and Audio Boost with Realtek® ALC1200 Codec for immersive, studio-grade sound. RGB and ARGB headers provide customization options, while multiple fan and pump headers ensure efficient cooling for gaming rigs.

Compact and Reliable Design:

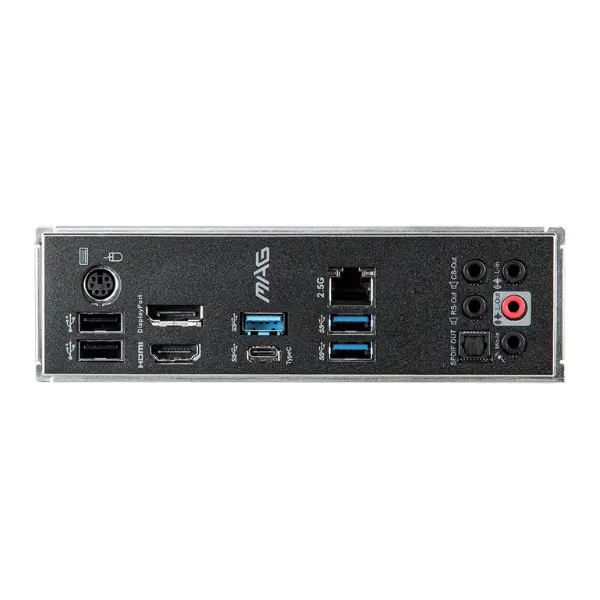

Measuring 24.3 cm x 24.3 cm, this micro-ATX motherboard fits easily into smaller cases while still offering powerful features. Back panel connectivity includes USB 3.2 Gen 1 Type-A and Type-C ports, HDMI, DisplayPort, 2.5G LAN, optical S/PDIF, and HD audio connectors, making it versatile for gaming or workstation builds.
