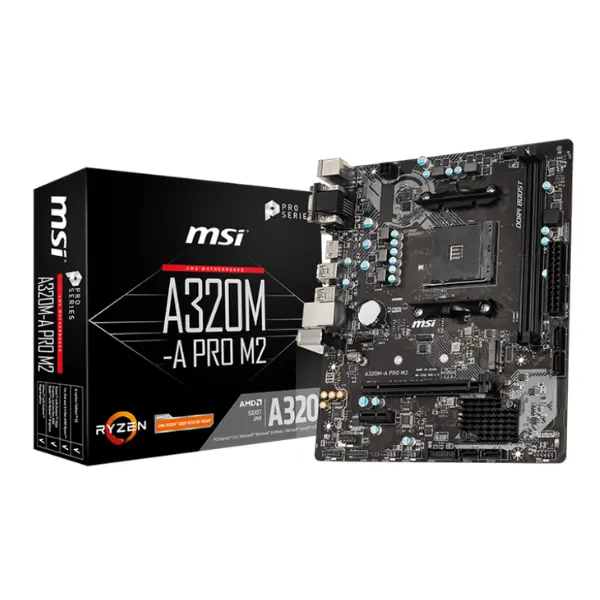

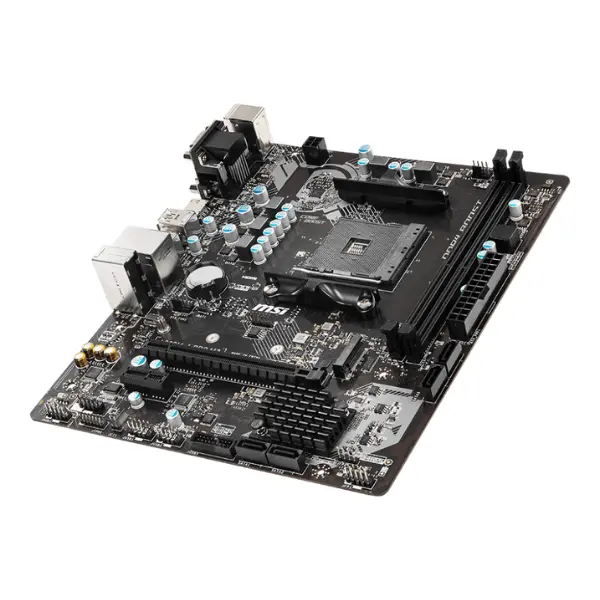

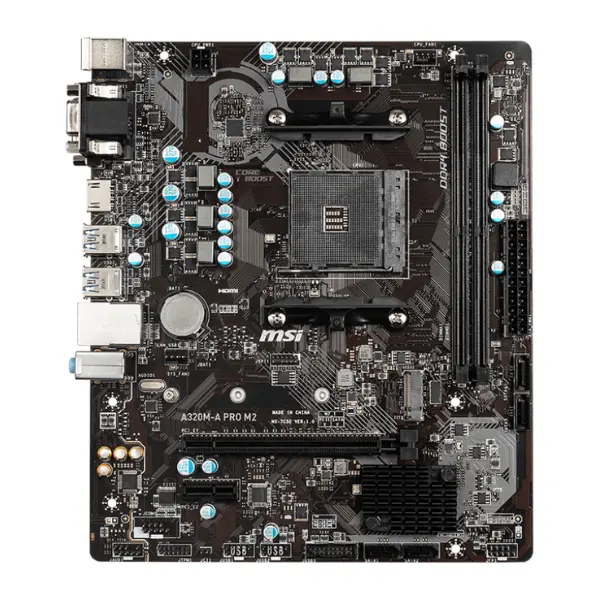

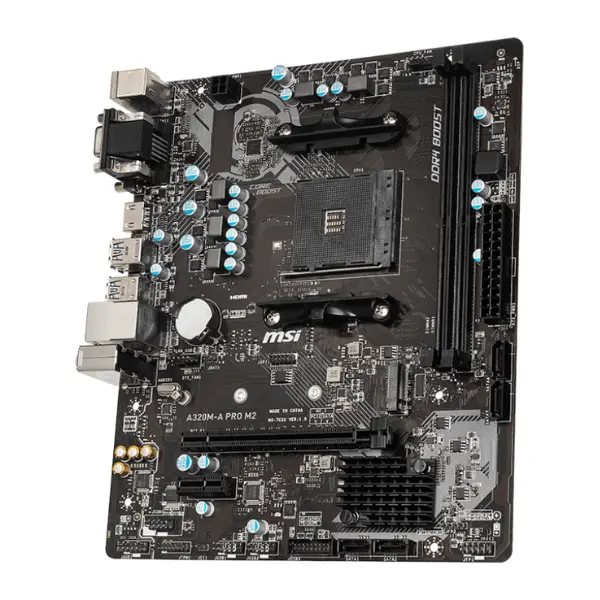

Msi A320M-A Pro M2 AM4 DDR4 mATX Motherboard

Msi A320M-A Pro M2 - Description

AM4 DDR4 mATX Motherboard

Reliable Performance with AM4 Socket and A320 Chipset:

MSI A320M-A Pro M2 motherboard is built on the AMD® A320 chipset and designed for the AM4 socket, making it compatible with a wide range of AMD® processors. It supports 1st, 2nd, and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics, Athlon™ with Radeon™ Vega Graphics, A-series, and Athlon™ X4 processors. This flexibility ensures excellent performance for both gaming and professional tasks while maintaining stability and reliability.

Dual Channel DDR4 Memory Support:

Equipped with two DDR4 memory slots, the A320M-A Pro M2 supports up to 64GB of memory. It is optimized for speeds from 1866MHz to 3200MHz (OC), enabling faster data transfer and smoother multitasking. With dual-channel architecture and ECC/Non-ECC UDIMM support, users can build a powerful and efficient system tailored to gaming, content creation, or everyday computing needs.

Expansion Slots and Graphics Connectivity:

This micro-ATX motherboard features one PCIe 3.0 x16 slot for discrete graphics cards, as well as a PCIe 2.0 x1 slot for additional expansion cards. For onboard graphics, it offers VGA, DVI-D, and HDMI™ outputs, supporting resolutions up to 4K via HDMI. With these options, users have the freedom to connect modern displays or maintain compatibility with older monitors.

High-Speed Storage and M.2 Slot:

The MSI A320M-A Pro M2 includes four SATA III 6Gb/s ports and one M.2 slot for SSDs, supporting PCIe 3.0 x4 or SATA 6Gb/s storage devices. This allows for flexible storage configurations, RAID 0/1/10 setups, and faster boot times. The M.2 slot supports multiple form factors (2242/2280/22110), ensuring compatibility with different storage solutions.

Connectivity, Audio, and Networking:

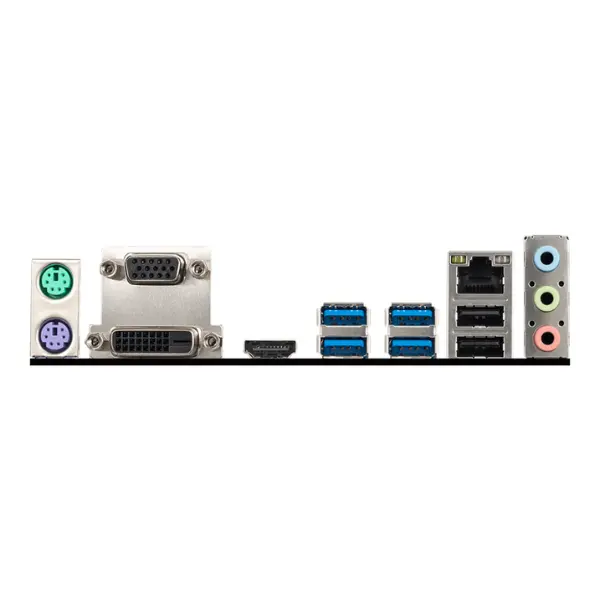

For connectivity, the board offers six USB 3.2 Gen1 ports and six USB 2.0 ports, ensuring seamless integration of peripherals. It features Realtek® ALC892 7.1-channel HD audio for immersive sound and a Realtek® 8111H Gigabit LAN controller for stable network performance. The well-designed I/O panel includes HDMI, VGA, DVI-D, LAN, USB ports, and HD audio connectors, providing complete connectivity for modern setups.

Compact mATX Design and OS Support:

With a micro-ATX form factor measuring 23.6cm x 20.0cm, the MSI A320M-A Pro M2 is compact yet feature-rich. It includes six mounting holes for easy installation and supports both Windows® 10 64-bit and Windows® 7 64-bit (with Pinnacle Ridge & Summit Ridge CPUs). This makes it an excellent choice for users looking for a budget-friendly yet versatile motherboard solution.
