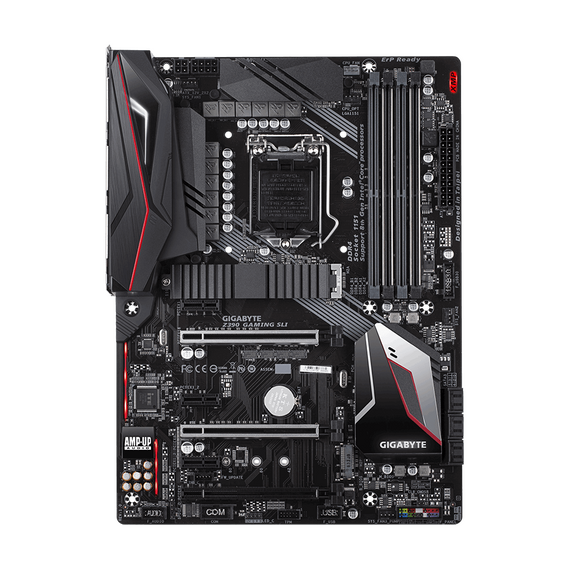

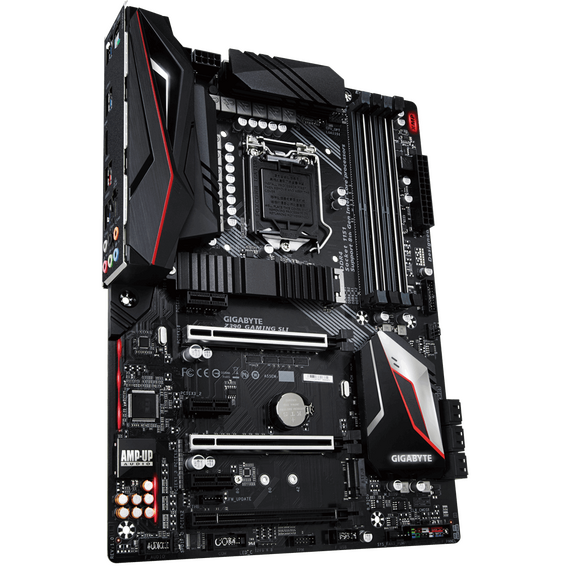

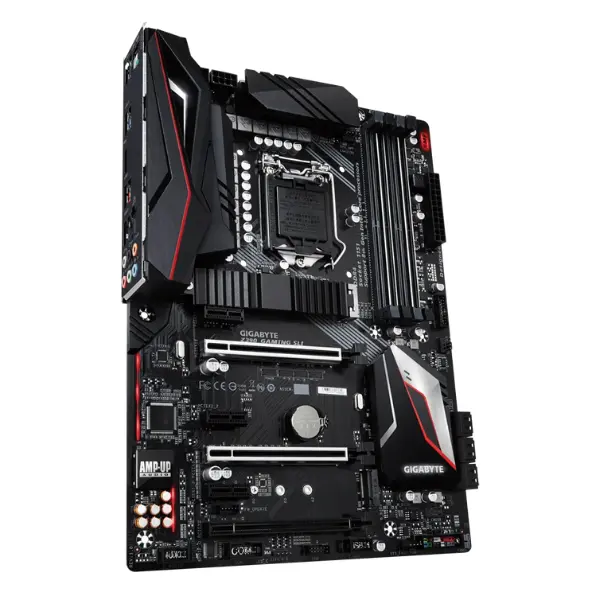

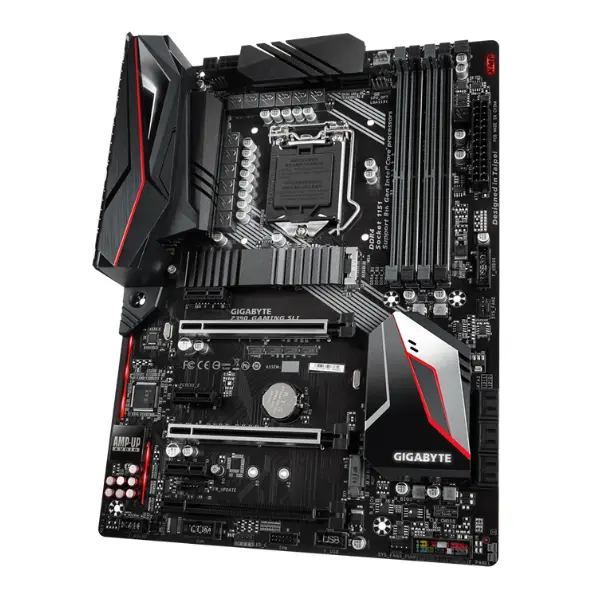

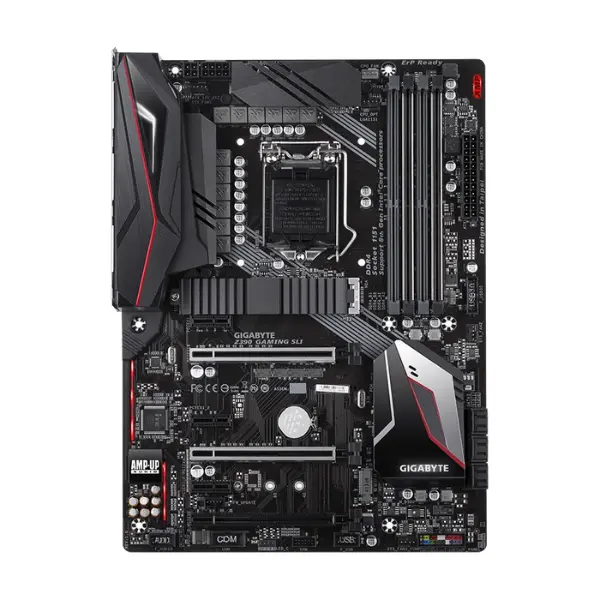

Mother Board GIGABYTE Z390 Gaming SLI
Please sign in so that we can notify you about a reply
Brand:
Gigabyte
Motherboard
CPU SOCKET ( MOTHERBOARD )
LGA1151
Motherboard Chipset
Z390
- CPU
- Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
- L3 cache varies with CPU
- Chipset
- Intel® Z390 Express Chipset
- Memory
- 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
** Please note that the support for system total memory size depends on the CPU installed. - Dual channel memory architecture
- Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
- Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Actual support may vary by CPU. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
- Audio
- Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio. - High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
- Realtek® ALC1220-VB codec
- LAN
- Intel® GbE LAN chip (10/100/1000 Mbit)
- Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. - 1 x PCI Express x16 slot, running at x2 (PCIEX2)
- 3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- Multi-Graphics Technology
- Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
- Storage InterfaceChipset:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
- USBChipset:
- 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
- 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports available through the internal USB header
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 2 x system fan headers
- 1 x system fan/water cooling pump header
- 1 x RGB LED strip header
- 6 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Thunderbolt™ add-in card connector
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x serial port header
- 1 x Clear CMOS jumper

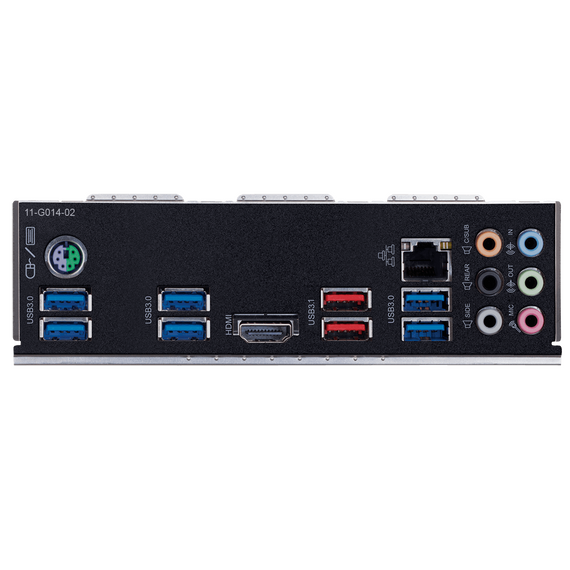

- Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x HDMI port
- 2 x USB 3.1 Gen 2 Type-A ports (red)
- 6 x USB 3.1 Gen 1 ports
- 1 x RJ-45 port
- 6 x audio jacks
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
- BIOS
