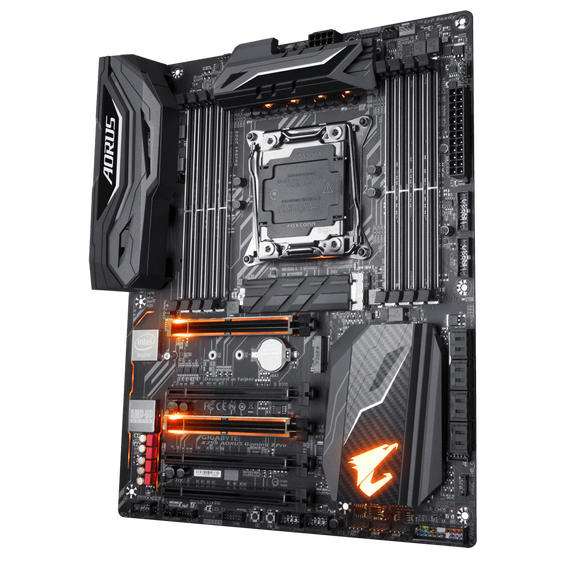

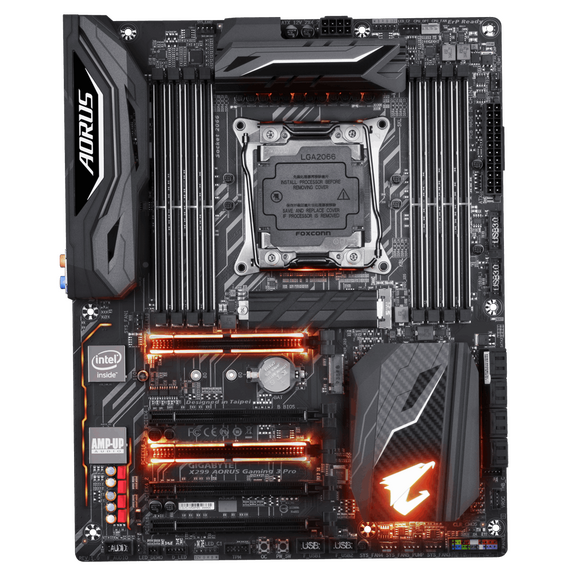

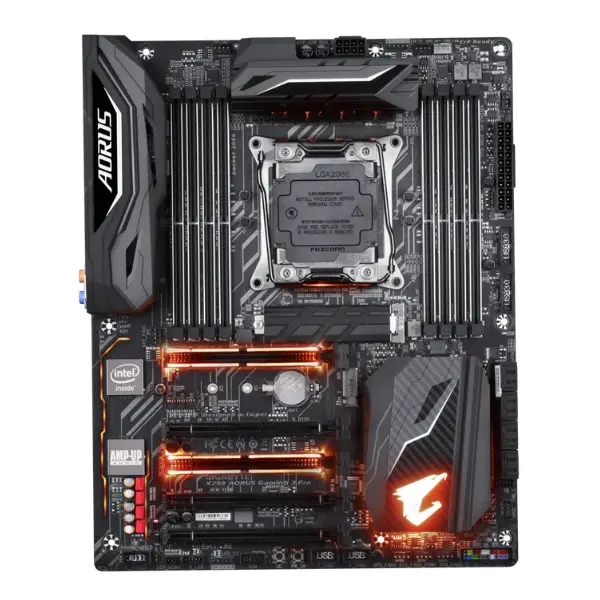

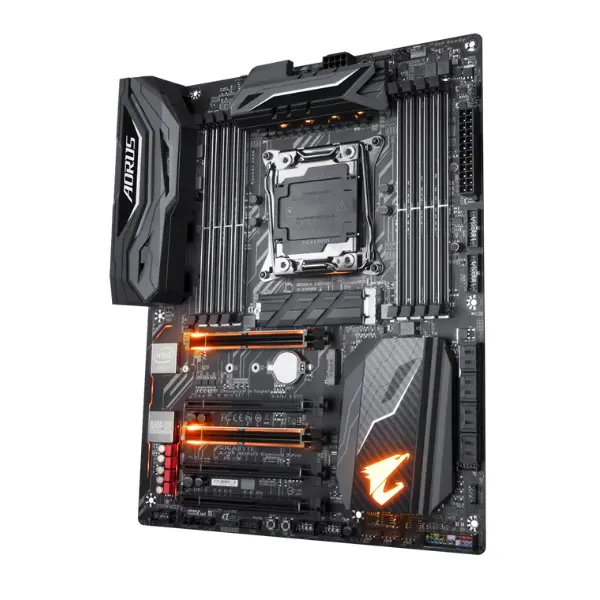

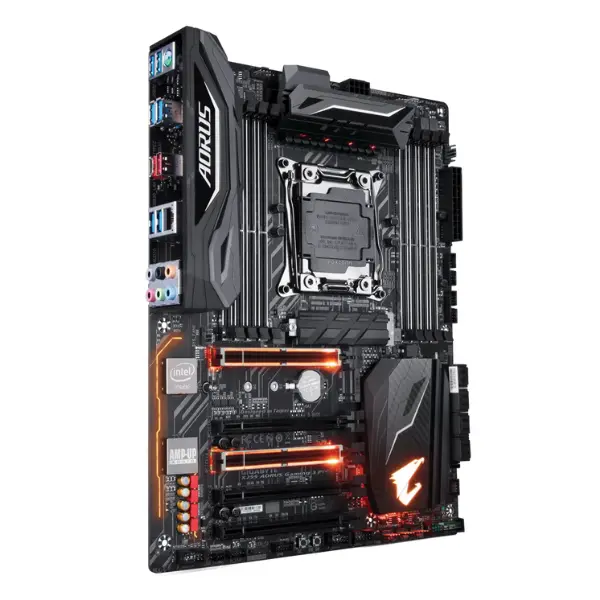

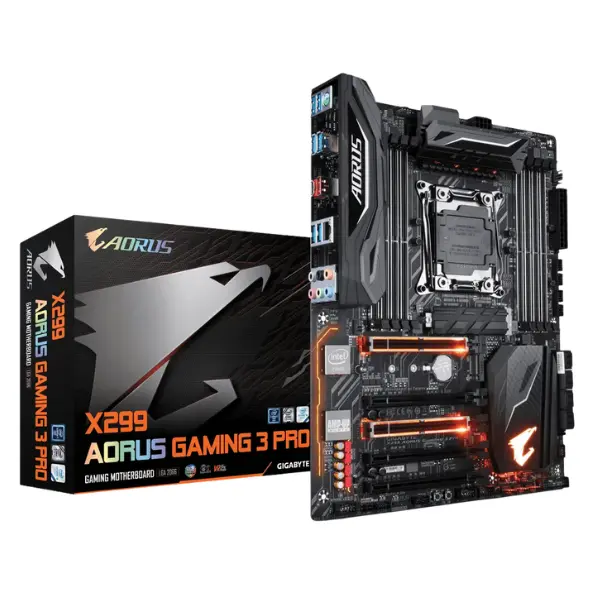

Mother Board GIGABYTE X299 AORUS Gaming 3 PRO
Please sign in so that we can notify you about a reply
Brand:
Gigabyte
Motherboard
CPU SOCKET ( MOTHERBOARD )
LGA2066
Motherboard Chipset
X299
- CPU
- Support for Intel® Core™ X series processors in the LGA2066 package
- L3 cache varies with CPU
- Chipset
- Intel® X299 Express Chipset
- Memory
- 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
* Supported when using a 44-lane or 28-lane CPU (6-core or above). - 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
* Supported when using a 16-lane CPU (4-core). - 4 channel memory architecture.
* Supported when using a 44-lane or 28-lane CPU (6-core or above). - Dual channel memory architecture.
Supported when using a 16-lane CPU (4-core). - Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
- Support for non-ECC Un-buffered DIMM memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
- Audio
- Realtek® ALC1220 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
- LAN
- Intel® GbE LAN chip (10/100/1000 Mbit)
- Expansion Slots
- 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
- 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
* Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.
When using a 44 lane CPU (10-core or above):
∨: Installed, ╳: Not Installed.1-Way 2-Way 3-Way PCIEX16_1 ∨(x16) ∨(x16) ∨(x16) PCIEX16_2 ╳ ∨(x16) ∨(x16) PCIEX8 ╳ ╳ ∨(x8)
When using a 28 lane CPU (6-core or above):
∨: Installed, ╳: Not Installed.1-Way 2-Way PCIEX16_1 ∨(x16) ∨(x16) PCIEX16_2 ╳ ∨(x8) PCIEX8 ╳ ╳
When using a 16 lane CPU (4-core):
∨: Installed, ╳: Not Installed.1-Way 2-Way* PCIEX16_1 ∨(x8) ∨(x8) PCIEX16_2 ╳ ∨(x4) PCIEX8 ╳ ╳
* Supports the CrossFire technology only.
