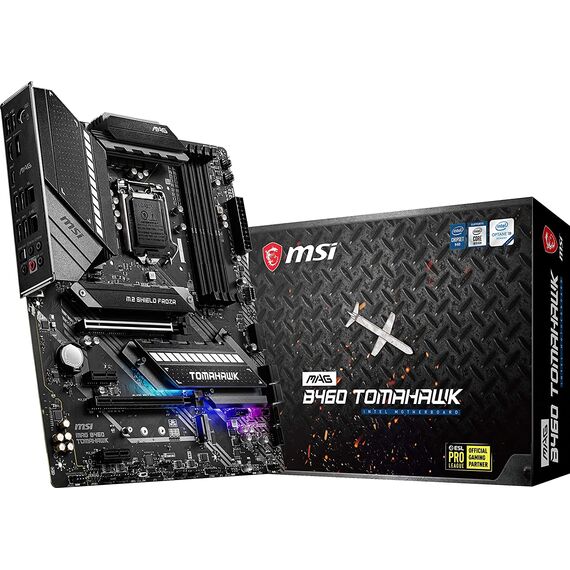

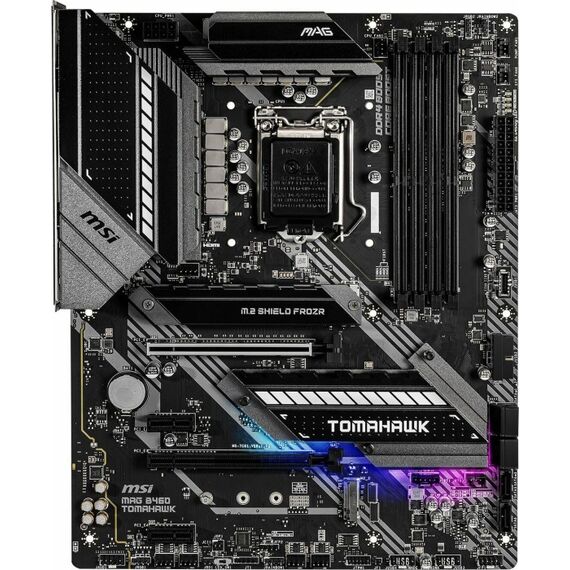

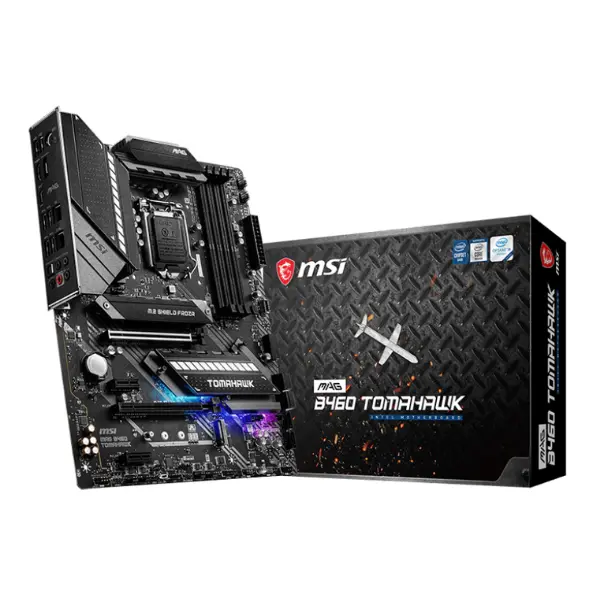

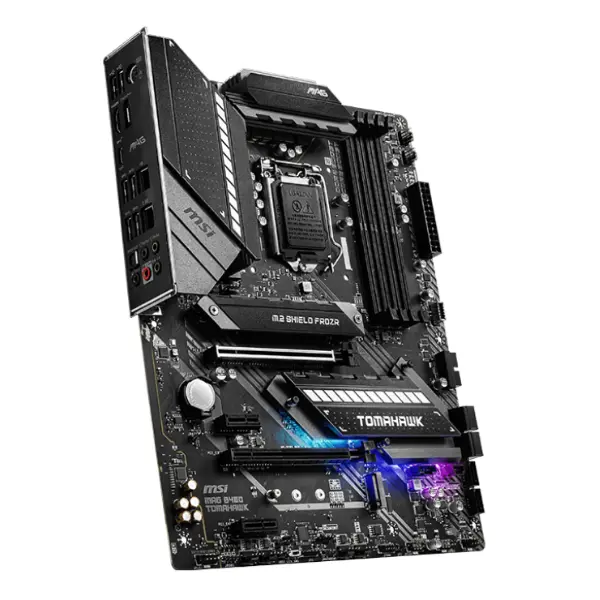

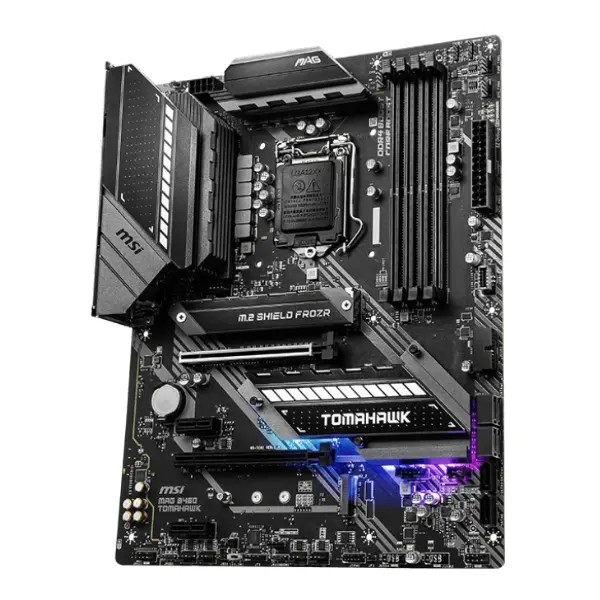

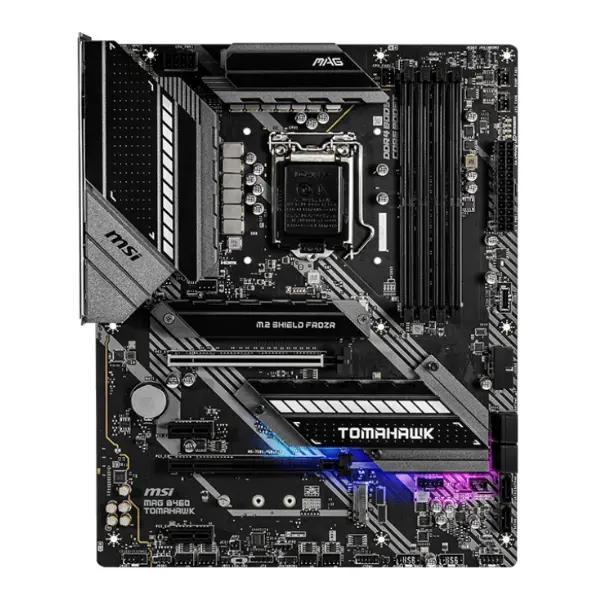

Msi Mag B460 Tomahawk LGA1200 DDR4 ATX Motherboard

Msi Mag B460 Tomahawk - Description

LGA1200 DDR4 ATX Motherboard

Powerful CPU and Memory Support:

MSI MAG B460 Tomahawk motherboard is designed for 10th Gen Intel® Core™, Pentium® Gold, and Celeron® processors with the LGA1200 socket. It offers excellent performance for both casual users and gamers. With four DDR4 memory slots, this board supports up to 128GB of RAM. Core i7 and i9 processors can achieve memory speeds up to 2933MHz, while i5 and below support up to 2666MHz. Dual-Channel technology and Intel® XMP profiles ensure optimized stability and faster load times, making it ideal for demanding applications and gaming setups.

Advanced Expansion and Graphics Options:

Equipped with multiple PCIe 3.0 slots, the MAG B460 Tomahawk supports multi-GPU setups with AMD Crossfire™ technology. It features one PCIe 3.0 x16 slot from the CPU and an additional x16 slot from the chipset for enhanced flexibility. Onboard graphics outputs include HDMI™ and DisplayPort, supporting resolutions up to 4096x2304, perfect for high-definition displays and streaming.

High-Speed Storage and Intel Optane Ready:

Storage flexibility is one of the strengths of this motherboard. It includes six SATA 6Gb/s ports and two M.2 slots for NVMe SSDs. The primary M.2 slot supports PCIe 3.0 x4 and SATA drives, while the secondary M.2 slot is Intel® Optane™ Memory ready, providing faster responsiveness and lower latency. With RAID 0, 1, 5, and 10 support, the MAG B460 Tomahawk offers advanced data protection and speed options for power users.

Lightning Fast Connectivity and USB Options:

The MSI MAG B460 Tomahawk delivers superior connectivity with onboard 2.5Gbps LAN and Intel Gigabit LAN, ensuring smooth online gaming and data transfers. For external devices, the motherboard provides a wide range of USB ports, including a next-generation USB 3.2 Gen 2x2 20Gbps Type-C port, six USB 3.2 Gen 1 ports, and multiple USB 2.0 options. This guarantees compatibility with modern peripherals and ultra-fast transfer speeds.

Premium Thermal Design and Durability:

Built with gamers in mind, the MAG series stands out for its durability and cooling performance. The extended heatsink design and M.2 Shield Frozr technology help maintain lower temperatures during heavy workloads, ensuring consistent performance. Six system fan headers, a dedicated water-pump connector, and hardware monitoring tools provide complete control over cooling. With robust Steel Armor PCIe slots, this board ensures better stability and protection for heavy graphics cards.

Immersive Audio and User-Friendly Features:

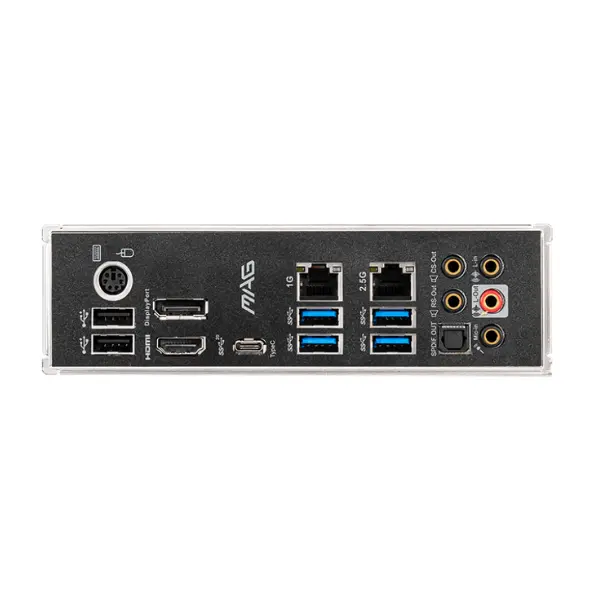

For an enhanced multimedia experience, the motherboard integrates Realtek® ALC1200 7.1-channel HD audio with Audio Boost technology, delivering studio-grade sound. User-friendly features such as EZ Debug LEDs, RGB lighting headers, and BIOS Flash support make installation and troubleshooting simple. With an ATX form factor and comprehensive I/O panel including HDMI™, DisplayPort, LAN ports, and high-speed USB, the MSI MAG B460 Tomahawk is a reliable choice for building a high-performance gaming PC.
