Gigabyte Z590 UD AC LGA1200 DDR4 ATX Motherboard

Gigabyte Z590 UD AC - Description

LGA1200 DDR4 ATX Motherboard

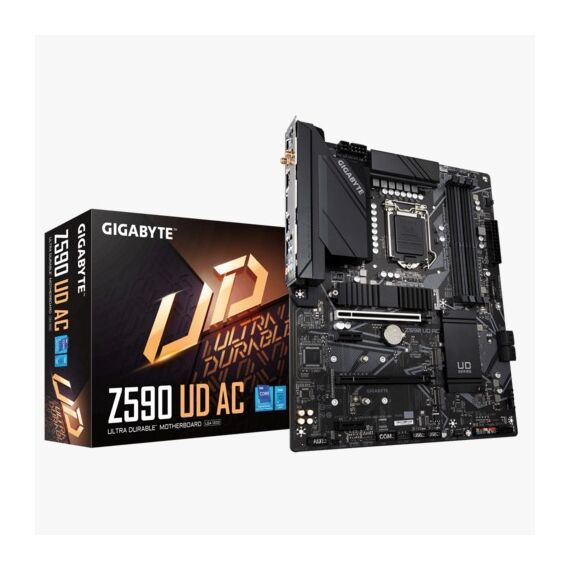

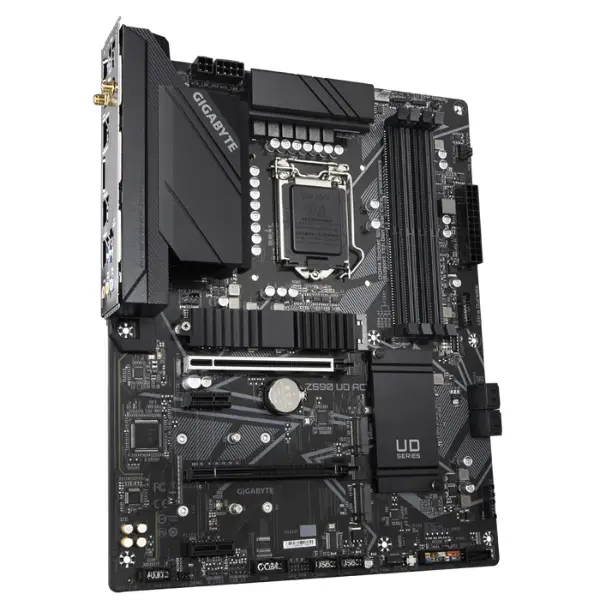

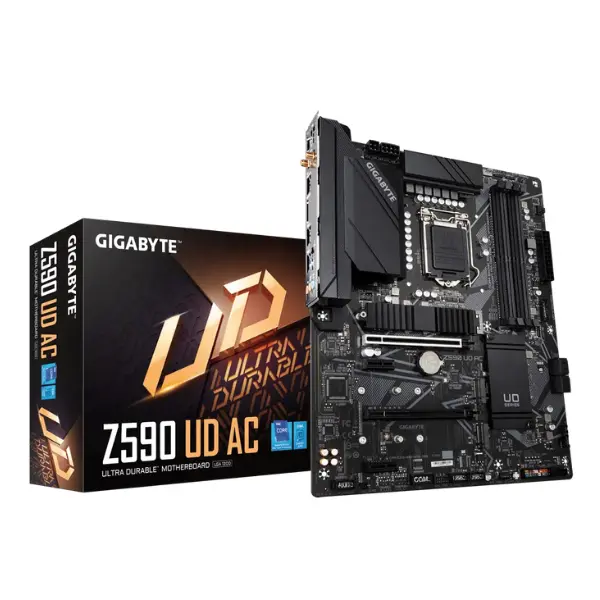

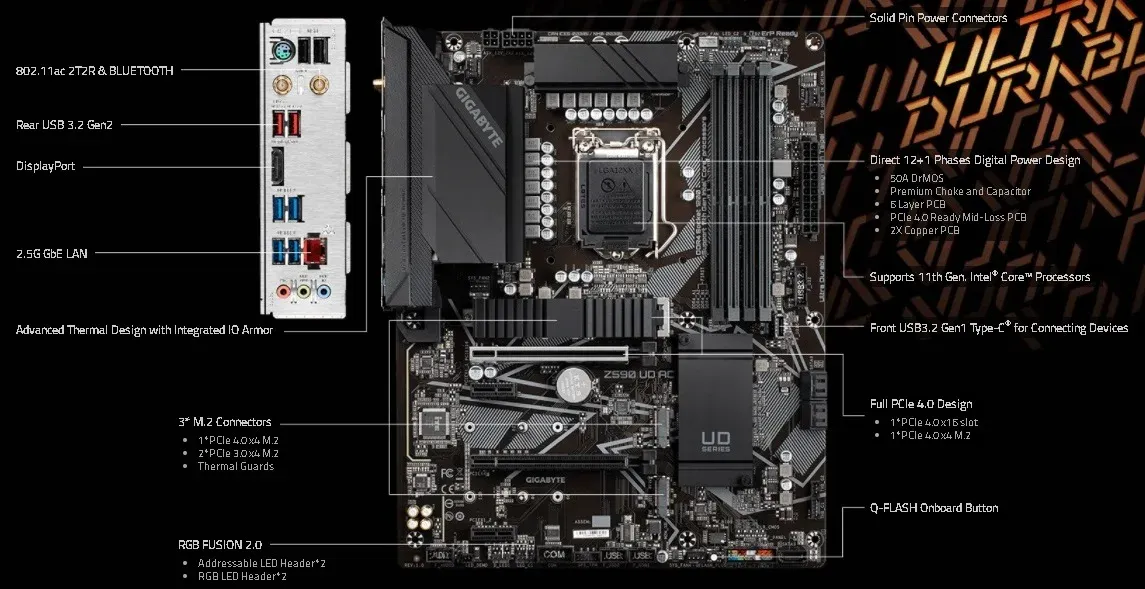

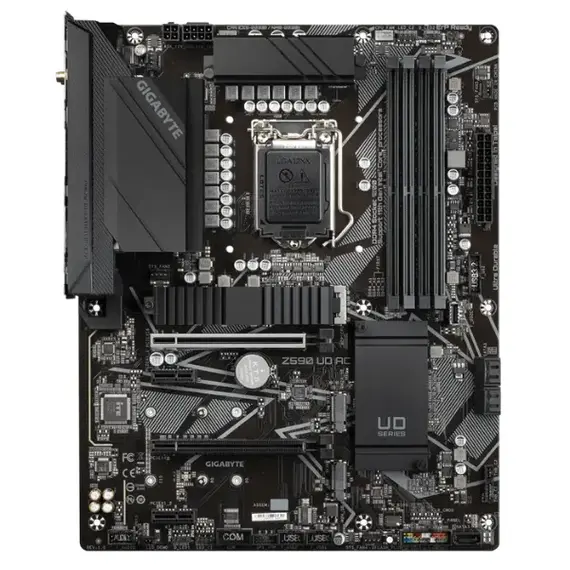

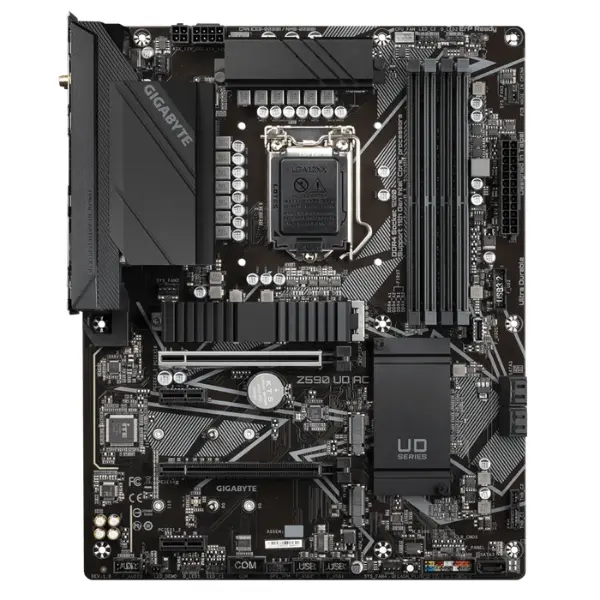

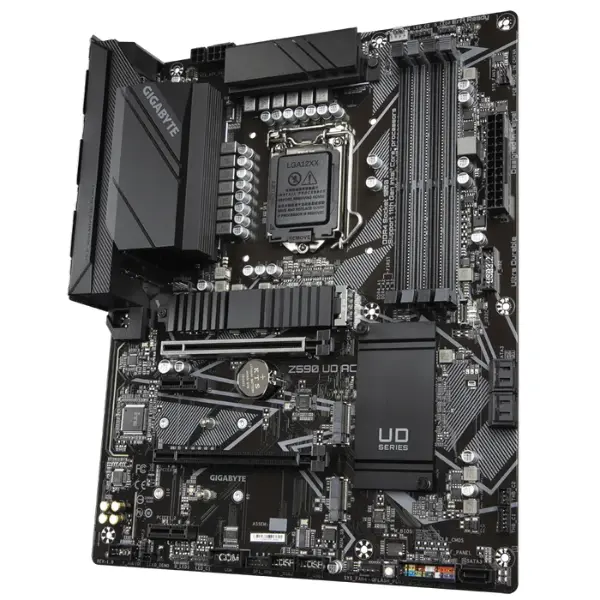

The Gigabyte Z590 UD AC is an Intel® Z590 Ultra Durable ATX motherboard designed for reliability, performance, and modern connectivity. It supports 11th and 10th Gen Intel® Core™ processors with dual-channel DDR4 across four DIMM slots. Built with stability in mind, it uses a direct 12+1 phases digital VRM with 50A DrMOS and an enlarged heatsink design for efficient cooling.

Expansion & Storage:

For high-speed storage and expansion, the motherboard features full PCIe 4.0 support, a PCIe 4.0 x16 slot, and triple NVMe M.2 slots (one PCIe 4.0 x4 and two PCIe 3.0 x4) equipped with thermal guards to prevent overheating during heavy workloads.

Connectivity:

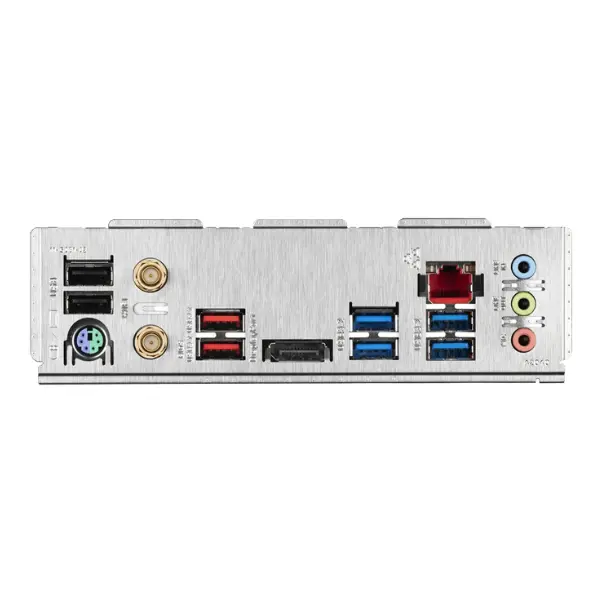

Networking and device connectivity are enhanced with 2.5GbE LAN for faster wired speeds and Intel® 802.11ac Wi-Fi with Bluetooth for wireless flexibility. It also offers USB 3.2 Gen2 on the rear panel and a front USB 3.2 Gen1 Type-C® port, ensuring quick and versatile connections.

Cooling & Durability:

The advanced thermal design includes integrated I/O armor and a 6-layer 2X copper PCB, helping optimize power delivery and cooling efficiency. Solid pin power connectors ensure a stable and reliable flow of energy to critical components.

Customization & Aesthetics:

With RGB Fusion 2.0, users can personalize their build using both RGB and addressable LED headers. This feature allows for multi-zone lighting effects, making the system visually unique while staying performance-focused.

Additional Features:

The motherboard includes Smart Fan 6 technology for advanced cooling control, as well as Q-Flash Plus, which allows BIOS updates without installing a CPU, memory, or graphics card. A pre-installed I/O shield further simplifies the installation process.
