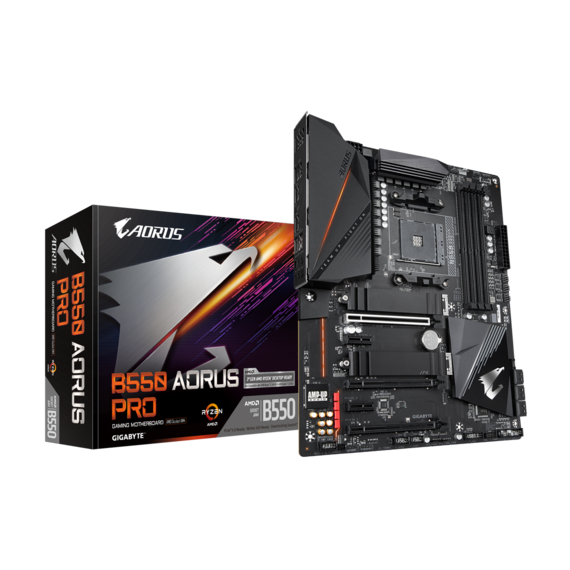

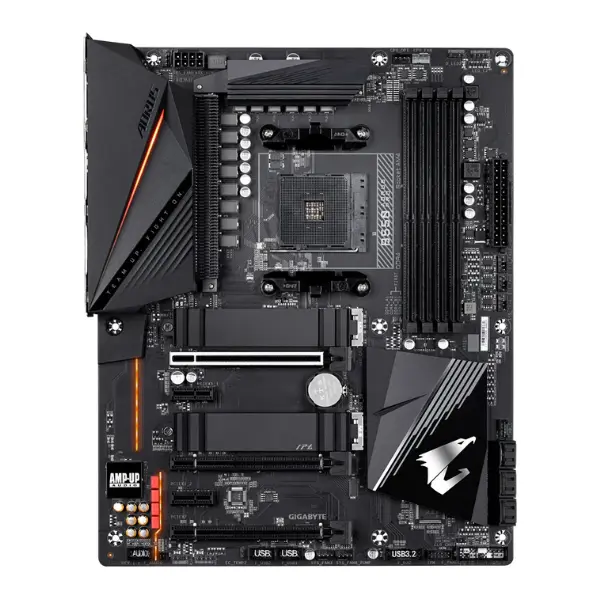

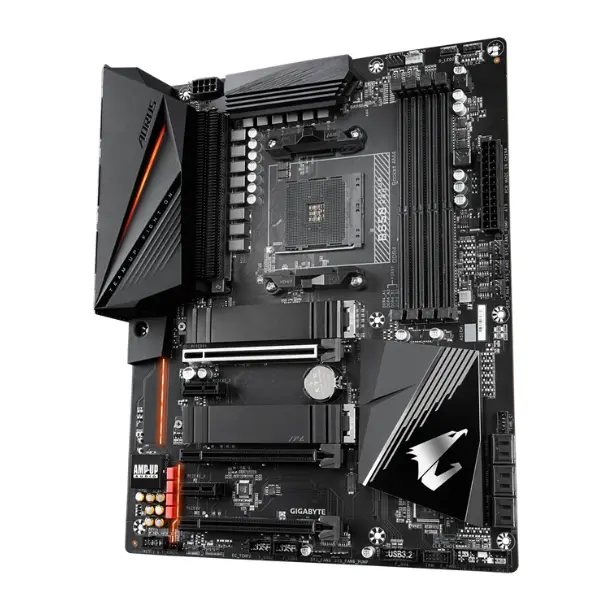

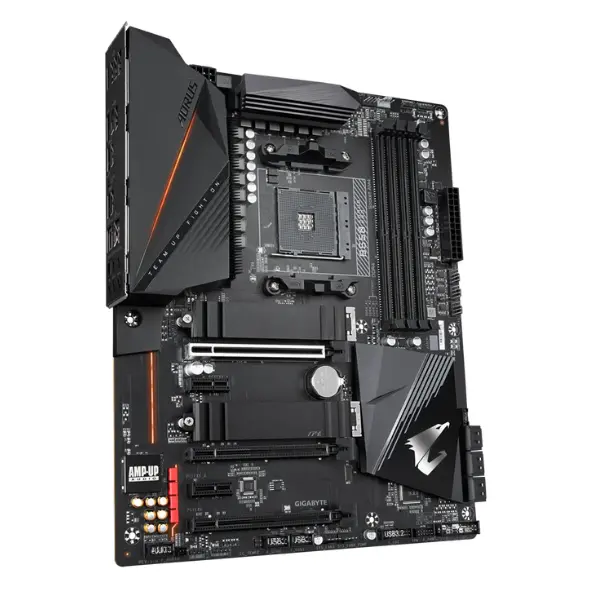

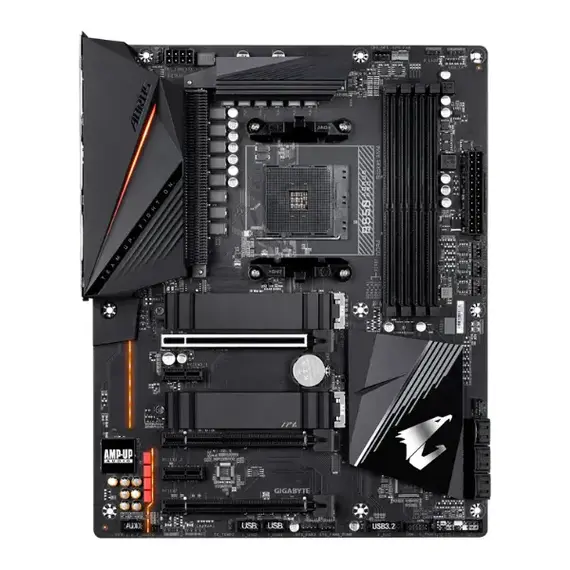

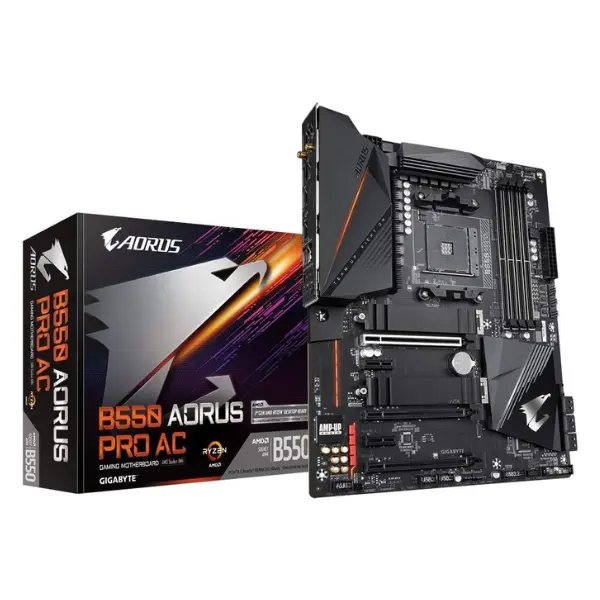

GIGABYTE B550 AORUS Motherboard

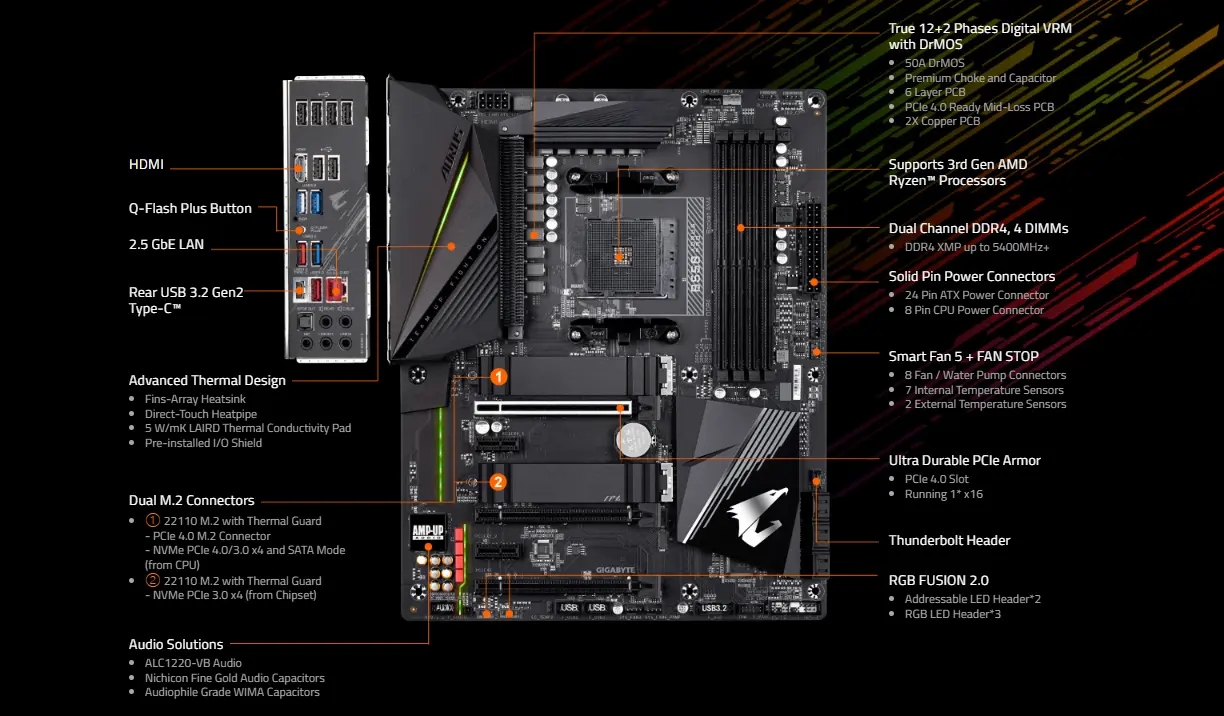

AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Fins-Array Heatsink, Direct-Touch Heatpipe, Dual PCIe 4.0/3.0 x4 M.2 with Thermal Guards, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus.

• Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• True 12+2 Phases Digital VRM Solution with 50A DrMOS
• Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
• Ultra Durable™ PCIe 4.0 Ready x16 Slot
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
• AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
• Blazing Fast 2.5GbE LAN with Bandwidth Management
• USB 3.2 Gen2 Type-C™ & HDMI Support
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

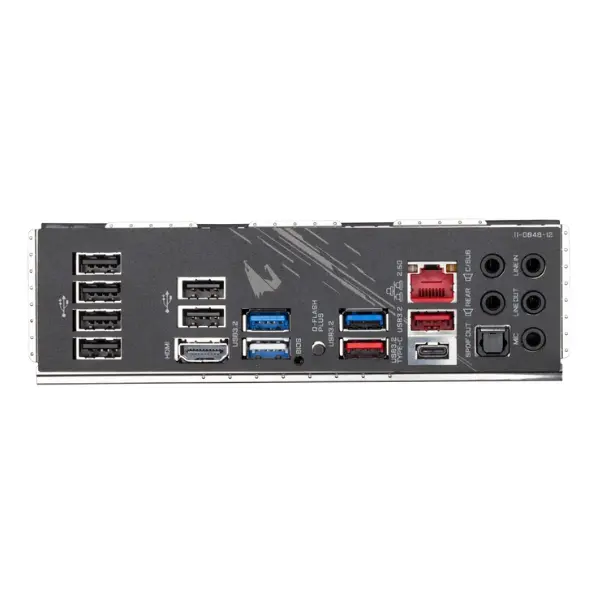

• Pre-installed IO Shield for Easy and Quick Installation

DESIGN CONCEPT

DOMINANT IN DARKNESS

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

XMP 5400+

PCIe 4.0

Hardware Design

2X M.2

PCIe 4.0/3.0

Support for DDR4 XMP Up to 5400MHz and Beyond*

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5400MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

* XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.

ADVANCED THERMAL SOLUTION

Unthrottled performance is guaranteed by the advanced thermal solution which including Fins-Array Heatsink, Direct Touch Heatpipe and Thermal Guards. B550 AORUS motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts, overclockers and professional gamers.

NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network and storage to keep you up to speed.

2.5G LAN

USB Type-C™

HDMI

2.5GbE LAN Onboard

2X Faster than ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds compared to general 1GbE networking. It’s perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet.

HI-FI AUDIO SYSTEM

For enthusiasts, sound quality is just as essential to the gaming experience. B550 AORUS motherboards are equipped with high quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

Audio CODEC

Audio Design

Hi-Res Audio

Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

DEFINITIVE AESTHETICS

B550 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.

ULTRA DURABLE GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards and reinforce each part of components to be solid and durable.

PCIE Armor

Solid Pin

Q-Flash Plus

Ultra Durable™ PCIe Armor

Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE BIOS & APP CENTER

Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful and intuitive software to help users to control every aspect of motherboard.

BIOS

APP Center

Easy Tune

@BIOS

System Information Viewer

BIOS

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.
