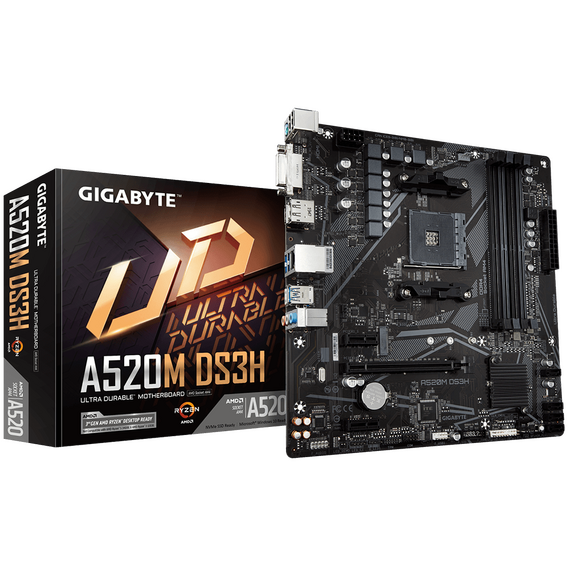

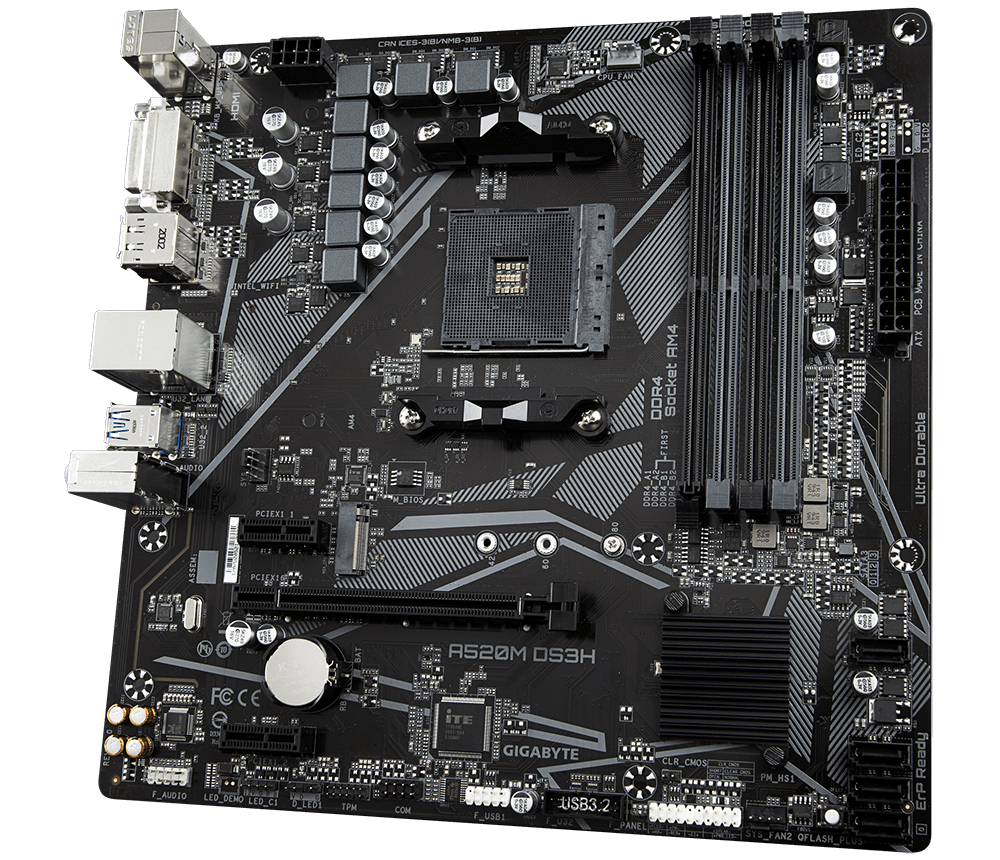

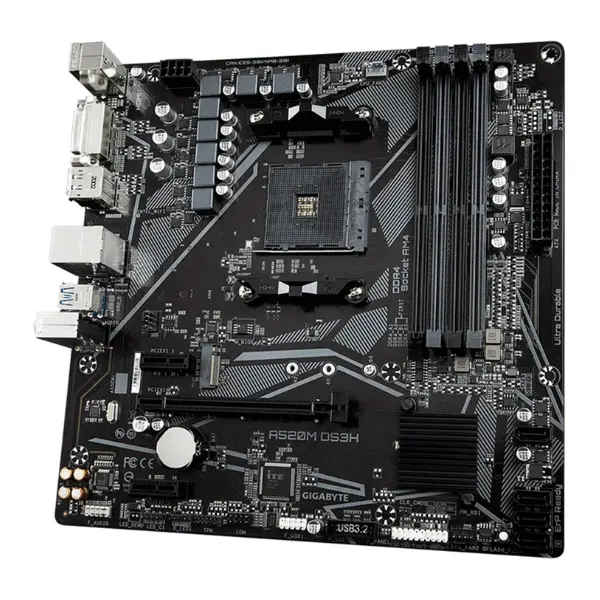

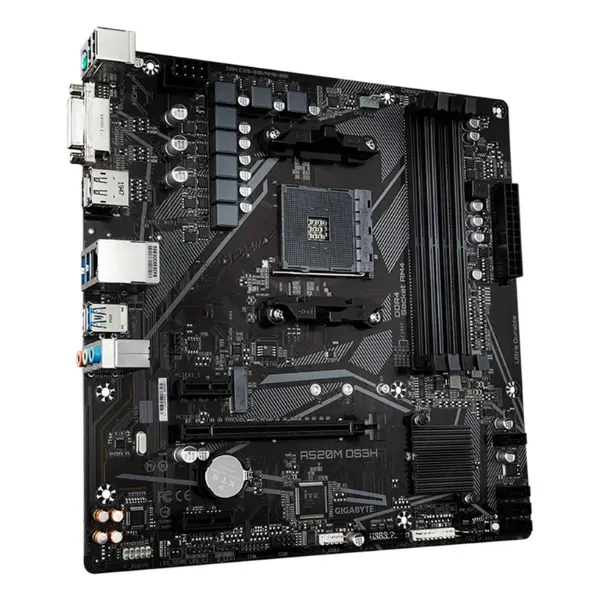

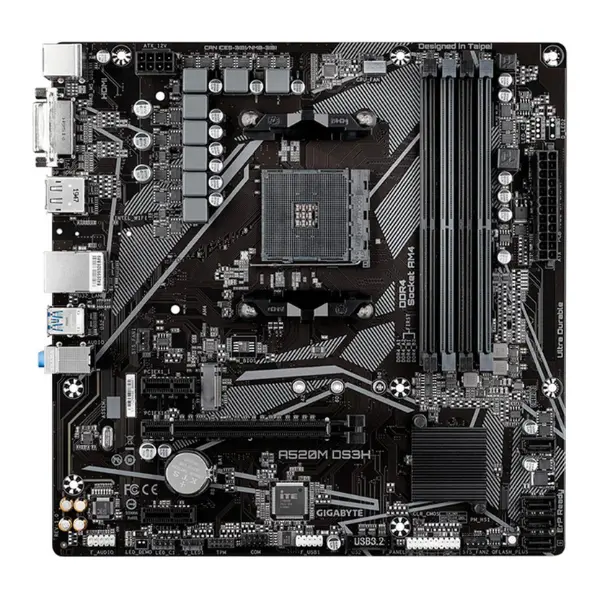

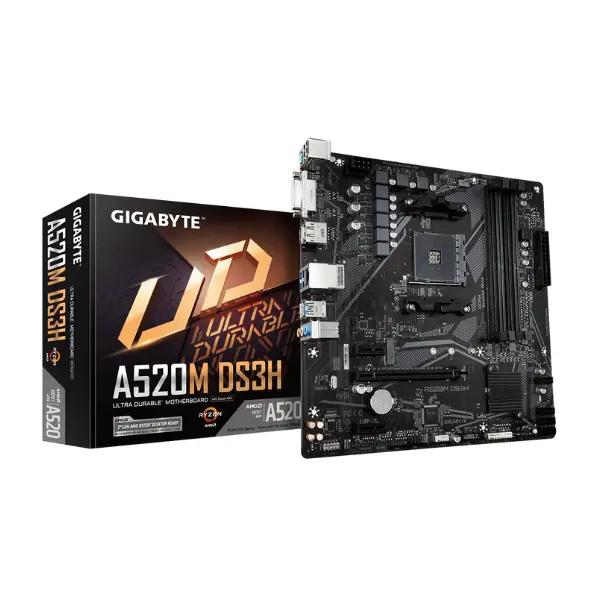

Gigabyte A520M DS3H AM4 DDR4 mATX Motherboard

Write a review
A520M DS3H
  • Brand: Gigabyte
  • Model: A520M DS3H
  • CPU Socket: AMD Socket AM4
  • Chipset: AMD A520 Chipset
  • Warranty: 1 Year
Get a quote
Call Us
Chat us on Whatsapp
Payment Methods
Brand:
Gigabyte
CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dimension
24.4 cm x 24.4 cm
Ethernet
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion slot
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Form factor
mATX
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB
Model
A520M DS3H
Operating System
Windows 11, Windows 10
Storage
4 x SATA 6Gb/s connectors
USB
CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Warranty
1 Year
Motherboard
CPU SOCKET ( MOTHERBOARD )
AM4
Motherboard Chipset
AMD A520 Chipset

Gigabyte A520M DS3H - Description

AM4 DDR4 mATX Motherboard

A Reliable AM4 Motherboard for AMD Ryzen Performance:

The Gigabyte A520M DS3H is a feature-packed mATX motherboard designed for AMD AM4 socket processors, offering robust compatibility with AMD Ryzen 5000, 4000 G-Series, and 3000 Series CPUs. Built on the A520 chipset, this motherboard delivers a stable and efficient platform for both everyday computing and gaming. Its compact micro-ATX form factor makes it ideal for smaller builds without sacrificing essential performance features. With support for dual-channel DDR4 memory across four DIMM slots, users can install up to 128GB of RAM, including both ECC and non-ECC unbuffered modules, ensuring flexibility for various use cases—from home offices to light workstation tasks.

Gigabyte A520M DS3H

Power and Performance:

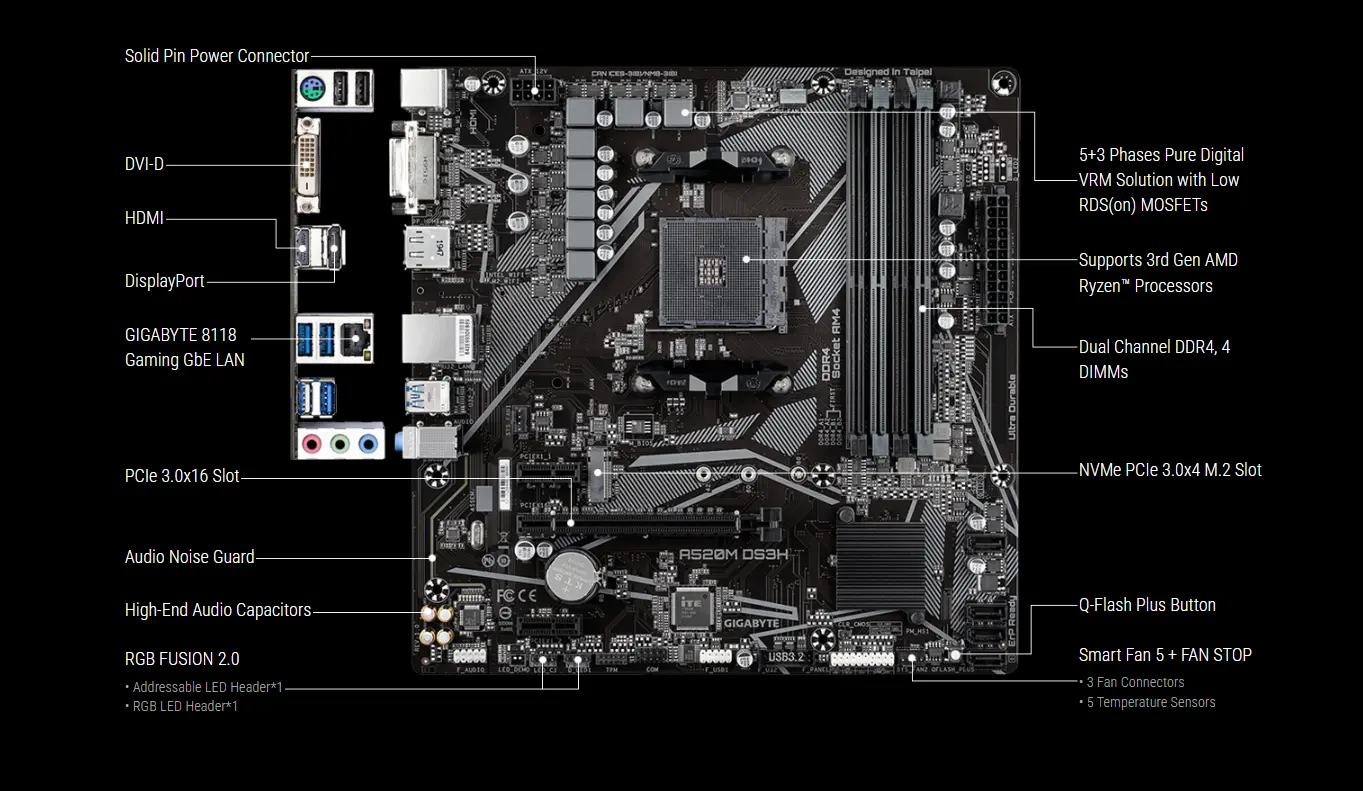

Engineered with a 5+3 phases pure digital VRM solution and low RDS(on) MOSFETs, the A520M DS3H ensures clean and stable power delivery to the CPU, enhancing system reliability and longevity. This efficient power design reduces heat output, allowing for consistent performance even under load. The motherboard also features Smart Fan 5 technology, which supports multiple temperature sensors and hybrid fan headers with FAN STOP technology—enabling fans to shut off when cooling demands are low, resulting in quieter operation and extended fan lifespan.

motherboard pc

Connectivity and Expansion:

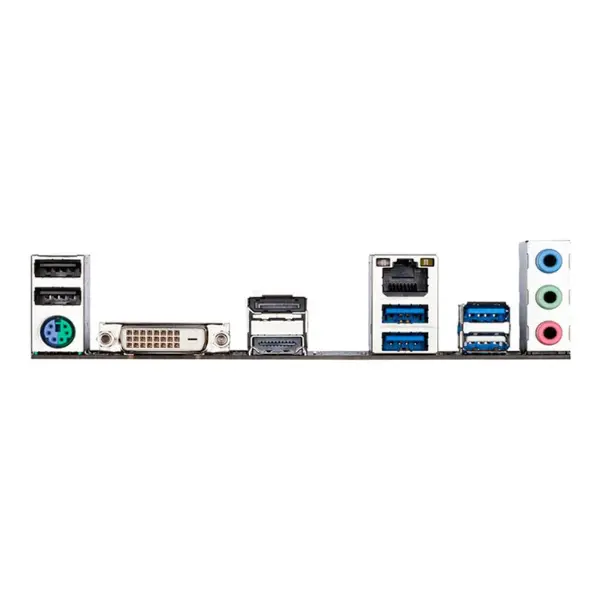

Equipped with an NVMe PCIe 3.0 x4 M.2 connector, the board supports ultra-fast SSDs for reduced boot times and rapid data access. It also includes a PCIe 3.0 x16 slot for dedicated graphics, alongside HDMI, DVI-D, and DisplayPort outputs for multi-monitor setups. The integrated Realtek GbE LAN with bandwidth management optimizes network performance, while the Q-Flash Plus button allows BIOS updates without needing a CPU, RAM, or GPU installed—ideal for troubleshooting and upgrades.

Gigabyte Motherboard

Customization and Audio:

Enhance your build with RGB FUSION 2.0, supporting both addressable LED and RGB strips via dedicated headers. Audio comes courtesy of high-end audio capacitors and an Audio Noise Guard, delivering crisp, immersive sound. Perfect for gamers and creators seeking style and substance in one reliable motherboard.

A520M DS3H
