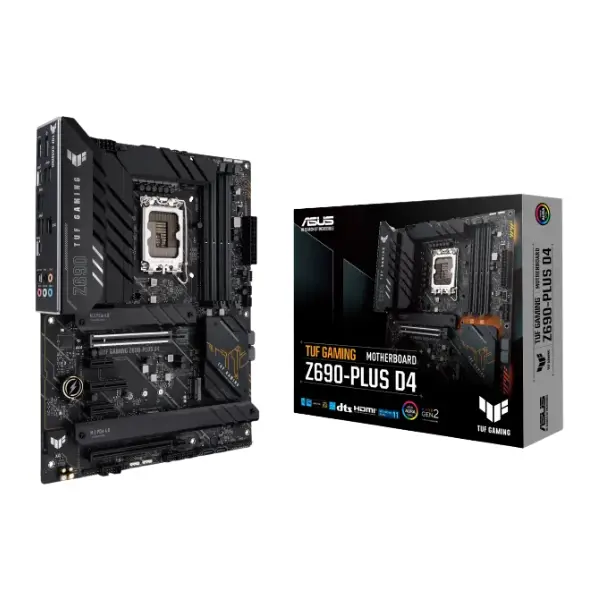

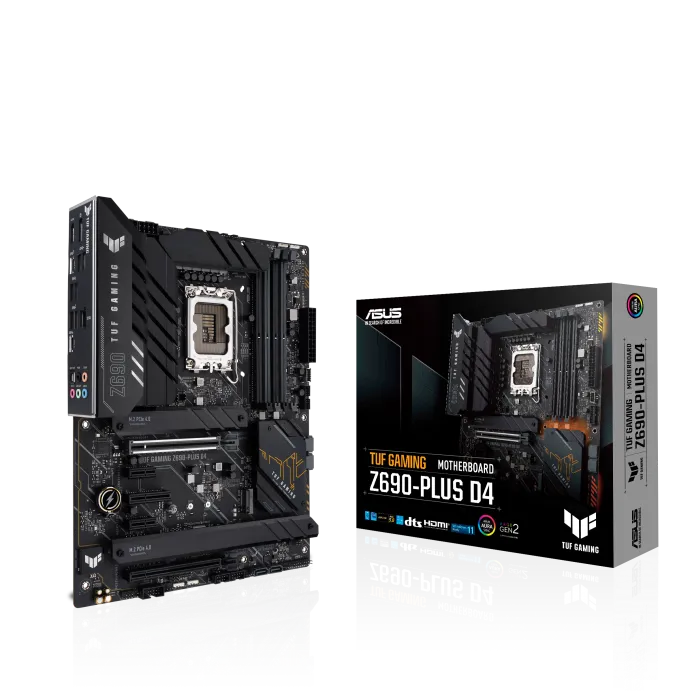

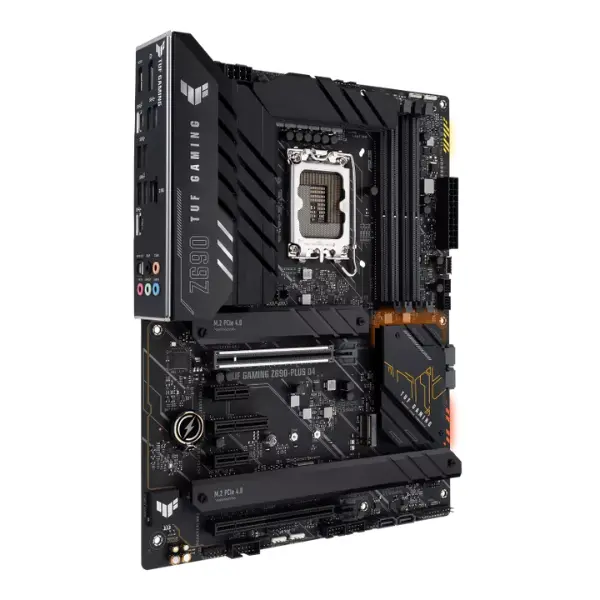

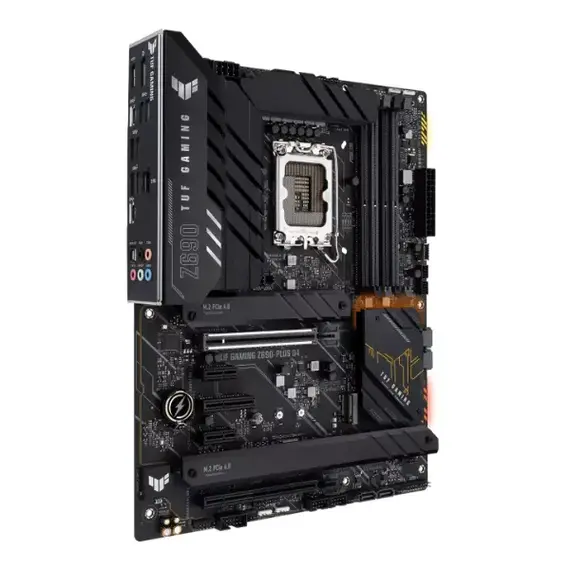

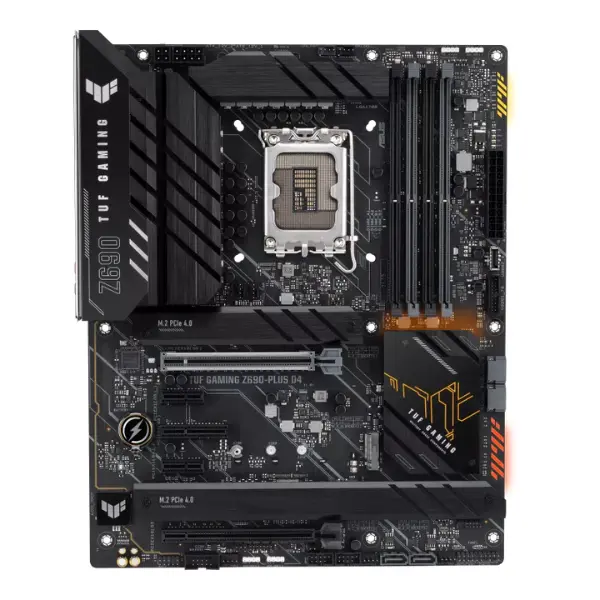

Asus Tuf Gaming Z690-Plus D4 LGA1700 DDR4 ATX Motherboard

Asus Tuf Gaming Z690-Plus D4 - Description

LGA1700 DDR4 ATX Motherboard

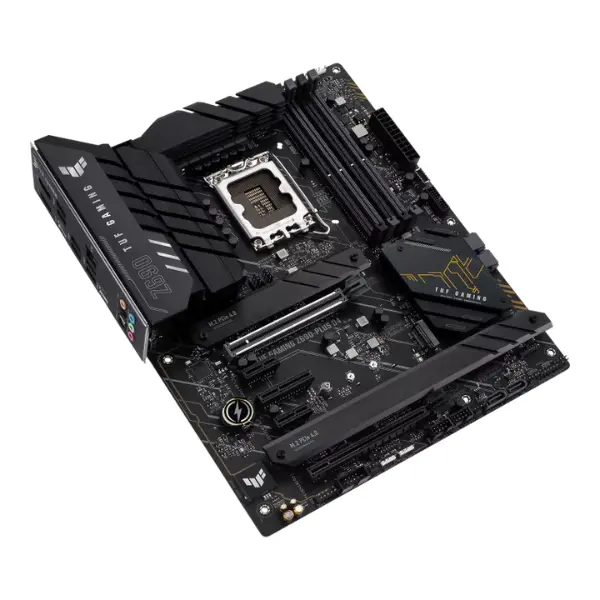

The ASUS TUF Gaming Z690-Plus D4 is a durable ATX motherboard designed for 12th, 13th, and 14th Gen Intel Core processors via the LGA1700 socket. Built with resilience and performance in mind, it combines military-grade components with advanced engineering to deliver a stable, long-lasting platform ideal for intense gaming and heavy workloads.

Durable, Stable, Reliable:

Part of the trusted TUF Gaming series, this motherboard integrates essential features of Intel’s latest processors with battle-tested durability. It features a reinforced power design, premium build quality, and an efficient cooling system to ensure consistent performance during extended gaming sessions. Aesthetic touches include the updated TUF Gaming logo and clean geometric styling, reflecting the series’ focus on reliability and strength.

Performance:

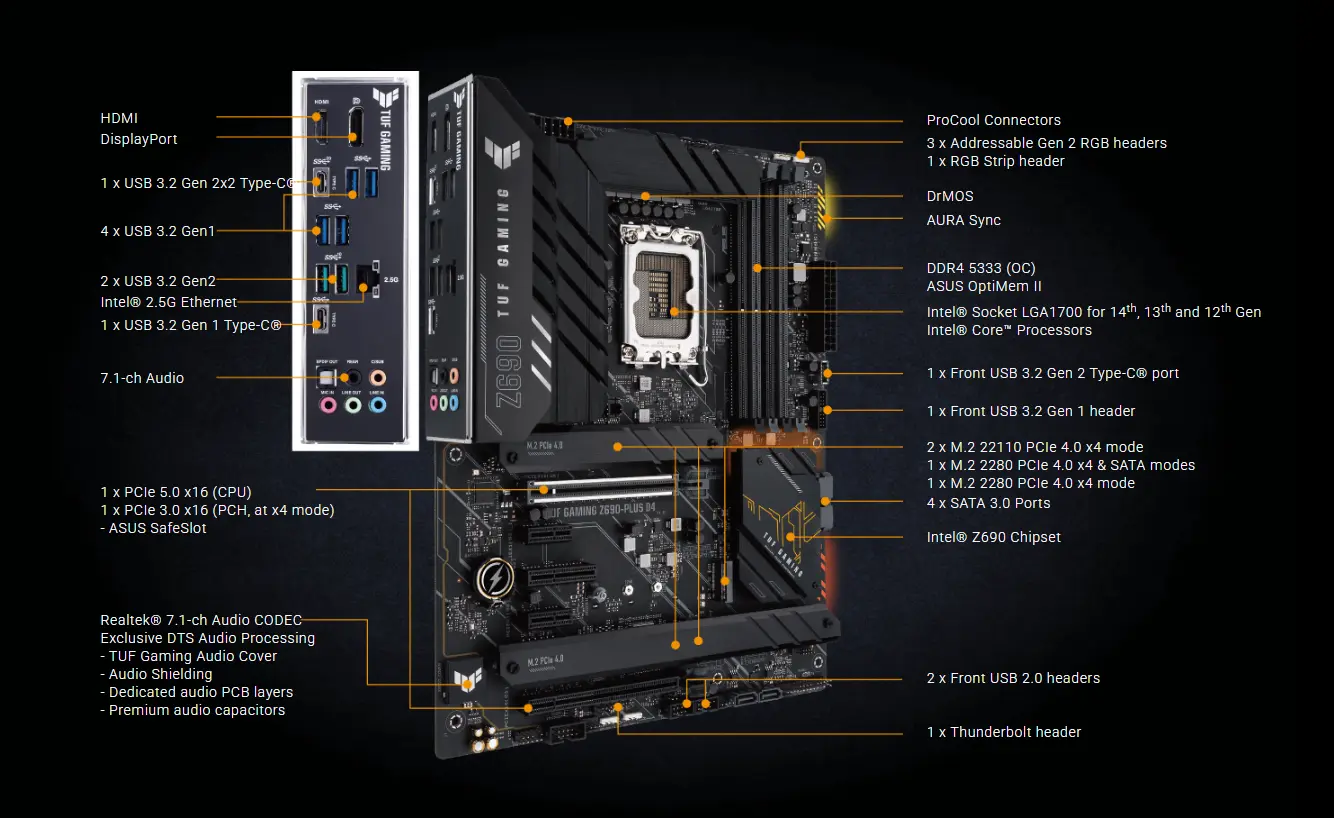

This high-performance motherboard, built for 12th to 14th Gen Intel processors, is defined by its exceptional connectivity and robust design. It features a vast array of high-speed ports, including multiple USB 3.2 Gen 2 and a USB 3.2 Gen 2x2 Type-C, HDMI, DisplayPort, and Intel 2.5G Ethernet. For expansion, it offers a PCIe 5.0 x16 slot, three PCIe 4.0 M.2 slots, and four SATA ports. The board is engineered for stability with ProCool power connectors, DrMOS power stages, and ASUS OptiMem II for memory overclocking. It also includes a premium audio solution with shielding and DTS processing, alongside extensive RGB lighting support with Aura Sync headers.

Rock-Solid Performance:

Equipped with an upgraded power and thermal design, this board is built to handle high-core-count CPUs and fast memory. It provides a solid foundation for a powerful gaming rig, ensuring smooth performance even under heavy loads.

Power Design:

DrMOS:

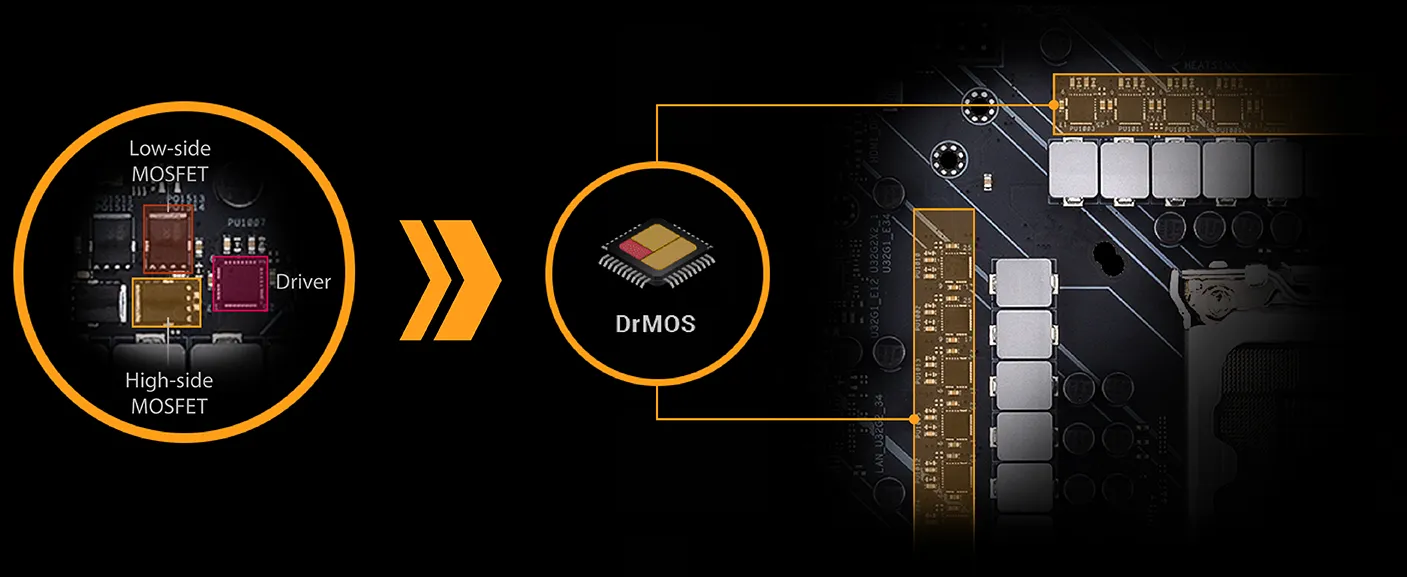

Each stage is rated for 80A, combining high- and low-side MOSFETs and drivers in one efficient package to meet the demands of modern Intel CPUs.

Six-Layer PCB Design:

Enhances thermal performance and reduces electrical resistance, allowing for better power delivery and overclocking potential.

ProCool Connectors:

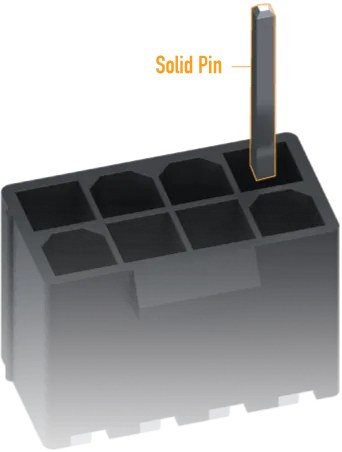

Reinforced 8-pin and 4-pin EPS power connectors with tighter tolerances for improved contact, reduced impedance, and lower operating temperatures.

TUF Components:

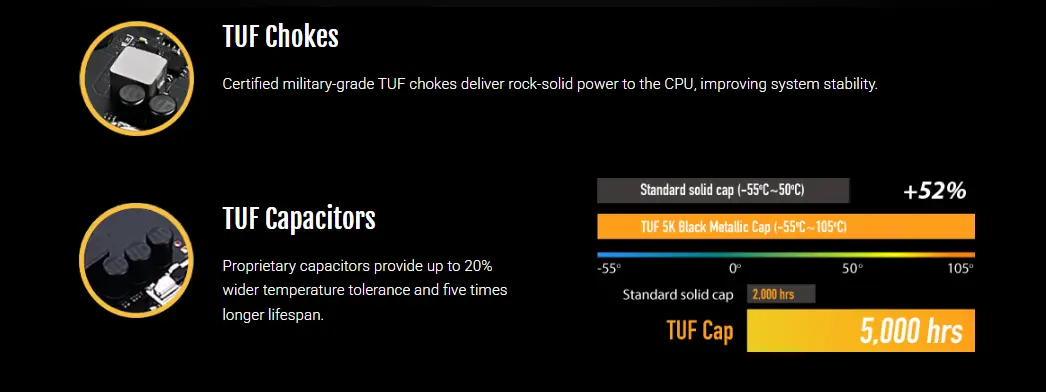

Uses military-grade alloy chokes and long-life capacitors with superior temperature resistance and durability—up to five times the lifespan of standard parts.

Digi+ VRM:

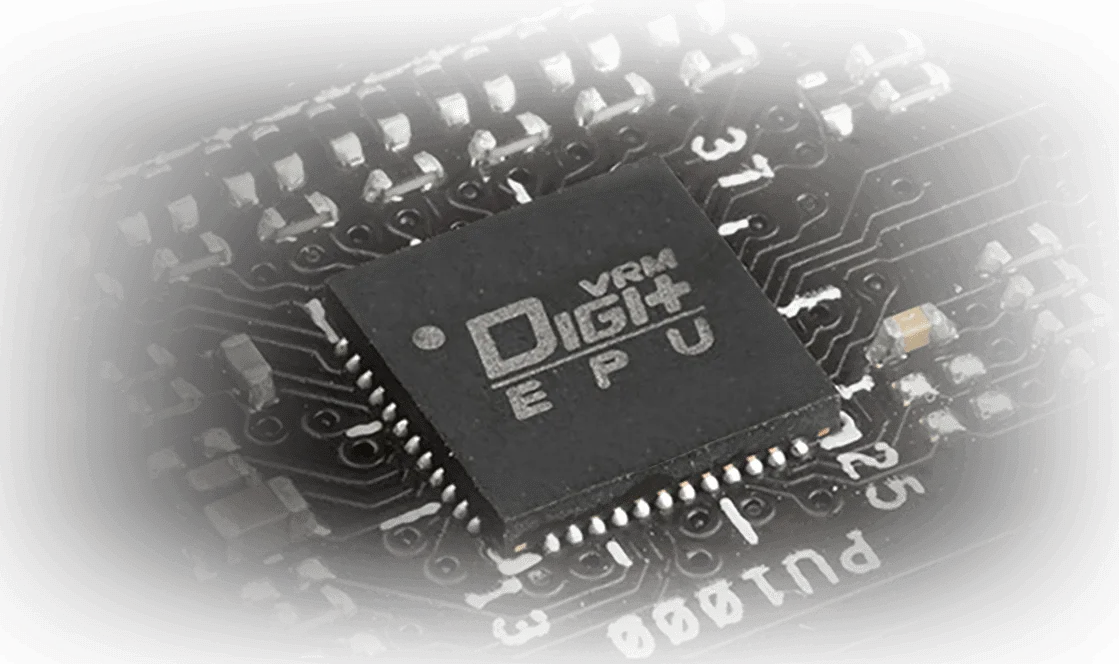

A high-quality digital voltage regulator that ensures clean, precise power delivery to the CPU for optimal stability and efficiency.

Cooling:

Cooler by design:

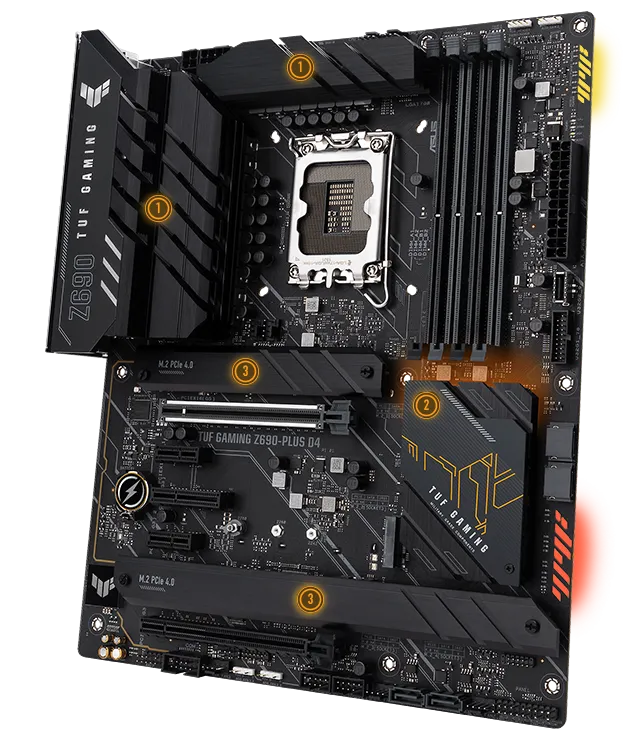

This motherboard's architecture emphasizes advanced cooling with numerous large heatsinks. A substantial heatsink covers the voltage regulator modules (VRMs), while a larger chipset (PCH) heatsink efficiently disperses heat from these essential areas. Additionally, dedicated heatsinks are installed on three of the four M.2 slots to keep SSDs cool, guaranteeing stable operation and increased durability.

Comprehensive Fan Controls:

TUF GAMING Z690 motherboards are equipped with detailed fan control systems. These settings can be easily managed through either the Fan Xpert 4 software or the acclaimed ASUS UEFI BIOS.

Memory & Storage:

DRAM Overclocking Performance:

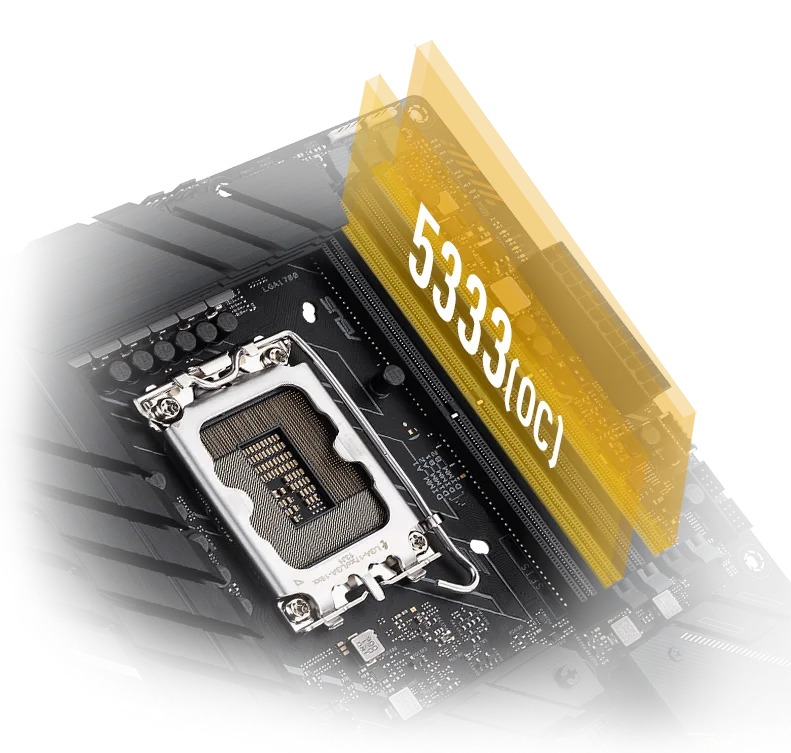

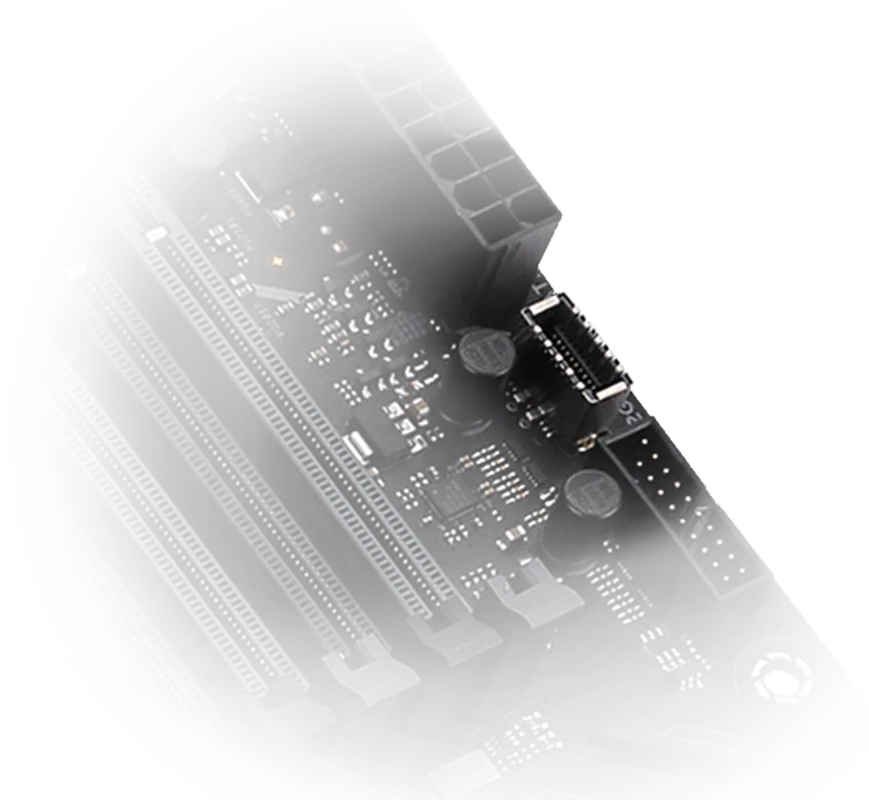

Optimized trace routing and advanced signal management give Intel’s latest processors improved access to memory bandwidth. ASUS OptiMem II technology intelligently routes memory signals across multiple PCB layers to minimize distance and crosstalk, while integrated shielding zones further enhance signal integrity—enabling higher DDR4 overclocking potential and improved system stability.

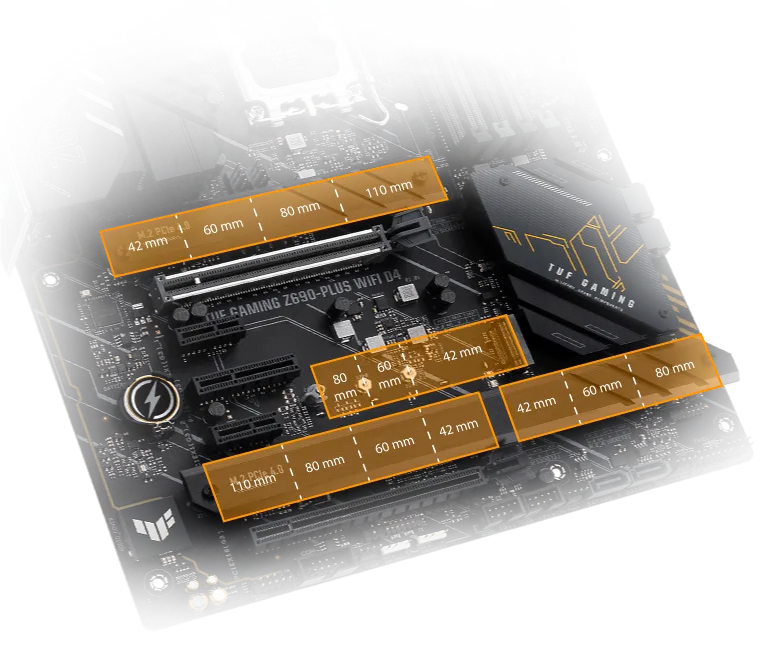

Four PCIe 4.0 M.2:

Equipped with four high-speed M.2 slots that support PCIe 4.0 NVMe SSDs, including compatibility for two 22110-sized drives. All four slots support NVMe RAID configurations, allowing users to build a multi-drive RAID array for dramatically faster data read and write speeds, ideal for content creators and power users.

Connectivity:

PCIe 5.0:

Built to harness the full potential of 12th, 13th, and 14th Gen Intel Core processors, this motherboard features a PCIe 5.0 x16 slot that doubles the bandwidth of PCIe 4.0—delivering up to 32 GT/s for next-gen graphics cards and high-performance add-in cards. It includes improved signal integrity, backward-compatible connectors, and full compatibility with older PCIe devices.

Front USB Port:

A front-panel USB 3.2 Gen 2 Type-C® header supports data transfer rates up to 10 Gbps, making it easy to connect modern high-speed devices like VR headsets, external SSDs, or gaming peripherals directly from the front of your case.

USB 3.2 Gen 2x2 Type-C:

Located on the rear I/O panel, the USB 3.2 Gen 2x2 Type-C® port delivers blazing-fast 20 Gbps transfer speeds—twice that of standard USB 3.2 Gen 2—ideal for high-bandwidth peripherals and quick file transfers.

Thunderbolt™ 4 Support:

A dedicated Thunderbolt™ 4 header allows expansion via an optional ASUS ThunderboltEX 4 add-on card*. This enables bi-directional speeds of up to 40 Gbps, daisy-chaining of multiple devices, support for 8K displays, and up to 100W of power delivery for fast charging—making it perfect for creators and professionals needing ultra-fast, versatile connectivity.

Easy PC DIY:

Designed with both beginners and experienced builders in mind, TUF GAMING motherboards simplify system assembly. The TUF GAMING Alliance ensures seamless compatibility with a wide range of components, while Armoury Crate software offers centralized control over system settings—including Fan Xpert 4, Two-Way AI Noise-Cancellation, RGB lighting, and connected peripherals—making setup and optimization intuitive and hassle-free.

Build with Confidence:

The TUF GAMING Alliance is a collaboration between ASUS and leading hardware manufacturers to guarantee compatibility across essential components like cases, PSUs, coolers, and memory. With continuous updates and new additions, the ecosystem grows stronger, helping users build a reliable, harmonized system with peace of mind.

TUF Protection:

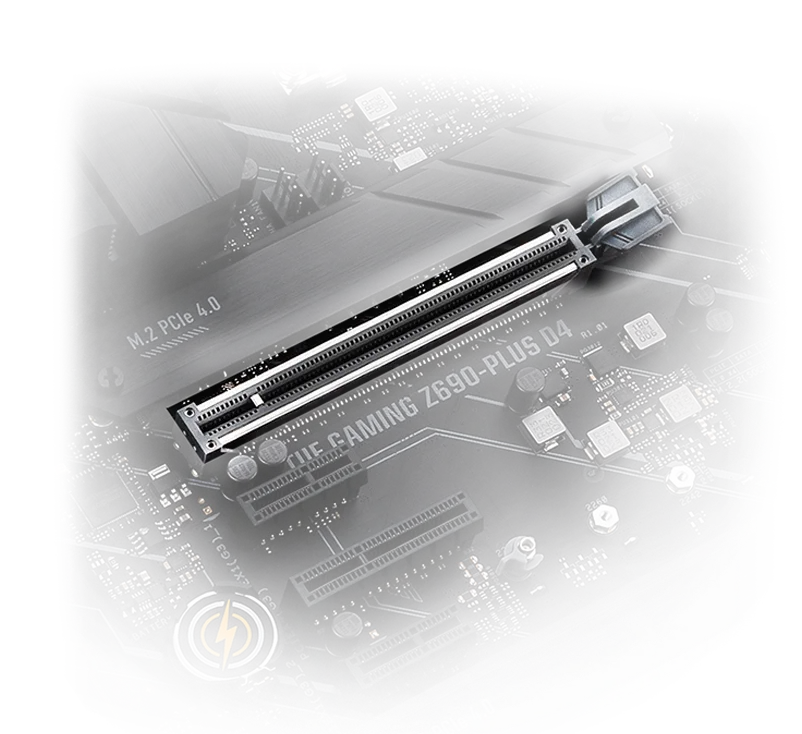

SafeSlot & SafeDIMM:

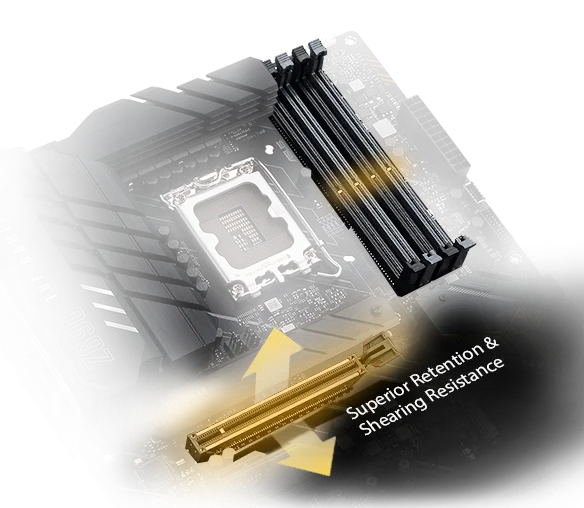

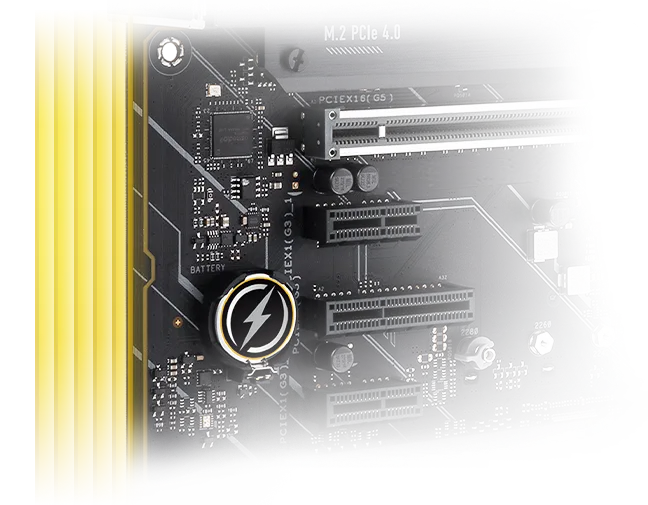

To handle the increased bandwidth of PCIe 5.0, the primary PCIe x16 slot uses an enhanced SMT (surface-mount technology) process and features SafeSlot—a reinforced metal housing that securely holds your graphics card in place, protecting against physical stress and vibration. SafeDIMM adds structural support around the DIMM slots, shielding memory modules during installation and use for added durability.

ESD Guards:

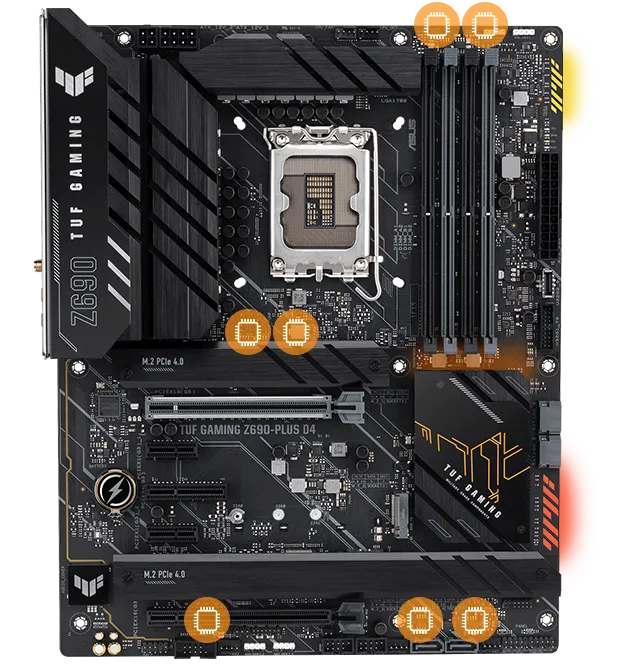

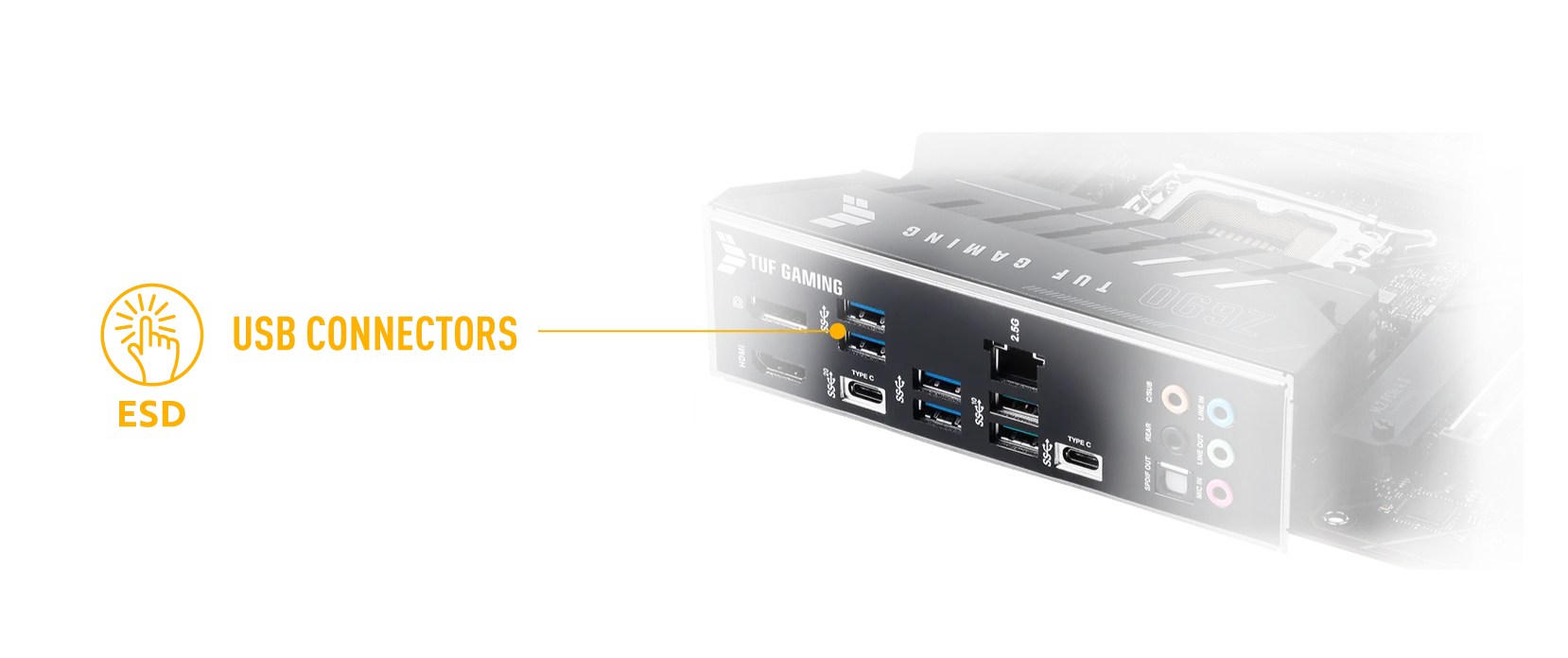

Integrated ESD (electrostatic discharge) protection guards safeguard sensitive components from static damage. Featuring dual in-line TVS diodes, the motherboard withstands up to ±10 kV (air discharge) and ±6 kV (contact discharge)—exceeding standard industry protection levels—ensuring longer component lifespan and improved reliability during handling and operation.

TUF LANGuard:

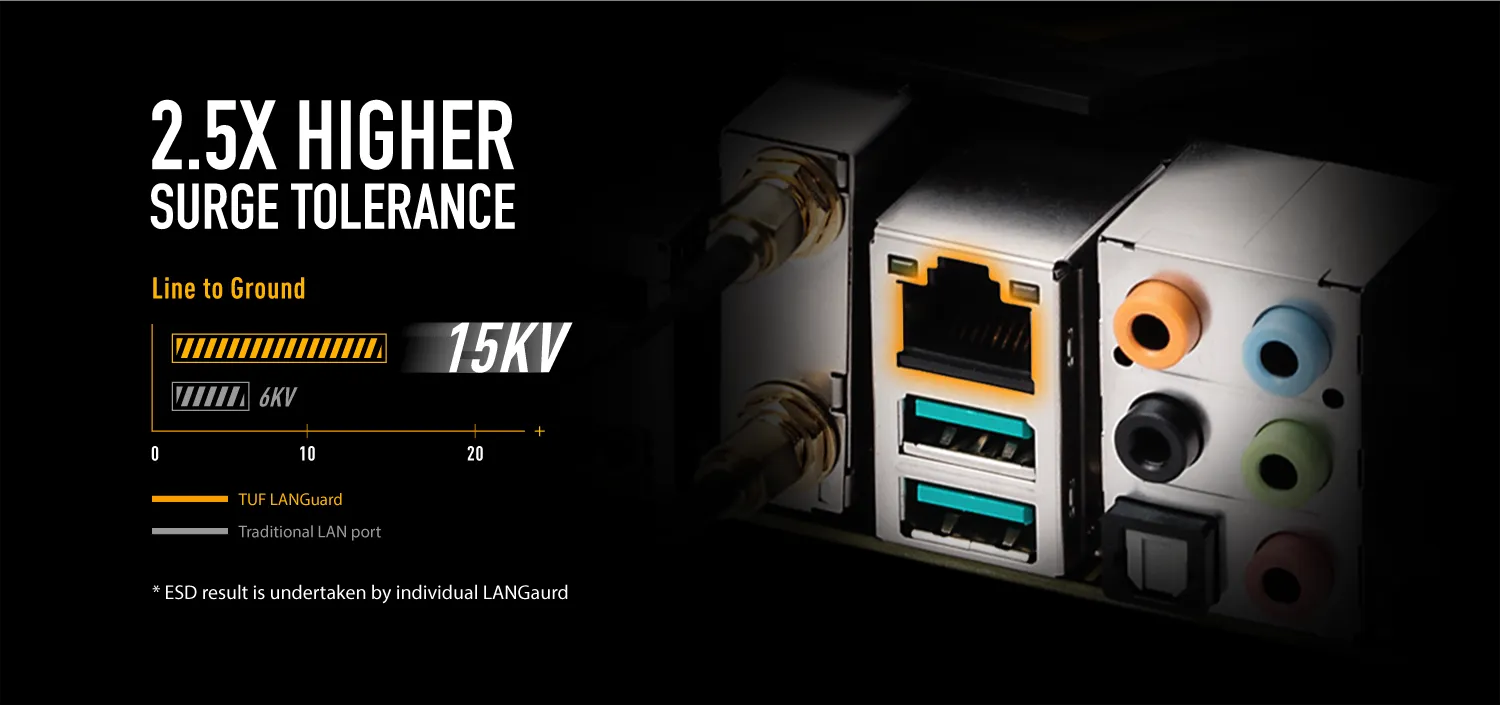

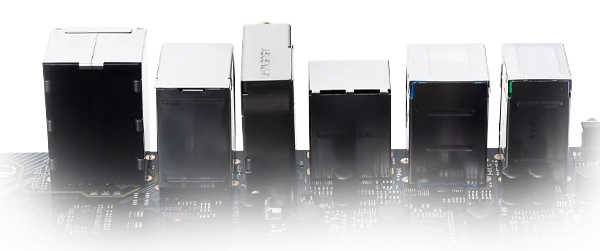

This military-grade networking protection uses advanced signal isolation and premium surface-mounted capacitors to shield the motherboard from surges caused by lightning or static. It enhances network stability and extends the life of the Ethernet controller.

DRAM Overvoltage Protection:

Resettable fuses on the motherboard protect critical components—including memory—against overcurrent and short circuits. This proactive safeguard helps prevent damage during installation or operation, preserving both system longevity and connected hardware.

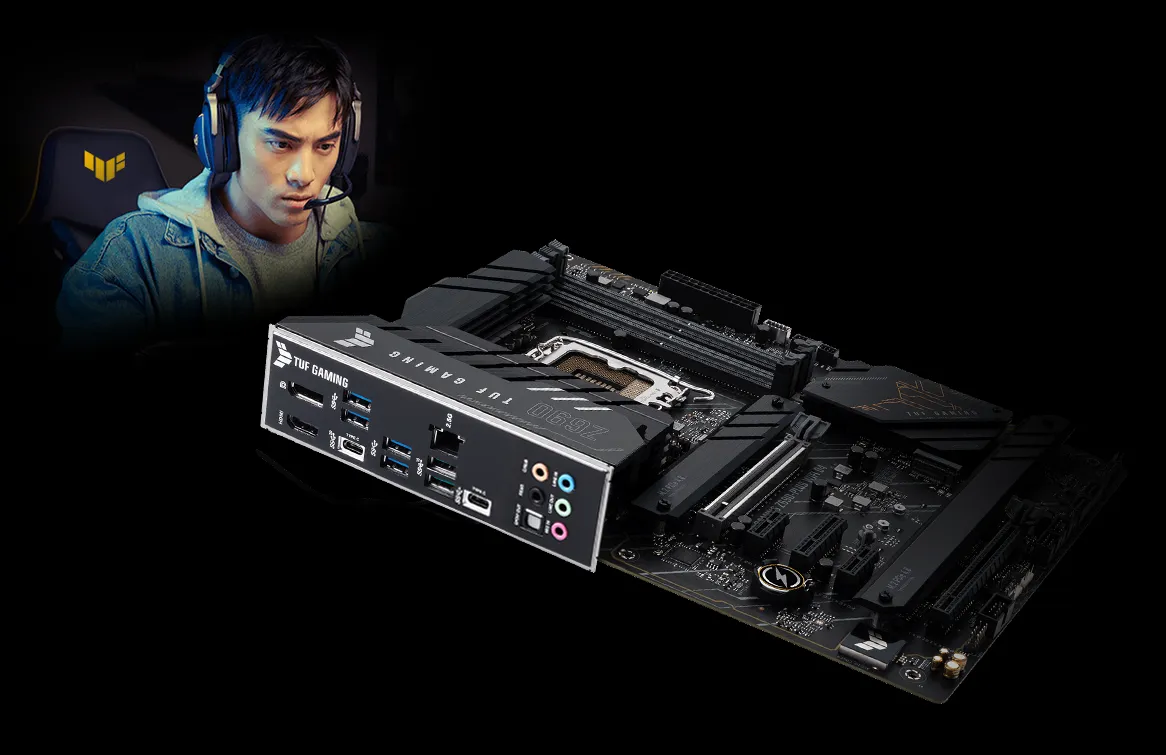

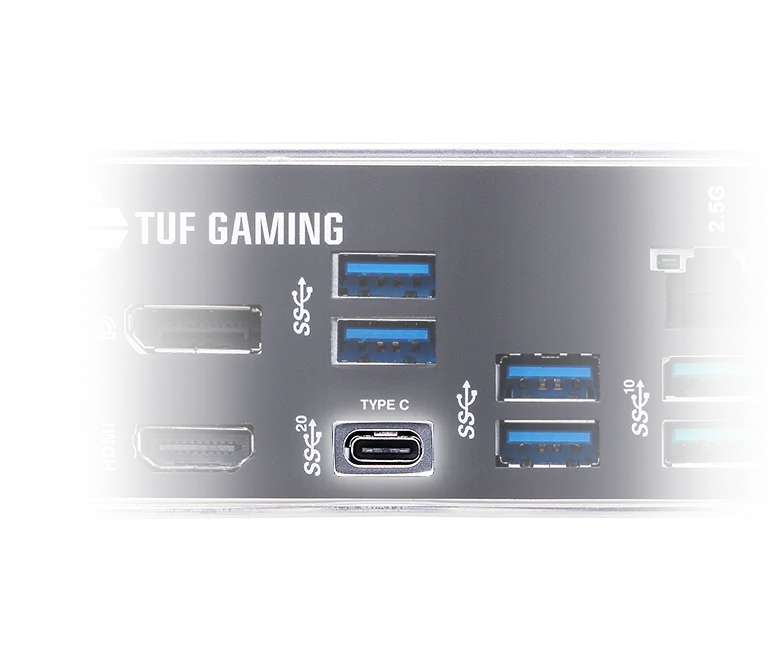

Stainless Steel Back I/O Panel:

The TUF GAMING Z690-Plus D4 features a premium stainless steel back I/O panel, treated with chromium oxide to resist corrosion and extend durability. This robust design ensures a lifespan up to three times longer than standard I/O panels. It has successfully passed a rigorous 72-hour salt fog test, significantly outperforming many competitors that typically only endure 24 hours—ensuring long-term reliability even in demanding environments.

Easy Configuration:

M.2 Q-Latch:

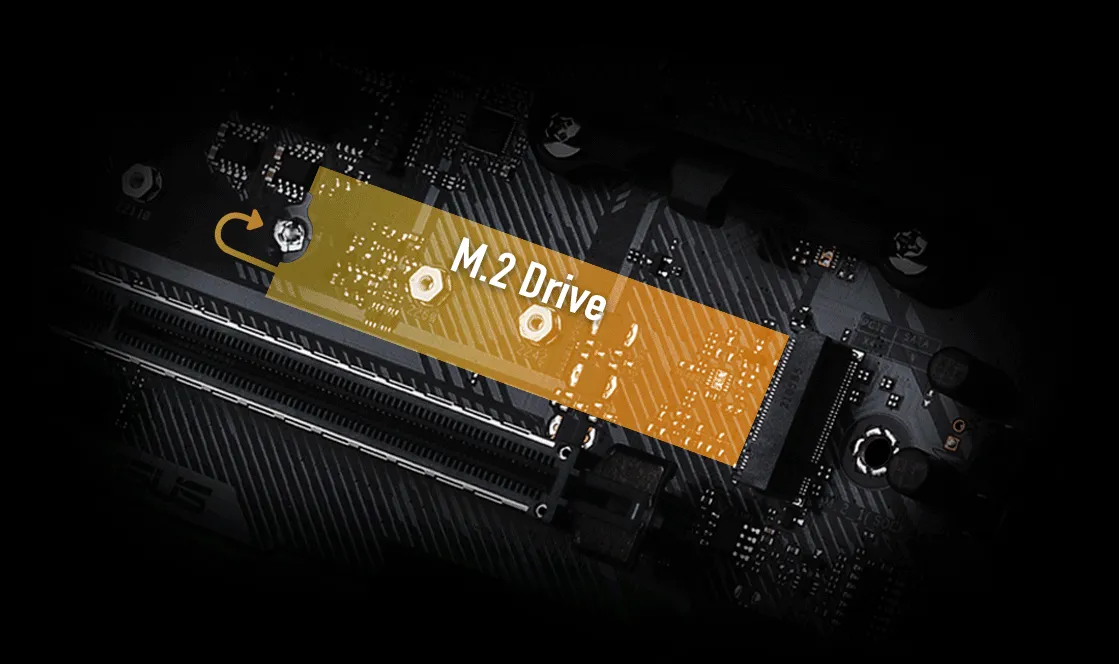

ASUS’s innovative M.2 Q-Latch system simplifies SSD installation and removal by eliminating the need for screws. A user-friendly locking mechanism securely fastens the M.2 drive in place, allowing for quick and tool-free upgrades or maintenance.

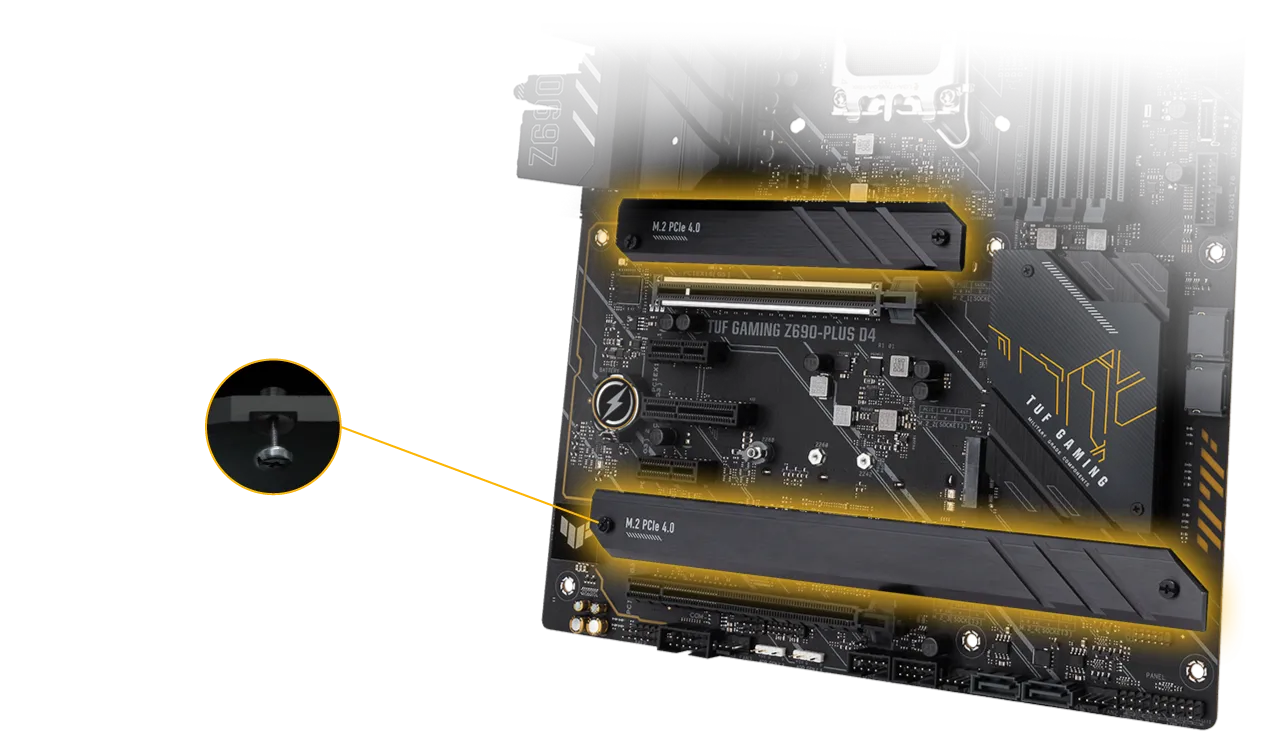

Removable Captive Screws:

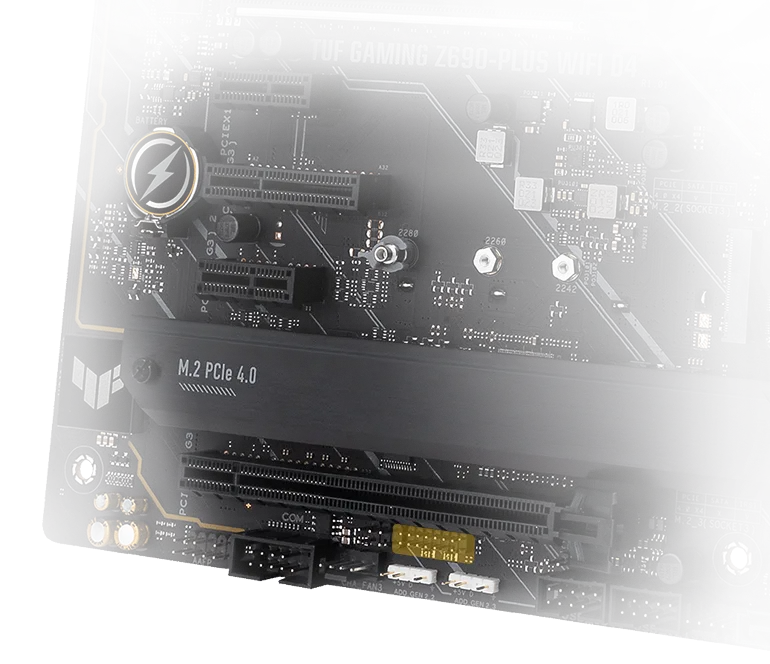

The motherboard includes specially designed captive screws for M.2 heatsinks, which stay attached even when loosened. This reduces the risk of losing small screws during installation or maintenance, making upgrades easier and safer.

Q-LED:

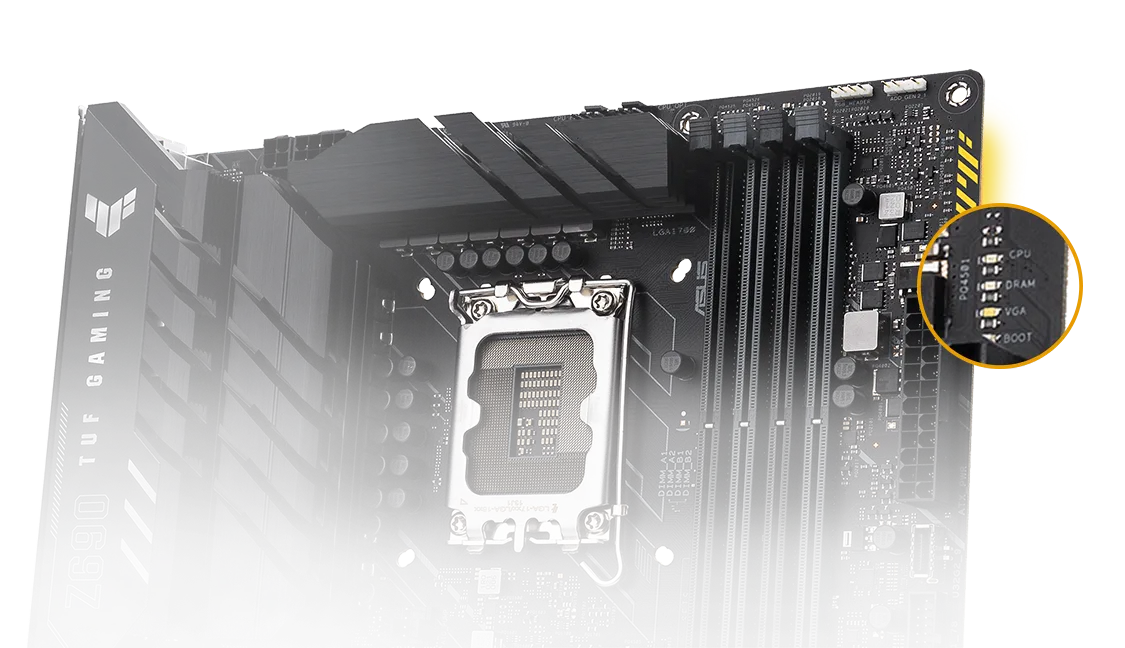

Integrated Q-LED indicators provide real-time troubleshooting feedback during system startup. If the system fails to boot, LEDs for CPU, DRAM, VGA, and storage help pinpoint the issue quickly, streamlining the build and debugging process for both beginners and experienced users.

Armoury Crate:

ASUS Armoury Crate is intuitive, all-in-one software that puts full control of your gaming setup at your fingertips. From a single interface, you can manage RGB lighting effects across Aura Sync-compatible devices, adjust fan curves via Fan Xpert 4, enable AI Noise-Cancelation, and customize system settings—creating a fully synchronized and optimized gaming environment.

Immersive Gaming:

TUF GAMING Z690 motherboards are engineered to elevate your gameplay with a complete suite of performance-enhancing features. Enjoy ultra-fast networking for lag-free online sessions, high-fidelity audio with precise directional cues ideal for FPS games, and customizable RGB lighting that syncs across your entire rig—helping you build a cohesive, immersive, and personalized gaming atmosphere.

Networking:

Intel® 2.5 Gb Ethernet:

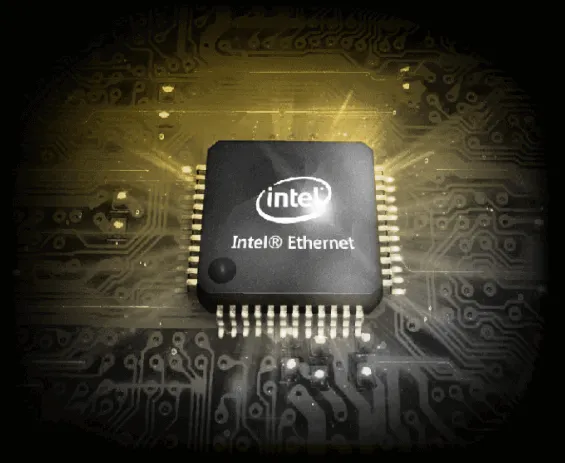

Equipped with high-speed Intel 2.5 Gigabit Ethernet, this motherboard delivers network speeds up to 2.5 times faster than standard 1 Gb connections. This means quicker file transfers, smoother 4K/8K streaming, and significantly reduced ping in online gaming—ideal for competitive players and content creators alike.

Two-Way AI Noise Cancelation:

An exclusive ASUS feature powered by advanced AI and a deep-learning database, Two-Way AI Noise-Cancelation removes unwanted background noise from both microphone input and audio output. Whether you're in a voice chat, streaming, or on a video call, it filters out keyboard clatter, mouse clicks, and ambient sounds—ensuring crystal-clear communication in both directions.

Gaming Audio:

Realtek 7.1 Surround Sound:

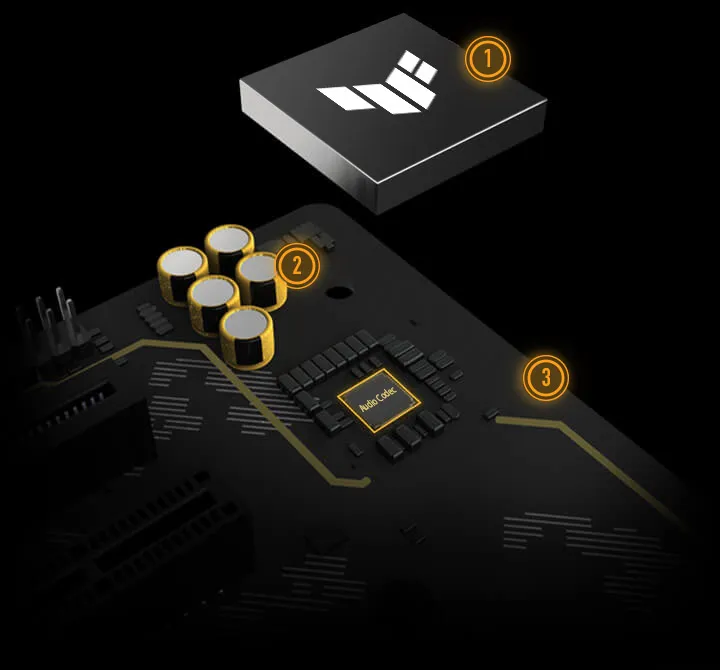

The onboard audio solution features a premium Realtek ALC897 codec with a carefully isolated circuit design that separates analog and digital signals to reduce interference. Combined with high-quality audio capacitors and shielding, it delivers rich, natural, and immersive 7.1-channel surround sound—perfect for gaming, movies, and music.

DTS Audio Processing:

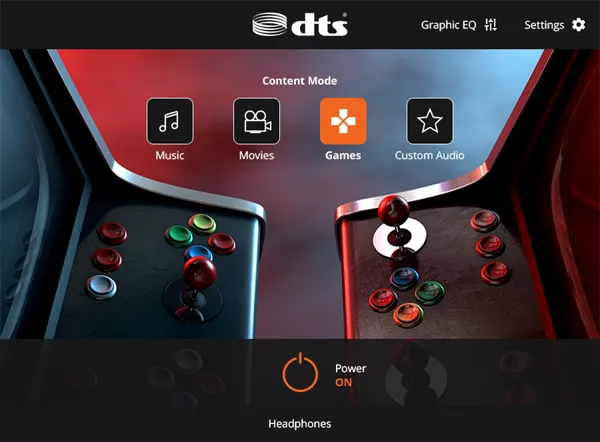

DTS Custom audio enhances your listening experience by reducing distortion, deepening bass response, and offering customizable sound profiles. Whether using speakers or a gaming headset, DTS delivers greater audio clarity and spatial awareness—giving you a competitive edge in-game.

Aura Sync RGB Lighting:

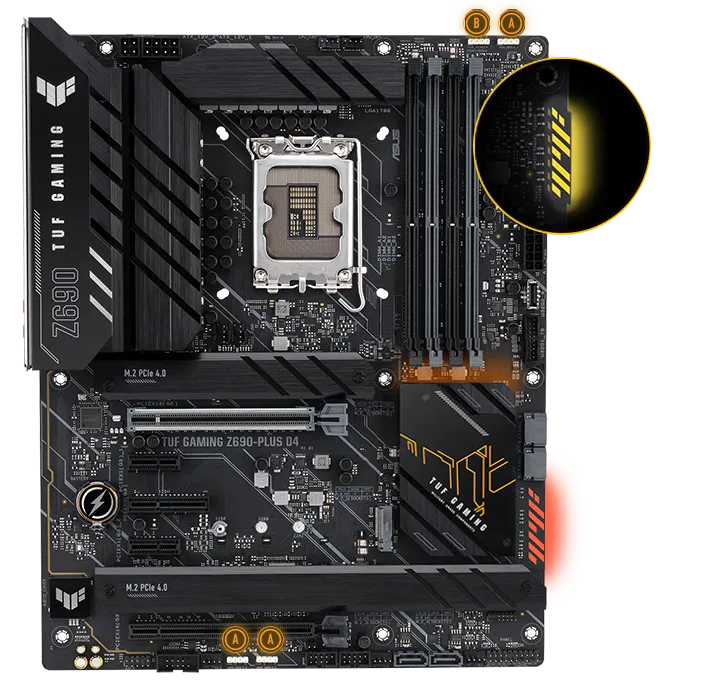

Style meets functionality with ASUS Aura Sync RGB lighting. The motherboard features dynamic edge lighting and RGB illumination on the PCH heatsink, adding a bold visual flair. With multiple lighting zones, addressable RGB headers, and support for third-party strips, you can create custom lighting effects. All connected Aura-enabled devices can be synchronized for a fully unified and eye-catching system aesthetic.
