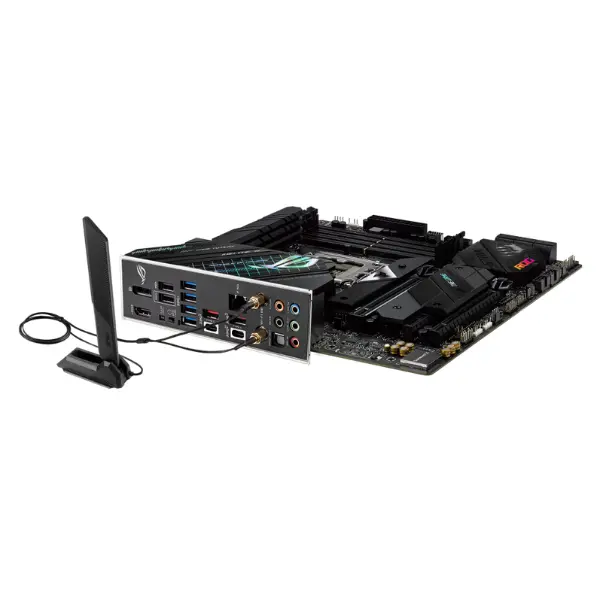

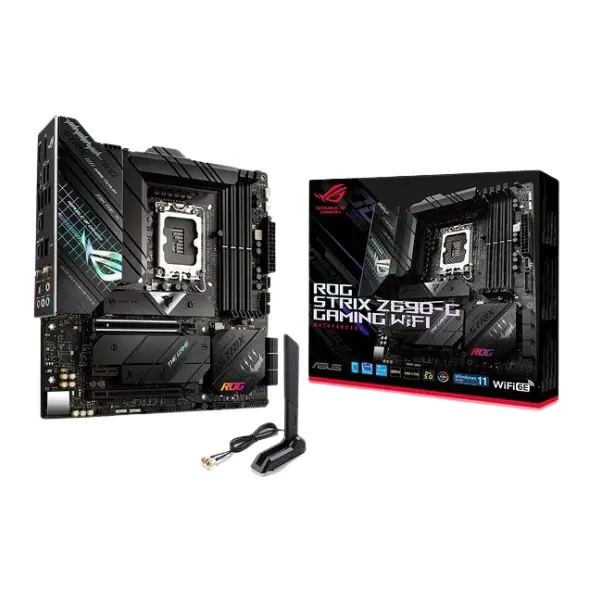

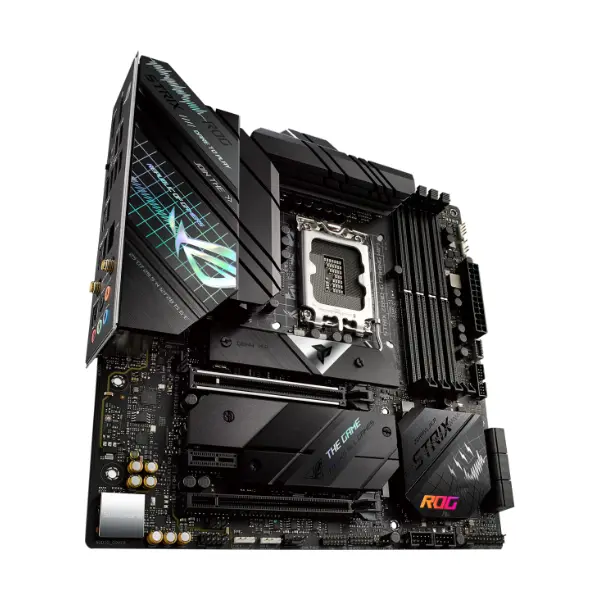

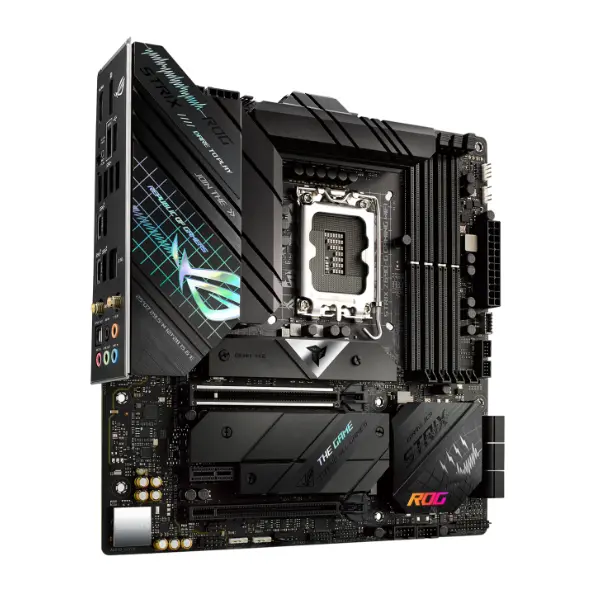

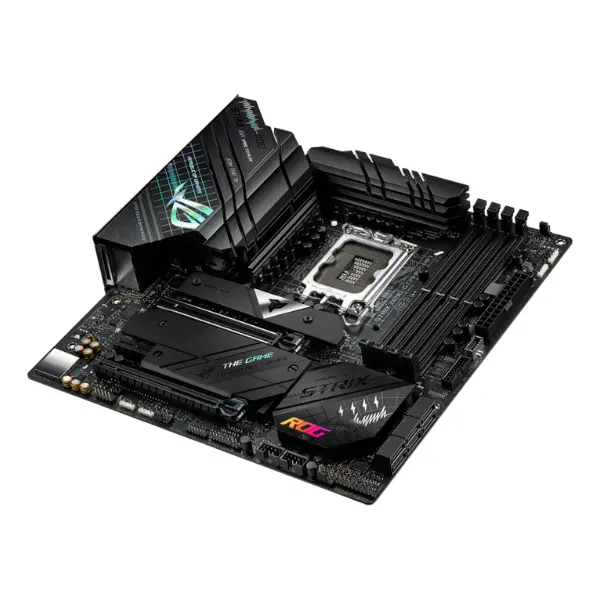

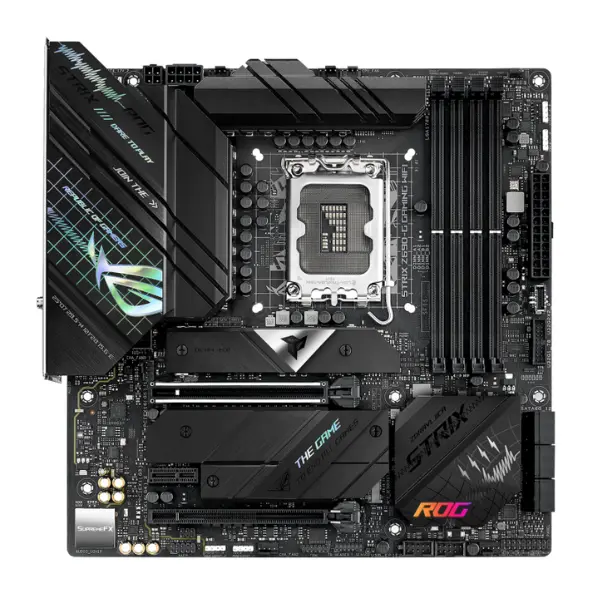

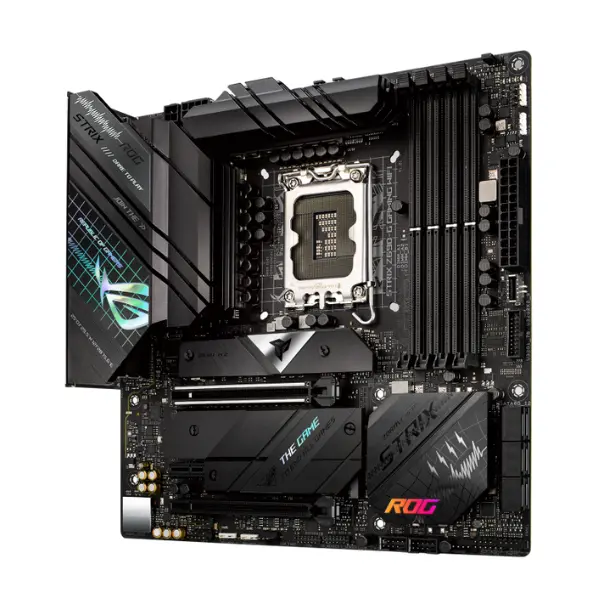

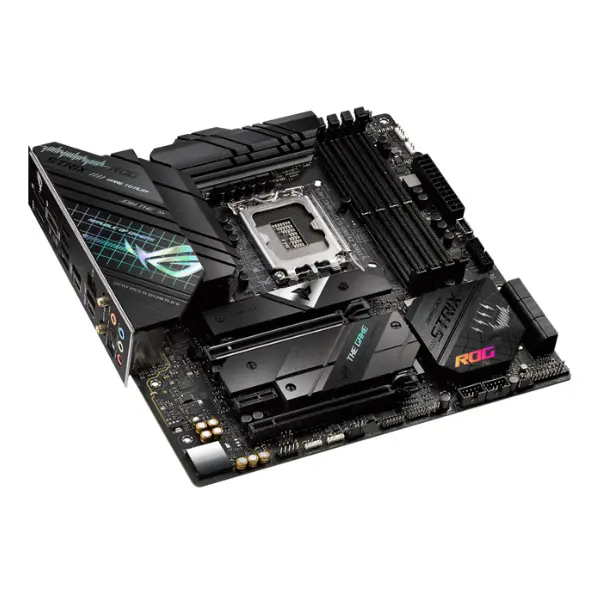

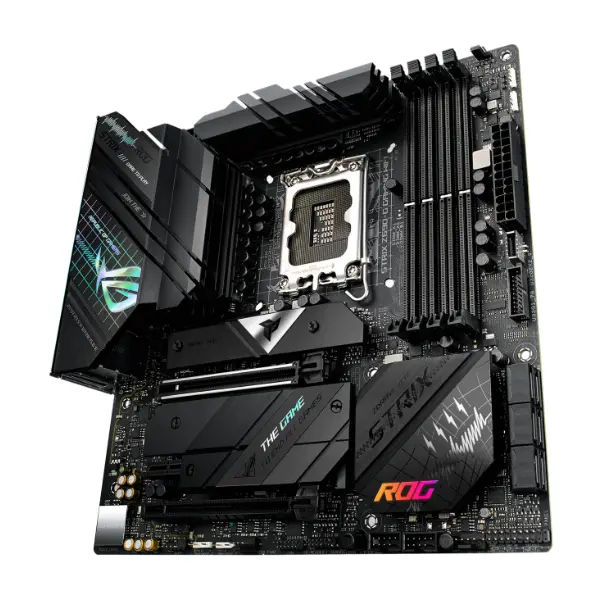

Asus Rog Strix Z690-G Gaming WiFi LGA1700 DDR5 mATX Motherboard

Asus Rog Strix Z690-G Gaming WiFi - Description

LGA1700 DDR5 mATX Motherboard

ROG STRIX Z690-G GAMING WiFi:

The ROG Strix Z690-G Gaming WiFi is the ideal choice for enthusiasts who want a powerful yet compact mATX build. It combines premium-grade power delivery, advanced cooling, and the latest connectivity standards with DDR5 and PCIe 5.0 support, unlocking the full potential of 14th, 13th, and 12th Gen Intel® Core™ processors. On top of this, ASUS-exclusive intelligent controls help fine-tune system performance with ease.

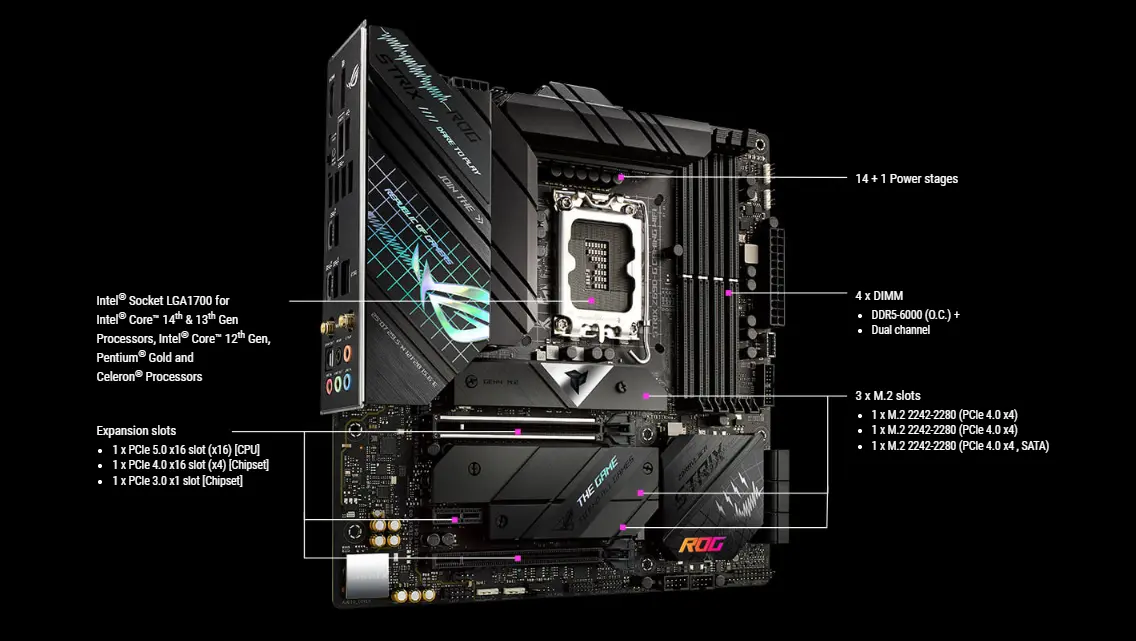

Performance:

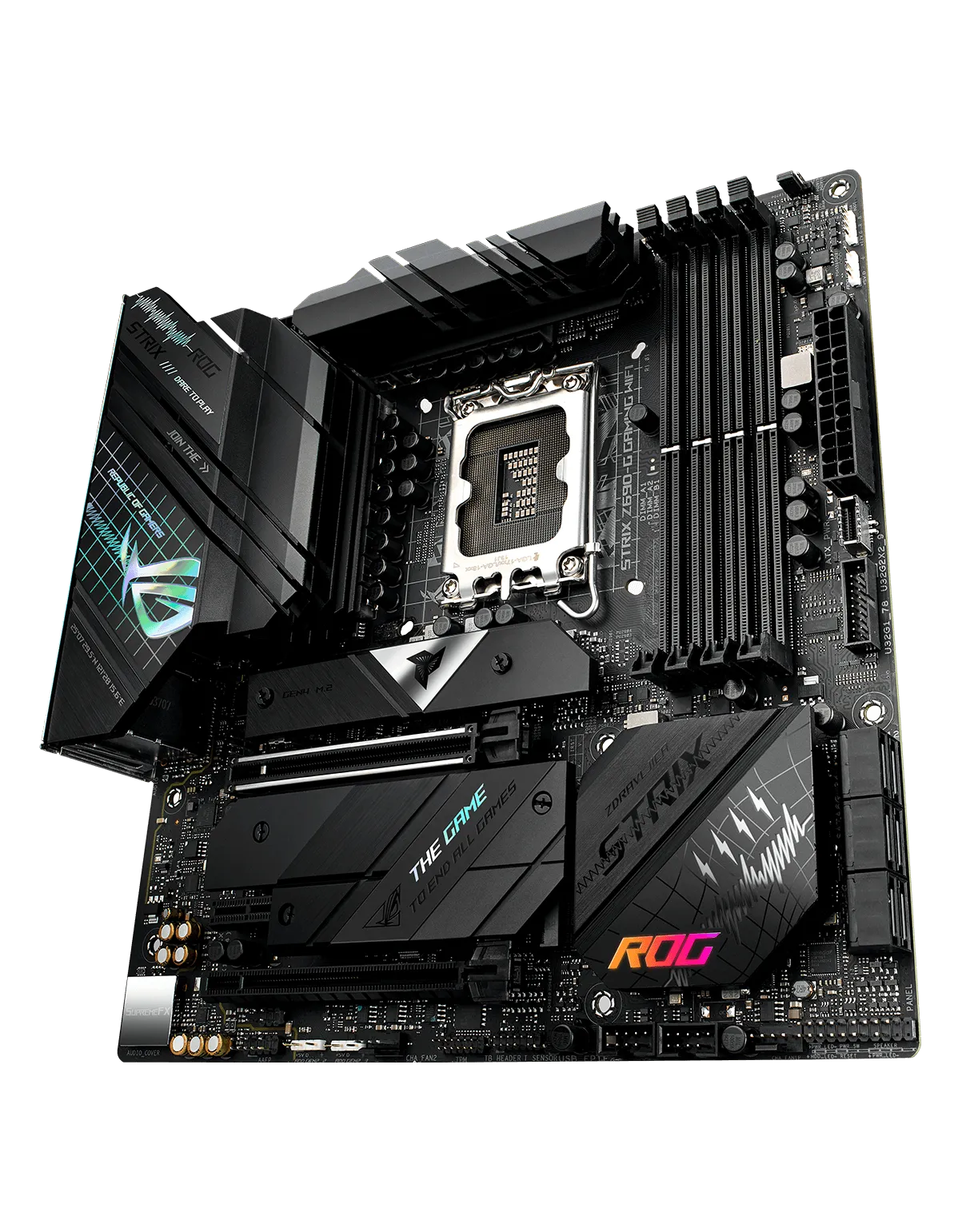

Built to meet modern computing demands, this motherboard is compatible with Intel® LGA1700 socket CPUs, including 14th, 13th, and 12th Gen Core™ processors, as well as Pentium® Gold and Celeron® models. It boasts a strong 14+1 power stage design and four DDR5 DIMM slots supporting dual-channel memory speeds up to DDR5-6000 (OC). For expansion, it includes one CPU-linked PCIe 5.0 x16 slot, a PCIe 4.0 x16 (running at x4), and a PCIe 3.0 x1 slot via the chipset. Storage options are flexible with three M.2 slots—all compatible with PCIe 4.0 x4, and one also supporting SATA SSDs.

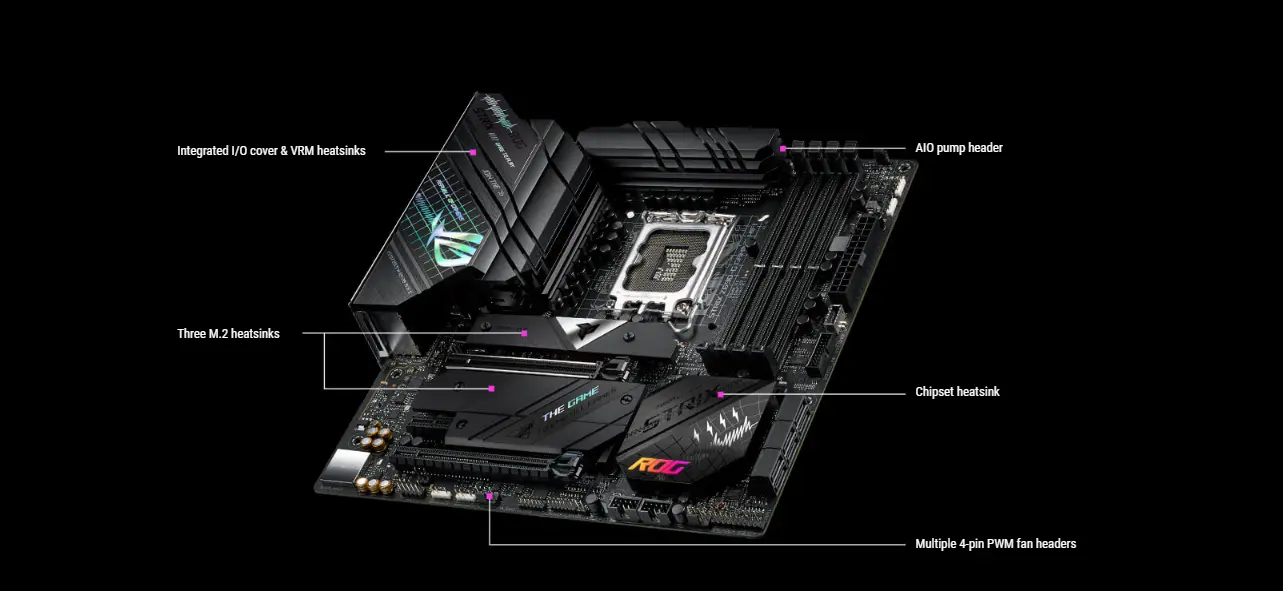

Cooling:

This motherboard is equipped with an advanced cooling solution to maintain optimal performance. It features an integrated I/O cover with VRM heatsinks, three dedicated M.2 heatsinks for SSD temperature control, and a chipset heatsink for stable operation. An AIO pump header supports liquid cooling setups, while multiple 4-pin PWM fan headers provide flexible and efficient airflow management across the system.

Gaming Immersion:

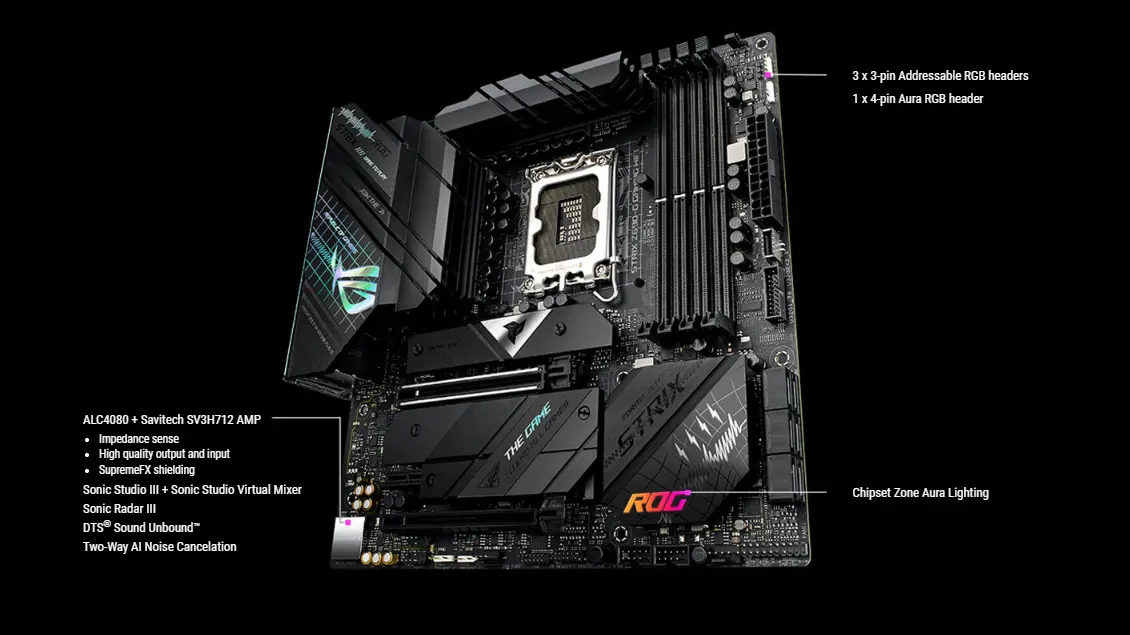

Designed to elevate the gaming experience, this motherboard integrates premium audio and lighting technologies. The ALC4080 codec with Savitech SV3H712 AMP delivers high-quality sound with impedance sensing, while SupremeFX shielding ensures clear audio input and output. Software enhancements like Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Radar III, and DTS® Sound Unbound™ provide immersive soundscapes. For crystal-clear communication, Two-Way AI Noise Cancelation reduces background noise. On the visual side, customizable RGB is supported through three 3-pin addressable headers, one 4-pin Aura RGB header, and chipset zone Aura lighting for stunning effects.

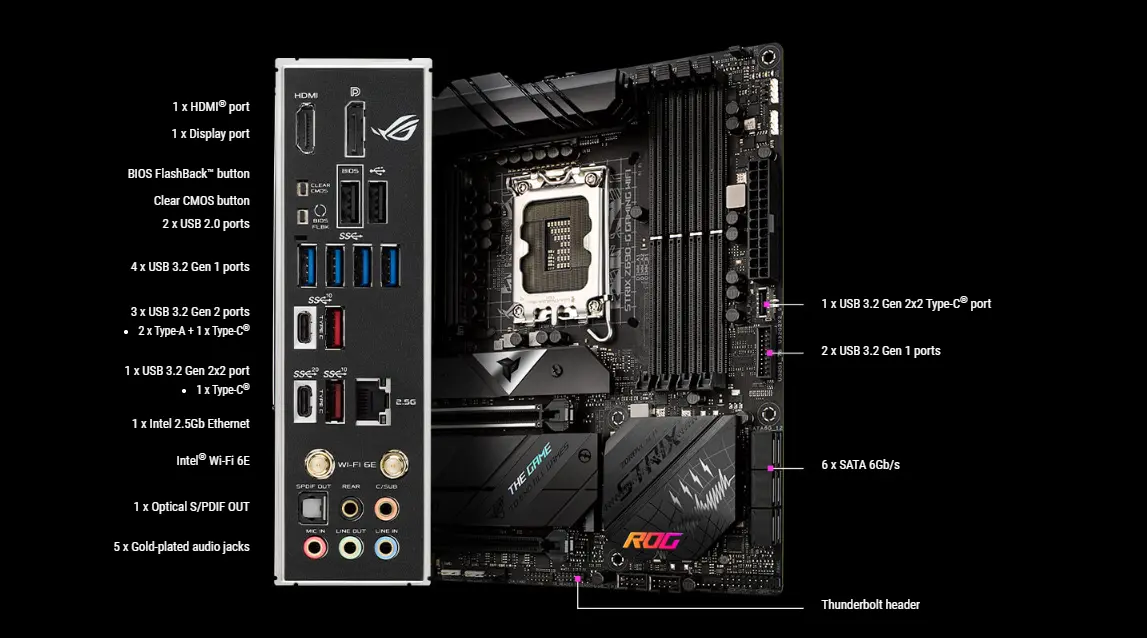

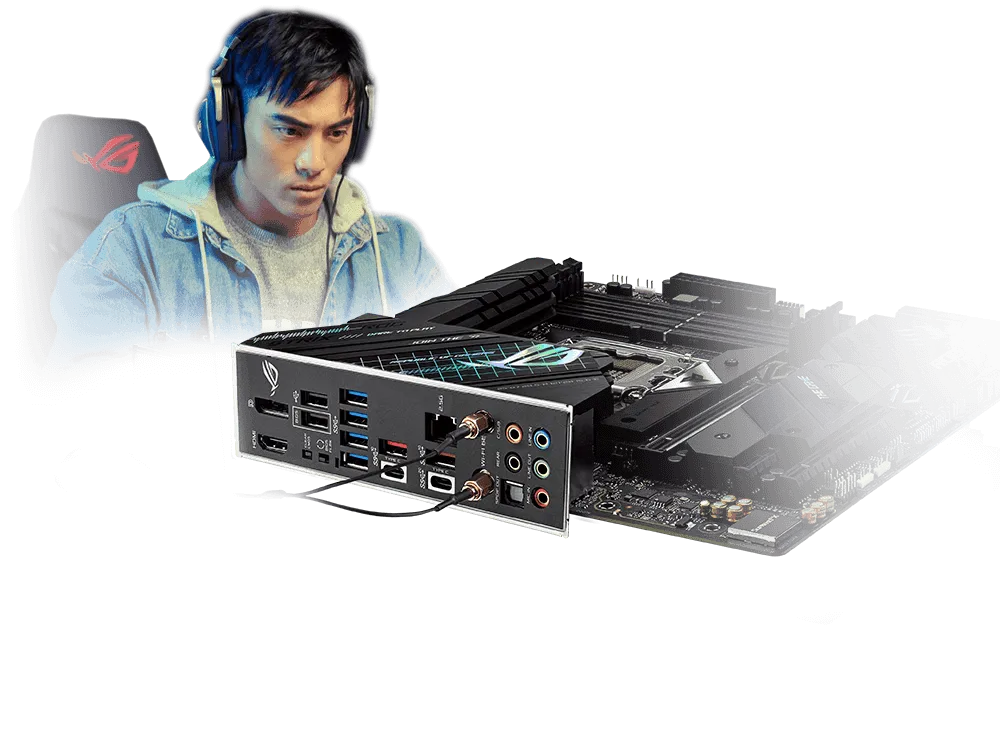

Connectivity:

This motherboard offers a wide range of connectivity options for seamless performance. Display support includes HDMI® and DisplayPort outputs, while BIOS FlashBack™ and Clear CMOS buttons provide easy system management. Multiple USB options are available, including USB 2.0, USB 3.2 Gen 1, Gen 2 (Type-A and Type-C®), and a high-speed USB 3.2 Gen 2x2 Type-C® port. Networking is powered by Intel® 2.5Gb Ethernet and Intel® Wi-Fi 6E for fast, reliable connections. For audio, it features an optical S/PDIF out and five gold-plated audio jacks. Additionally, the board provides six SATA 6Gb/s ports and a Thunderbolt header for enhanced expandability.

All-round Performance:

The ROG Strix Z690-G Gaming WiFi is designed with enhanced power delivery and optimized cooling to maximize gaming builds. Intelligent software tools simplify overclocking, cooling, and networking adjustments, while Two-Way AI Noise Cancelation keeps in-game communication sharp. It includes all the features needed for a high-performance gaming PC.

Power Design:

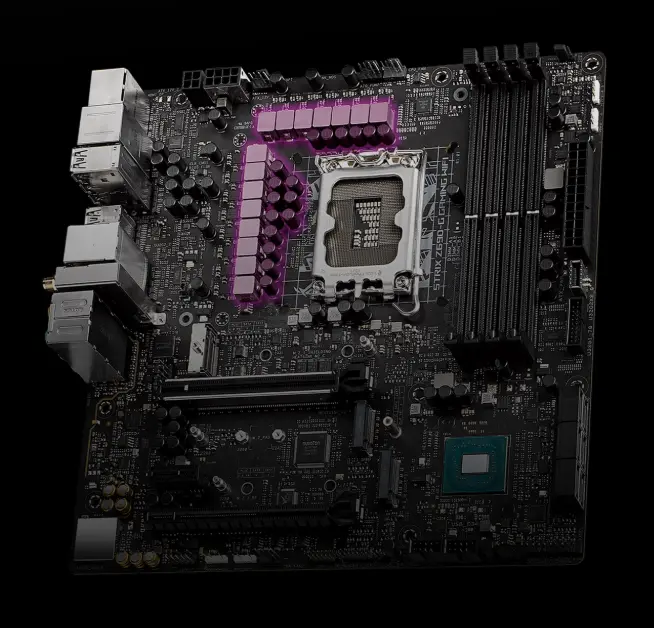

ASUS motherboards feature advanced digital power control and robust power stages to fully support the latest Intel CPUs. A 14+1 teamed power stage design combines high-side and low-side MOSFETs with drivers in a single package, ensuring efficient and reliable power delivery. High-quality alloy chokes and durable capacitors are built to withstand extreme conditions, while the ProCool II power connector provides secure contact, improved heat dissipation, and reduced electrical impedance for enhanced reliability. The industry-leading Digi+ VRM guarantees clean and stable voltage regulation, and the eight-layer PCB design helps dissipate heat around the VRM, boosting stability and giving the CPU more overclocking potential.

Cooling:

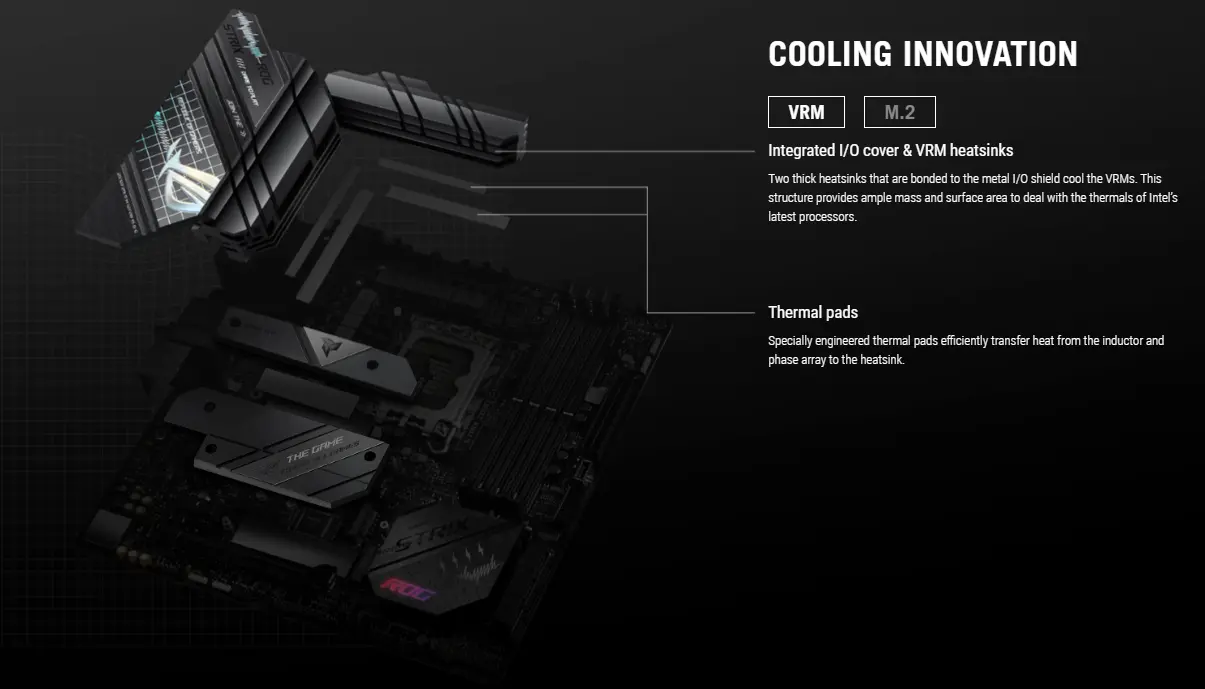

Cooling Innovation:

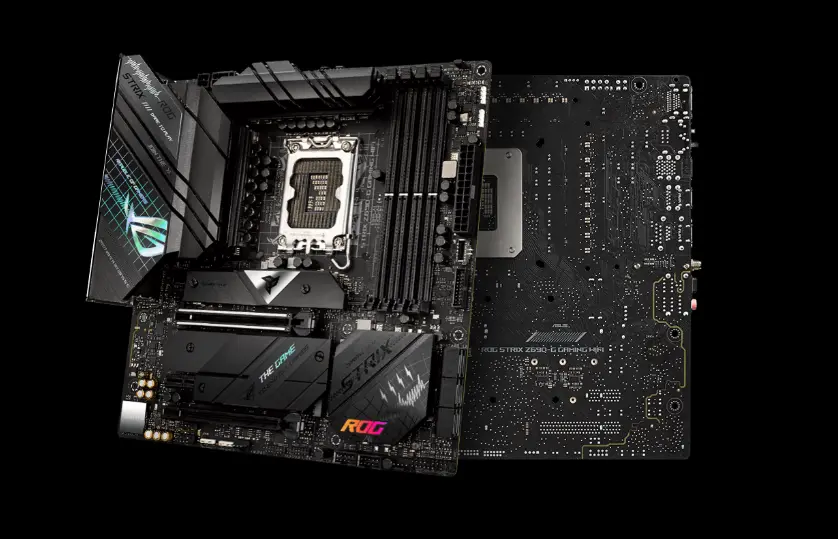

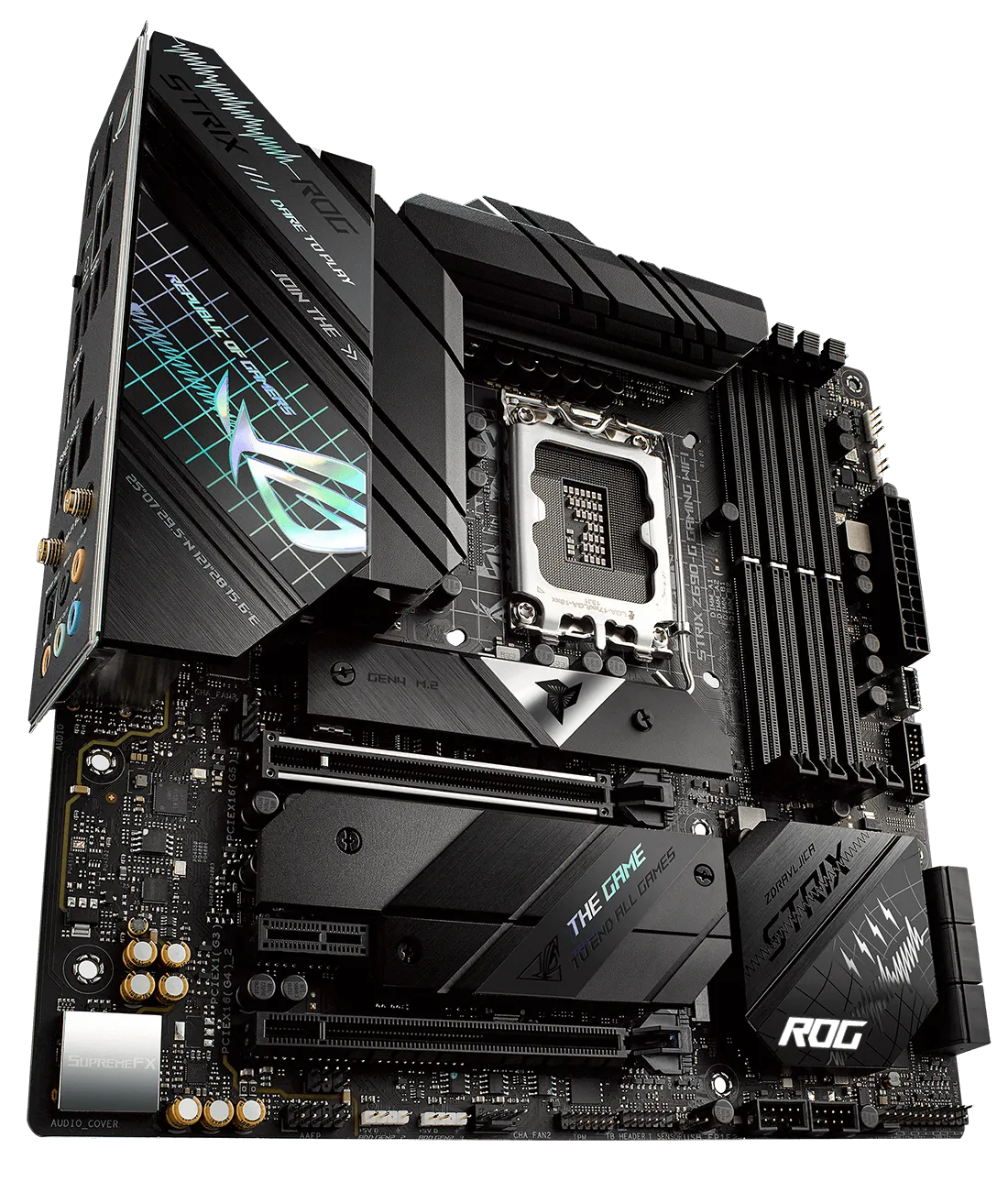

ASUS implements a comprehensive cooling design to ensure stable performance under heavy workloads. The integrated I/O cover and large VRM heatsinks, bonded together for maximum mass and surface area, efficiently manage the heat generated by Intel’s latest processors. Specially designed thermal pads improve heat transfer from the inductor and power phases to the heatsinks for enhanced cooling efficiency. To keep storage drives performing at their best, multiple M.2 heatsinks maintain optimal SSD temperatures, while dual M.2 backplates provide additional thermal support to sustain peak performance even in limited airflow conditions.

Cooler by Design:

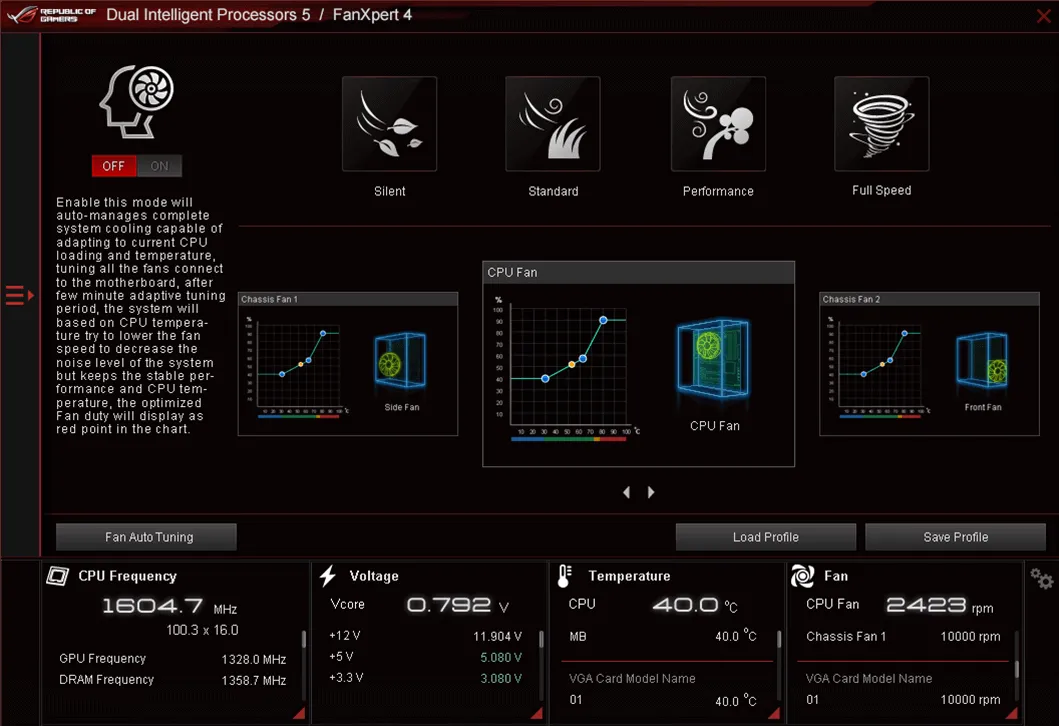

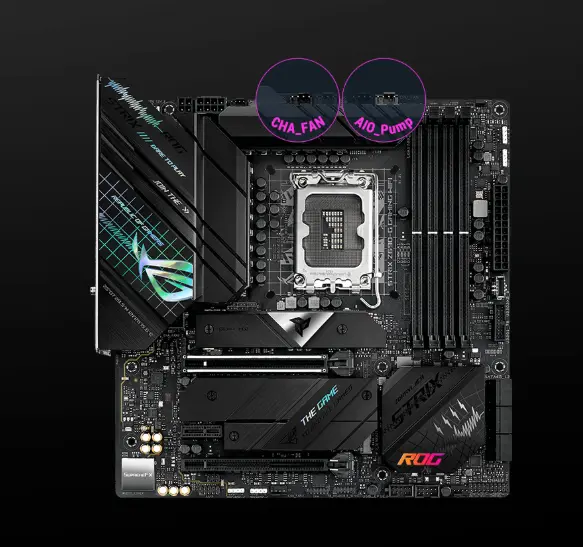

ROG Strix Z690 motherboards feature comprehensive cooling controls that can be easily configured using Fan Xpert 4 in Armoury Crate or directly through the UEFI BIOS.

Intelligent Control:

Two-Way AI Noise Cancelation:

This exclusive ASUS feature uses a deep-learning database to minimize background noise from both the microphone* and incoming audio, while preserving clear voices. It effectively eliminates sounds like keyboard typing, mouse clicks, and ambient noise, ensuring crystal-clear communication during gaming or calls.

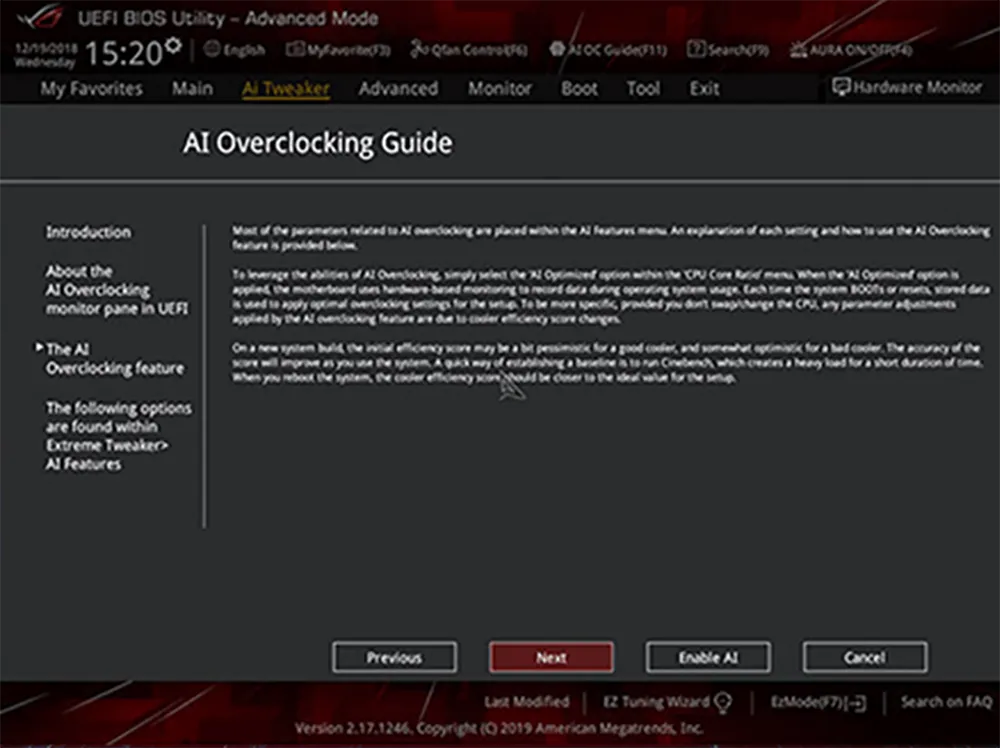

ROG AI Overclocking:

ROG AI Overclocking automatically analyzes your CPU and cooling system to predict the best voltage and frequency settings. This intelligent tool helps maximize system performance with minimal effort.

AI Cooling:

ASUS AI Cooling technology dynamically adjusts motherboard-connected fans, ensuring optimal performance based on current system load and temperatures.

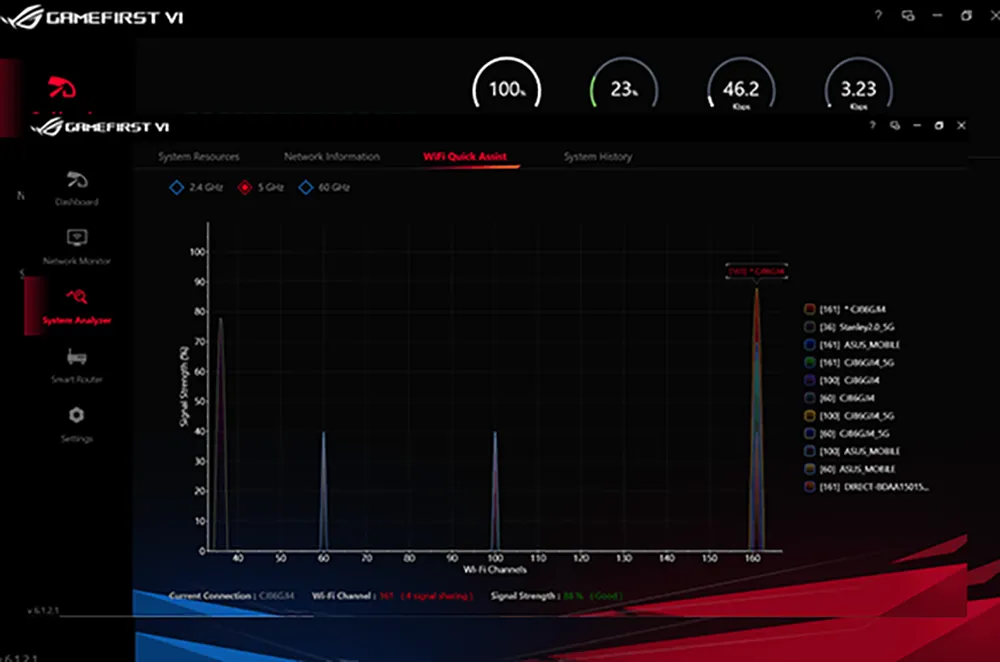

AI Networking:

ROG GameFirst VI enhances online gameplay by optimizing network settings with AI-driven identification and acceleration technologies. Whether beginner or expert, users benefit from smoother, faster, and more stable connectivity.

LEADING CONNECTIVITIY:

The ROG Strix Z690-G Gaming WiFi delivers high-speed, versatile connectivity for seamless online gaming and rapid data transfers. Alongside this, it integrates advanced audio solutions for pinpoint accuracy, letting players detect the smallest in-game cues and gain an edge over opponents.

DDR5 Overclocking Strength - ASUS Enhanced Memory Profile:

ROG Strix Z690 motherboards provide extensive memory tuning, unlocking maximum potential from DDR5. Even entry-level modules with locked PMICs can benefit, while high-speed kits achieve greater performance through comprehensive overclocking options.

Networking:

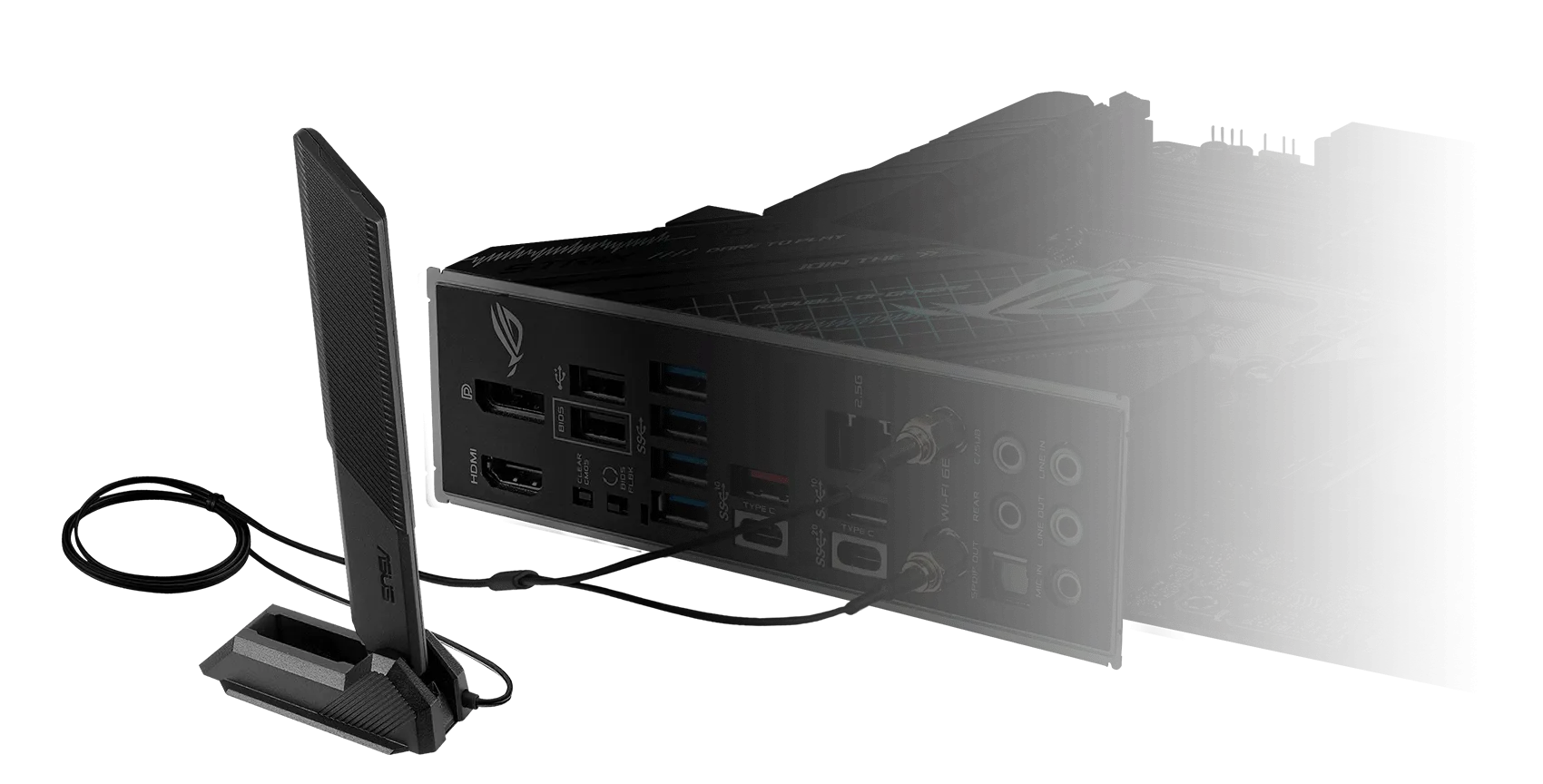

WiFi 6E (802.11 ax):

Built-in WiFi 6E takes advantage of the 6 GHz band, offering up to three times more bandwidth than 5 GHz. With support for multiple 160 MHz channels, it delivers faster wireless speeds, higher capacity, and improved performance in crowded networks.

Intel® 2.5 Gb Ethernet:

Integrated 2.5 Gb Ethernet boosts wired connections to be up to 2.5X faster than standard Ethernet. This provides smoother online gaming, quicker file transfers, and lag-free video streaming.

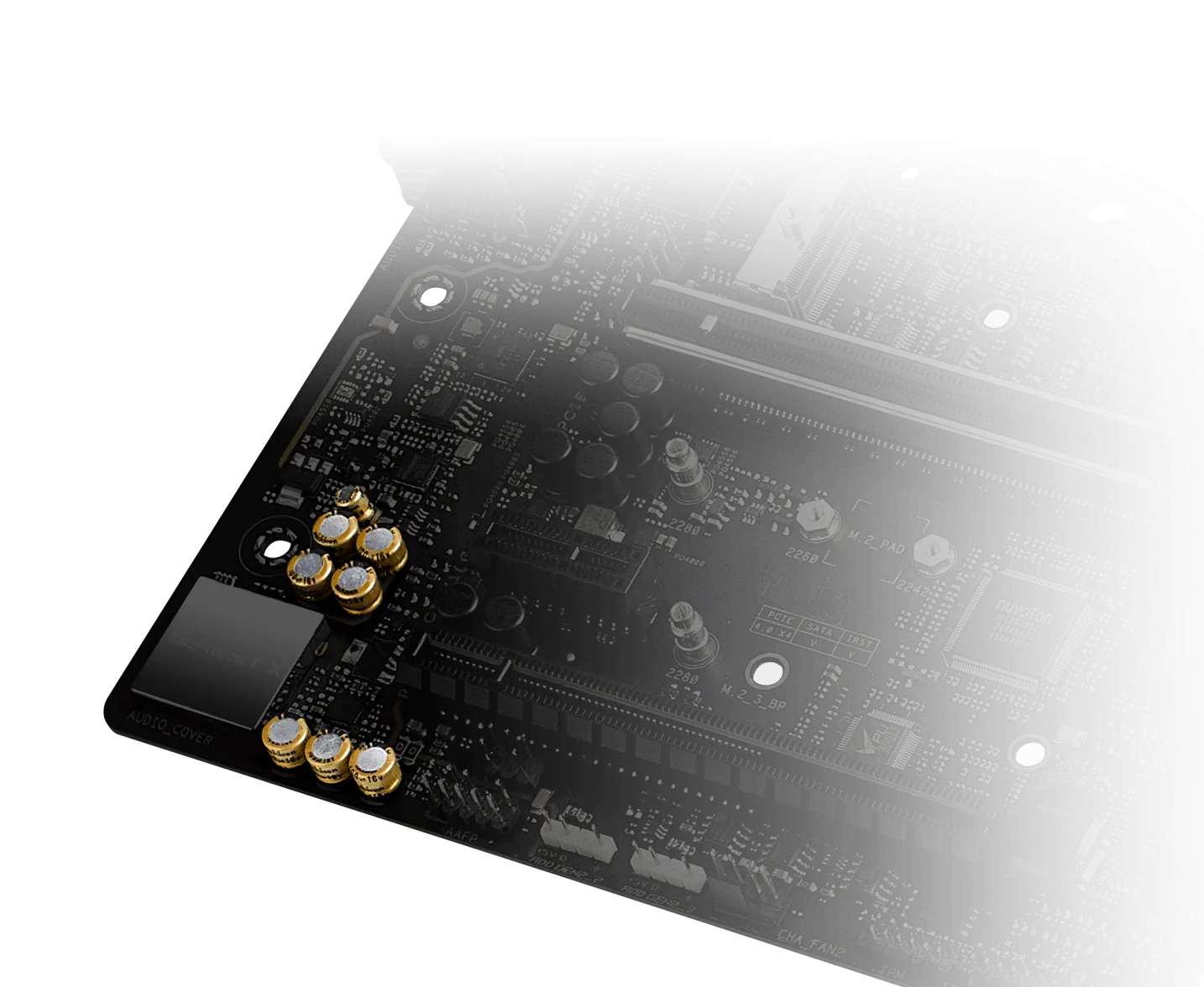

SupremeFX:

ROG SupremeFX combines premium hardware and software to deliver outstanding audio quality. On the ROG Strix Z690-G Gaming WiFi, the ALC4080 codec raises playback resolution up to 384 kHz across all channels. The front-panel output passes through a Savitech amplifier capable of powering both high-end gaming headsets and hi-fi headphones.

PLAY IN STYLE:

Customize your setup by pairing the ROG Strix Z690-G Gaming WiFi with other ROG ecosystem products. Together, they create a personalized gaming environment that reflects your unique style.

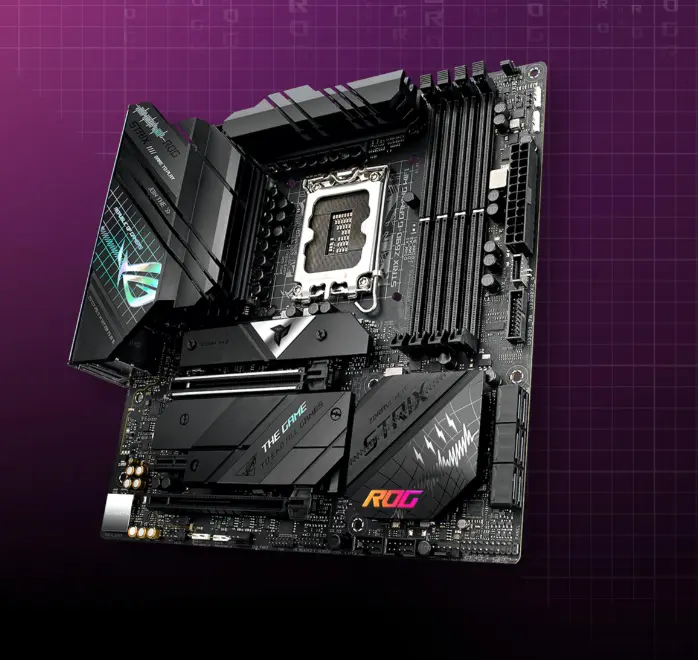

Undeniably ROG Strix:

With a sci-fi-inspired design, the ROG Strix Z690-G Gaming WiFi showcases iridescent logos on the I/O cover and M.2 heatsink, while the PCH cover supports customizable RGB for a distinctive look.

Outshine The Competition:

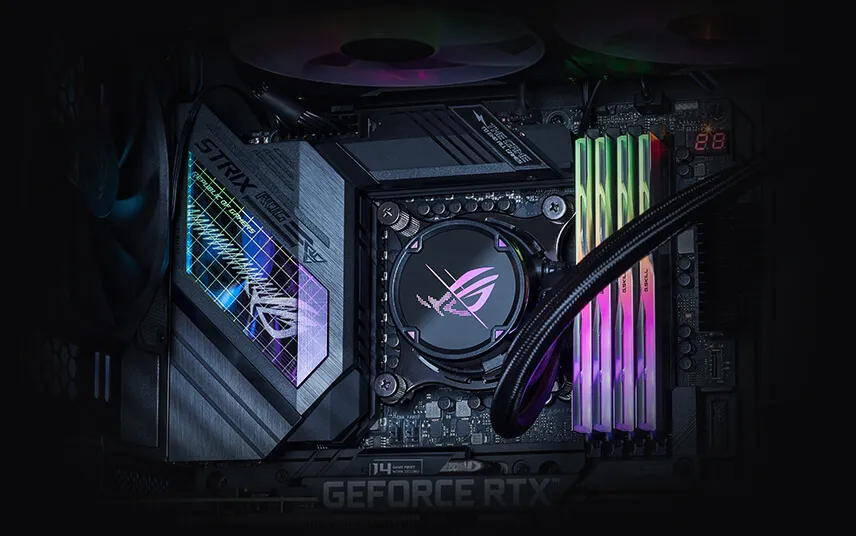

ROG Strix motherboards combine powerful performance with striking design to truly outshine the competition. Equipped with ASUS Aura technology, they offer complete RGB lighting control with multiple preset effects for both onboard LEDs and connected RGB strips. Furthermore, all lighting can be effortlessly synchronized with a wide range of Aura-compatible ASUS devices for a unified and dynamic look.

DIY Friendly:

Installation and maintenance are made simple with user-focused features. The M.2 Q-Latch enables tool-free SSD setup, while the Clr CMOS button allows quick BIOS resets or reboots after incorrect settings. BIOS FlashBack™ offers effortless updates via USB, even without CPU or memory installed. For troubleshooting, Q-LED indicators highlight CPU, memory, GPU, or boot issues. A pre-mounted matte black ROG I/O shield further streamlines the building process.

CERTIFIED COMPATIBILITY:

ROG Strix motherboards go through a rigorous certification process to ensure seamless compatibility with a wide variety of components and devices. The Qualified Vendor List (QVL) serves as a reliable reference for selecting memory and hardware that are guaranteed to work flawlessly.

THE ROG STRIX ECOSYSTEM AWAITS:

Enhance your build with the ROG Strix ecosystem. From AIO coolers and cases to peripherals and more, ROG provides unmatched design harmony, control, and compatibility — offering more choices than any other brand.

ROG Gives You More:

With ROG-exclusive software tools, you can fine-tune audio, optimize performance, and customize your gaming experience. Trusted utilities like AIDA64 and MemTest86 are included to assist with system setup, monitoring, and performance tuning.

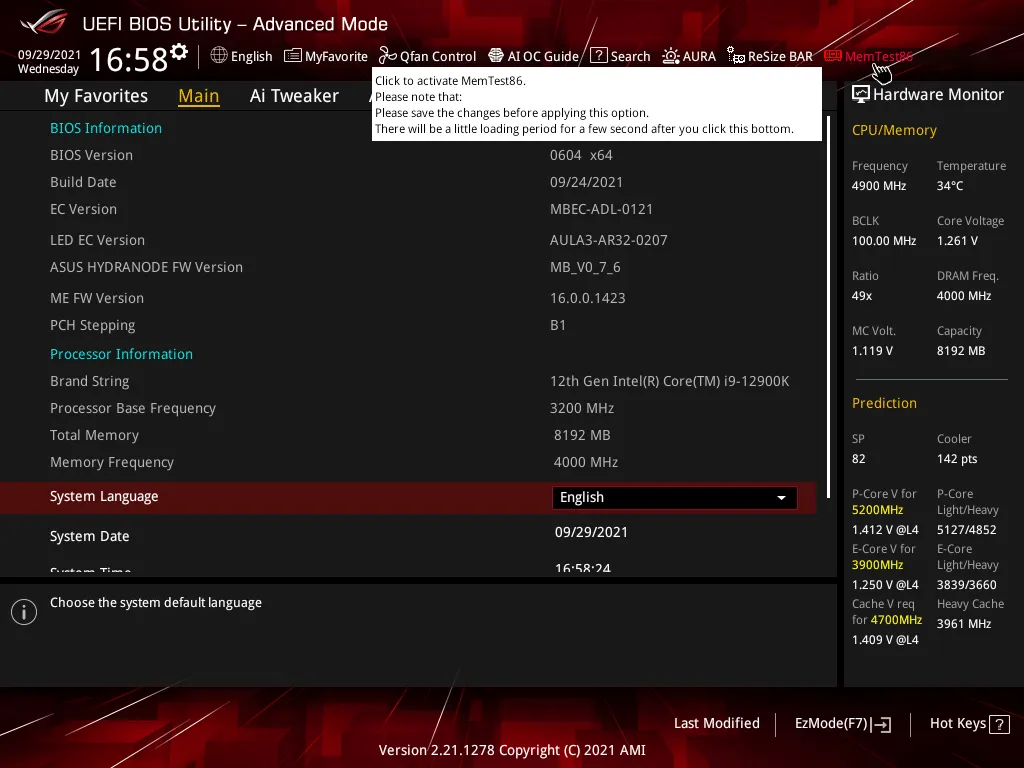

UEFI BIOS:

The renowned ROG UEFI BIOS delivers all the tools you need for configuration and tuning. It provides simplified settings for beginners while offering in-depth features for advanced users who want full control over their system.

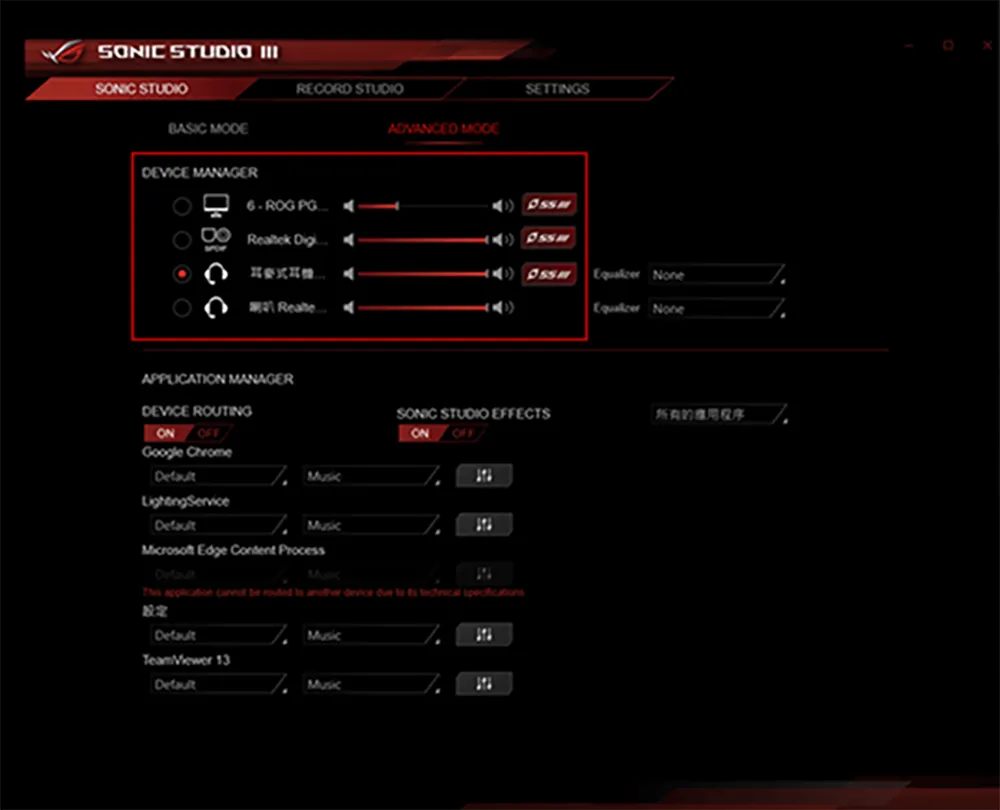

Sonic Studio III:

ROG Sonic Studio enhances VR and headset audio through HRTF-based virtual surround, immersing you deeper in the action. Its user-friendly interface includes EQ controls and one-click presets, allowing you to personalize acoustics based on preference or headset type.

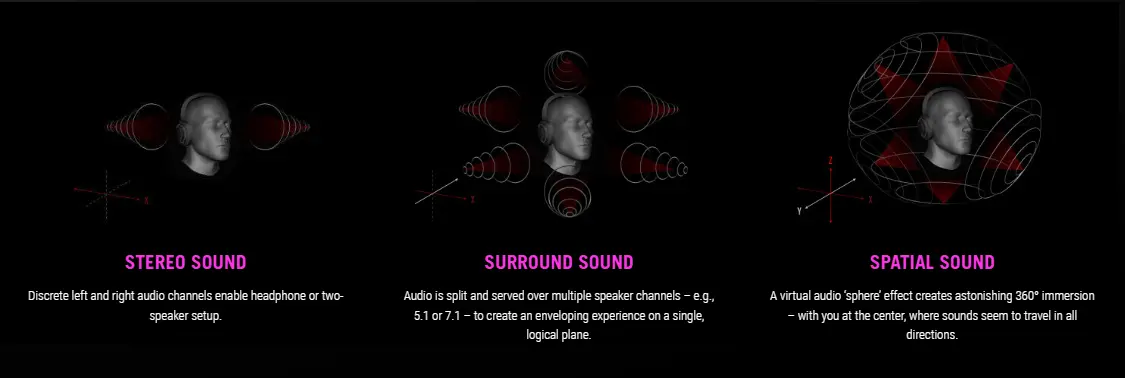

DTS: Sound Unbound

Pre-installed on ROG Strix Z690 motherboards, DTS® Sound Unbound™ harnesses Windows Sonic spatial technology to create a 3D audio experience. This immersive soundstage lets you pinpoint every footstep, gunshot, and environmental sound with precision during games and entertainment.

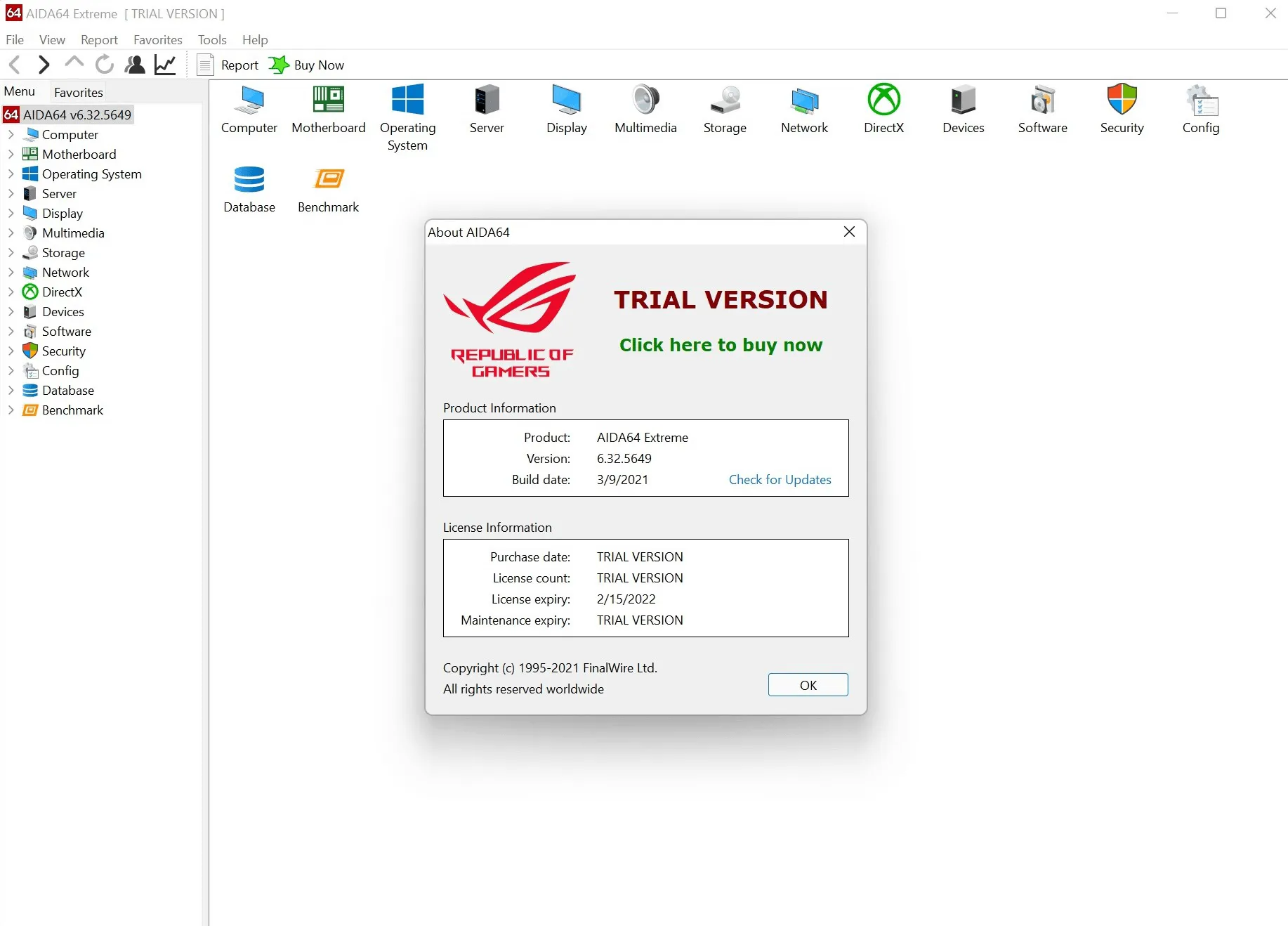

AIDA64 EXTREME:

Bundled with a 60-day trial, AIDA64 Extreme offers detailed insights into hardware and software, plus system-wide or component-level performance benchmarks. It also includes real-time monitoring for voltages, fan speeds, and temperatures, with data display options on your desktop, dedicated screens, or even ROG AIO cooler OLED panels.

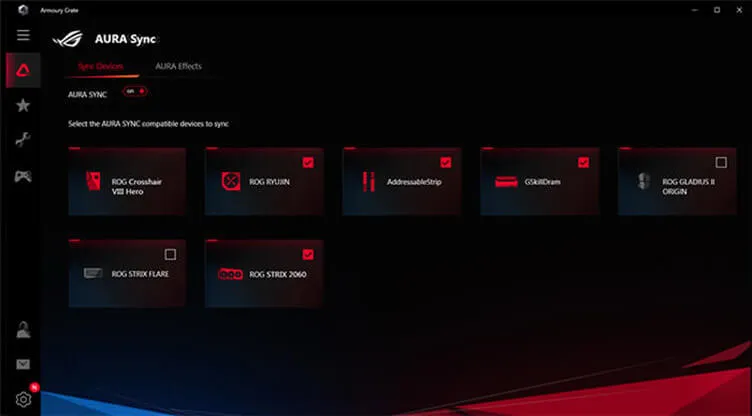

Armoury Crate:

Armoury Crate centralizes control of supported ASUS gaming hardware, making it easy to customize your system. From RGB lighting and Aura Sync effects to full cooling management with Fan Xpert 4, it provides a streamlined interface for creating a cohesive and optimized setup.
