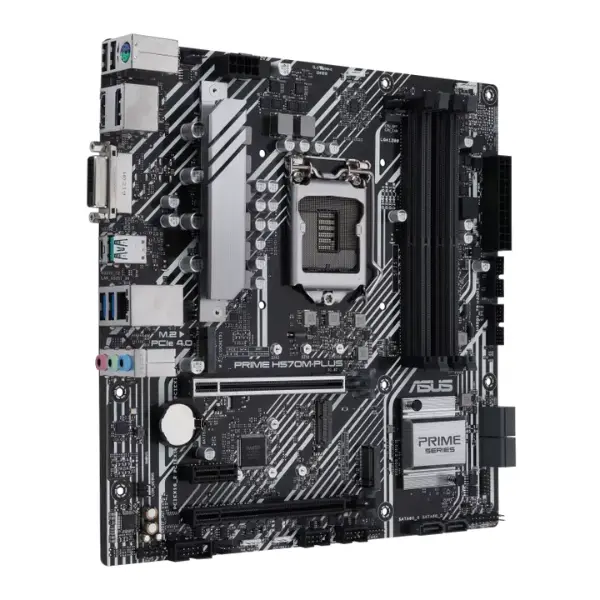

Asus Prime H570M-Plus LGA1200 DDR4 mATX Motherboard

Asus Prime H570M-Plus - Description

LGA1200 DDR4 mATX Motherboard

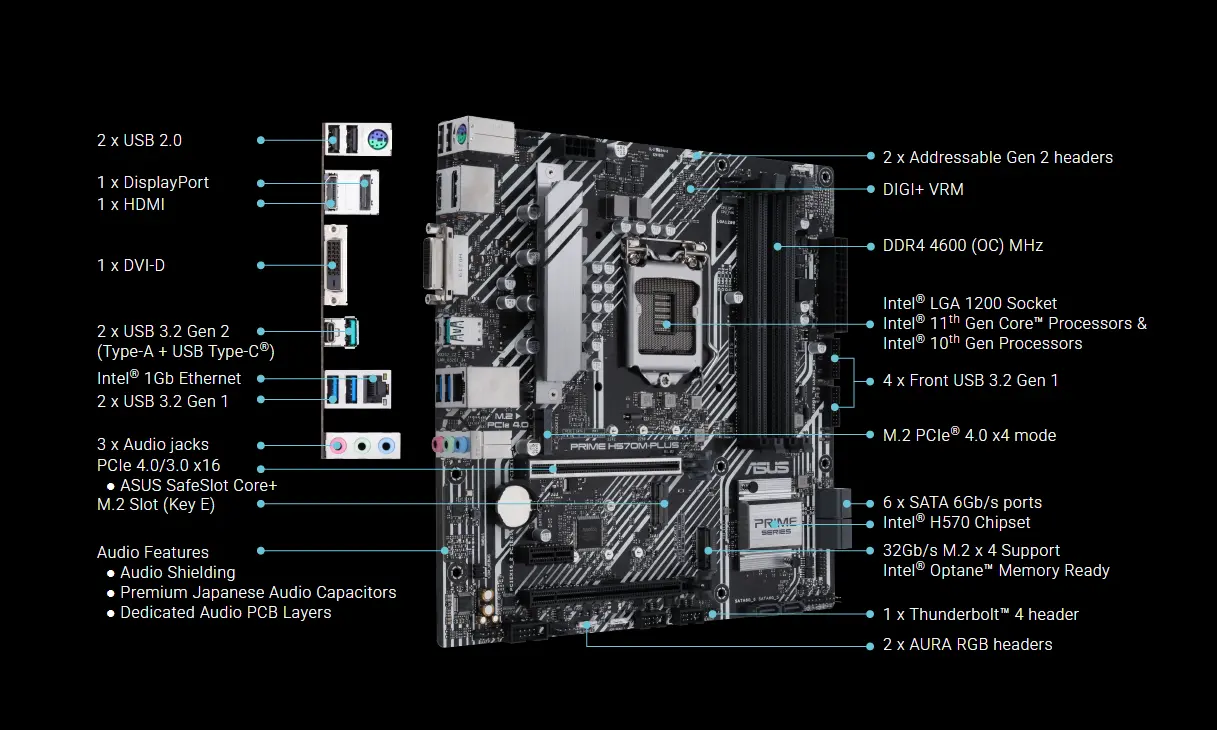

ASUS Prime H570M-Plus is a micro ATX motherboard built for 10th and 11th Gen Intel® Core™ processors on the LGA 1200 socket, offering reliable power delivery with 8 power stages, advanced cooling solutions, and ASUS OptiMem technology for stable memory performance. It supports PCIe® 4.0, dual M.2 slots, USB 3.2 Gen 2 Type-C®, Intel® 1 Gb Ethernet, and a Thunderbolt™ 4 header, while also featuring multiple display outputs (HDMI®, DisplayPort™, DVI) and Aura Sync RGB lighting for performance and customization.

Processor & Memory Support:

ASUS Prime H570M-Plus delivers solid performance with support for 10th and 11th Gen Intel® Core™ processors on the LGA 1200 socket. It also supports DDR4 4600 (OC) MHz memory for enhanced speed and stability. The board features PCIe® 4.0/3.0 x16 with ASUS SafeSlot Core+, dual M.2 slots (including PCIe 4.0 x4), six SATA 6Gb/s ports, and Intel® Optane™ Memory readiness for fast storage performance.

Connectivity Options:

It offers fast connectivity with USB 3.2 Gen 2 (Type-A & Type-C®), USB 3.2 Gen 1, USB 2.0, Intel® 1Gb Ethernet, and a Thunderbolt™ 4 header.

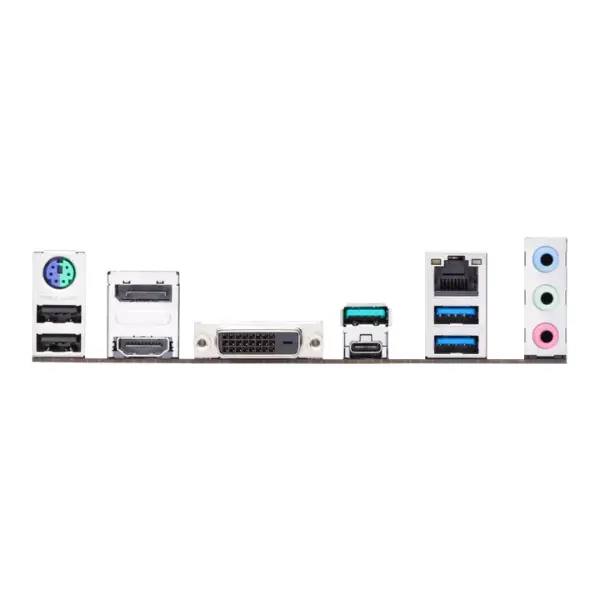

Display Outputs:

For visuals, the motherboard provides HDMI®, DisplayPort™, and DVI-D outputs to support multiple display configurations. Enhanced audio is delivered through shielding, premium Japanese capacitors, and dedicated PCB layers for clear and immersive sound.

Customization & Cooling:

Aura Sync RGB headers and addressable Gen 2 headers allow lighting customization, while DIGI+ VRM and a comprehensive cooling design ensure stable and reliable performance.
