ASRock B460M Steel Legend LGA1200 DDR4 mATX Motherboard

ASRock B460M Steel Legend - Description

LGA1200 DDR4 mATX Motherboard

Built for Power and Reliability:

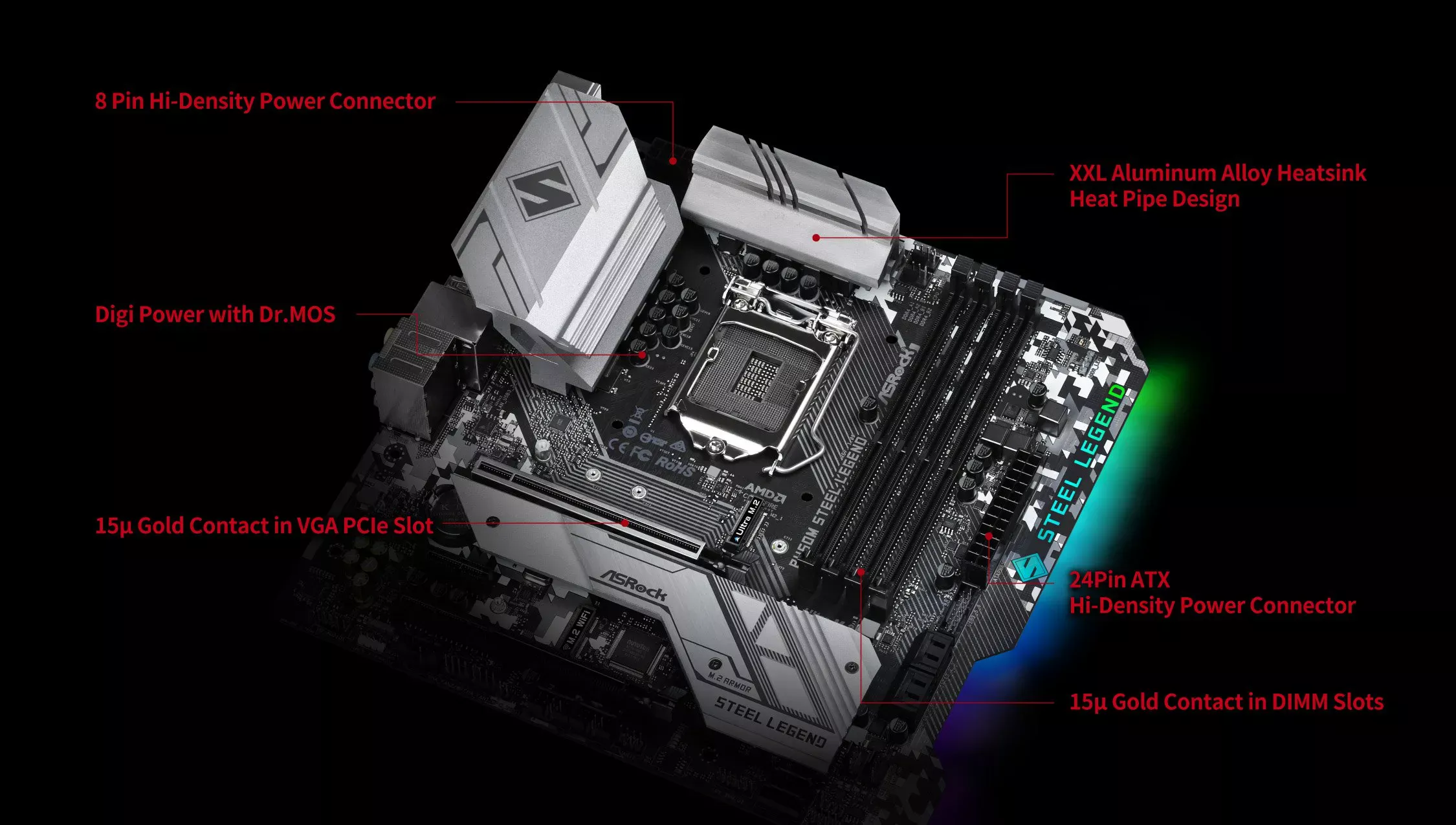

ASRock B460M Steel Legend Motherboard is engineered for gamers, creators, and PC enthusiasts who demand durability and stable performance. Designed to support 10th Gen Intel® Core™ processors on the LGA1200 socket, this board delivers outstanding computing power for both everyday use and intensive workloads. With its 9-phase Dr.MOS power design, premium components, and ASRock Super Alloy technology, users can expect a reliable platform that enhances system longevity and efficiency.

Memory and Expansion Capabilities:

Equipped with four DDR4 DIMM slots, this motherboard supports up to 128GB of dual-channel memory, with speeds up to 2933MHz for Core™ i9/i7 CPUs and 2666MHz for Core™ i5/i3, Pentium®, and Celeron® processors. Intel® XMP 2.0 support makes it easy to maximize memory performance. Expansion is made versatile with two PCIe 3.0 x16 slots and one PCIe 3.0 x1 slot, ensuring compatibility with modern GPUs and add-in cards. It also supports AMD Quad CrossFireX™, allowing users to build multi-GPU gaming setups.

Storage Performance and Connectivity:

For high-speed storage, the B460M Steel Legend features two Ultra M.2 slots, supporting PCIe Gen3 x4 and SATA3 modules, ensuring faster boot times and smooth data access. Additionally, six SATA3 connectors provide extensive support for HDDs and SSDs, complete with RAID 0, 1, 5, and 10 support. With Intel® Optane™ Memory technology, users can further accelerate storage performance. The Dragon 2.5 Gigabit LAN ensures fast and stable internet connectivity, enhanced by ASRock’s bandwidth control and optimized modes for gaming, streaming, and browsing.

Stunning Graphics and Audio Experience:

This motherboard supports Intel® UHD integrated graphics with HDMI and DisplayPort outputs, delivering 4K resolutions up to 4096x2304 at 60Hz. With support for DirectX 12, OpenGL 4.5, and advanced hardware codecs, it ensures smooth playback and content creation. For immersive sound, the Realtek ALC1200 audio codec with 7.1 channel HD audio delivers crystal-clear sound quality, backed by Nahimic Audio technology for a superior gaming and entertainment experience. Gold audio jacks, PCB isolation shielding, and surge protection enhance overall audio fidelity.

Modern Features and User-Friendly Design:

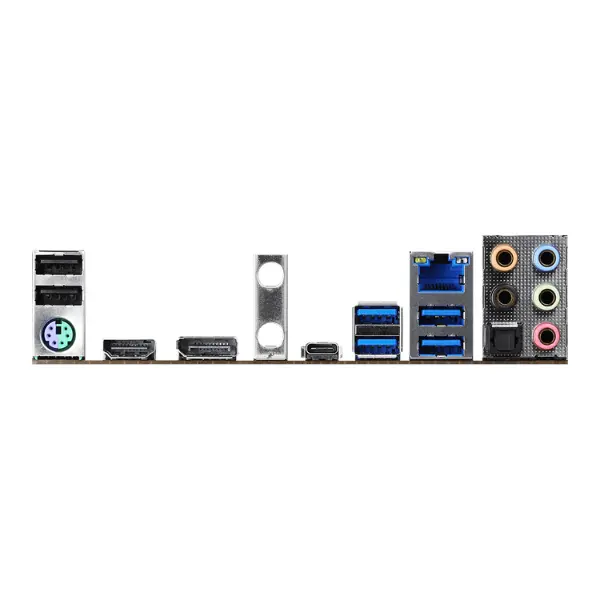

The B460M Steel Legend includes USB 3.2 Gen1 Type-A and Type-C ports, multiple RGB and addressable LED headers for ASRock Polychrome SYNC, and full coverage M.2 heatsinks for improved thermal management. Designed with a durable micro-ATX form factor, it fits into a wide range of PC cases. Additional features such as Thunderbolt™ AIC support, TPM header, POST Status Checker, and Full Spike Protection make it a complete and future-ready solution.
