Intel Core I3-10100F Desktop Processor - Asus Prime H510M-k Motherboard - HP S600 120GB SSD - HP V6 CL16 8Gb RGB DDR4 P3200Mhz Ram - Asus PH GTX 1650 O4GD6 Graphic Card - Antec NX292 4Fan + PSU Antec Atom V550

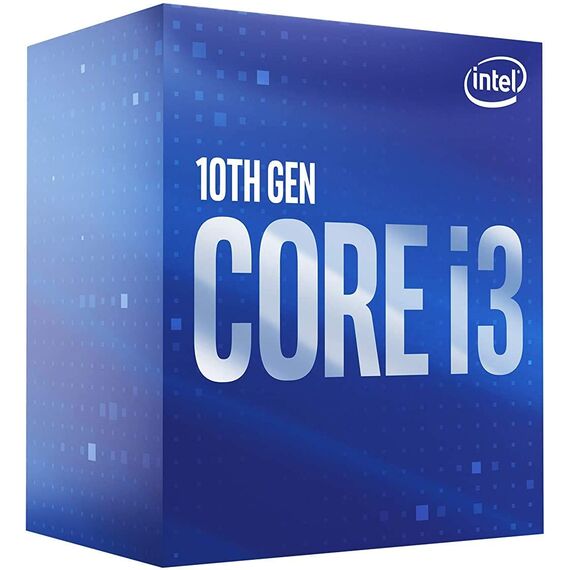

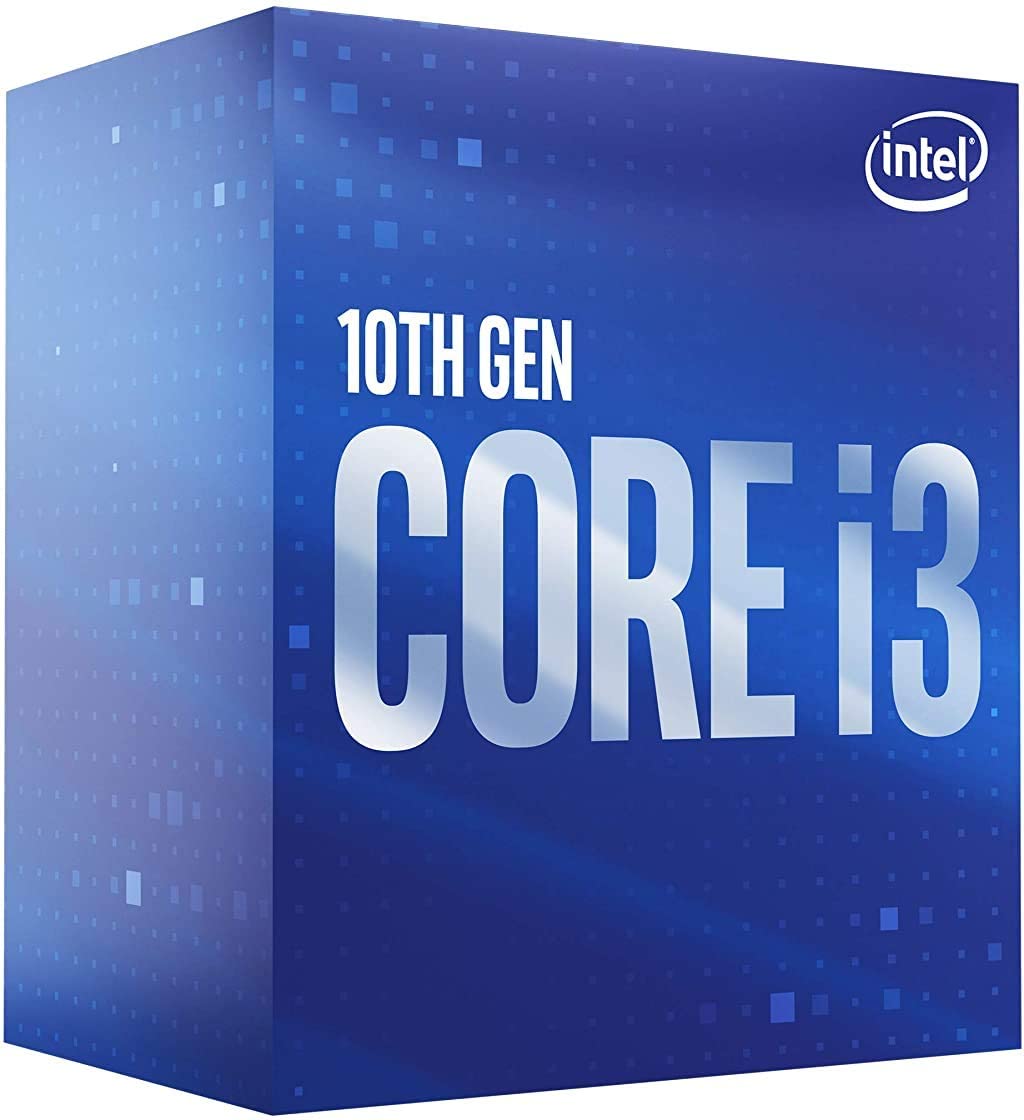

Intel Core I3-10100F Desktop Processor:

Intel Core i3-10100f Desktop Processor 4 Cores up to 4.3 GHz LGA1200 (Intel 400 Series Chipset) 65W.

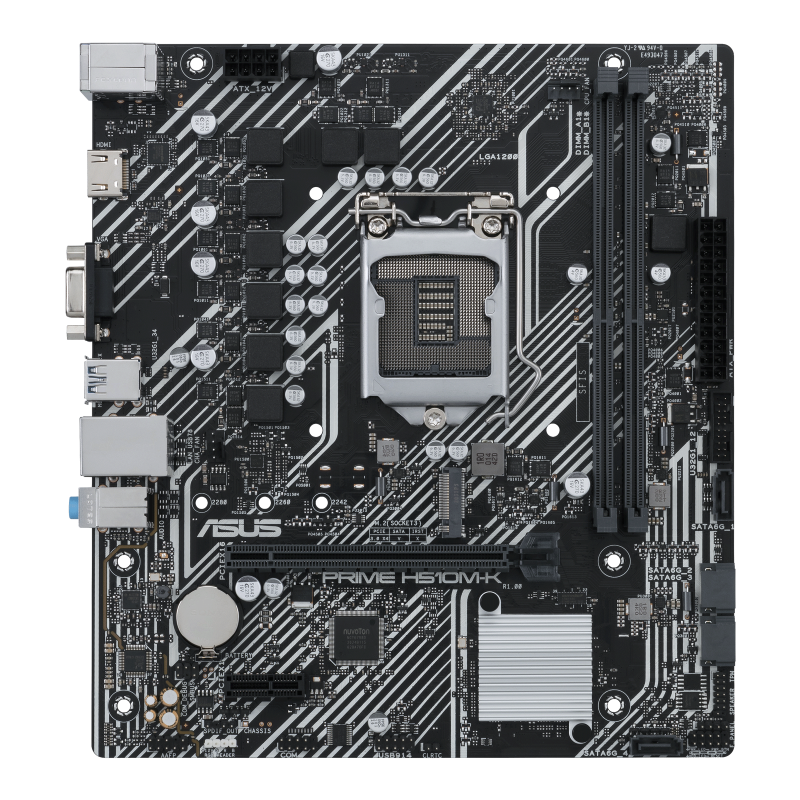

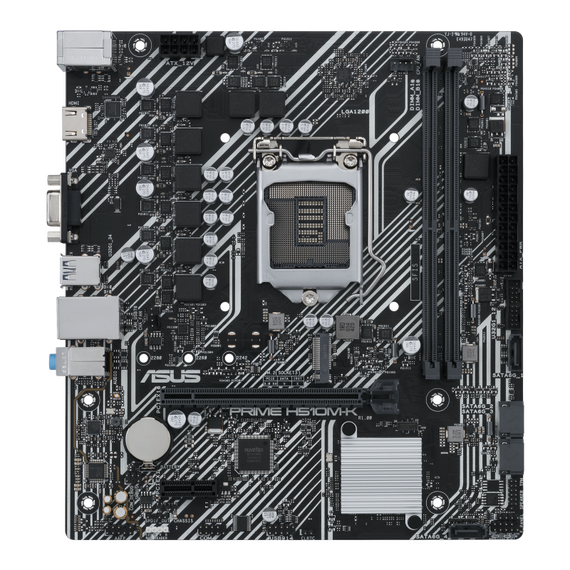

Asus Prime H510M-k Motherboard:

Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM header, and RGB header.

Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors

Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1

Comprehensive cooling: PCH heatsink and Fan Xpert

5X Protection III: Multiple hardware safeguards for all-round protection

CPU

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

H510

Memory

Memory Channels:2DDR4 (Dual Channel) Max Memory Size:64GB

DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

1 x D-Sub 1 x HDMI™ 1.4

* Graphics specifications may vary between CPU types.

** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Expansion Slots

Intel® 11th & 10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

- Intel® 11th Gen processors support PCIe 4.0 x16

- Intel® 10th Gen processors support PCIe 3.0 x16

Intel® H510 Chipset

1 x PCIe 3.0 x1 slot

Storage

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H510 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.

Ethernet

1 x Intel® I219-V 1Gb Ethernet

ASUS LANGuard

USB

Rear USB:Total 6 ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A) Front USB:Total 4 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio

ALC887/897

Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x D-Sub port

1 x HDMI™ port

1 x Intel® I219-V 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Intrernal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

ASUS Lighting Control

- RGB header

Software Features

ASUS Exclusive Software

Armoury Crate

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert

- EZ update

ASUS CPU-Z

AI Charger

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 ANCHOR

Installation Media

1 x Support DVD

Documentation

1 x User manual

Operating System

Windows® 10 64-bit

Form Factor

mATX Form Factor 22.6cm x 20.3cm

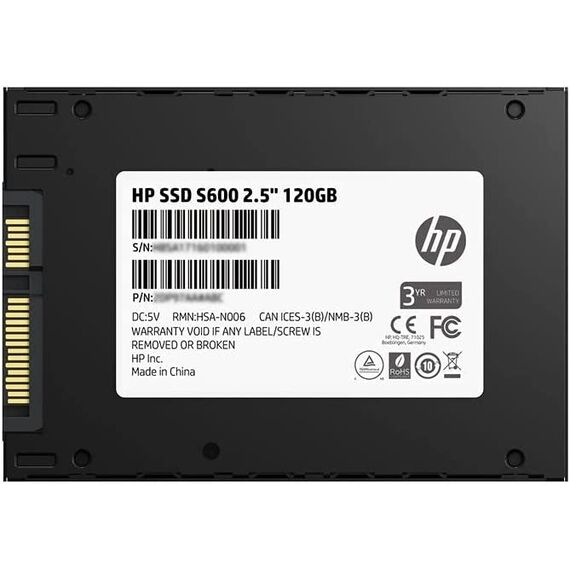

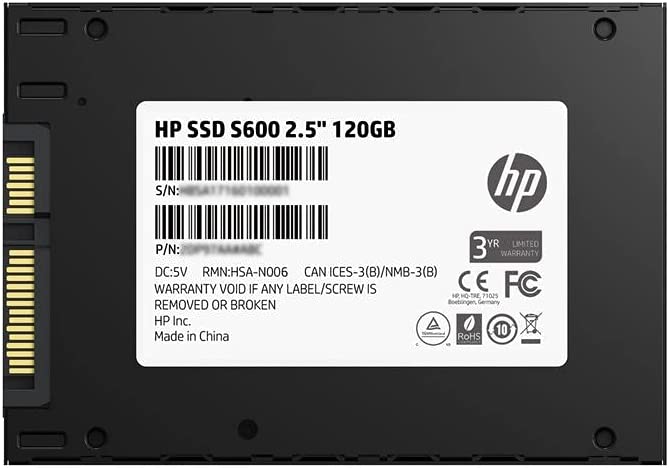

HP S600 120GB SSD:

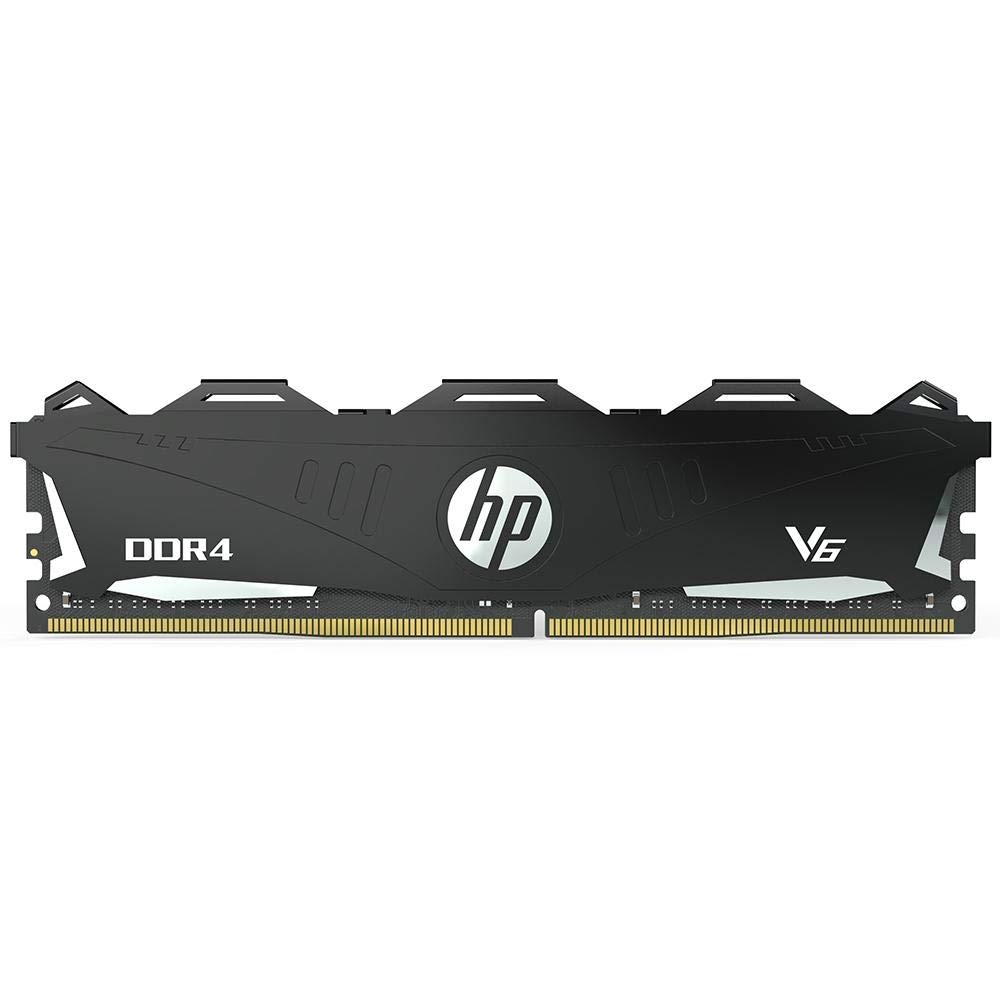

HP V6 CL16 8Gb RGB DDR4 P3200Mhz Ram:

DDR4 overclocking DRAM memory module, high performance gaming experience. Overclocking enhances gaming experience with immediate lag-free response.

Top quality DRAM IC sorting ensuring reliability and durability. With high-quality DRAM ICs carefully sorted, it has passed most rigorous tests to guaranty overclocking ability in a stable manner.

Efficient heat dissipation, enhancing performance. The heatsink is made of top-grade aluminum , which allows better thermal conductivity, keep DRAM ICs cool by improving heat dissipation efficiency.

Cool appearance, tech-savvy’s choice. With its aggressive looks and performance to back up, V6-series comes in distinctive choice of colors (black, blue and red) which corresponds to different clock speeds.

Individually tested, widely compatible. It has passed compatibility testing with a wide variety of performance motherboards to ensures long-term reliability and stable operation.

Uncompromised high performance. The new generation of DDR4 memory, is available in densities of 8GB and 16GB, and clock speeds ranging from 2400 through 3600MHZ to meet and exceed expectations from most demanding gamers and enthusiasts who want to reach the maximum potential of his PC system.

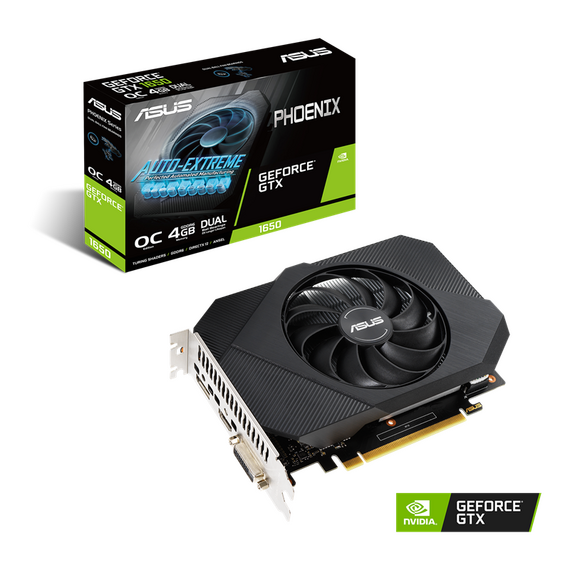

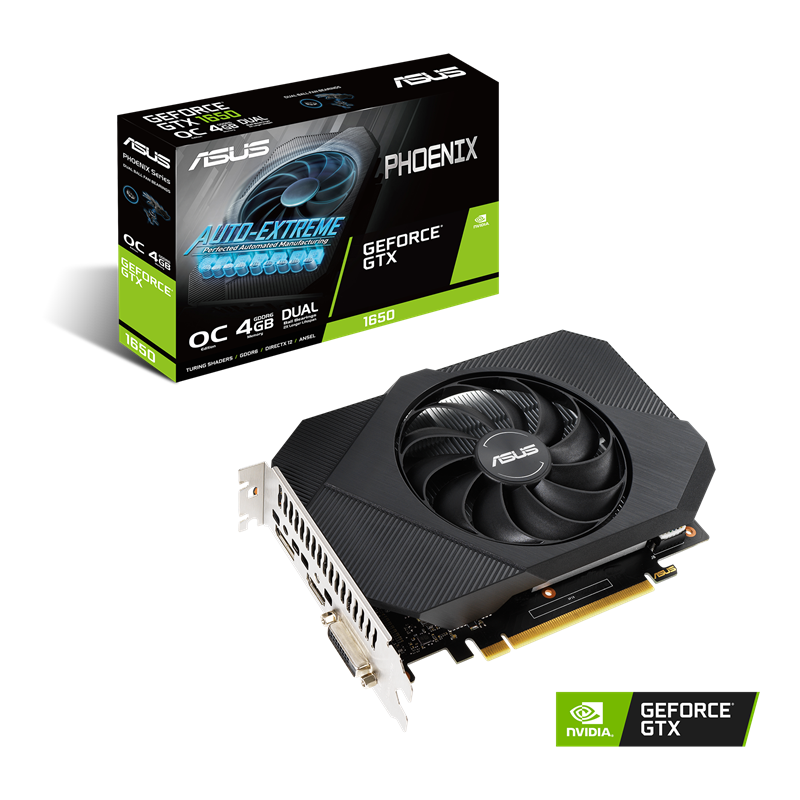

Asus PH GTX 1650 O4GD6 Graphic Card:

OC Edition: Boost Clock 1635 MHz (OC Mode)/ 1605 MHz (Gaming Mode)

The ASUS Phoenix GeForce® GTX 1650 is built with the breakthrough graphics performance of the award-winning NVIDIA Turing™ architecture to supercharge your favorite games.

Ultra-fast GDDR6 with over 50% more memory bandwidth for high-speed gaming.

GeForce Experience lets you capture and share videos, screenshots, and livestreams with friends, keep GeForce drivers up to date, and easily optimize your in-game settings.

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

Auto-Extreme Technology uses automation to enhance reliability.

A compact design maximizes compatibility.

A stainless steel bracket is harder and more resistant to corrosion.

GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Packs a Punch

Phoenix graphics cards pack as much performance as possible into a compact design that offers a wide range of compatibility with small chassis. Limited space begs an efficient cooling system, and the Phoenix GeForce® GTX 1650 delivers with a powerful Axial-tech fan. Whether you're upgrading an outdated card or building your first gaming rig, the Phoenix is a potent package that delivers latest-gen performance.

Axial−tech Fan Design

Better, faster, stronger Newly designed for the latest generation of top-end ROG graphics cards, these fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

Stainless Steel Bracket

Steel yourself The mounting bracket of the Phoenix has been beefed up with 304 Stainless Steel that is harder and more resistant to corrosion.

GPU Tweak II

Monitor, tweak, and tune The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

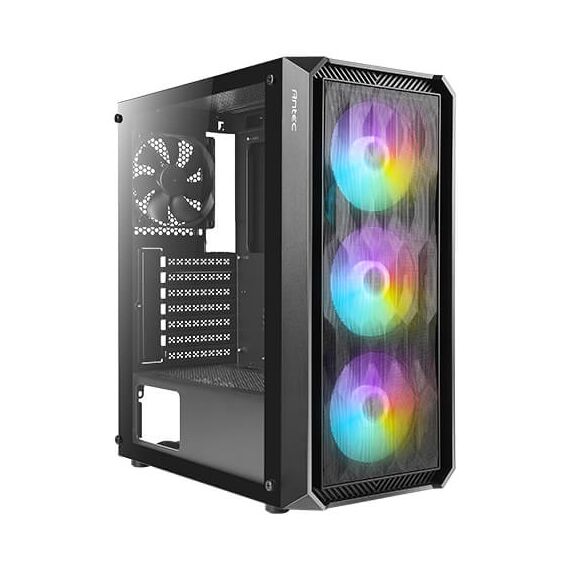

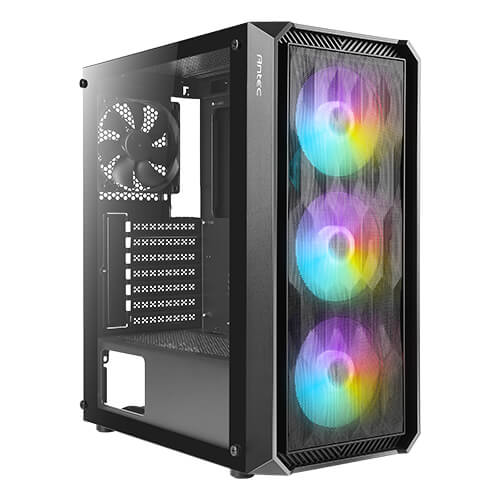

Antec NX292 4Fan + PSU Antec Atom V550:

The NX292 mid-tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes 3 x 120mm fixed mode RGB fans in front and 1 x 120mm fan in rear. With support for up to a 360 mm liquid cooling radiator in front, NX292 is easy to build with and easy to cool.

Net Weight: 4.5 kgs

Gross Weight: 5.3 kgs
