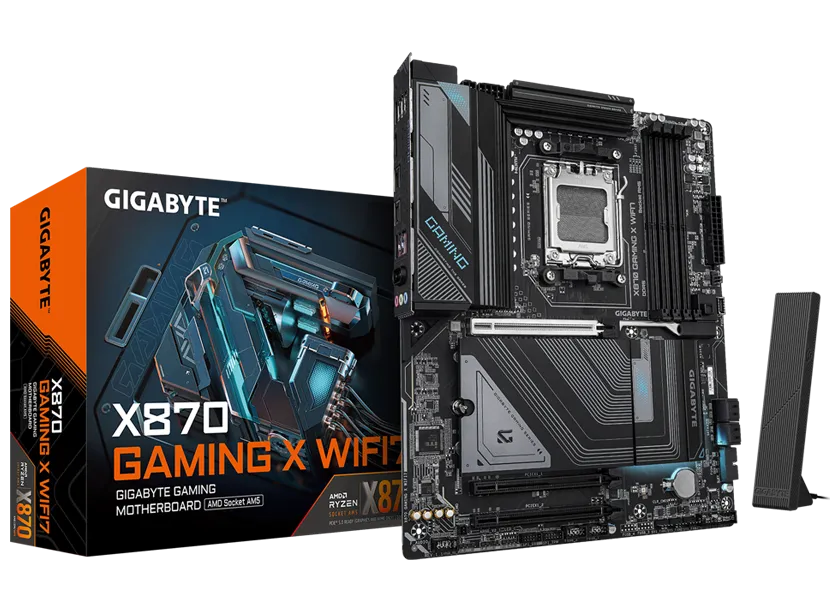

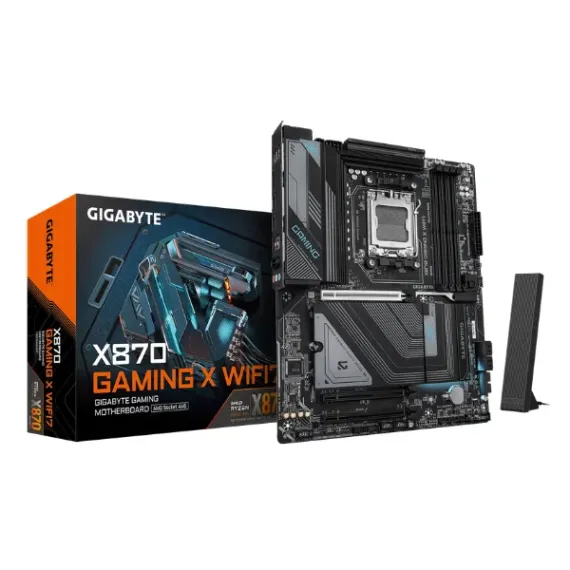

Gigabyte X870 GAMING X WIFI7 AM5 DDR5 ATX Motherboard

Gigabyte X870 GAMING X WIFI7 - Description

AM5 DDR5 ATX Motherboard

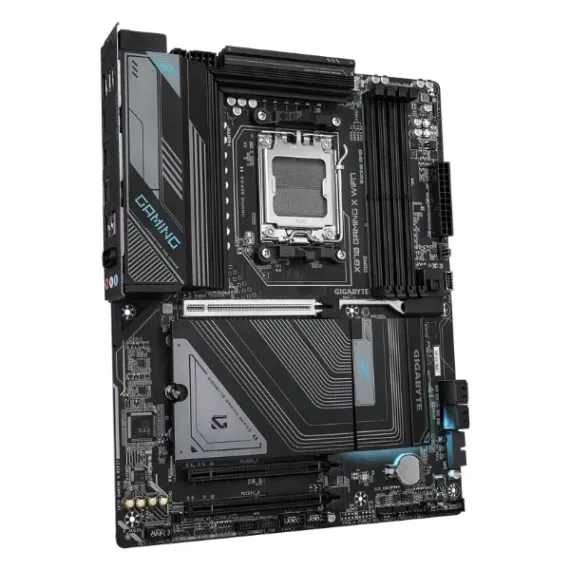

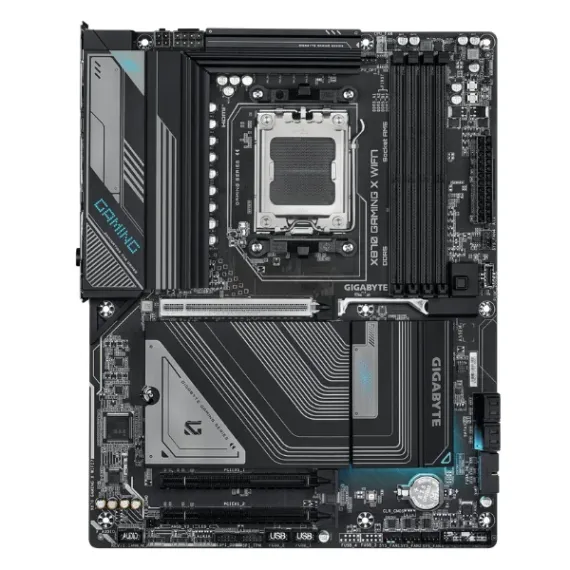

The Gigabyte X870 GAMING X WIFI7 is a high-performance ATX motherboard built for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. It features a powerful 16+2+2 digital VRM design, DDR5 memory support with AMD EXPO™, and advanced PCIe 5.0 connectivity. Equipped with three M.2 slots, dual USB4 Type-C ports, Wi-Fi 7, and 2.5GbE LAN, this motherboard is designed for gaming, content creation, and next-generation computing. User-friendly features such as EZ-Latch designs, WIFI EZ-Plug, and Q-FLASH Auto Scan make PC building and maintenance simple and efficient.

Performance:

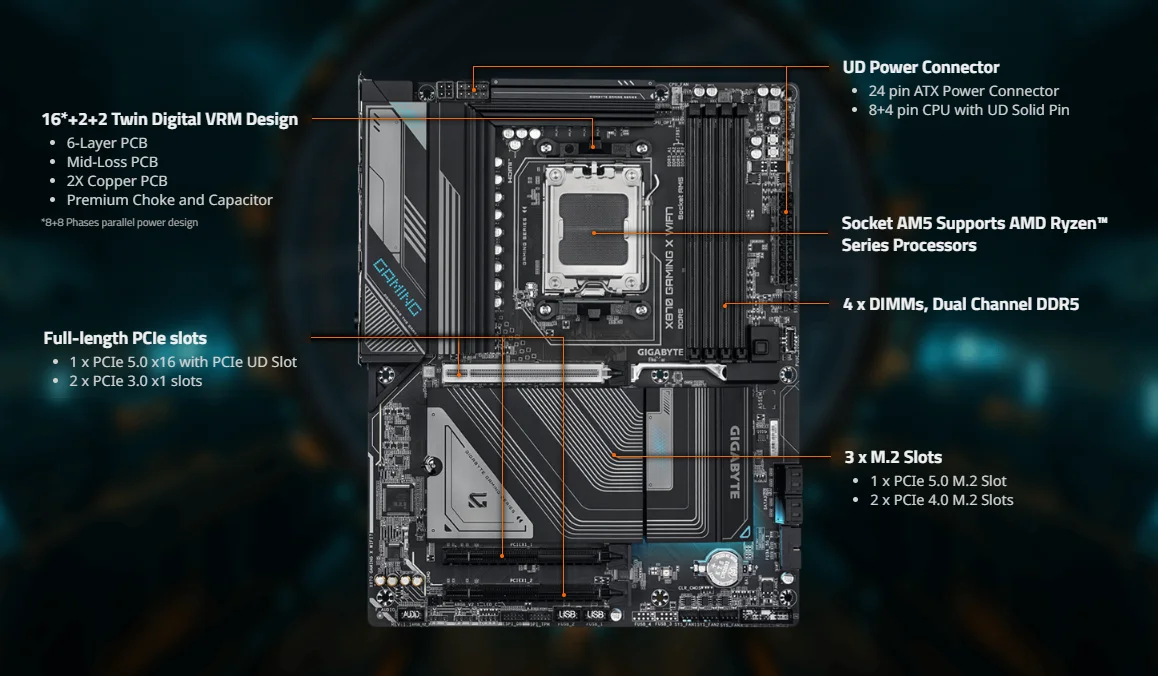

The motherboard delivers robust power delivery via a 16+2+2 twin digital VRM and an 8+8 parallel phase design, supported by a 6-layer mid-loss, 2X copper PCB with premium chokes and capacitors. It includes a UD power connector (24-pin ATX and 8+4-pin CPU with solid pins). Memory support consists of 4 DIMMs for dual-channel DDR5. Storage options include three M.2 slots (one PCIe 5.0, two PCIe 4.0), while expansion slots offer one PCIe 5.0 x16 with UD Slot reinforcement and two PCIe 3.0 x1 slots.

Thermal:

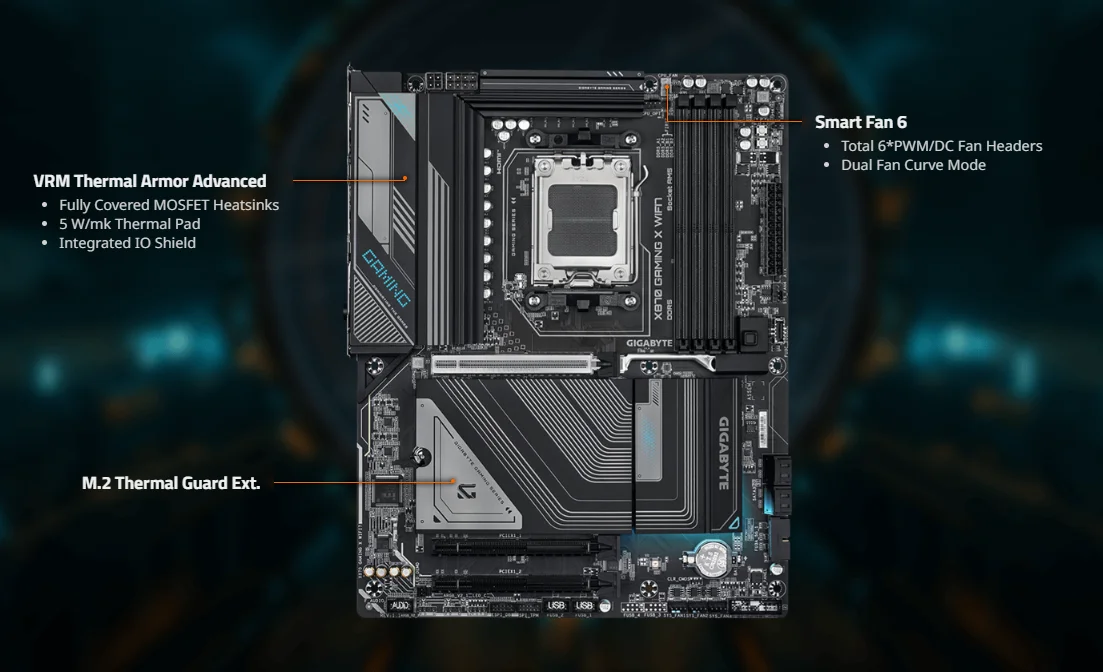

The board includes VRM Thermal Armor Advanced with fully covered MOSFET heatsinks and a 5 W/mk thermal pad, plus an integrated I/O shield. M.2 slots benefit from Thermal Guard Ext., while Smart Fan 6 provides six PWM/DC fan headers and dual fan curve mode for precise cooling control.

Connectivity:

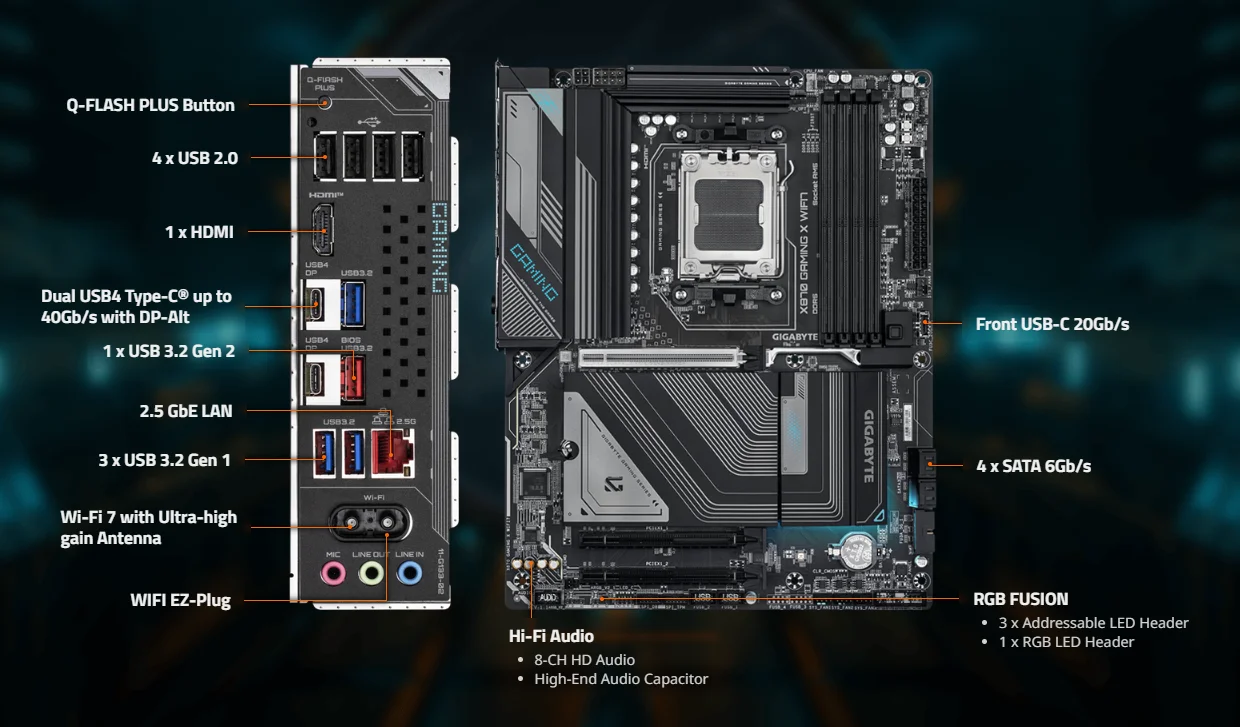

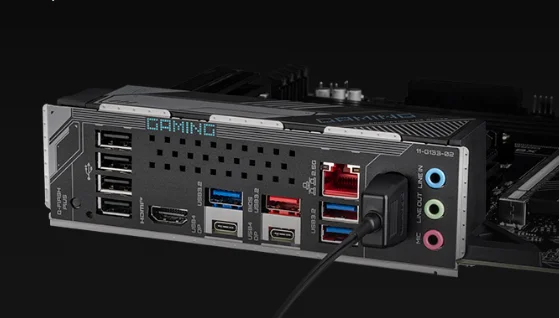

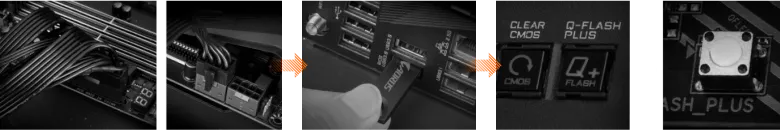

This motherboard offers extensive connectivity: dual USB4 Type-C (40Gb/s with DP-Alt), one USB 3.2 Gen 2, three USB 3.2 Gen 1, four USB 2.0, front USB-C 20Gb/s, and four SATA 6Gb/s. Networking includes 2.5GbE LAN and Wi-Fi 7 with an ultra-high gain antenna plus WIFI EZ-Plug. Video outputs feature HDMI, while audio delivers 8-CH HD sound with high-end capacitors. Additional tools include Q-FLASH PLUS Button and RGB FUSION with three addressable LED headers and one RGB header.

DIY Friendly:

The board simplifies building and troubleshooting with WIFI EZ-Plug, M.2 EZ-Latch Plus and Click, EZ-Latch Un-Install Angle, PCIe EZ-Latch Plus, and an EZ-Debug Zone featuring Debug LEDs, a power button, and Multi-key for quick access and system diagnostics.

AORUS AI SNATCH Bullet Point:

AORUS AI SNATCH enables users to boost system performance with a single click by automatically optimizing DDR5 memory settings and improving overclocking efficiency. It delivers real-time analysis, safer tuning, lower power consumption, and enhanced gaming, AI, and productivity performance for both beginners and advanced users.

Durable Performance:

Built with GIGABYTE Ultra Durable™ technology, the motherboard uses premium-quality components for long-lasting reliability and stable performance. The advanced Digital Twin VRM architecture ensures efficient power delivery and excellent scalability for future hardware upgrades.

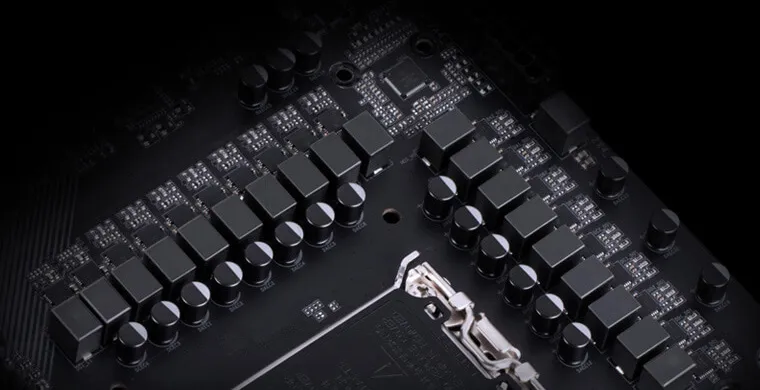

Digital Twin VRM Design:

The 16+2+2-phase digital PWM combined with 60A DrMOS, using an 8+8 parallel power design, supports the newest CPUs while boosting system performance and offering maximum hardware expandability.

Zenith of the Memory:

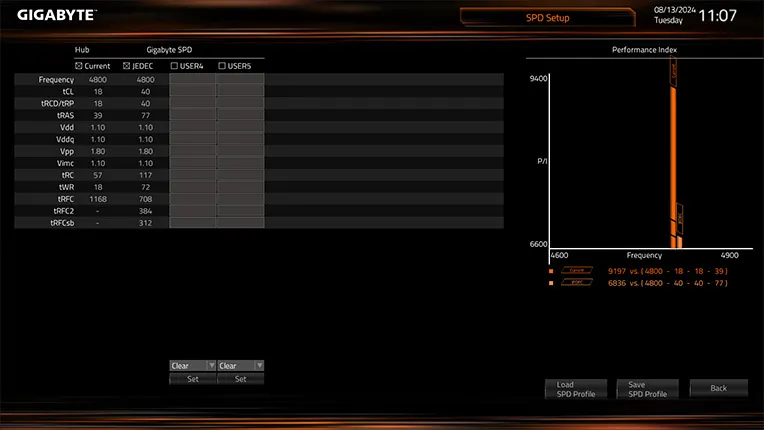

The motherboard delivers exceptional DDR5 compatibility and overclocking capabilities up to 8200 MT/s. With exclusive BIOS optimization and AMD EXPO™ support, users can achieve improved memory stability and higher overall system performance.

Fully Covered MOSFET Heatsink:

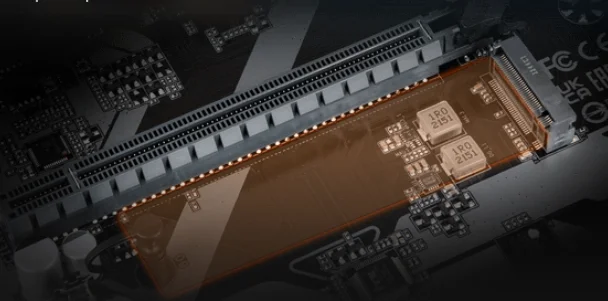

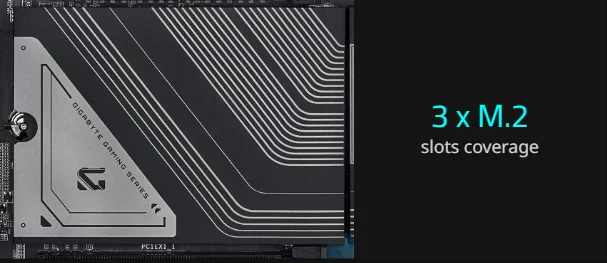

The fully covered one-piece MOSFET heatsink design increases cooling efficiency with expanded surface areas and airflow-enhancing grooves. Combined with M.2 Thermal Guard Ext., the system maintains lower temperatures even during heavy workloads.

Future Connectivity:

Experience top-tier connectivity with blazing data-transfer speeds thanks to next-generation networking and storage.

Dual 40Gbps USB4 with DP-Alt:

The two latest USB4 Type-C ports deliver incredibly fast and reliable transfer speeds of up to 40 Gbps each. With broad compatibility, efficient charging, and ultra-HD DisplayPort connectivity, USB4 is ideal for video editing, large file transfers, and data-heavy tasks.

Wi-Fi 7 brings you the Ultimate VR experience:

Wi-Fi 7 revolutionizes the VR experience with its outstanding bandwidth and minimal latency, delivering a smooth, deeply immersive virtual reality experience.

2.5GbE LAN:

Boost your gaming performance with 2.5GbE LAN, achieving lightning-fast speeds, reduced lag, and superior performance to enhance your gaming rig and outpace the competition.

PCIe 5.0/4.0 Hardware Design:

Equipped with a PCIe 5.0 x16 slot and support for PCIe 5.0/4.0 M.2 slots, GIGABYTE motherboards are ready to work seamlessly with PCIe 5.0 and 4.0 devices, providing top-tier performance.

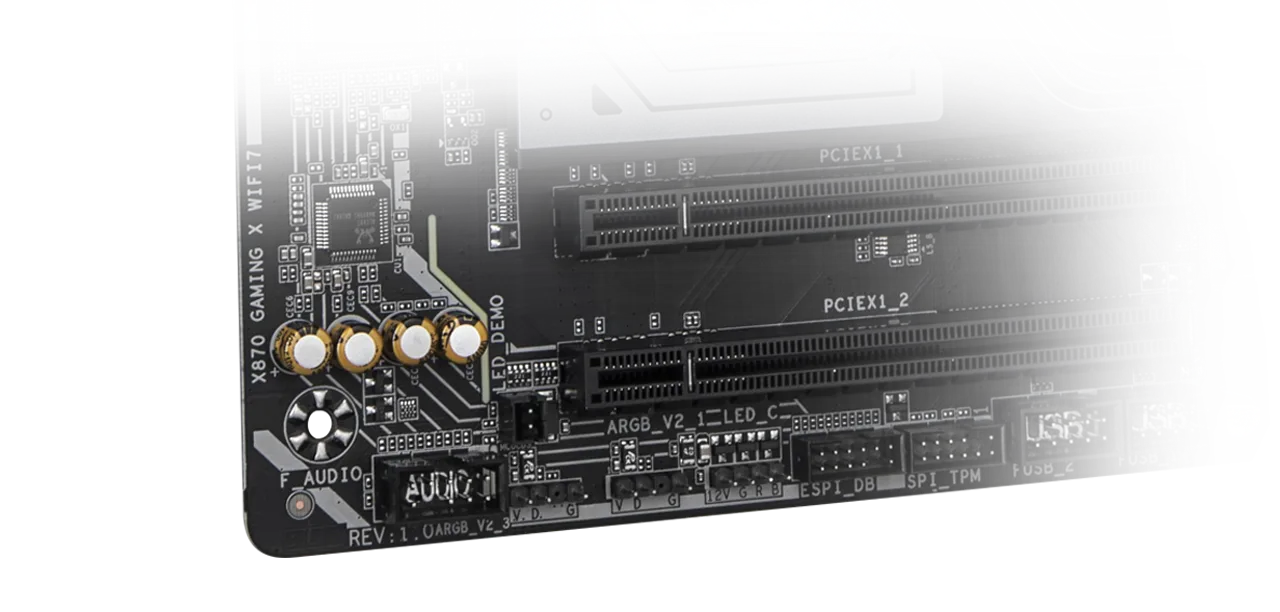

Hi-Fi Audio:

The onboard audio system uses high-end audio capacitors and Audio Noise Guard technology to deliver clear and immersive sound quality for gaming and entertainment.

Easy Friendly:

Innovative and intuitive design across hardware, software, and BIOS interfaces allows you to personalize your system's style.

WIFI EZ-Plug:

The WIFI EZ-Plug design integrates Wi-Fi antenna connectors into a single adapter for easy installation.

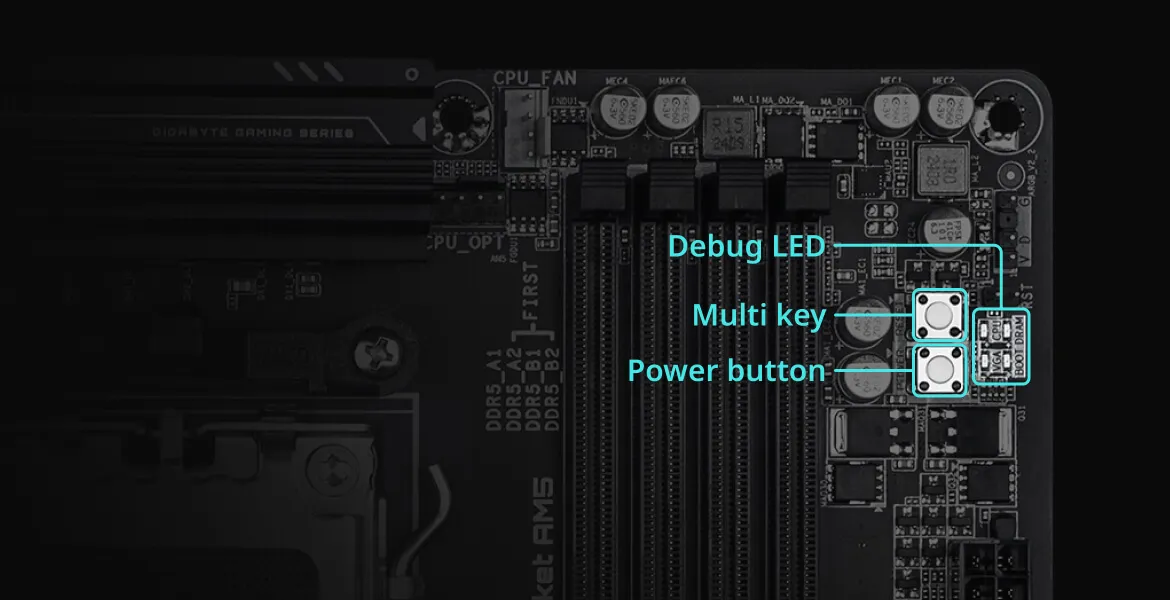

EZ Debug Zone:

This collection of features includes a flexible Multi-key for resetting and reconfiguring BIOS, an RGB Switch to turn off all onboard lighting, Direct-To-BIOS for entering BIOS settings without a keyboard, and Safe Mode to adjust certain settings while keeping others intact. The Optimal DRAM Installation Indicator lights up an LED when a memory module is placed in a suboptimal slot.

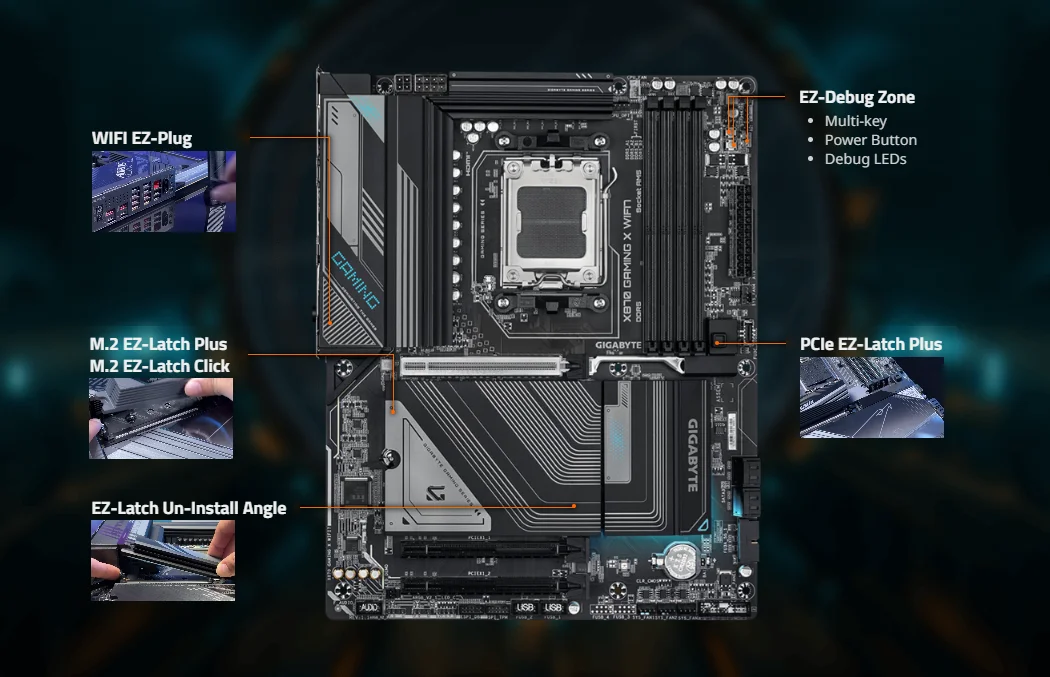

EZ-Latch Designs:

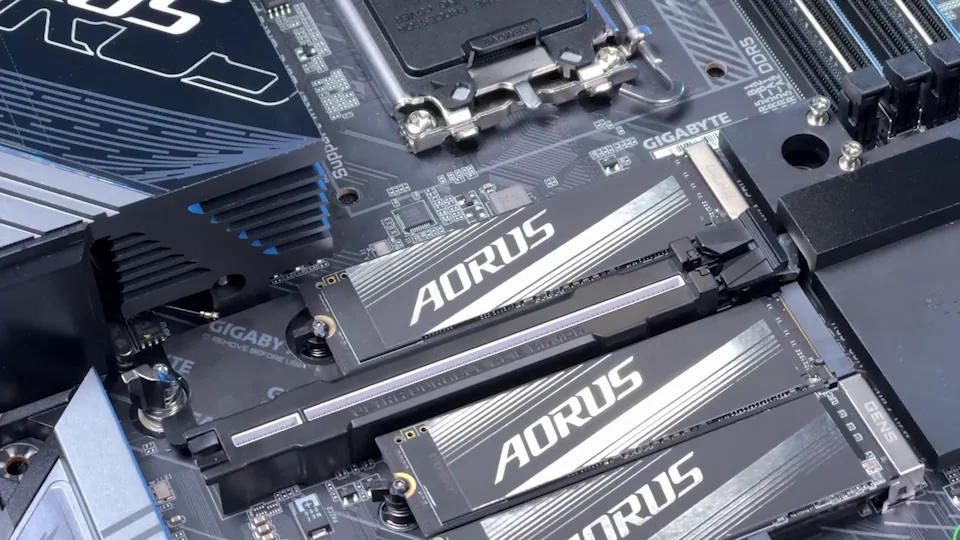

This user-friendly suite comprises PCIe EZ-Latch Plus for one-click graphics card removal, M.2 EZ-Latch Click for tool-free M.2 heatsink attachment, and M.2 EZ-Latch Plus for screwless M.2 SSD installation—simplifying the entire building process.

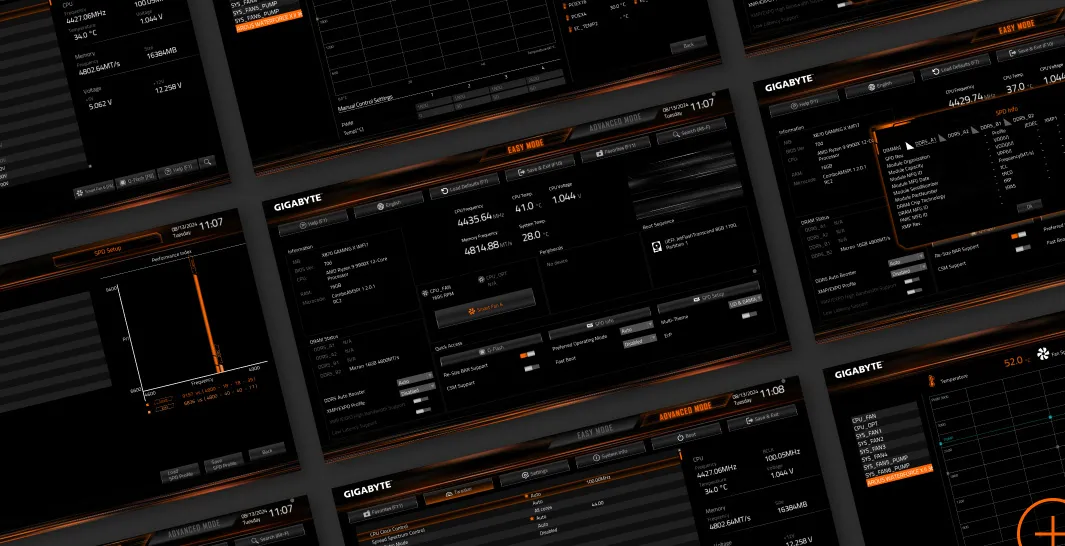

User-Centered Design for Easy Navigation:

The UC BIOS features a multi-theme interface with a unique grayscale mode for a more pleasant user experience, along with AIO fan control (supporting AORUS WATERFORCE X II series only) for non-Windows users. It provides a refined layout with quick access to nine key advanced options directly in Easy Mode, enabling fast adjustments without deep menu diving.

Q-FLASH Auto Scan:

The new Auto Scan function automatically detects the BIOS file when a USB flash drive is used during Q-Flash, eliminating the need for manual searching.
