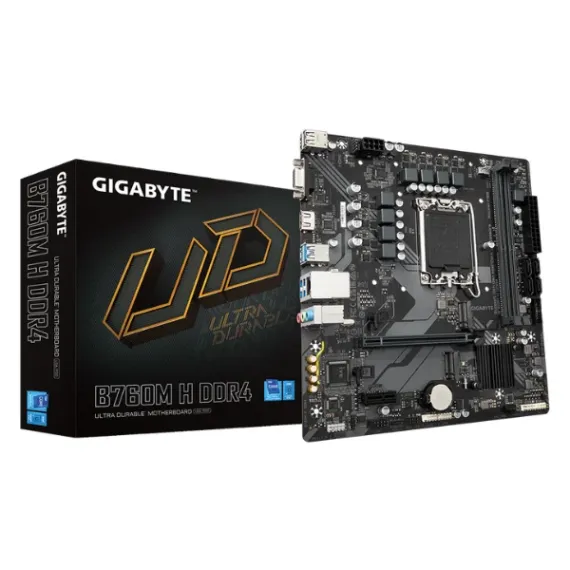

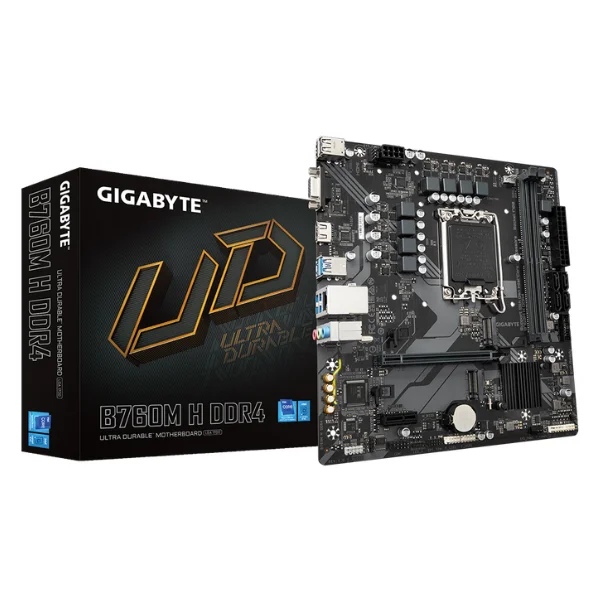

Gigabyte B760M H DDR4 LGA1700 mATX Motherboard

Gigabyte B760M H DDR4 - Description

LGA1700 mATX Motherboard

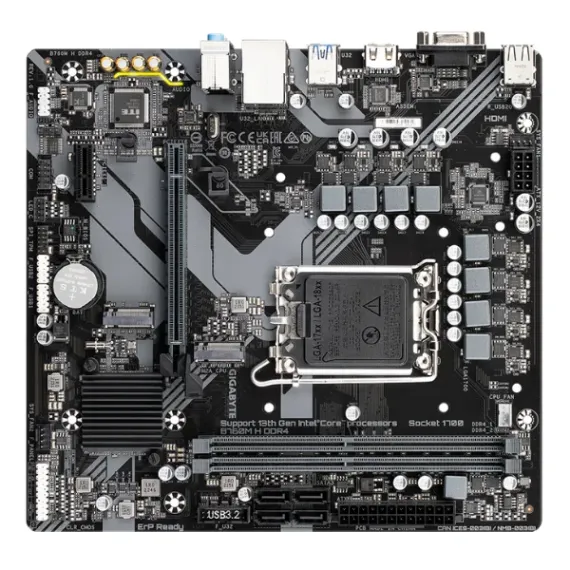

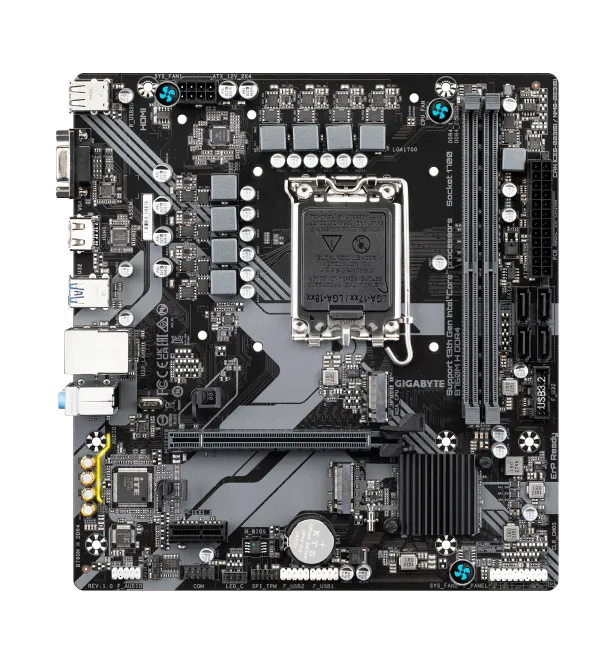

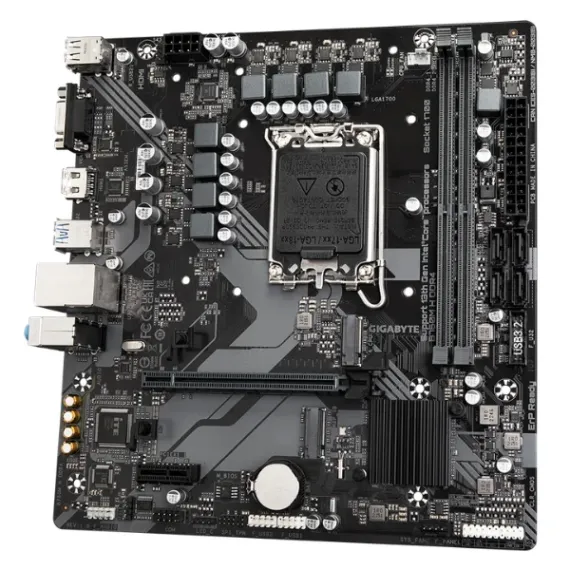

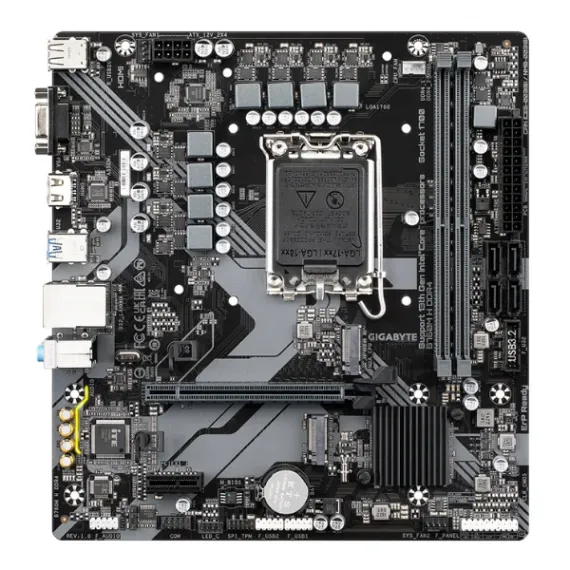

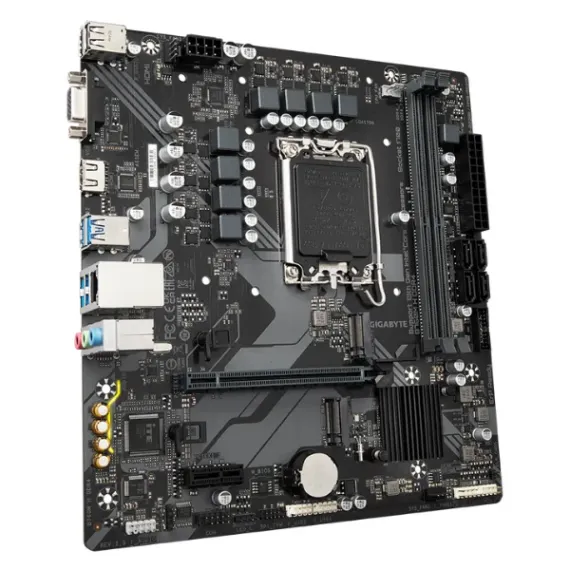

The Gigabyte B760M H DDR4 is a compact LGA1700 motherboard compatible with Intel 12th, 13th, and 14th Gen processors. It delivers stable performance through a 6+1+1 digital VRM design and supports dual-channel DDR4 memory with XMP. It includes two PCIe 4.0 M.2 slots for fast storage, an EZ-Latch PCIe slot for easy GPU installation, Gigabit LAN for reliable networking, and HDMI plus D-Sub outputs for flexible display options. Smart Fan 6 technology enhances cooling with multiple temperature sensors and intelligent fan control.

Performance:

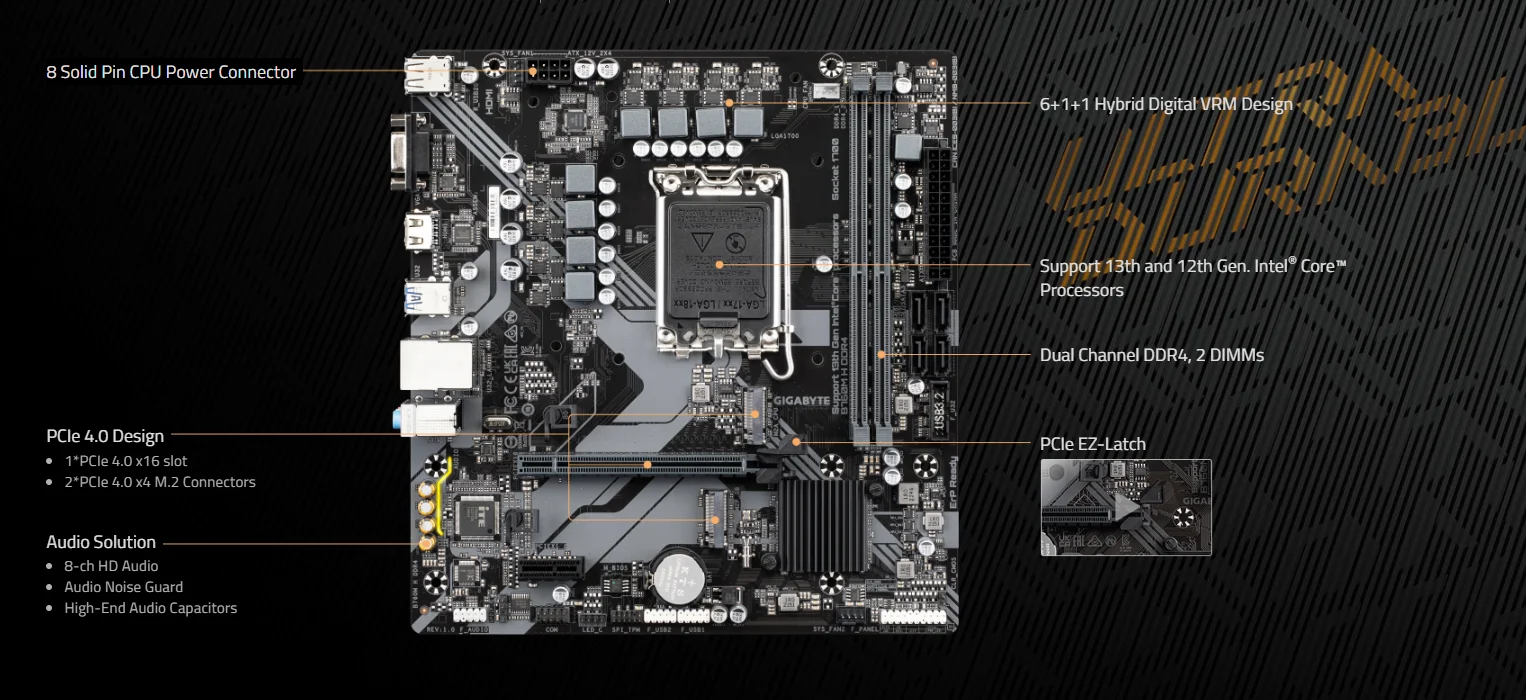

The motherboard offers strong performance with a stable 6+1+1 hybrid digital VRM and an 8-pin CPU power connector for efficient power delivery. It supports Intel 12th and 13th Gen processors, dual-channel DDR4 memory (2 DIMMs), and features PCIe 4.0 support including one x16 slot and two M.2 x4 slots for fast storage. It also includes PCIe EZ-Latch for easy GPU installation and a high-quality audio system with 8-channel HD audio, Audio Noise Guard, and premium capacitors for clearer sound.

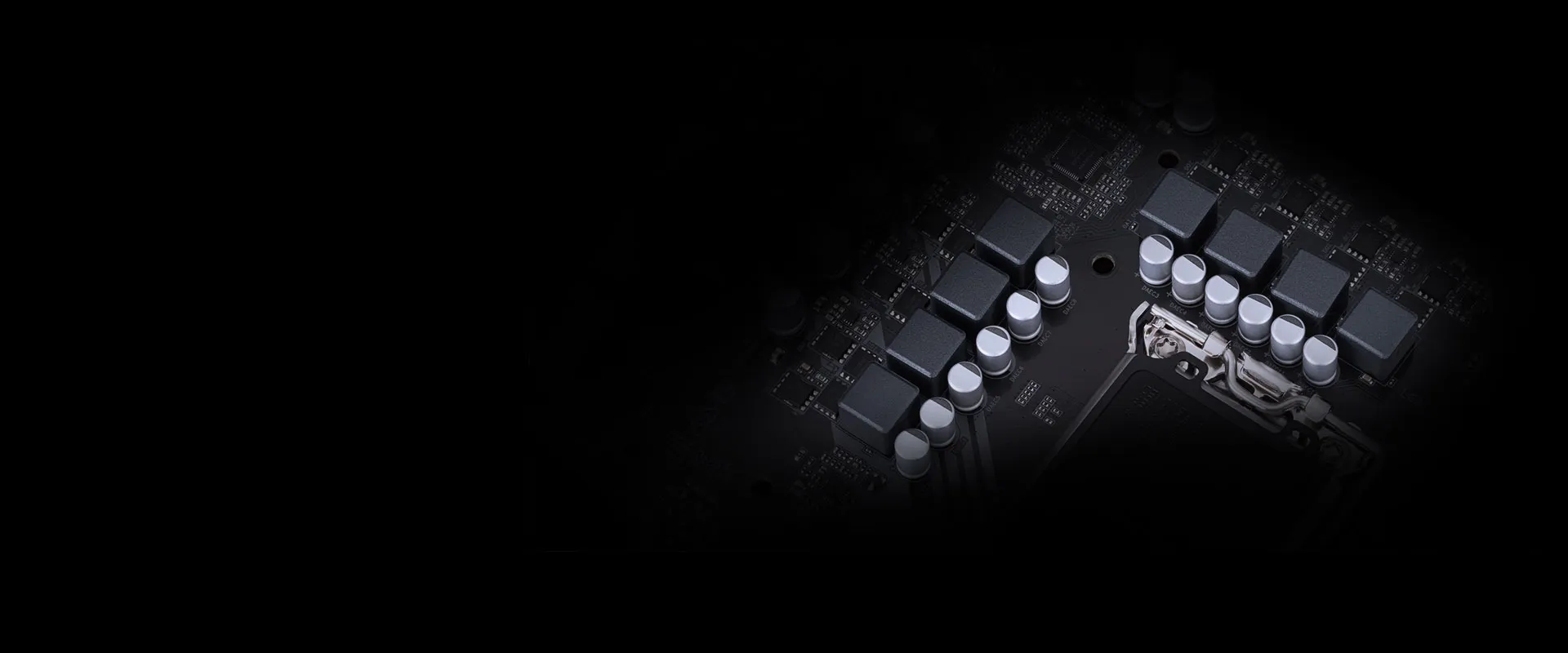

Hybrid Digital VRM Design:

The motherboard uses a 6+1+1 phase hybrid digital VRM design with low RDS(on) MOSFETs, high-quality chokes, and premium capacitors to ensure stable power delivery, improved efficiency, and better response under changing loads while reducing electrical noise and fluctuations.

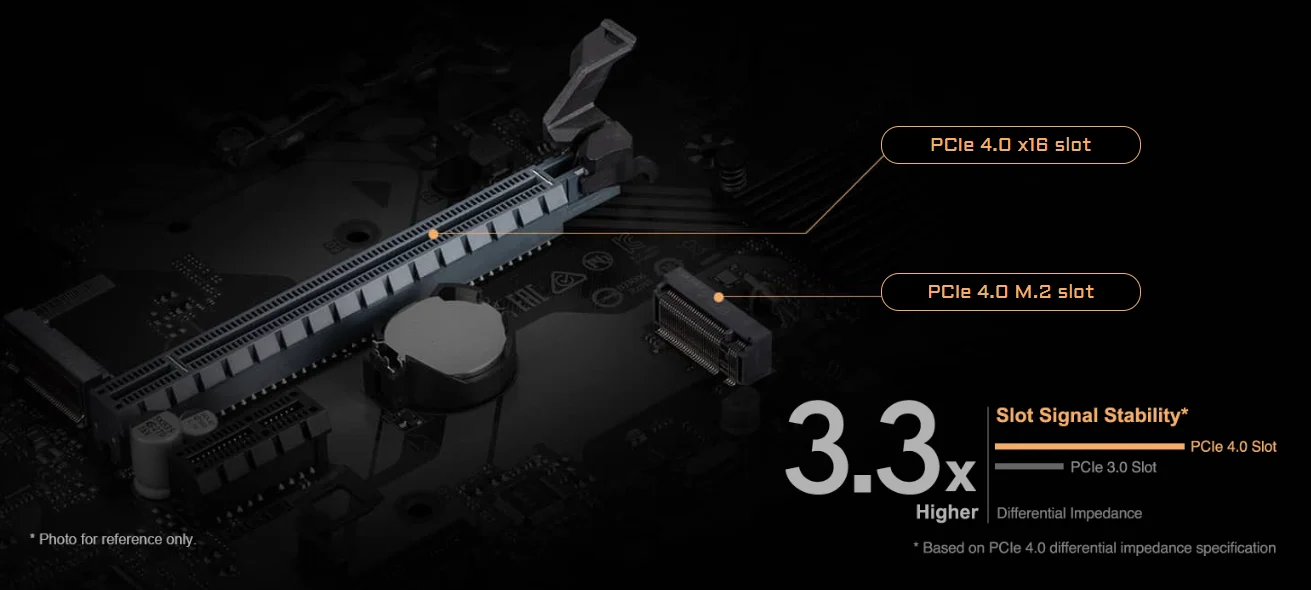

PCIe 4.0 Design:

The motherboard supports PCIe 4.0 technology, offering significantly higher bandwidth than PCIe 3.0 for faster performance. It features a low-impedance PCB design to ensure strong signal integrity and optimal speed, along with a PCIe 4.0 x16 slot for graphics cards and PCIe 4.0 M.2 slots for high-speed storage devices.

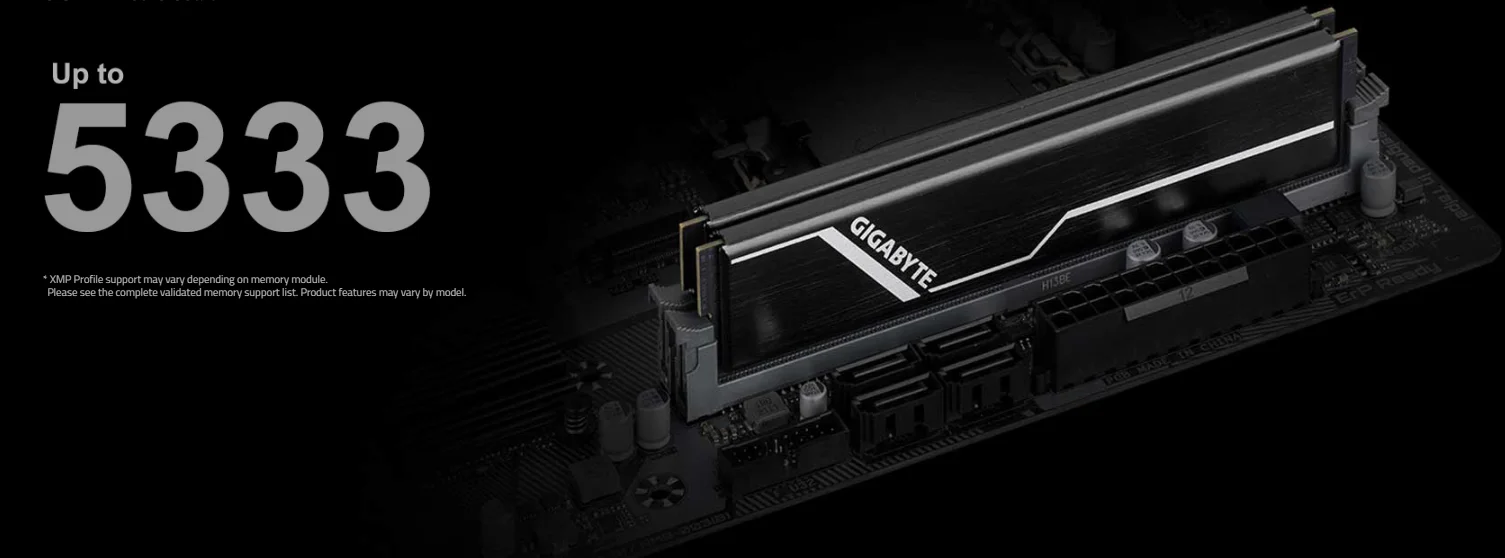

DDR4 XMP:

The motherboard supports DDR4 XMP memory overclocking up to 5333MHz and higher on a tested and stable platform. By using XMP-compatible RAM and enabling the XMP profile in the BIOS, users can easily unlock higher memory performance for improved system speed and responsiveness.

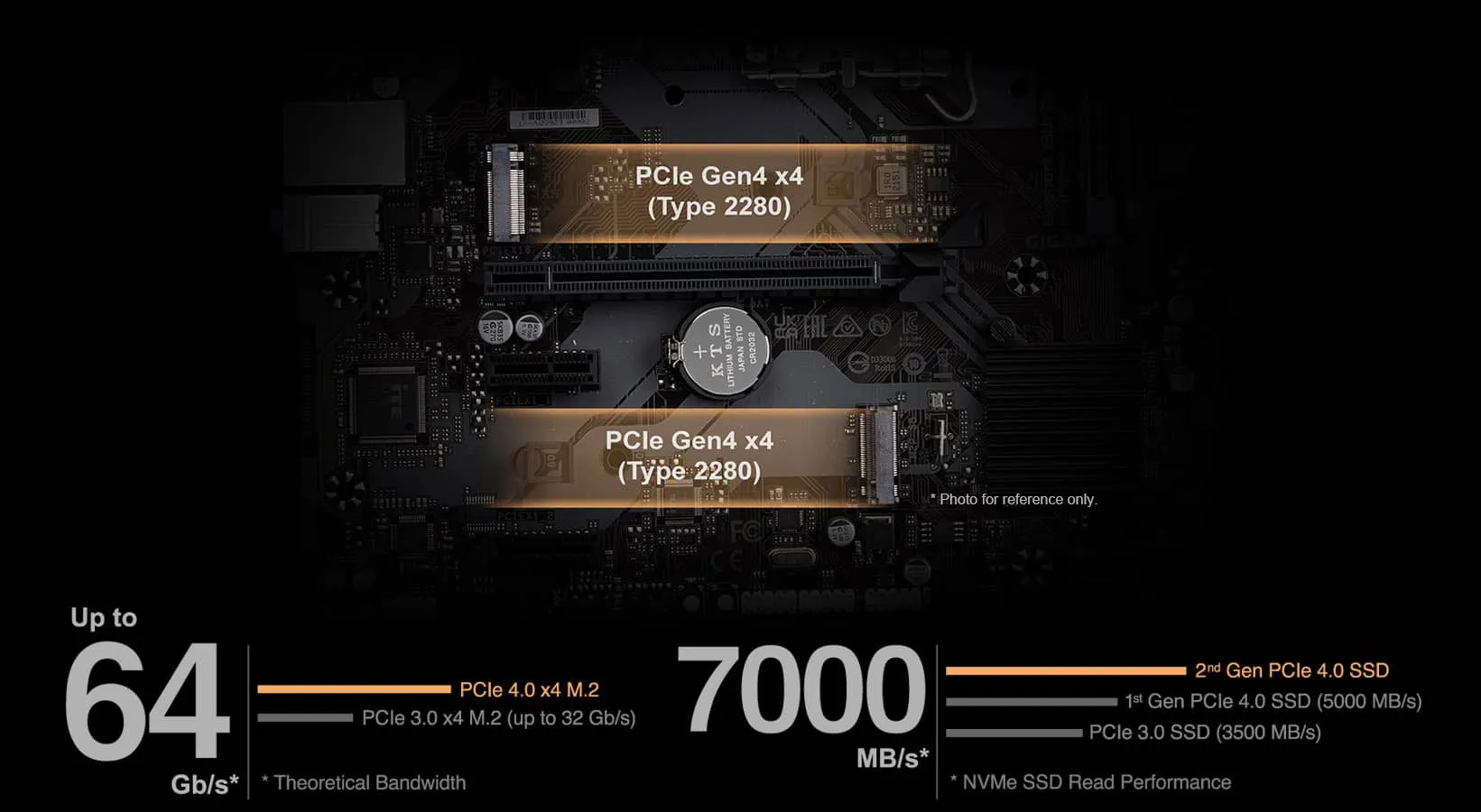

Dual PCIe 4.0 x4 M.2:

The motherboard features dual PCIe Gen4 x4 M.2 slots (Type 2280), delivering ultra-fast NVMe storage performance with up to 64 Gb/s theoretical bandwidth. It supports next-generation SSDs with read speeds reaching around 7000 MB/s, significantly faster than PCIe 3.0 drives, ensuring quicker system boot times, faster file transfers, and improved overall responsiveness.

PerfDrive:

GIGABYTE PerfDrive technology offers multiple BIOS tuning modes, including Max Turbo, Optimization, Spec Enhance, and E-Core Disable, allowing users to adjust performance, power efficiency, and temperatures easily. The Max Turbo mode enables Intel 13th Gen Core processors to operate at their highest Turbo Boost performance for enhanced speed and responsiveness.

Smart Fan 6:

Smart Fan 6 provides advanced cooling management with support for PWM/DC fans and water pumps, offering up to 24W power delivery with over-current protection. It features multiple temperature sensors, precise fan curve customization, dual curve modes, and Fan Stop functionality, allowing the system to maintain strong performance while staying cool and quiet.

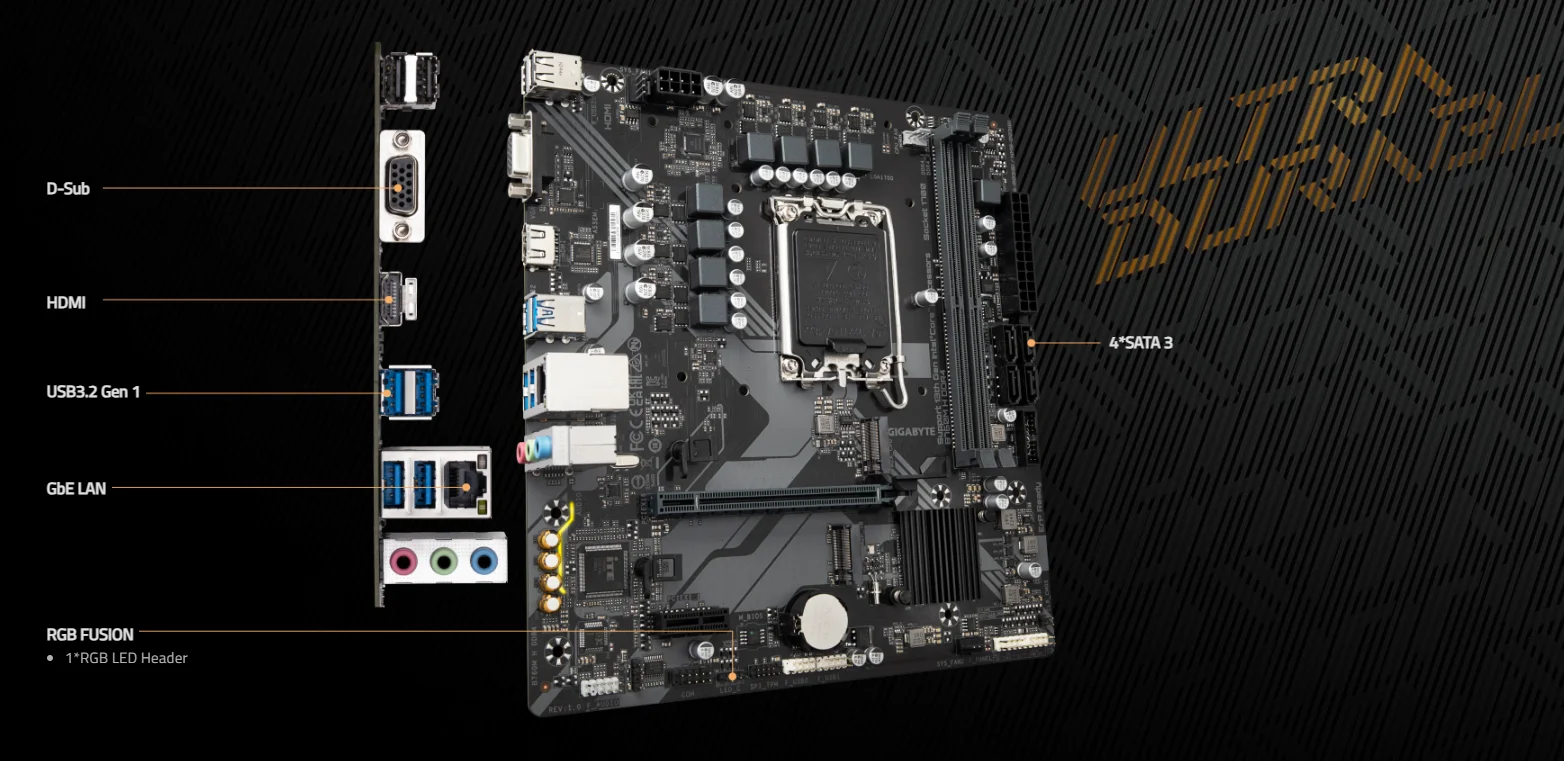

High-Speed Connectivity:

GIGABYTE Motherboards offer fast data transfer with next-gen network and storage support, featuring D-Sub, HDMI, USB 3.2 Gen 1, GbE LAN, RGB Fusion, one RGB LED header, and four SATA 3 ports.

GbE LAN:

GbE LAN includes bandwidth management software that reduces network latency and keeps ping times low, ensuring smoother responsiveness even on crowded local networks.

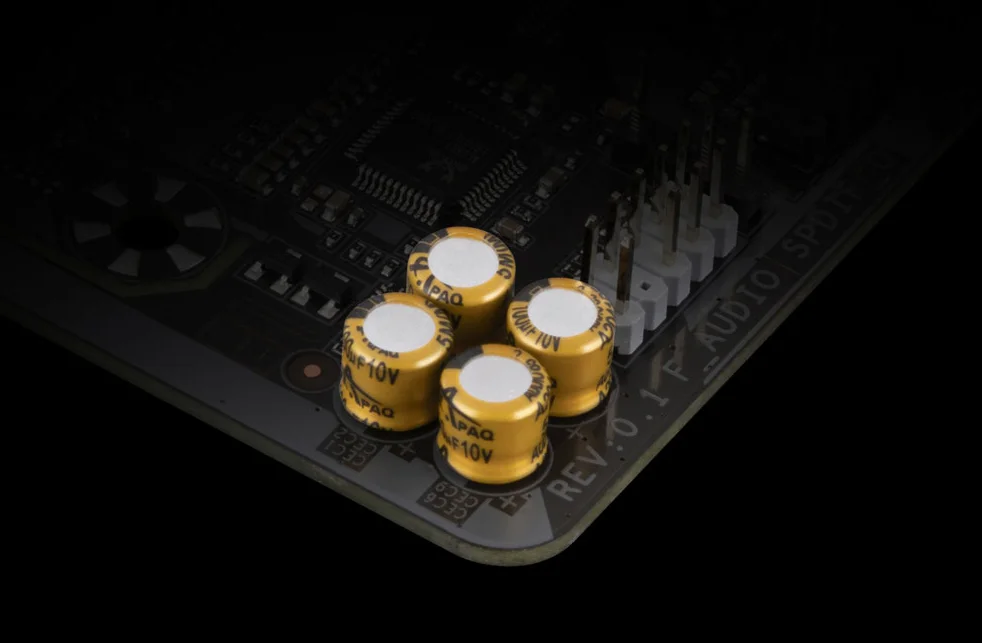

Premium Hi-Fi Audio:

GIGABYTE motherboards deliver high-resolution, realistic sound using high-end audio capacitors, while an Audio Noise Guard isolates sensitive analog components from PCB-level interference for cleaner, more accurate audio.

PERSONALIZATION:

GIGABYTE motherboards include user-friendly software for full motherboard control and customizable lighting effects, letting you match your system’s look and feel to your unique style.

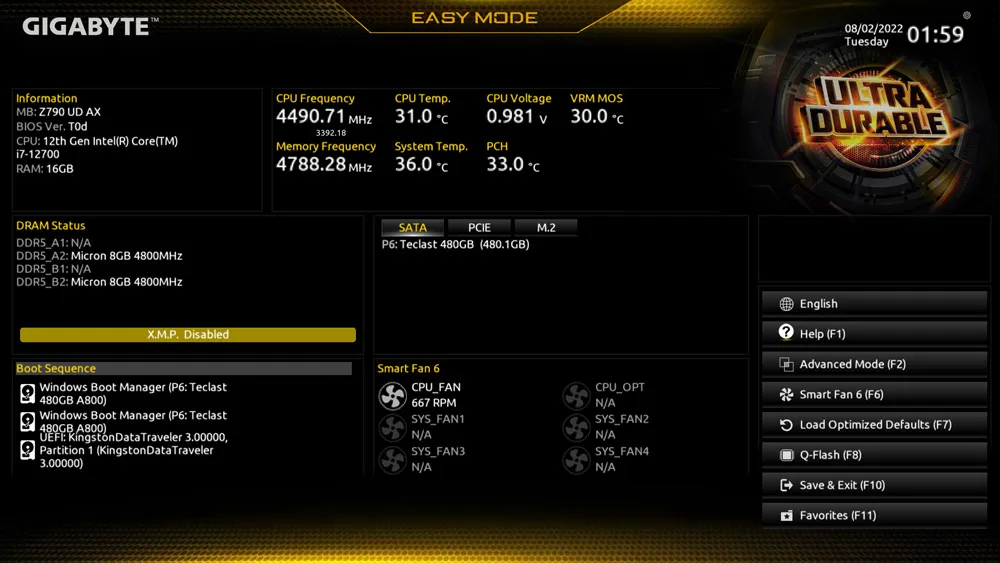

UEFI BIOS:

GIGABYTE’s UEFI BIOS offers a user-friendly interface with Easy Mode for key hardware info, a My Favorites menu for quick access, detailed storage information, a changelog to review all settings before exiting, and an intuitive load line curve graph for clear calibration adjustments.

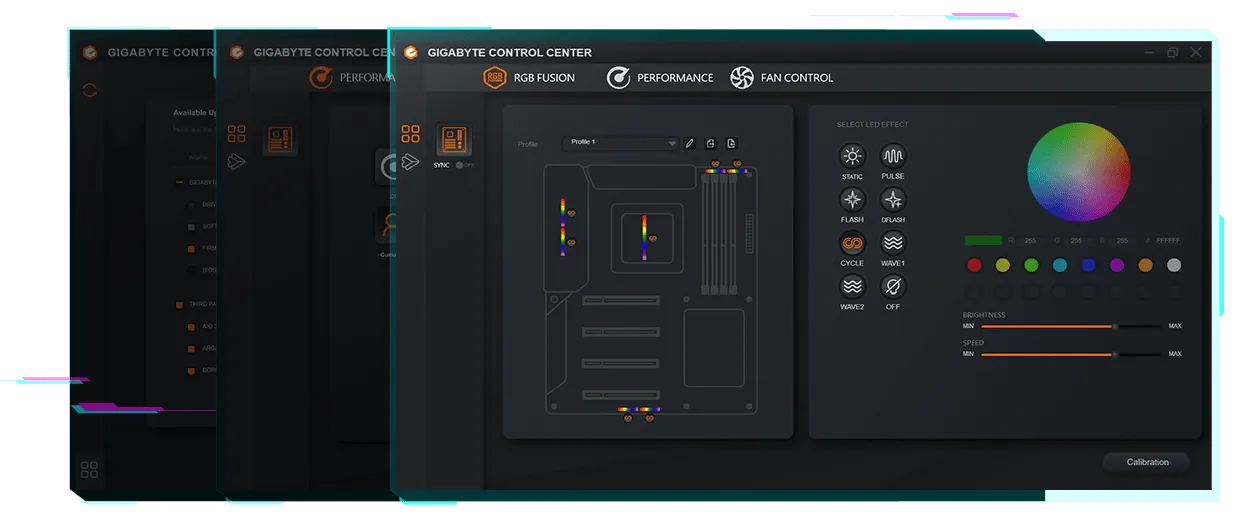

GIGABYTE Control Center:

GIGABYTE CONTROL CENTER GCC is a single, intuitive software platform for all supported GIGABYTE products, featuring a user-friendly interface, modular controls tailored to installed hardware, and an auto-update function to keep the system current and ready for future devices.

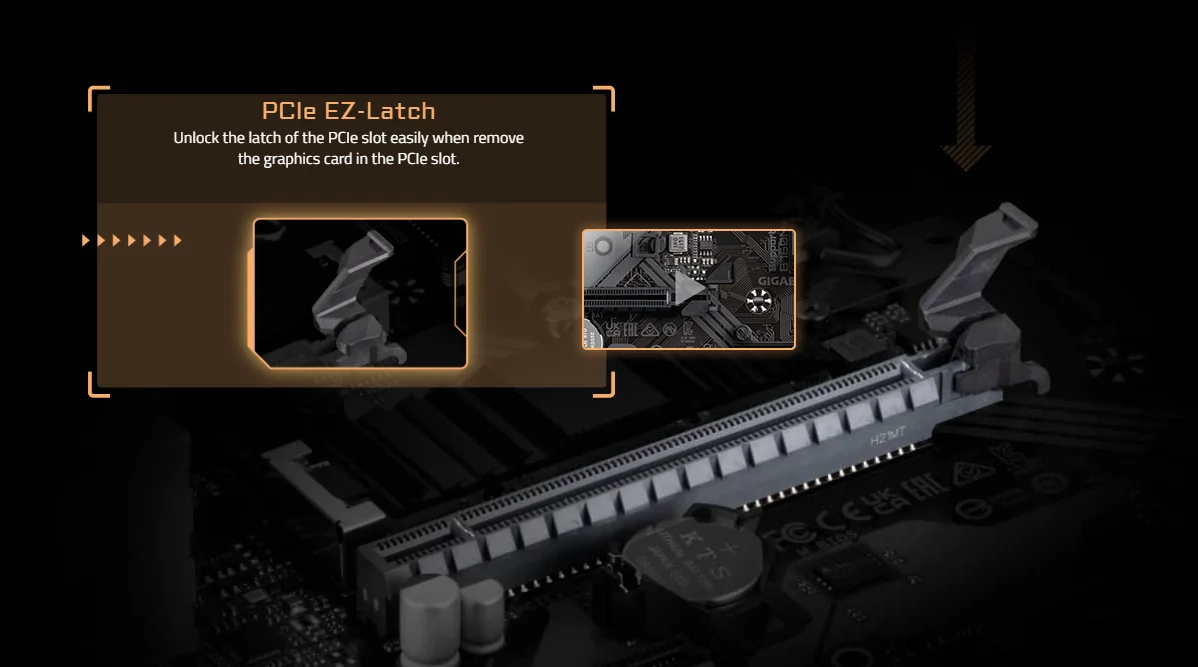

ULTRA DURABLE:

The PCIe EZ-Latch makes it easy to unlock and remove a graphics card from the PCIe slot, simplifying upgrades and maintenance for DIY builders.
