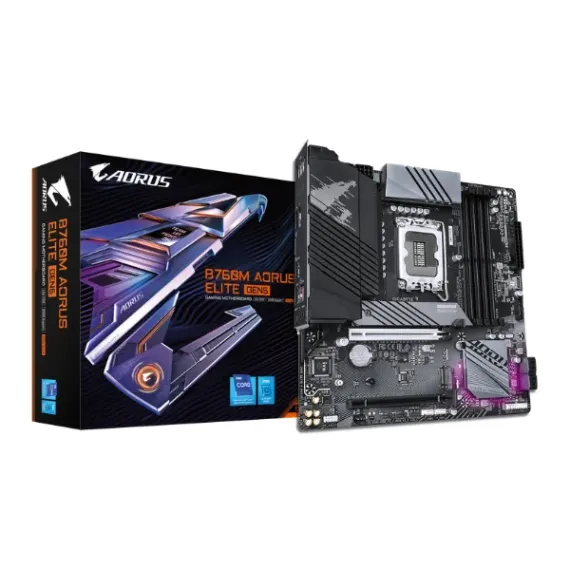

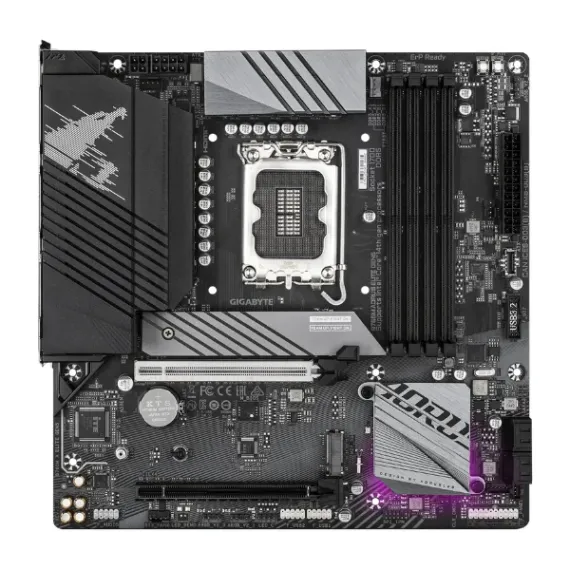

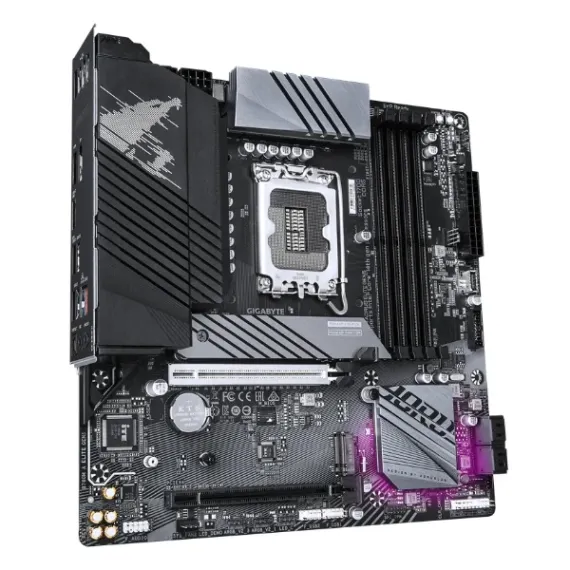

Gigabyte B760M AORUS ELITE GEN5 LGA1700 DDR5 mATX Motherboard

Gigabyte B760M AORUS ELITE GEN5 - Description

LGA1700 DDR5 mATX Motherboard

The Gigabyte B760M AORUS ELITE GEN5 is a high-performance DDR5 mATX motherboard designed for Intel 14th, 13th, and 12th Gen processors. It combines PCIe 5.0 technology, advanced cooling solutions, ultra-fast connectivity, and DIY-friendly features to deliver a stable and efficient gaming or productivity experience.

Performance:

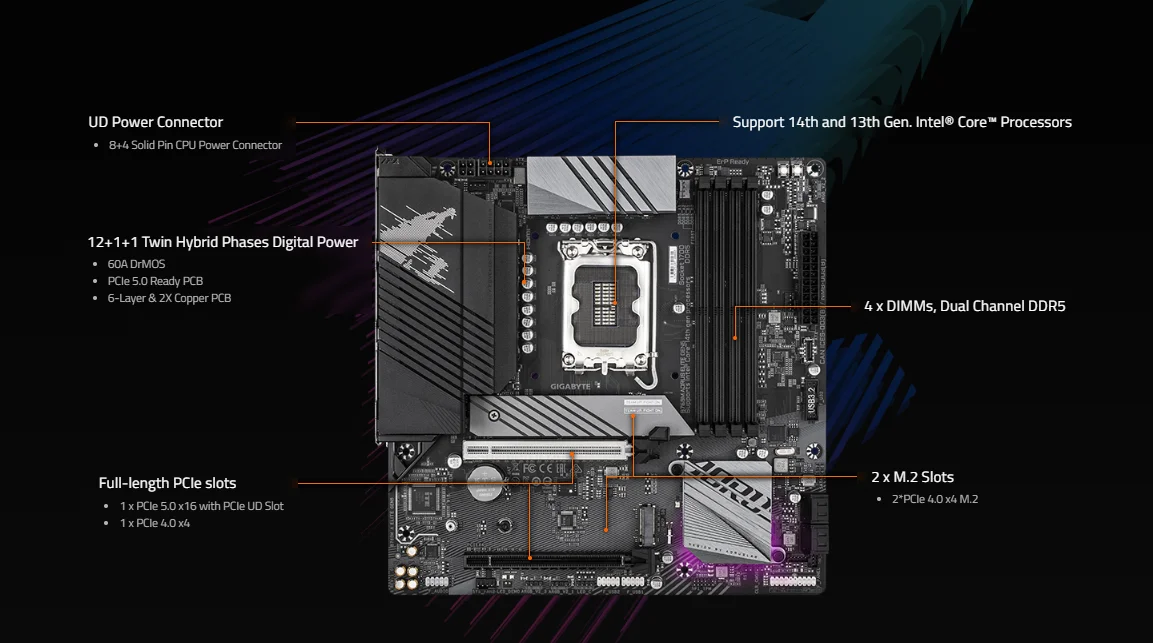

This motherboard is built to maximize the performance of Intel Core processors with a powerful 12+1+1 twin hybrid digital VRM design using 60A DrMOS components. The 6-layer 2X Copper PCB supports PCIe 5.0 technology for faster bandwidth and improved stability. It features four DDR5 DIMM slots with dual-channel support and two PCIe 4.0 x4 M.2 connectors for high-speed storage. Expansion options include a reinforced PCIe 5.0 x16 slot and an additional PCIe 4.0 x4 slot.

Thermal:

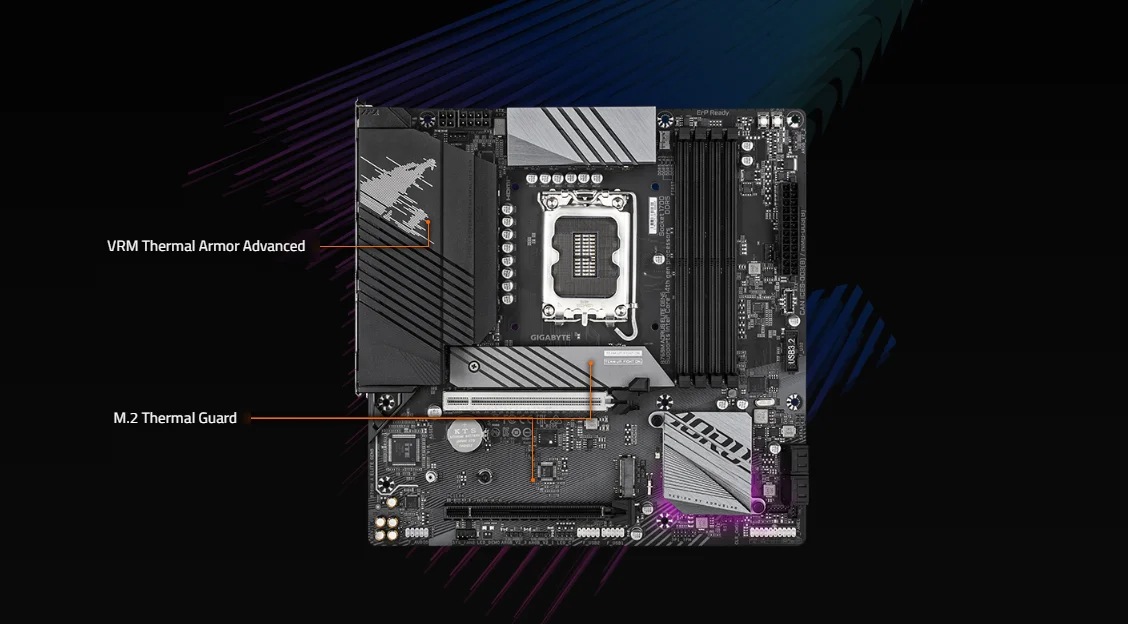

This motherboard features advanced thermal management with VRM Thermal Armor Advanced to keep voltage regulator modules cool under load, along with an M.2 Thermal Guard that helps prevent SSD overheating for consistent storage performance.

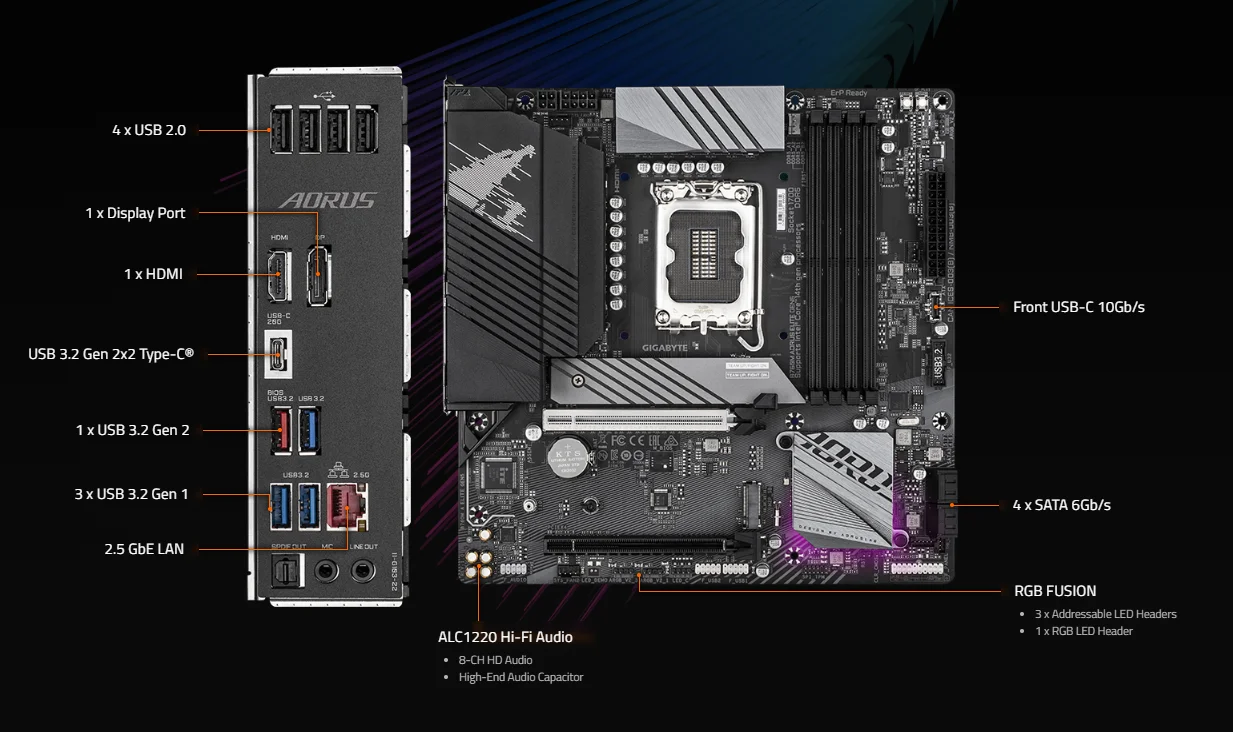

Connectivity:

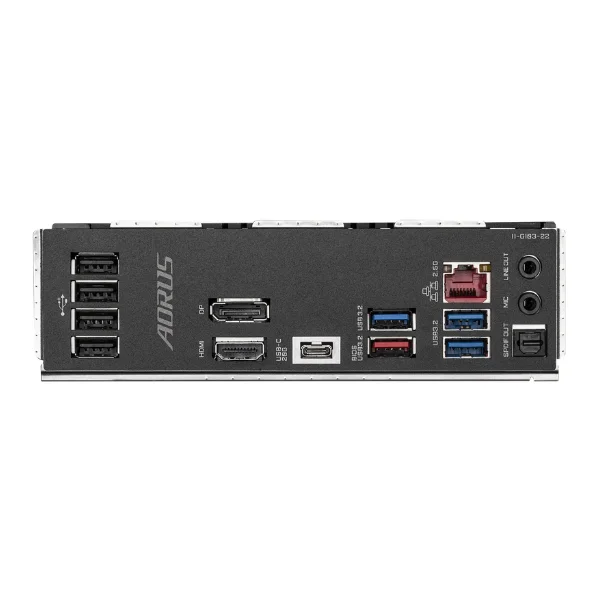

This motherboard offers extensive rear I/O including four USB 2.0 ports, one DisplayPort, one HDMI, a USB 3.2 Gen 2x2 Type-C port, one USB 3.2 Gen 2, and three USB 3.2 Gen 1 ports. Networking is covered by 2.5GbE LAN. Front panel connectivity includes a USB-C port with 10Gb/s. Storage options feature four SATA 6Gb/s ports. For audio, it provides ALC1220 Hi-Fi audio with 8-channel HD audio and high-end audio capacitors. RGB FUSION support includes three addressable LED headers and one RGB LED header for customizable lighting.

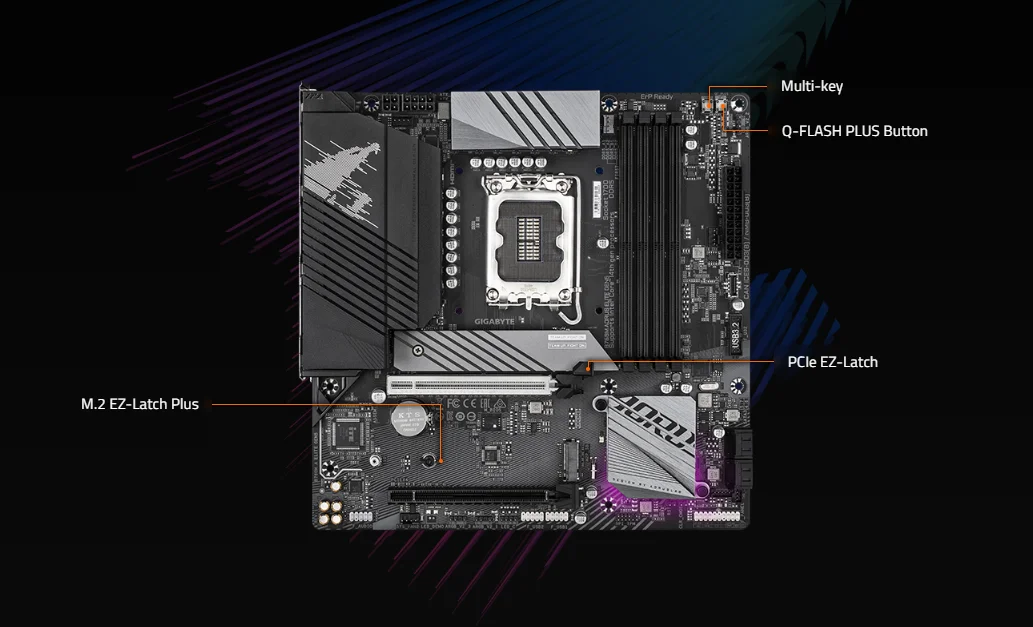

DIY Friendly:

This motherboard simplifies building and upgrading with several user-friendly tools: M.2 EZ-Latch Plus enables screwless M.2 installation, PCIe EZ-Latch allows quick and easy graphics card removal, the Q-Flash Plus button lets you update the BIOS without a CPU, memory, or GPU installed, and the Multi-key offers customizable functions for convenient system control.

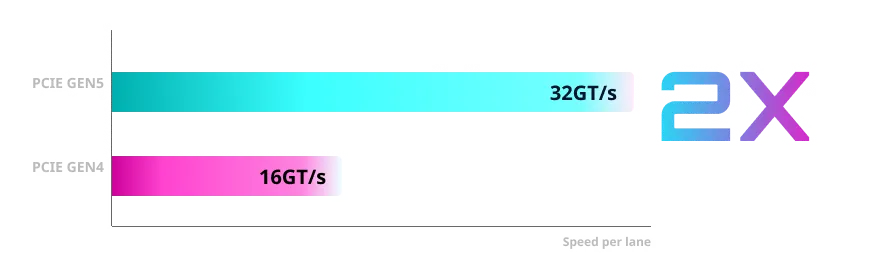

Express to PCIE5 Performance:

The motherboard is engineered to fully support PCIe Gen5 technology, doubling transfer speeds from 16 GT/s to 32 GT/s per lane compared to PCIe 4.0. This ensures improved performance for next-generation graphics cards, storage devices, and AI applications.

Fully Covered Thermal Design:

Large integrated MOSFET heatsinks with optimized airflow channels significantly improve heat transfer efficiency. The one-piece heatsink design offers better thermal performance and system stability during intensive tasks.

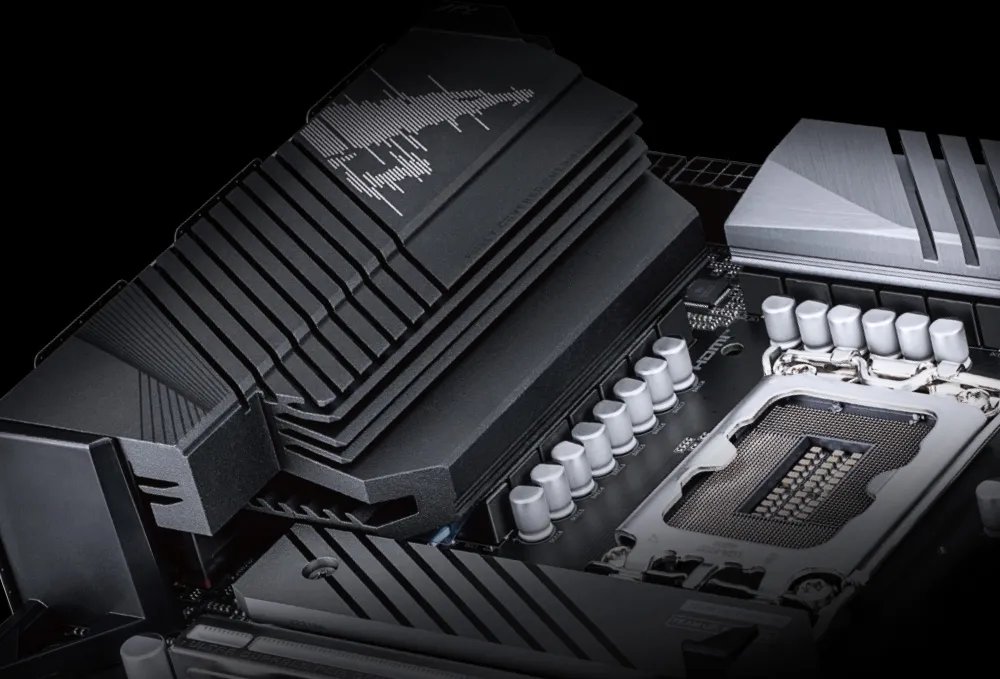

Fully Covered MOSFET Heatsink:

This motherboard features a high-performance MOSFET heatsink with up to four times larger surface area than traditional designs, significantly improving heat dissipation. Its true one-piece construction offers superior cooling compared to competitors' multi-piece heatsinks. Additionally, a multi-cut design with channels and inlets allows airflow to pass through, greatly enhancing heat transfer performance for stable power delivery under load.

M.2 Thermal Guard:

The dedicated M.2 Thermal Guard helps maintain SSD performance by reducing overheating and preventing speed throttling during continuous data transfers.

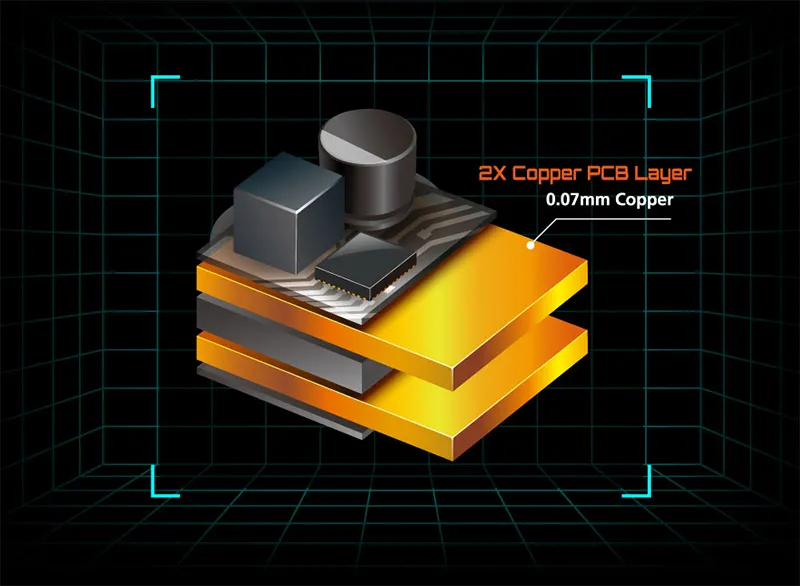

2X Copper PCB:

The use of 2X copper layers inside the PCB improves thermal conductivity, lowers impedance, and helps reduce component temperatures for enhanced reliability and long-term durability.

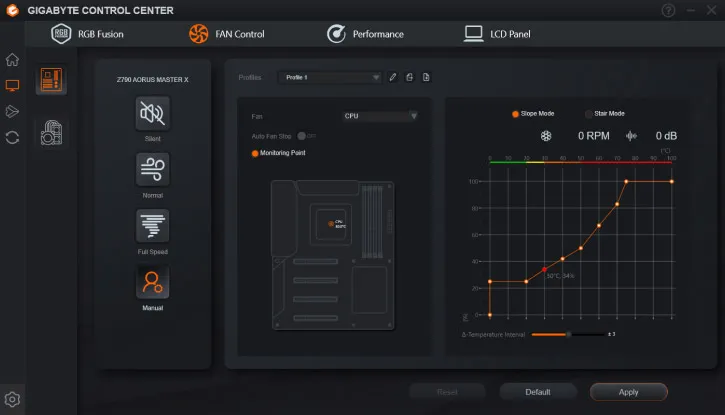

Smart Fan 6:

Smart Fan 6 offers intelligent cooling management with support for PWM, DC fans, and water cooling pumps. Users can customize fan curves, temperature points, and operating modes, while Fan Stop technology enables silent operation under low temperatures.

Hassle-free Assembly:

The motherboard is designed for easy installation and upgrades with user-friendly features like EZ-Latch mechanisms, quick-access controls, Multi-key functionality, and Q-Flash Plus for convenient BIOS updates.

Born from Ultra Durable:

Built with Gigabyte’s Ultra Durable technology, this motherboard focuses on long-lasting reliability, strong build quality, and stable operation for gamers and professionals.

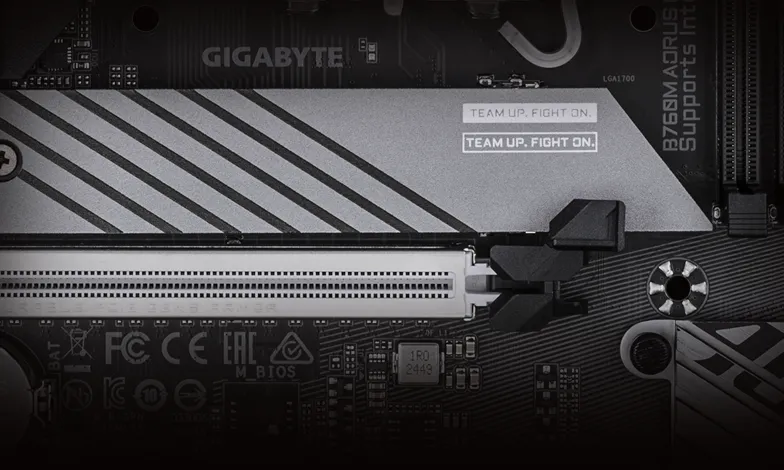

PCIe UD Slot:

The reinforced stainless-steel PCIe slot provides extra durability for heavy graphics cards while improving signal quality and retention strength for secure installation.

UD Power Connector:

The solid-pin UD Power Connector enhances electrical conductivity, reduces wear from repeated usage, and improves overall power delivery efficiency.

Unlock DDR5 Performance:

Gigabyte’s advanced DDR5 memory design unlocks enhanced overclocking potential with improved voltage control and optimized compatibility across various memory modules.

Unlock DDR5 Voltage:

Gigabyte's exclusive DDR5 circuit design enhances memory overclocking performance by converting native DDR5 modules into overclocked DDR5 memory. In standard secure mode, the motherboard provides a fixed 5V to native DDR5 memory, with the built-in PMIC outputting a locked 1.1V to the memory IC. The exclusive design unlocks the native DDR5 PMIC from secure mode into programmable mode, allowing wide-range control over native DDR5 voltage. It supports all PMIC vendors for maximum compatibility, though actual overclocking capability may vary depending on the user's hardware configuration.

Unmatched Hardware Excellence:

Shielded memory routing, optimized PCB trace design, and low-signal-loss materials improve signal integrity and enable stable high-speed DDR5 performance.

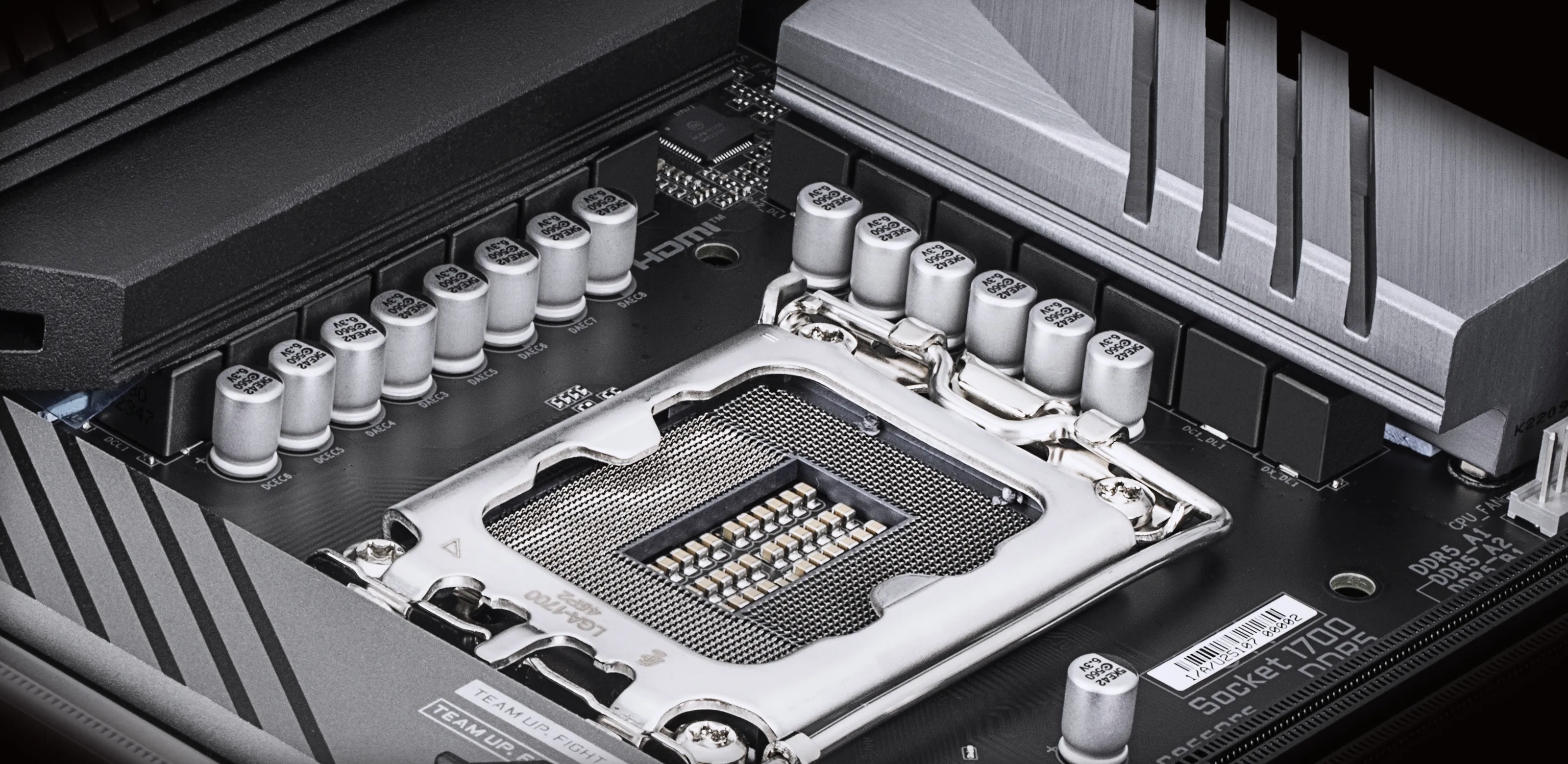

Optimal Power:

A premium twin hybrid VRM design with high-quality components ensures stable power delivery for maximum CPU Turbo Boost and overclocking performance.

All-round Connectivity:

The motherboard delivers high-speed networking, storage, and USB connectivity solutions to support modern gaming and professional workloads.

2.5G LAN:

The integrated 2.5GbE LAN provides fast and stable wired networking performance for gaming, streaming, cloud computing, and online applications.

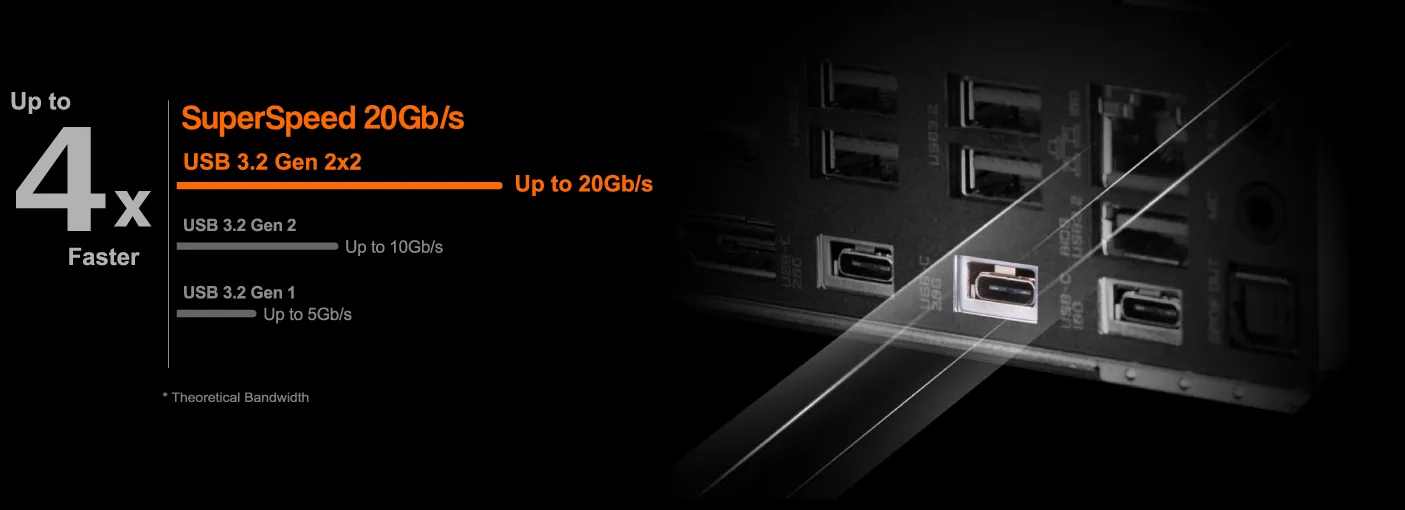

Connecting the Future - USB 3.2 Gen 2x2 Type-C:

The rear USB Type-C port supports ultra-fast 20Gbps transfer speeds and reversible connectivity for modern devices and peripherals.

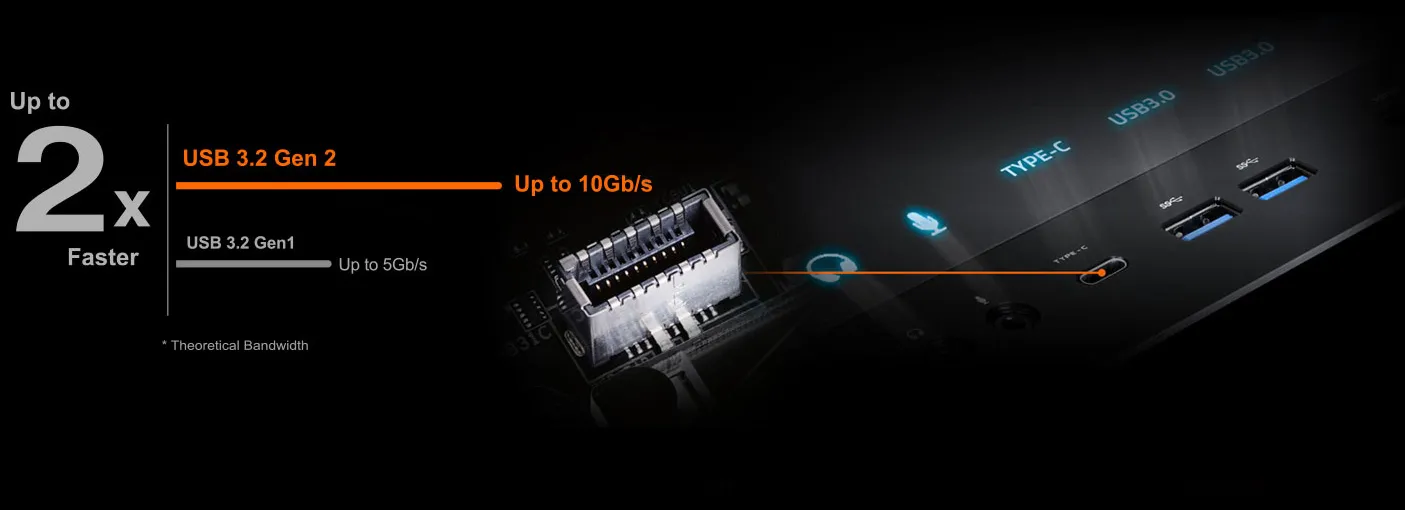

Connecting the Future - Front USB3.2 Gen 2 Type-C:

Front USB-C connectivity supports up to 10Gbps transfer speeds while maintaining compatibility with older USB standards.

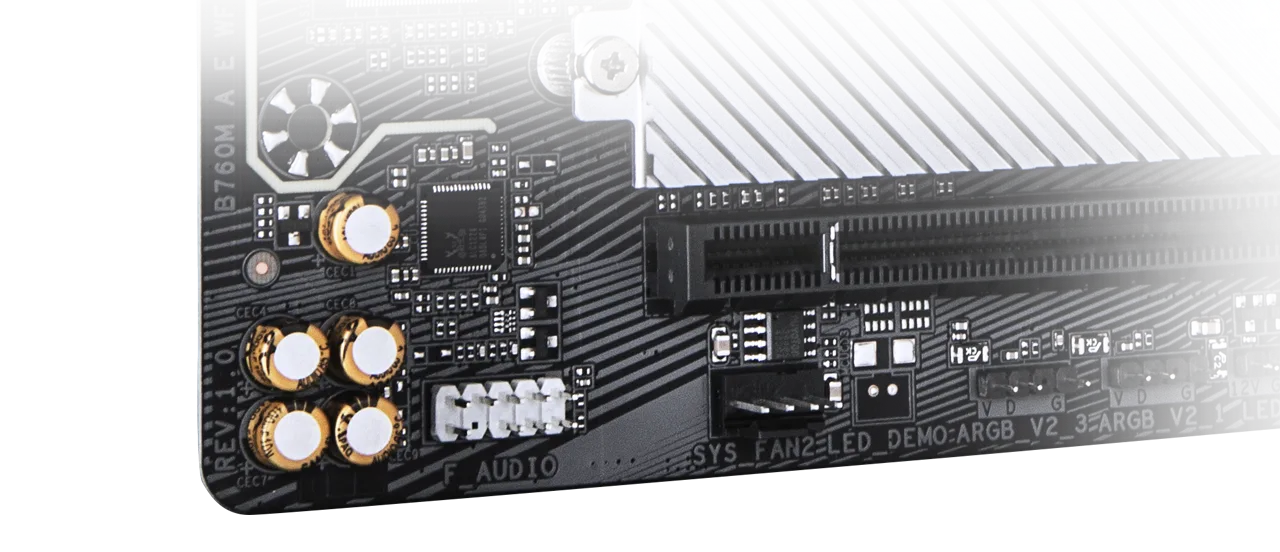

Hi-Fi Audio:

Powered by the Realtek ALC1220 codec, the motherboard delivers high-quality surround sound, detailed audio output, and reduced electrical interference through Audio Noise Guard technology.

Customize to fit your unique personality:

GIGABYTE software and RGB FUSION support allow users to personalize lighting effects and system aesthetics to match their setup style.
