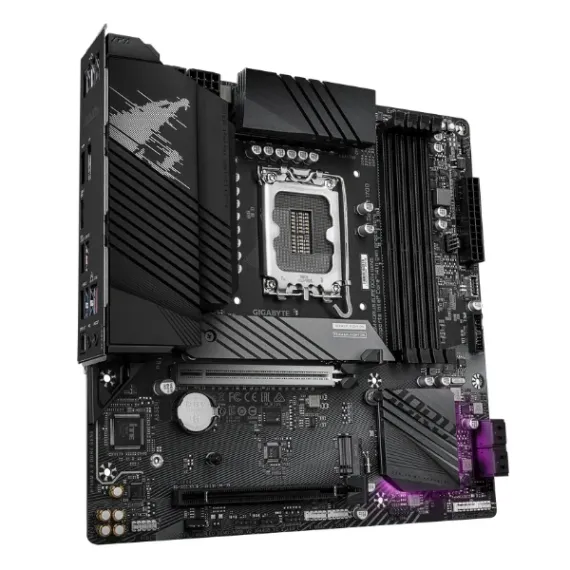

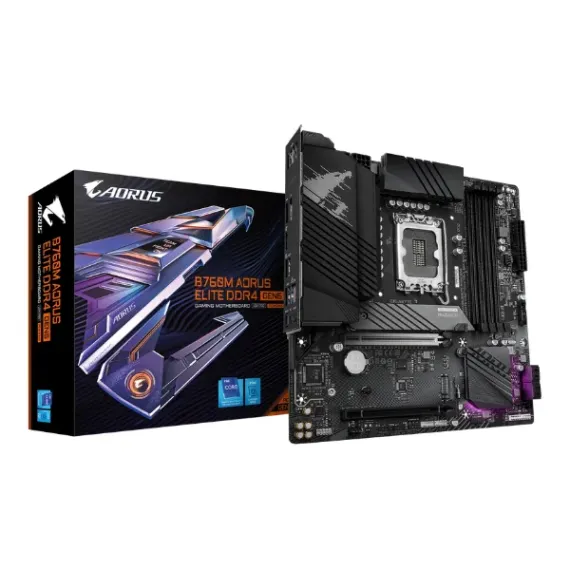

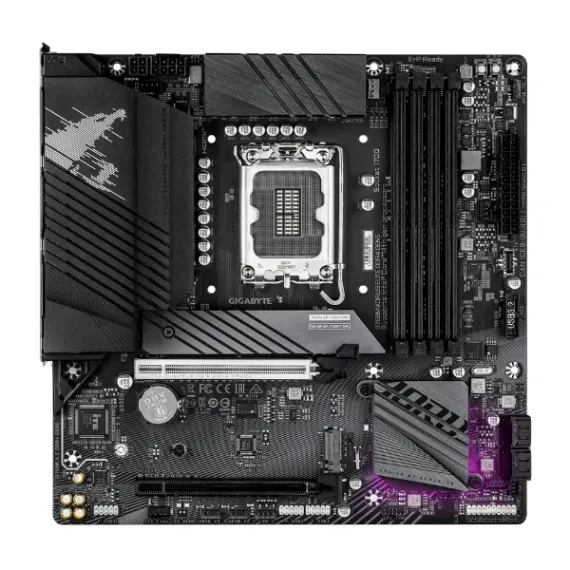

Gigabyte B760M AORUS ELITE DDR4 GEN5 LGA1700 mATX Motherboard

Gigabyte B760M AORUS ELITE DDR4 GEN5 - Description

LGA1700 mATX Motherboard

Next-Gen Features with DDR4 Support:

Gigabyte B760M AORUS ELITE DDR4 GEN5 is a high-performance mATX motherboard built for Intel 14th, 13th, and 12th Gen processors, featuring PCIe 5.0 support, advanced thermal cooling, DDR4 memory compatibility, ultra-fast 2.5GbE networking, dual PCIe 4.0 M.2 slots, and convenient DIY-friendly features like EZ-Latch and Q-Flash Plus for a smooth and powerful PC building experience.

Performance:

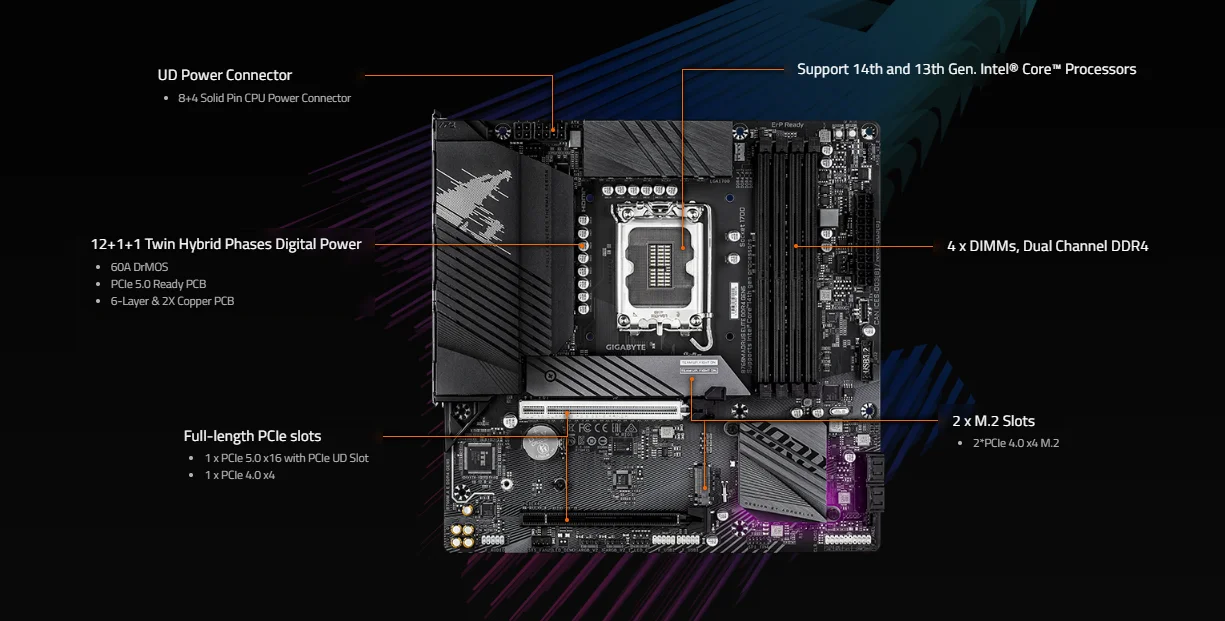

The Gigabyte B760M AORUS ELITE DDR4 GEN5 delivers outstanding performance with a 12+1+1 hybrid digital power design, PCIe 5.0 support, durable 6-layer 2X copper PCB, dual-channel DDR4 memory, dual PCIe 4.0 M.2 slots, and high-speed expansion options for next-generation gaming and productivity builds.

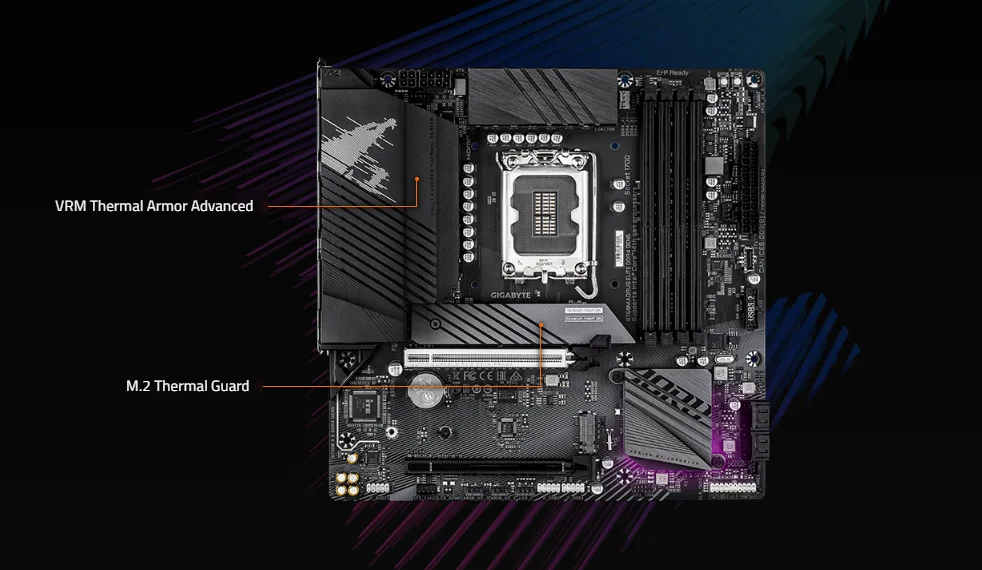

Thermal:

The motherboard features advanced cooling with VRM Thermal Armor and M.2 Thermal Guard to ensure stable temperatures and efficient heat dissipation for better overall system performance.

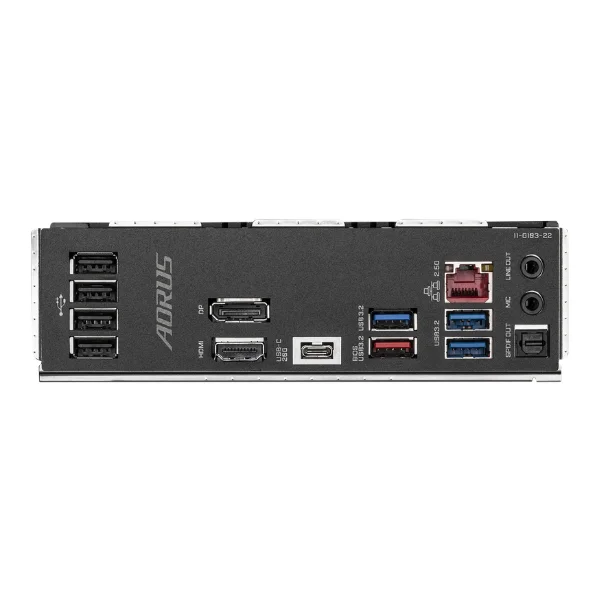

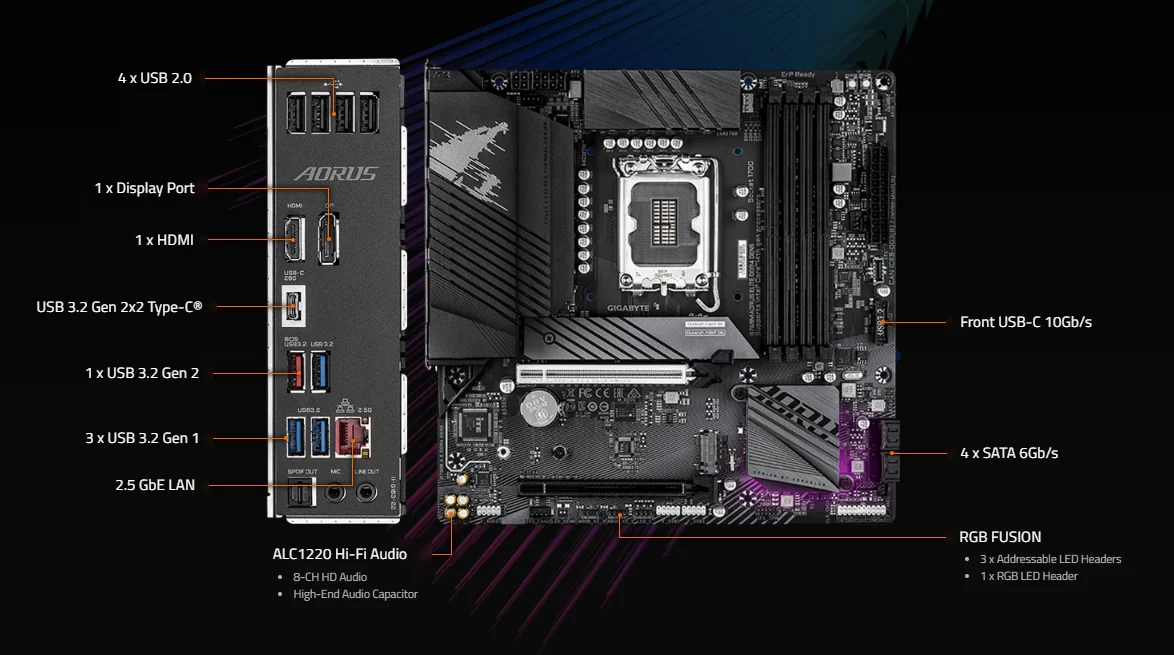

Connectivity:

The motherboard offers a rich set of connectivity options, including multiple USB ports (USB 2.0, USB 3.2 Gen1, Gen2, and Gen2x2 Type-C), HDMI and DisplayPort outputs, 2.5GbE LAN, front USB-C support, SATA ports, high-quality ALC1220 8-channel audio with premium capacitors, and RGB FUSION with multiple RGB and addressable LED headers for lighting customization.

DIY Friendly:

The motherboard is designed for easy DIY assembly with features like M.2 EZ-Latch Plus, PCIe EZ-Latch, Q-Flash Plus button for BIOS updates, and a Multi-Key function, making installation and maintenance simple and convenient.

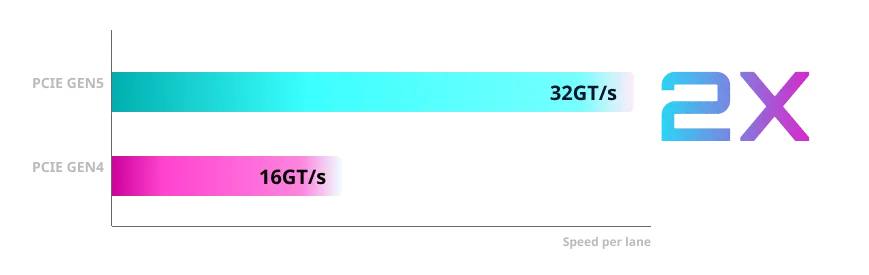

Express to PCIE5 Performance:

The new GIGABYTE B760 motherboards provide the most efficient way to enjoy the performance boost of PCIe Gen5 on existing platforms. PCIe 5.0 doubles the data transfer rate per lane from 16 GT/s (PCIe 4.0) to 32 GT/s. This significant bandwidth increase greatly benefits high-performance graphics cards, storage devices, and AI accelerators that require faster data movement.

Fully Covered Thermal Design:

High-coverage MOSFET and integrated molded heatsinks improve thermal efficiency by enhancing airflow and heat exchange.

Fully Covered MOSFET Heatsink:

Featuring up to 4x larger surface area than traditional heatsinks, a true one-piece construction for superior heat dissipation, and a multi-cut channel design that improves airflow and heat transfer performance.

M.2 Thermal Guard:

The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs by helping to dissipate heat before it becomes an issue.

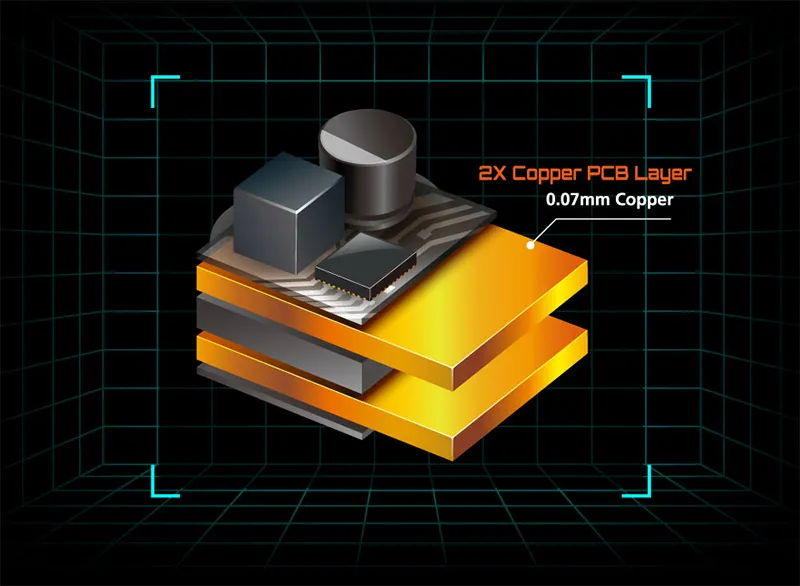

2X Copper PCB:

By doubling the copper in the PCB inner layers, this design transforms the board into an efficient, ultra-thin copper heatsink. Leveraging high thermal conductivity and lower impedance, it reduces component temperatures by at least 3%.

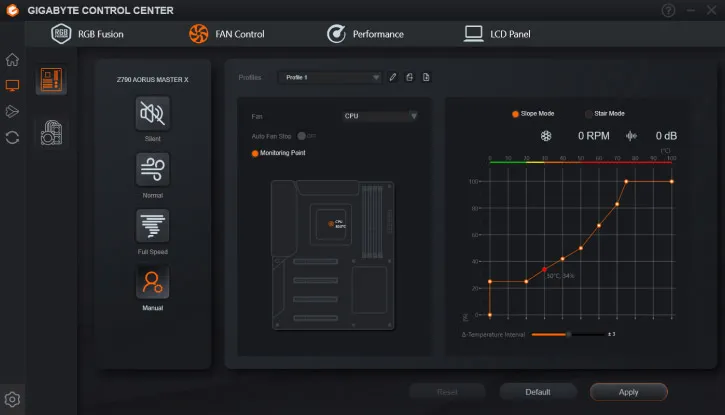

Smart Fan 6:

Supports PWM/DC fans and water pumps with up to 24W per header (over-current protected). Offers customizable multi-point fan curves, slope or stair control modes, and Fan Stop for complete silence at low temperatures.

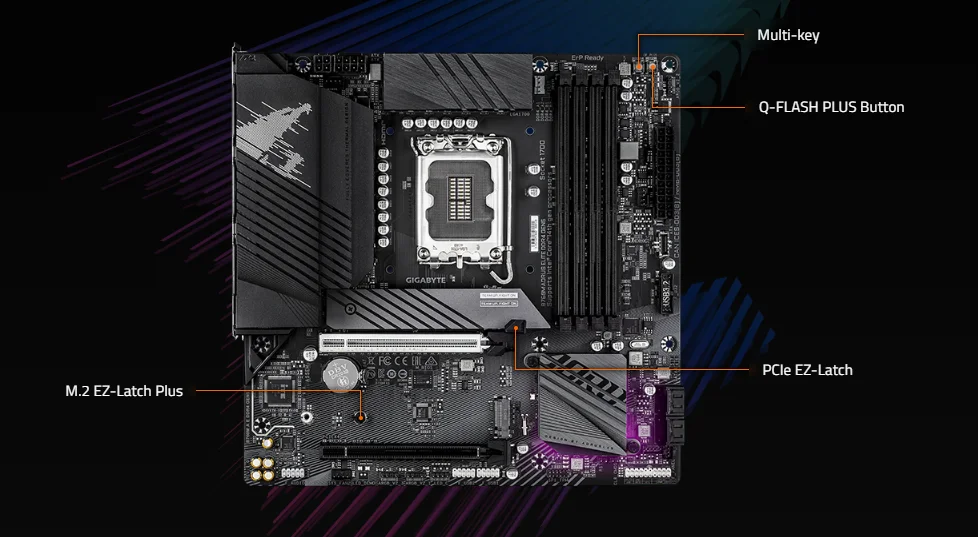

Hassle-free Assembly:

Engineered for effortless DIY builds, this motherboard includes PCIe EZ-Latch for easy graphics card removal, M.2 EZ-Latch Plus for tool-free SSD installation, and fast-access controls like Multi-Key and Q-Flash Plus for simple BIOS updates without CPU, memory, or GPU.

Born from Ultra Durable:

This technology reflects our commitment to excellence, offering gamers a platform that is not only powerful but also built for longevity and reliability. GIGABYTE motherboards are engineered to endure and excel.

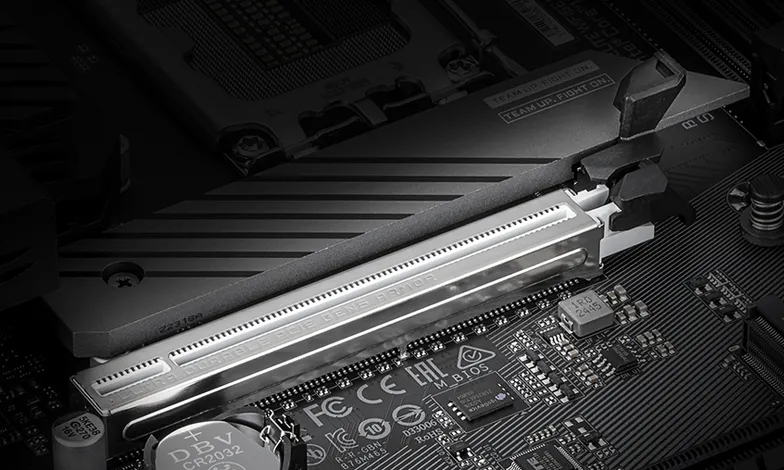

PCIe UD Slot:

Featuring a one-piece stainless-steel shielding design, this slot delivers 1.7× stronger shearing resistance and 3.2× greater retention force. SMD technology also reduces signal degradation for stable performance.

UD Power Connector:

Features solid pins that improve power conductivity, signal transmission, and thermal dissipation while reducing metal wear from repeated connections.

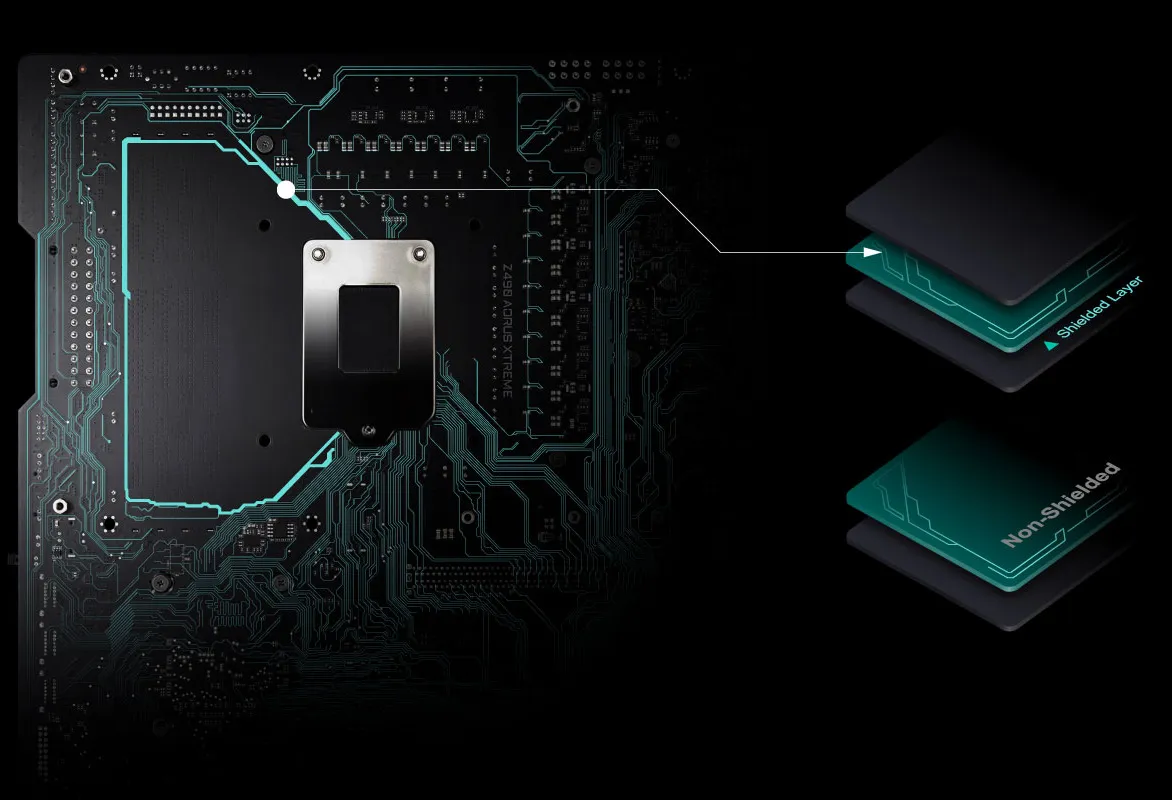

Blazing Fast Memory with Shielded Routing:

This motherboard supports XMP profiles up to 5333MHz and beyond for easy performance gains. Shielded memory routing, with traces protected under a ground layer inside the PCB, ensures stable signal integrity by blocking external interference.

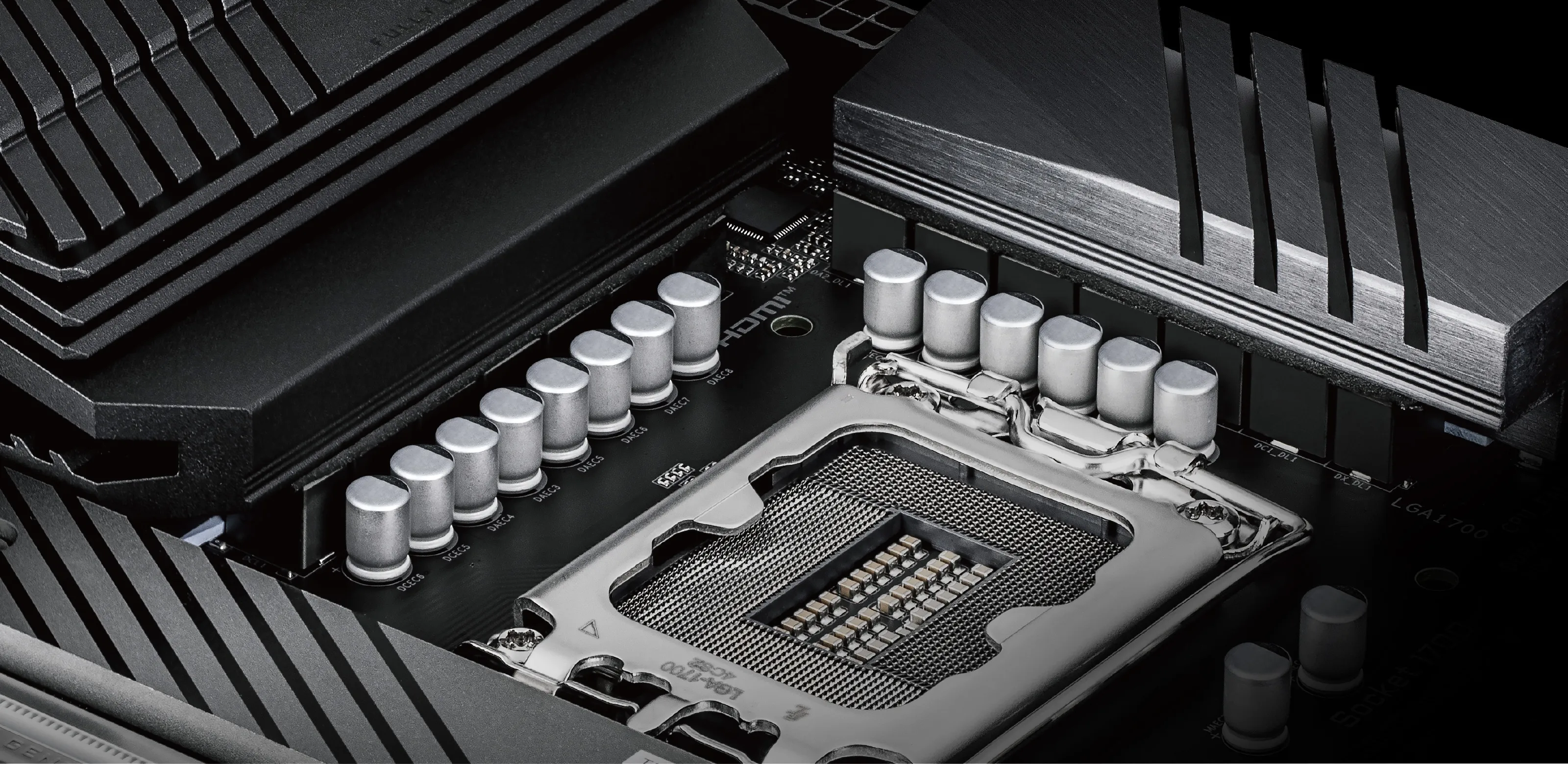

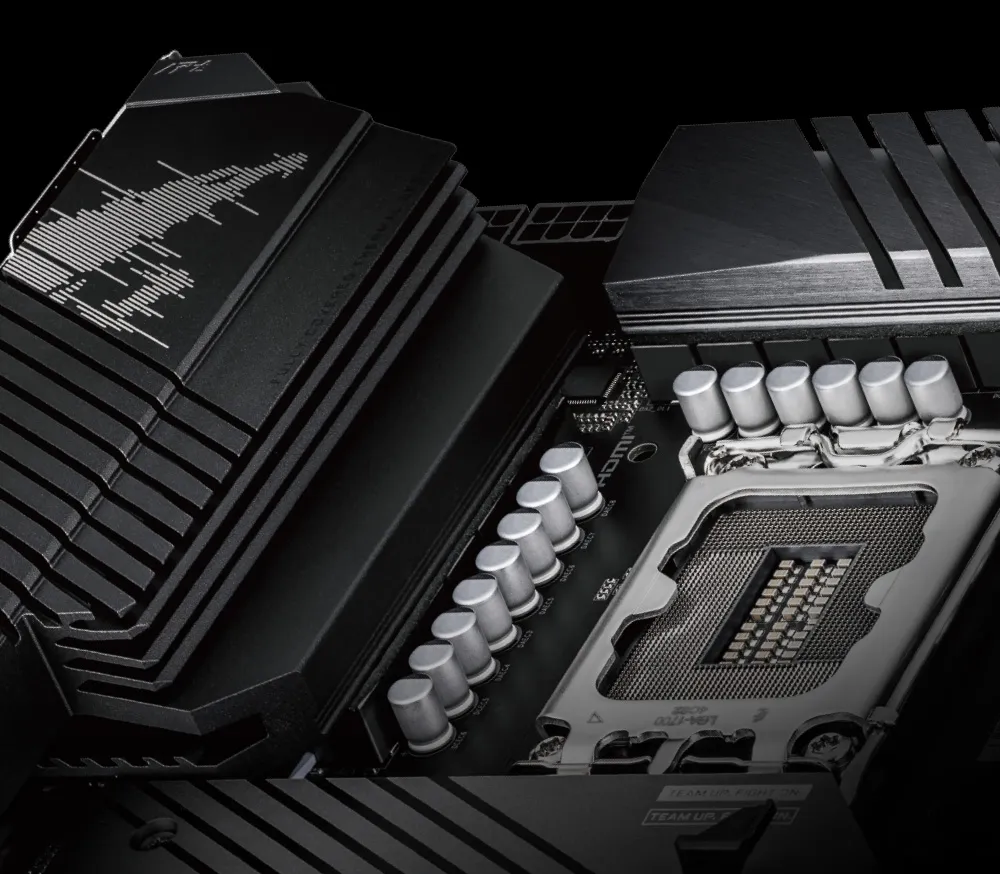

Optimal Power:

Featuring a 12* (6+6 parallel) VCORE phases with 60A DrMOS for multi-core CPUs, plus dedicated VCCGT (60A) for integrated graphics and VCCAUX for PCIe/memory controllers, this VRM design ensures stable power delivery to unlock Intel’s full turbo boost and overclocking potential.

All-round Connectivity:

Experience comprehensive connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

2.5G LAN:

This design delivers blisteringly fast transfer speeds, ensuring the most stable transmission environment when the system performs cloud computing or provides external computing services.

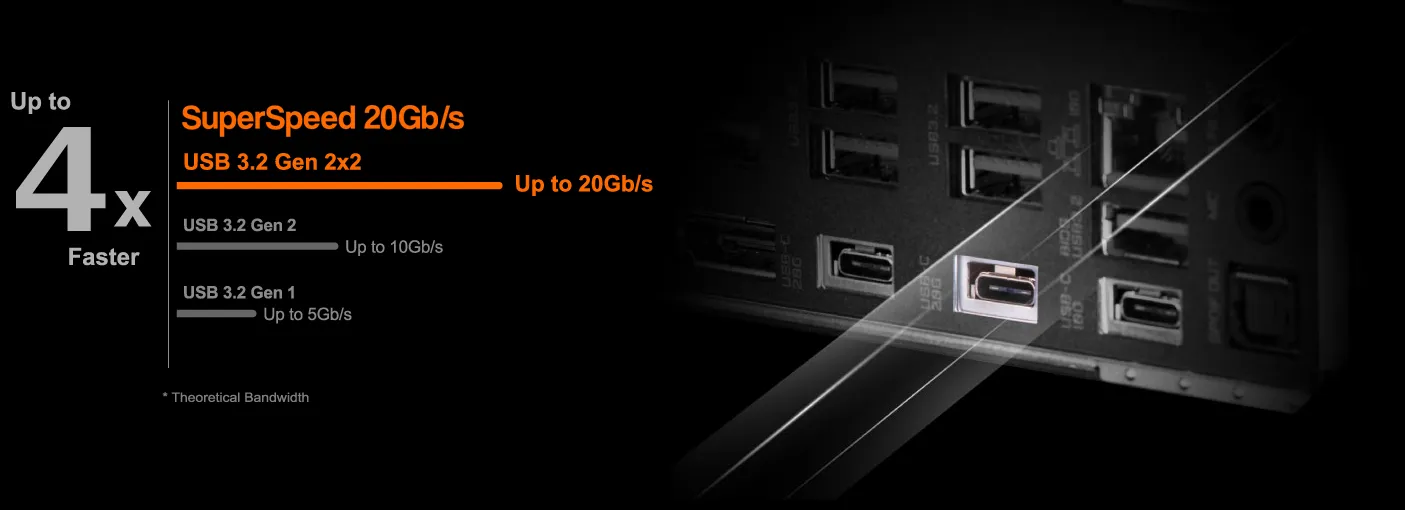

Connecting the Future - USB 3.2 Gen 2x2 Type-C:

Featuring the USB 3.2 Gen 2x2 design, which doubles performance compared to the previous USB 3.2 Gen 2. It operates at up to 20Gbps for ultra-fast data transfer when connecting to USB 3.2 compliant peripherals. Through the USB Type-C connector, users enjoy the flexibility of a reversible connection to rapidly access and store massive amounts of data.

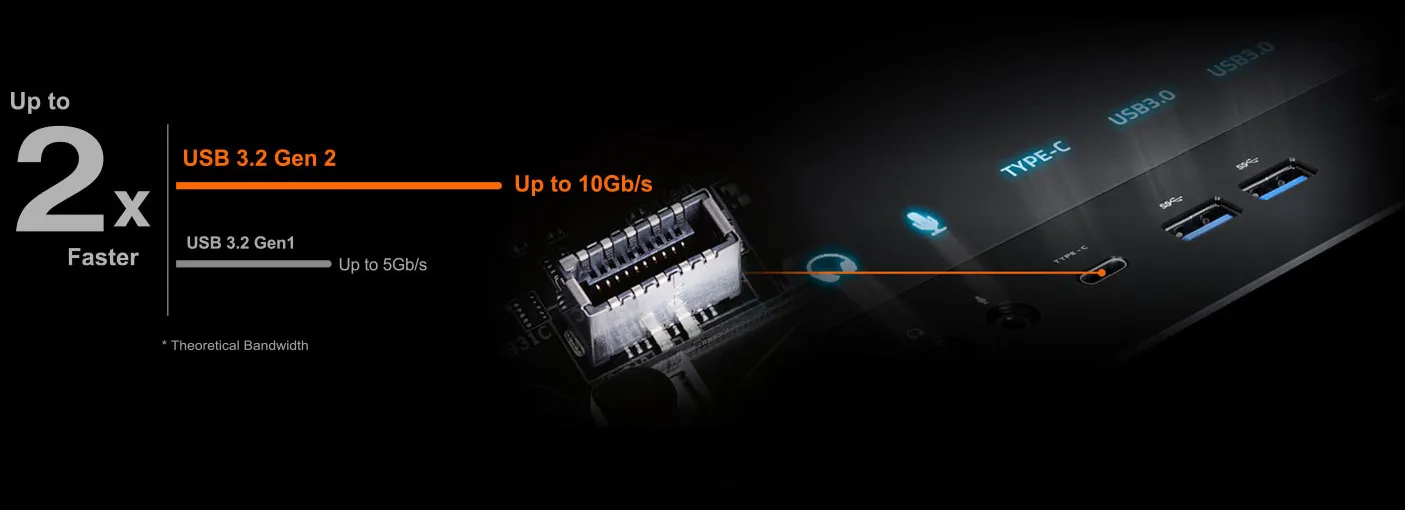

Connecting the Future - Front USB3.2 Gen 2 Type-C:

USB 3.2 Gen 2 provides ports with speeds up to 10Gbps. With twice the bandwidth of its predecessor and backward compatibility with USB 2.0 and USB 3.2 Gen1, the improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for broader compatibility across a wider range of devices.

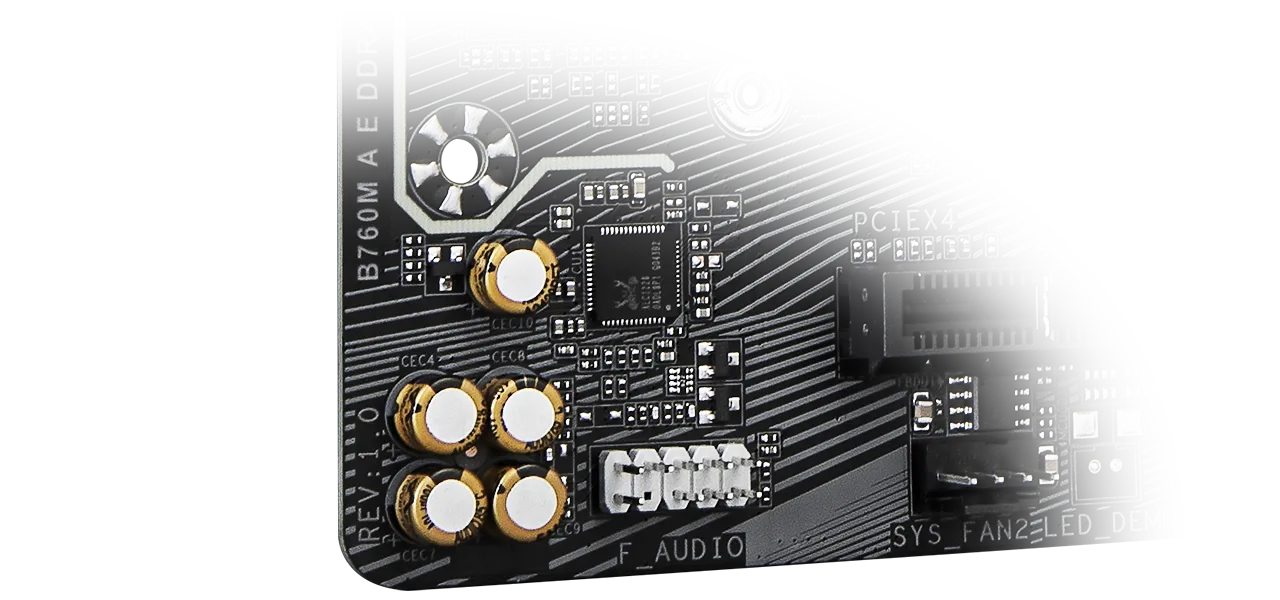

Immersive Sound with Noise Isolation:

Features the Realtek ALC1220 codec for high-fidelity, DSD-ready surround sound, along with high-end audio capacitors for clear output and Audio Noise Guard to isolate sensitive analog components from PCB-level interference.

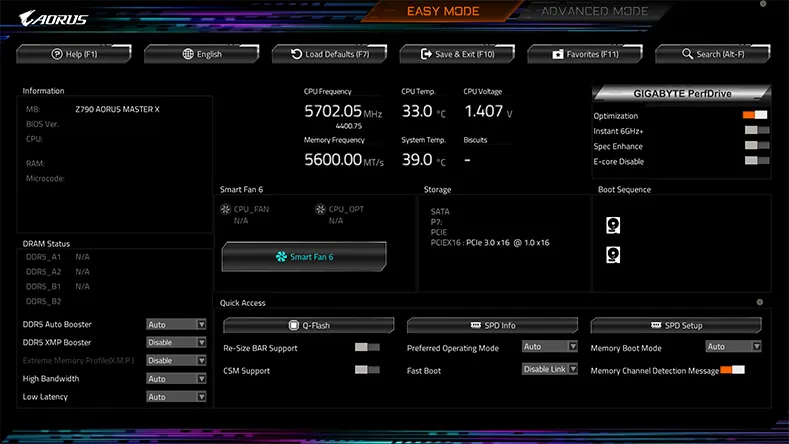

Customize to fit your unique personality:

GIGABYTE motherboards include several useful and intuitive software tools to help users control every aspect of the motherboard and provide customizable lighting effects with outstanding aesthetics to match your unique personality.
