case deepcool-macube 550wh
Please sign in so that we can notify you about a reply
Brand:
deepcool

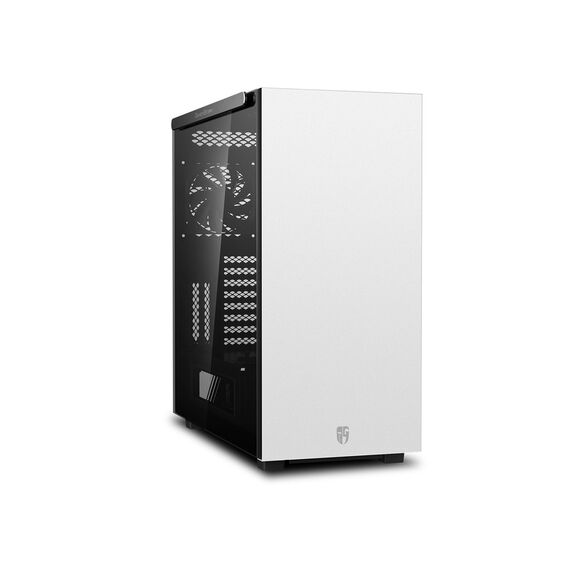

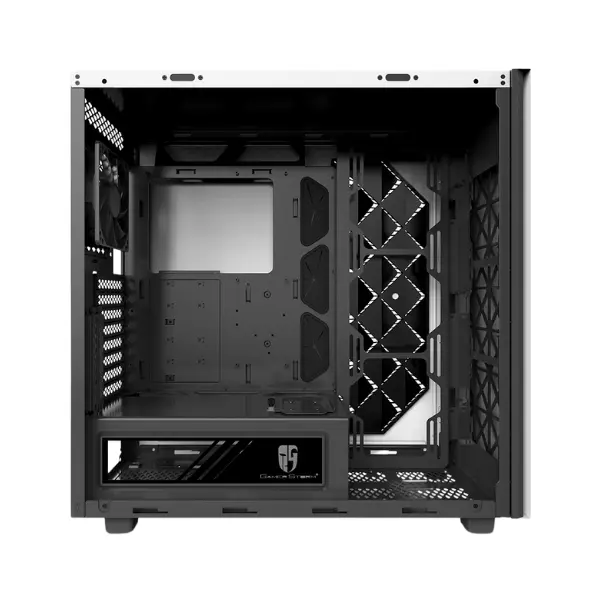

Full tower case that supports up to ATX motherboard, and 420mm GPU(when installed vertically).With novel functional designs and concise appearance designs, MACUBE 550 WH presents a mysticism and minimalism style.

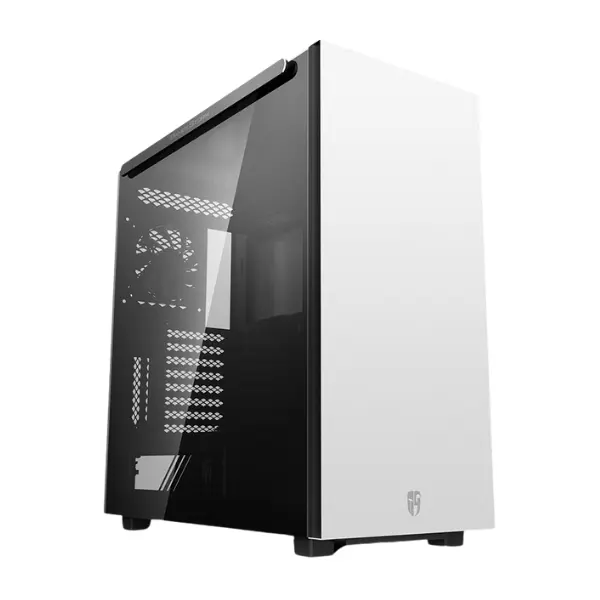

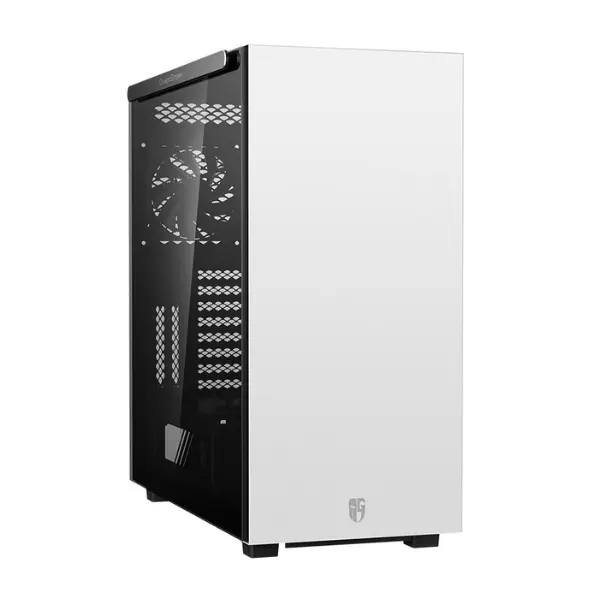

The tempered glass panel with aluminum bar is aesthetic and convenient.

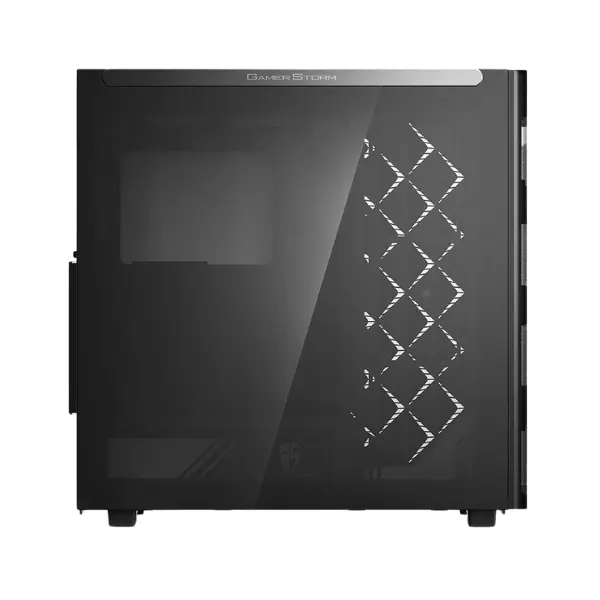

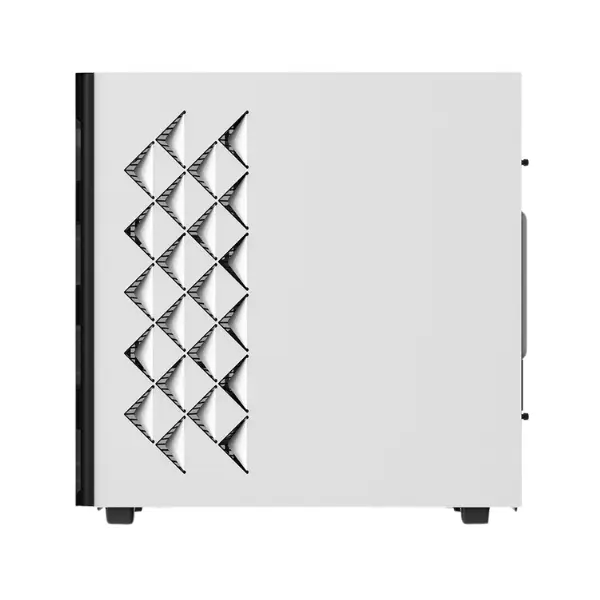

The unique dragon scale ventilation holes on the backside panel add on the lingering charm of mysticism.
The scale ventilation holes can serve as either intake or exhaust, thereby making the air path of the case flexible and efficient.
Structure built with 0.8mm SGCC steel, sturdy, tenacious and corrosion resistant.

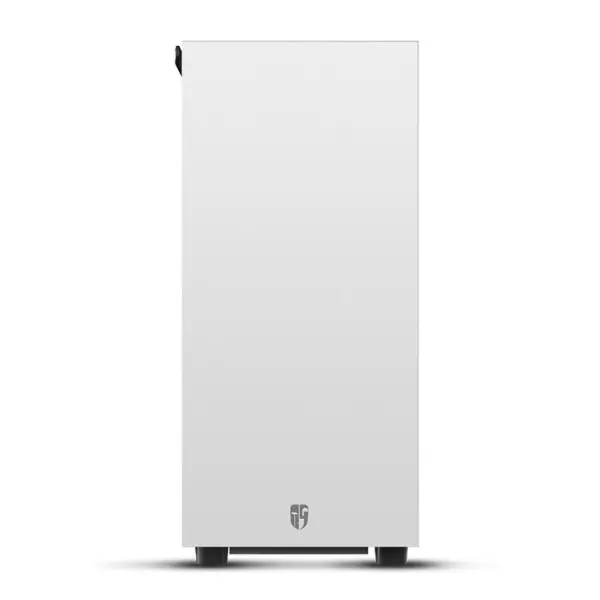

The combination of the matte coating and concealed logos brings premium feeling.
Technical Spec
| Motherboards | Mini-ITX/Micro-ATX/ATX（MAX 305*276mm） |
| Materials | ABS+SGCC+Tempered Glass+Aluminum Plate |
| Product Dimensions | 526mm×241mm×520mm(L×W×H) |
| Carton Dimensions | 625mm*335mm*609mm |
| Net Weight | 12.2Kg |
| Gross Weight | 14.8Kg |
| 5.25" Drive Bays | 0 |

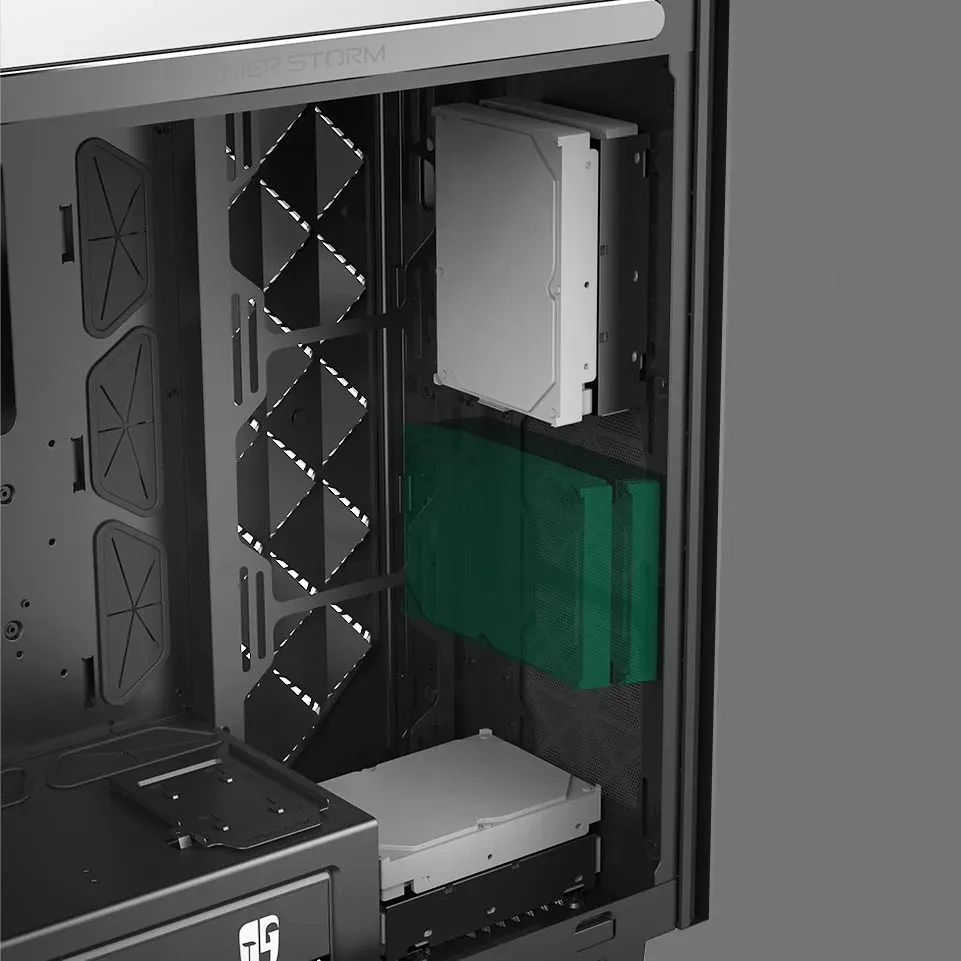

| 3.5" Drive Bays | 4 |
| 2.5" Drive Bays | 3 |

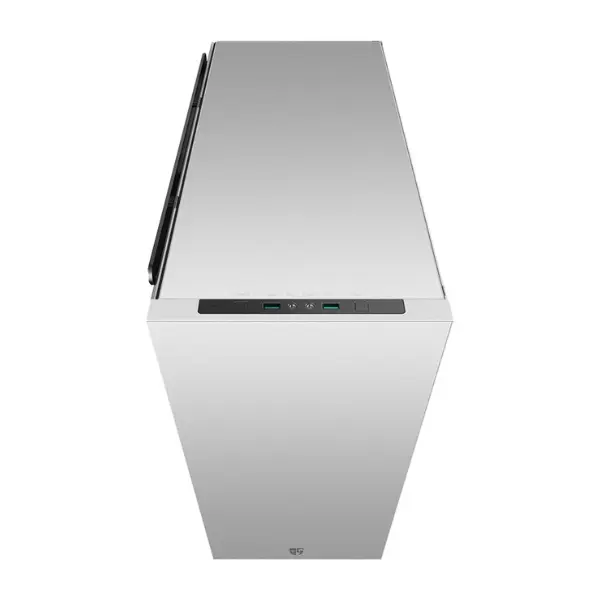

| I/O Panel | 2×USB3.0/Audio×1/Mic×1 |

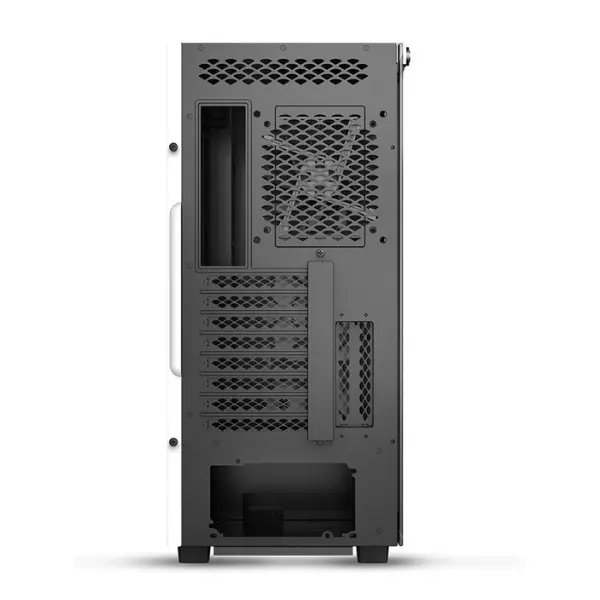

| Expansion Slots | 8+2 Slots |
| Cooling Fans Support | Pre-installed: Rear: 1×120mm DC fan; Optional: Front: 3×120mm; Side: 3x120mm/3x140mm |
| Power Supply Type | ATX PS2 (maximum length: 170mm) |
| CPU Cooler Height Limit | 186mm |
| CPU Cooler Compatibility | Front: 120/240/360mm; Side: 120/140/240/280/360mm ; Rear: 120/140mm |
| Graphic Card Clearance | 310mm Horizontal/420mm Vertical |
| Cable Management | 25mm clearance |
| EAN | 6933412713821 |
| P/N | GS-ATX-MACUBE550-WHG0P |
