Asus TUF Gaming B860M-Plus WiFi LGA1851 DDR5 mATX Motherboard

Asus TUF Gaming B860M-Plus WiFi - Description

LGA1851 DDR5 mATX Motherboard

The ASUS TUF GAMING B860M-PLUS WIFI blends the latest Intel® Core™ Ultra Processors (Series 2) with enhanced durability and gaming-ready features. Built with military-grade components, a reinforced power design, and advanced cooling solutions, this motherboard is designed for long-lasting stability and reliable performance, even under intense gaming conditions. Rigorously tested for endurance, it ensures dependable operation while delivering the power, speed, and connectivity that modern AI-driven PCs require.

Performance:

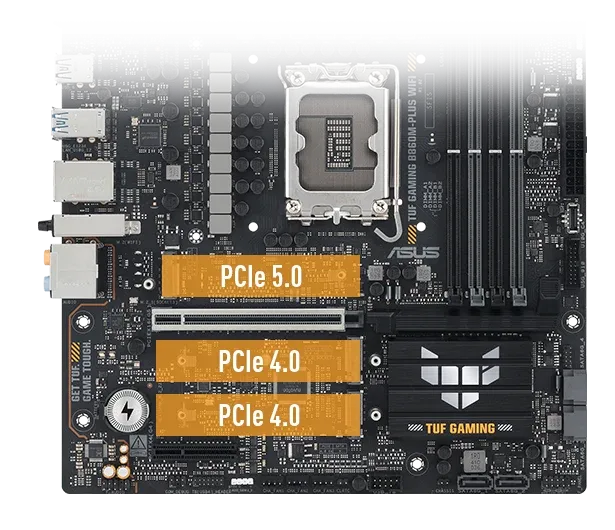

Optimized for speed and efficiency, this board supports a PCIe 5.0 x16 SafeSlot and a PCIe 4.0 x4 slot for next-gen expansion. Its 12+1+2+1 power stage design (80A each) guarantees steady power delivery, while four DDR5 DIMM slots with dual-channel support and AEMP III technology maximize memory performance. Storage flexibility comes with three M.2 slots—one PCIe 5.0 x4 (2280) and two PCIe 4.0 x4 (2242/2260/2280)—offering blazing-fast SSD performance for demanding workloads.

Cooling:

Engineered for thermal efficiency, the TUF Gaming B860M features robust VRM and chipset heatsinks, along with dual M.2 heatsinks covering all SSD slots to maintain optimal speeds under heavy loads. Multiple headers for CPU, AIO, pump, and chassis fans provide flexible, fine-tuned cooling management, keeping the system cool and balanced.

Gaming Immersion:

Experience rich and immersive sound with Realtek 7.1 surround audio, boosted by DTS Audio Processing for detailed, spatial effects. With audio shielding, dedicated PCB layers, and premium capacitors, sound remains clear and interference-free. A rear optical S/PDIF port supports high-quality digital output, while three Addressable Gen2 RGB headers allow synchronized lighting effects for a fully customized gaming setup.

Connectivity:

Packed with high-speed connectivity, the motherboard supports DisplayPort and HDMI™ outputs, plus a 20Gbps USB Type-C® port with DP Alt Mode for both video and data. Additional connections include 2× USB 10Gbps, 4× USB 5Gbps, 1× USB 2.0, a front-panel USB Type-C® (10Gbps), and headers for further expansion. Networking is powered by Realtek 2.5Gb Ethernet and next-gen WiFi 7 for ultra-fast, stable connections.

Intelligent

Overclocking

NPU Boost:

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) accelerates AI tasks, and with a one-click BIOS feature, users can overclock it for up to 24% extra performance.

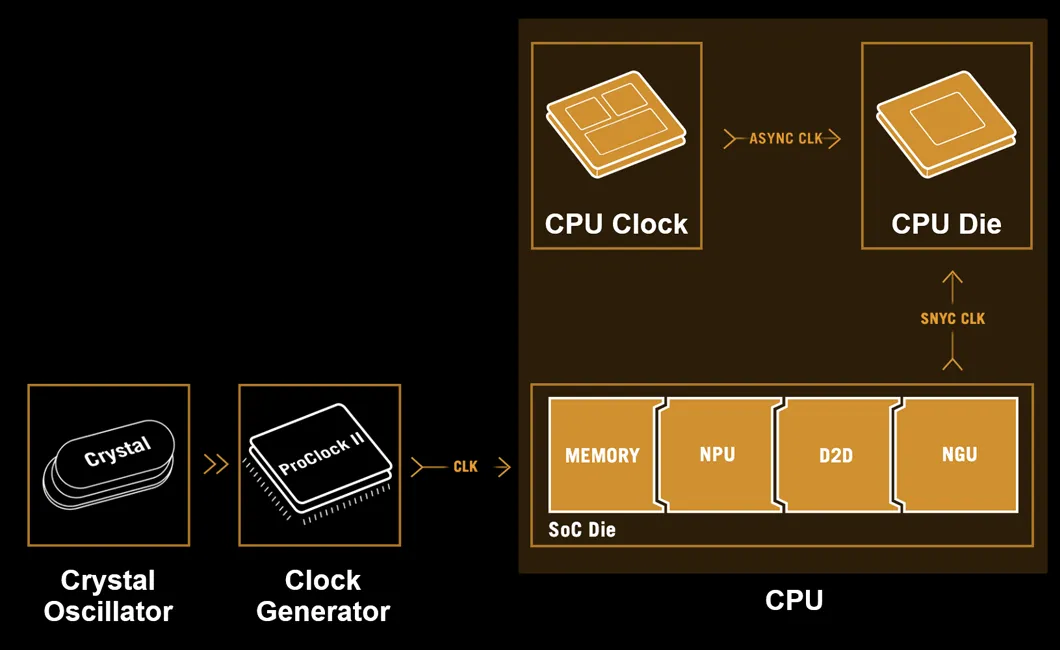

Asynchronous Clock:

A built-in clock generator separates CPU base clocks from memory, NPU, D2D, and NGU, enabling higher overclocking potential without compromising stability.

Intelligent Control

AI Advisor:

An interactive AI assistant that helps users—whether beginners or experts—optimize hardware settings, learn about motherboard features, and get real-time technical guidance.

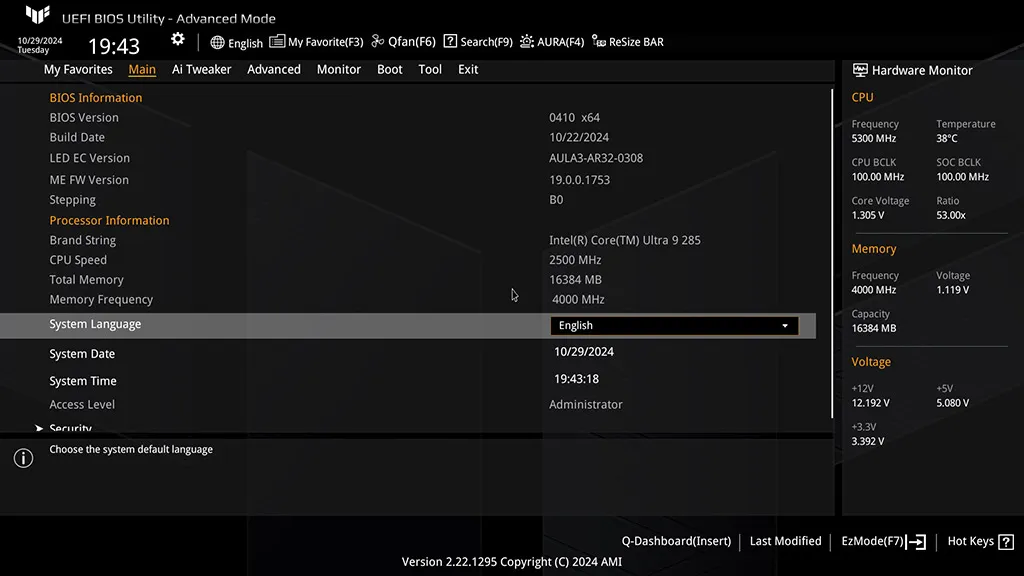

UEFI BIOS:

Offers a user-friendly interface for newcomers and advanced customization options for experienced users.

TurboV Core:

Available through ASUS DriverHub, this tool lets enthusiasts fine-tune CPU and memory settings directly within Windows, applying changes instantly without restarts.

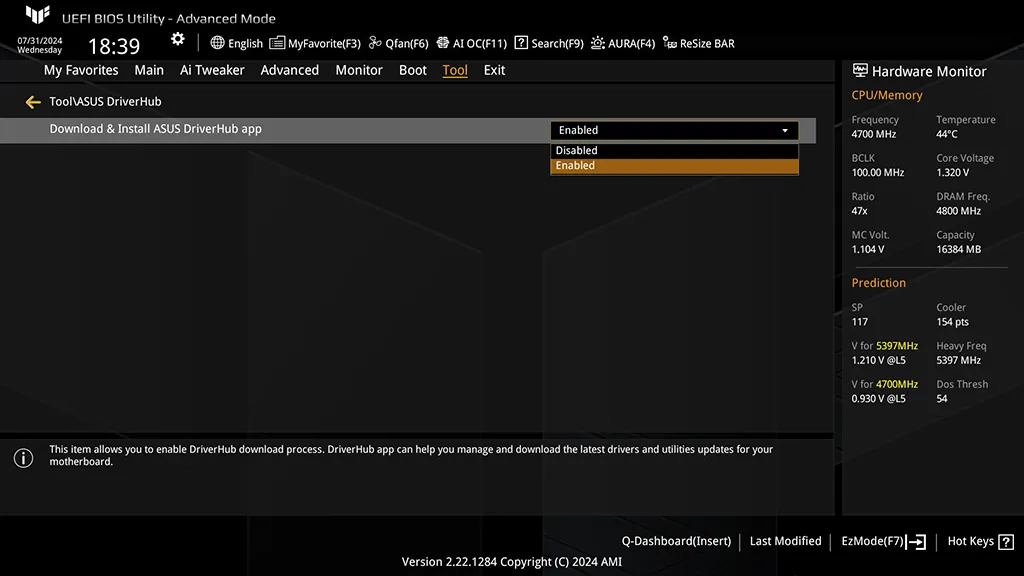

ASUS DriverHub:

Streamline driver management with automatic detection, one-click installation, and seamless updates to maintain smooth, efficient system performance.

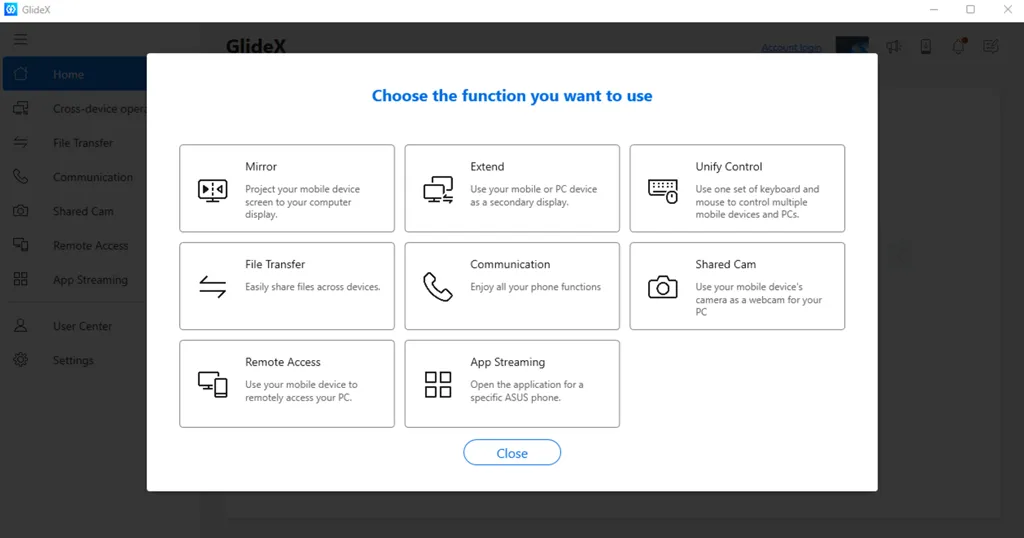

ASUS GlideX:

Easily share and control screens across PCs, tablets, and smartphones over USB or WiFi, with support for multiple platforms.

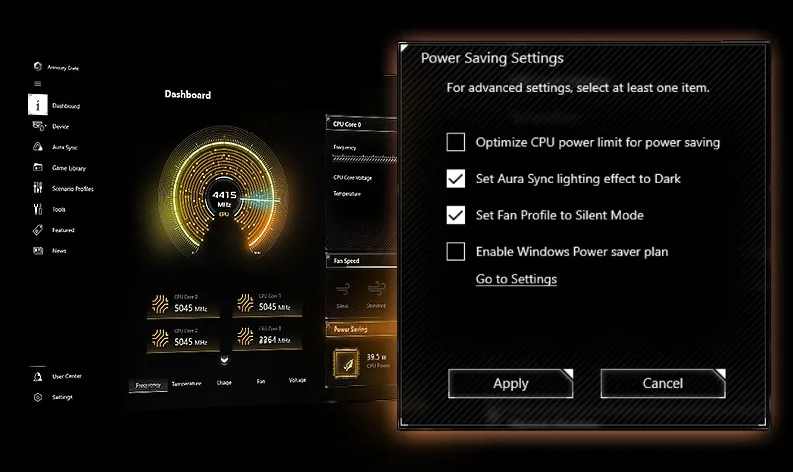

Power Saving:

Offers straightforward configuration options for beginners, along with advanced tools for experienced users to fine-tune efficiency.

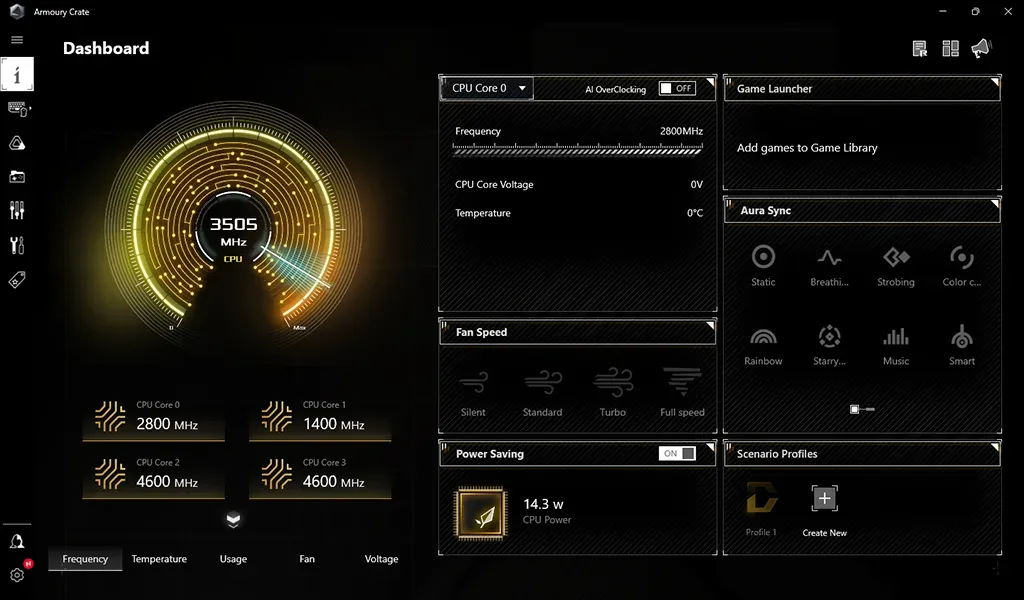

Armoury Crate:

Personalize Aura Sync RGB lighting and manage ASUS devices. Includes product registration features and update management.

Performance

Premium Power Design:

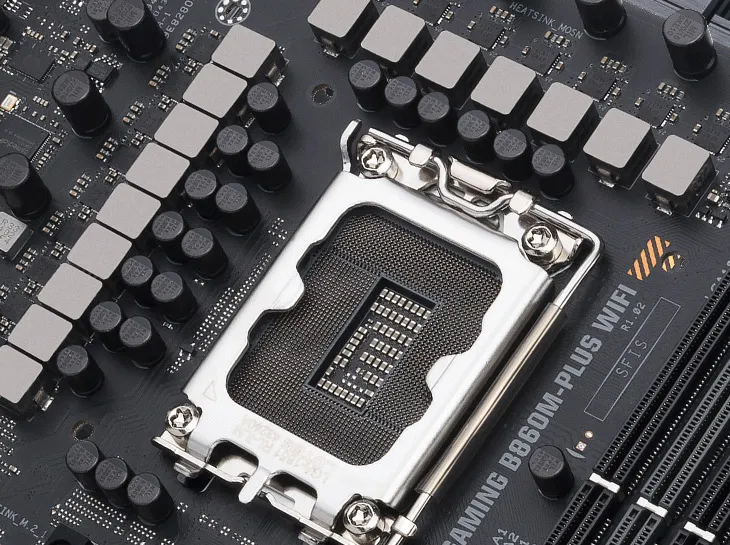

Reliable power delivery is key to unlocking the full potential of Intel processors. This motherboard is engineered to support high-core-count CPUs with a 12+1+2+1 power stage design, each rated at 80A. By integrating high-side and low-side MOSFETs with drivers, it provides efficient, stable, and consistent power for both current and next-gen Intel processors.

Robust Power Design for Stability and Longevity:

The TUF GAMING motherboard is engineered with a reinforced power architecture to ensure reliable performance under demanding workloads. Its advanced eight-layer PCB design improves heat dissipation around voltage regulators, boosting system stability and providing more headroom for CPU overclocking. The 8+8 pin ASUS ProCool connectors deliver a stronger and more secure connection to the PSU, reducing impedance, minimizing hotspots, and preventing connector damage. TUF-grade chokes ensure consistent power delivery to the CPU, while TUF 5K black metallic capacitors provide 52% higher temperature tolerance and up to 2.5× longer lifespan than standard options. Complementing these features, the integrated Digi+ VRM module offers precise, real-time voltage regulation, guaranteeing clean, stable power for maximum performance and durability.

Memory & Storage

DRAM Overclocking Performance:

TUF GAMING motherboards provide extensive tuning options to unleash the full potential of DDR5 memory. Whether using premium high-speed kits or entry-level modules, the board enables higher performance through advanced optimization.

AEMP III:

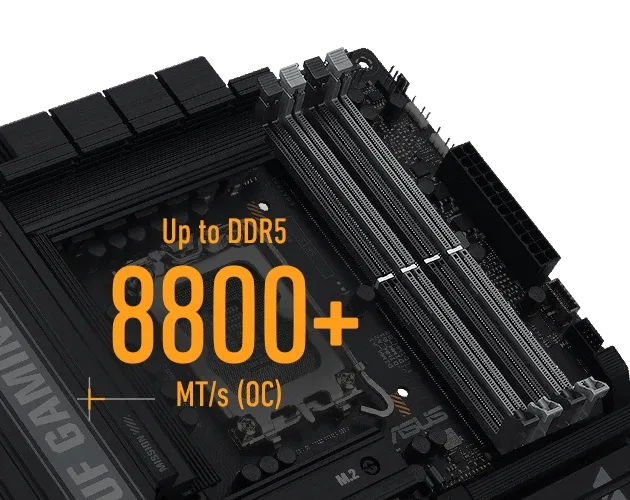

ASUS Enhanced Memory Profile III (AEMP III) is a firmware-level innovation designed to maximize memory efficiency with cutting-edge CUDIMM modules. Using a two-step tuning process—first optimizing the clock driver, then the frequency—it strikes the ideal balance of performance and stability, supporting DDR5 speeds of 7600 MHz and beyond.

DIMM Fit:

Exclusive to ASUS, DIMM Fit scans and analyzes individual memory modules to identify optimal performance settings and potential compatibility issues. This ensures maximum efficiency and reliability, whether you’re overclocking for peak performance, gaming competitively, or building a stable content creation setup.

M.2 PCIe 5.0 Support:

Equipped with one PCIe 5.0 M.2 slot, this board supports transfer speeds of up to 128 Gbps, enabling faster boot times and ultra-quick application loading.

Cooling:

Cooler by Design:

Designed for efficient heat dissipation, the TUF Gaming motherboard features enlarged VRM and M.2 heatsinks, along with a robust PCH heatsink to keep critical components cool under pressure. The Smart Fan Protect system automatically adjusts fan speeds based on multiple thermal sensors, supporting both 4-pin PWM/DC fans and AIO pump headers. Optimized airflow and durable thermal materials ensure quiet, stable, and efficient performance during demanding tasks or long gaming sessions.

Cooler Compatibility:

ASUS AIO liquid coolers pair seamlessly with the latest TUF Gaming motherboards, delivering powerful thermal performance, enhanced overclocking potential, bold design, and extensive customization options for building a high-performance gaming rig.

Connectivity:

Empowering Connection:

This motherboard delivers a broad selection of connectivity options, including PCIe 5.0 support, a rear USB 20Gbps Type-C® port, and a front USB 10Gbps Type-C® header.

PCIe 5.0 for Graphics Card:

With double the data bandwidth of PCIe 4.0, PCIe 5.0 is designed to handle the most demanding data-heavy workloads. It also improves signal integrity through updated electrical design, supports backward-compatible CEM connectors for add-in cards, and maintains full compatibility with previous PCIe generations.

Rear USB 20Gbps Type-C® with DP Alt Mode:

The rear I/O panel includes a USB Type-C® port offering speeds up to 20Gbps. In addition to fast data transfers, it supports external 4K DisplayPort video output for versatile display connectivity.

Front USB 10Gbps Type-C®:

The front panel features a USB Type-C® connector that delivers transfer speeds of up to 10Gbps, enabling faster file access and device communication.

DIY

Easy PC DIY:

PCIe Slot Q-Release:

A convenient physical latch allows you to release the first PCIe slot with a single press, making GPU or expansion card upgrades quicker and easier.

M.2 Q-Latch:

This tool-free mechanism secures or removes M.2 SSDs effortlessly with a simple locking system, eliminating the need for screws.

Q-Antenna:

Attaching WiFi antennas is simplified with Q-Antenna. Instead of twisting fasteners into place, the antennas snap securely, ensuring consistency and performance with less hassle.

Q-LED:

On-board diagnostic LEDs provide immediate feedback on system components—CPU, RAM, GPU, and storage—during startup. They can also identify incorrectly seated memory modules before the system boots.

Protection:

SafeSlot & SafeDIMM:

The reinforced SafeSlot PCIe design ensures graphics cards remain securely installed while maintaining maximum data speeds. SafeDIMM protection strengthens memory module installation for reliable setup and confidence during upgrades.

ESD Guards:

Specially designed TVS diodes enhance electrostatic discharge protection, with up to ±10kV air discharge and ±6kV contact discharge—well above industry standards.

TUF LANGuard:

This military-grade technology combines advanced signal-coupling design and premium capacitors to safeguard the motherboard against static electricity and lightning strikes while improving network performance.

Stainless Steel Back I/O Panel:

A corrosion-resistant stainless steel rear I/O panel provides up to three times longer durability, tested against a 72-hour salt fog standard, outperforming typical industry requirements.

Build With Confidence:

The TUF GAMING Alliance unites ASUS with trusted PC component manufacturers, ensuring wide compatibility across cases, power supplies, coolers, memory kits, and more. With regular expansions, the ecosystem continues to grow for maximum reliability.

Gaming

Ultrafast Networking:

Packed with features for smooth online play, the motherboard ensures a stable and high-performance gaming experience.

2.5Gb Ethernet:

Integrated 2.5Gb LAN boosts bandwidth up to 2.5× faster than standard 1Gb Ethernet, enabling faster wired connections.

WiFi 7:

Next-generation WiFi 7 offers 160 MHz bandwidth in the 6 GHz range and 4096-QAM modulation. Multi-Link Operation (MLO) enhances stability, reduces latency, and provides simultaneous support for the 2.4, 5, and 6 GHz bands, delivering greater speed and coverage.

Audio

Realtek 7.1 Surround Sound:

Developed in collaboration with Realtek, the custom audio codec provides a 98 dB signal-to-noise ratio for line-out, ensuring crystal-clear and immersive sound quality.

DTS Audio Processing:

DTS® Audio Processing improves headset and speaker performance by minimizing distortion, enriching bass, and allowing users to fine-tune audio settings for games, movies, and music.

Lighting

Outshine The Competition:

A powerful system should look as good as it performs. The TUF GAMING motherboard includes edge lighting to complement its rugged design, while ASUS Aura provides complete RGB customization with multiple presets for both onboard LEDs and compatible light strips. All effects can be synchronized with a wide range of Aura-supported hardware.

Addressable Gen2 RGB Header:

With three Addressable Gen2 RGB headers, the motherboard supports up to 500 LEDs on Gen2 devices, allowing Aura Sync to automatically adjust lighting effects throughout the system. These headers are also fully backward compatible with existing Aura Sync devices.
