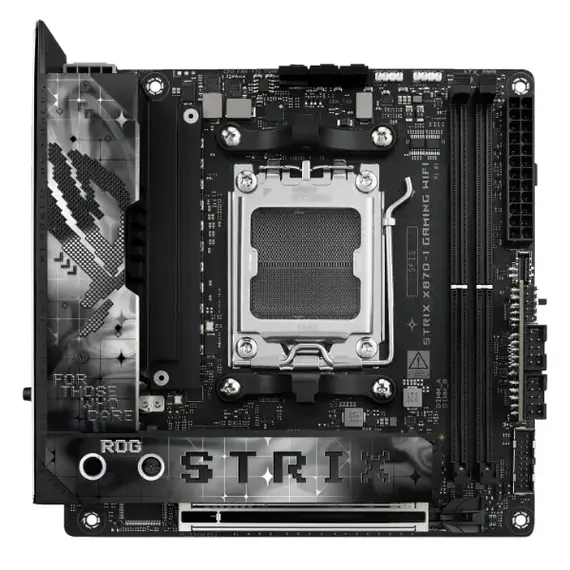

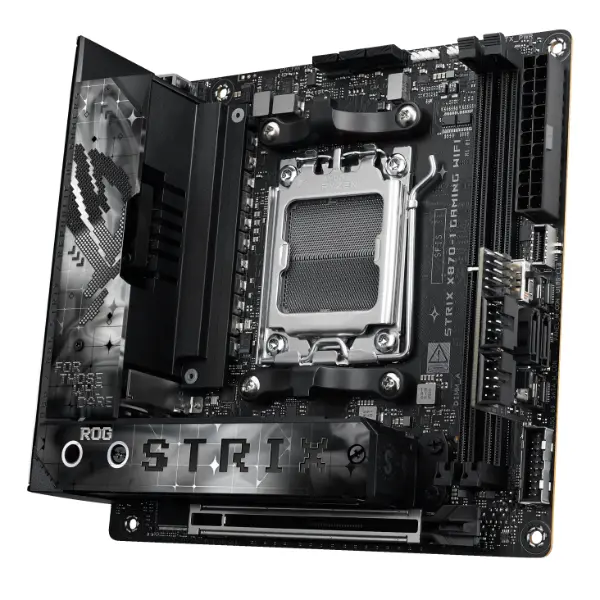

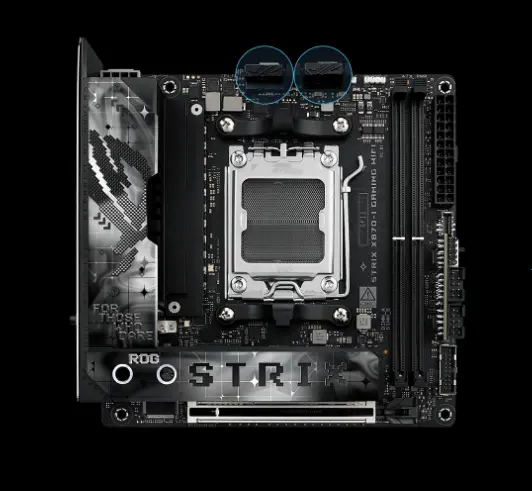

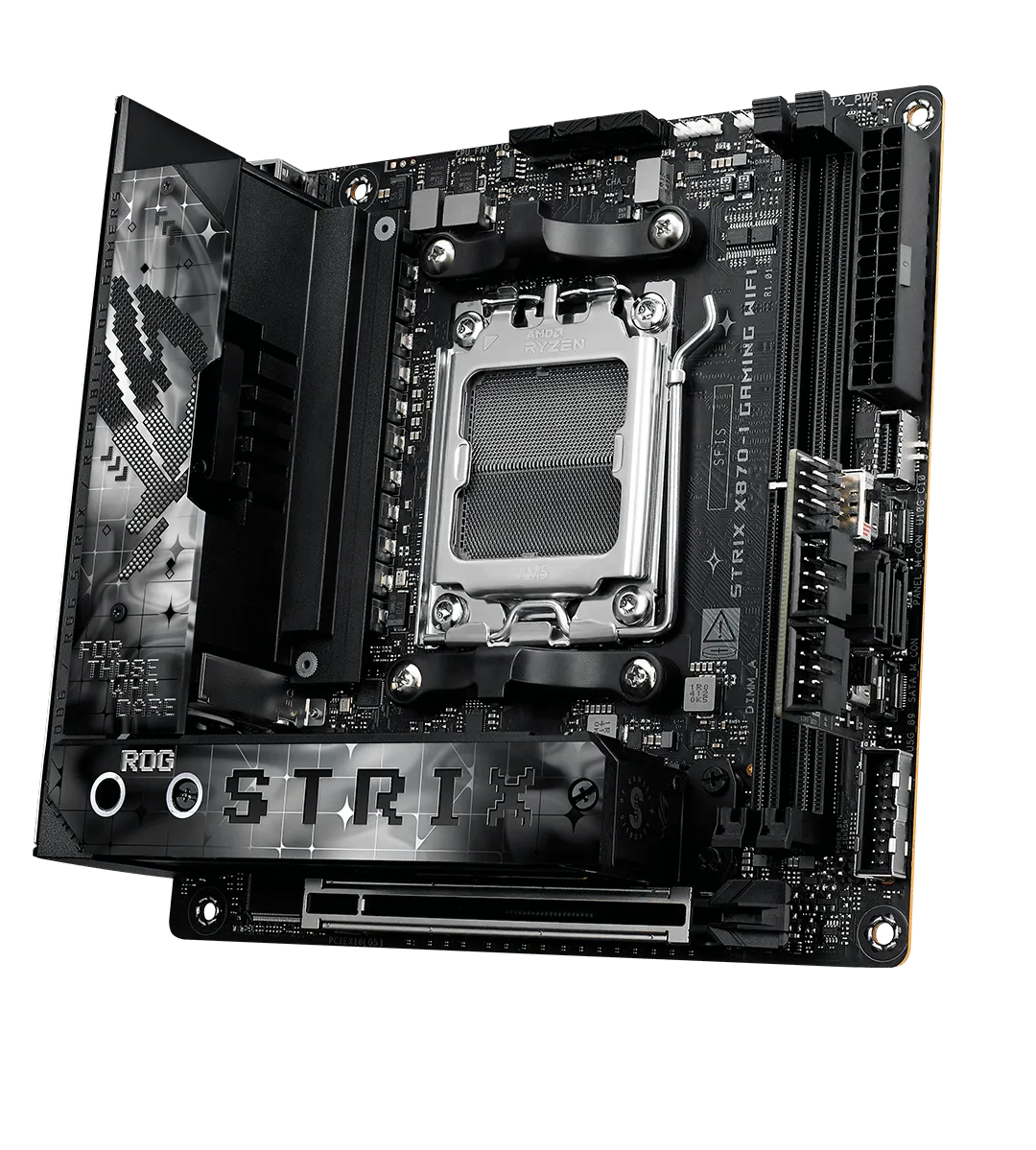

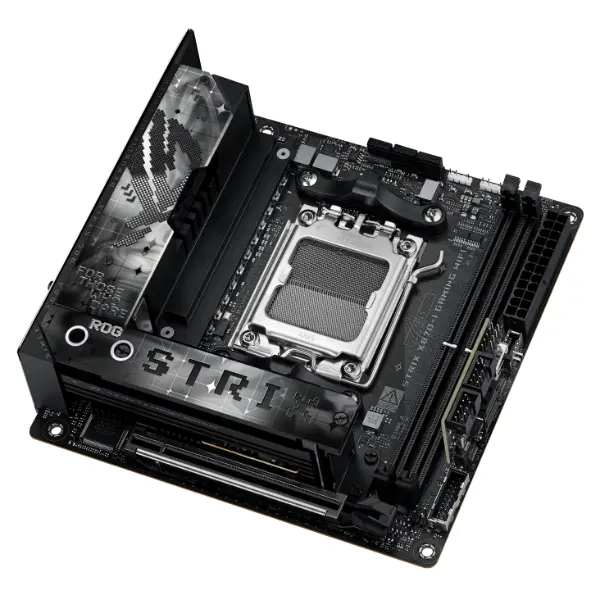

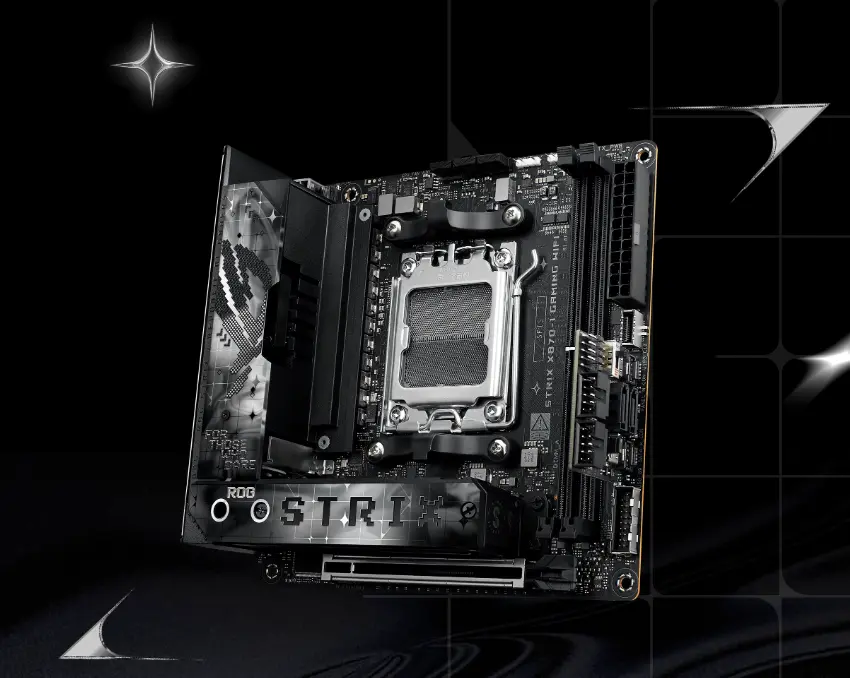

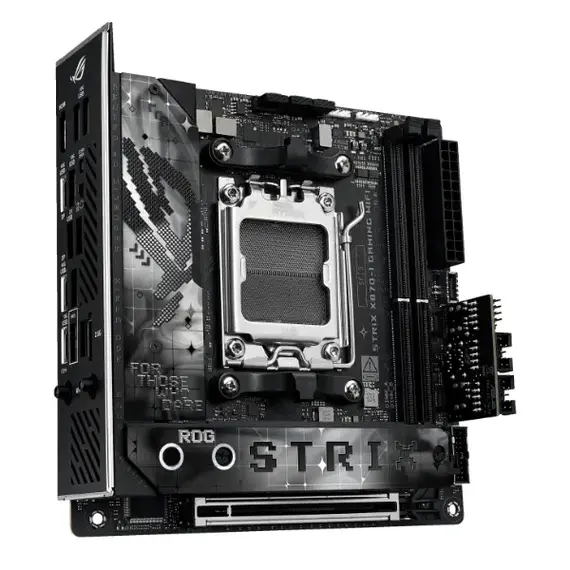

Asus ROG Strix X870-I Gaming WiFi AM5 DDR5 Mini-ITX Motherboard
Asus ROG Strix X870-I Gaming WiFi - Description

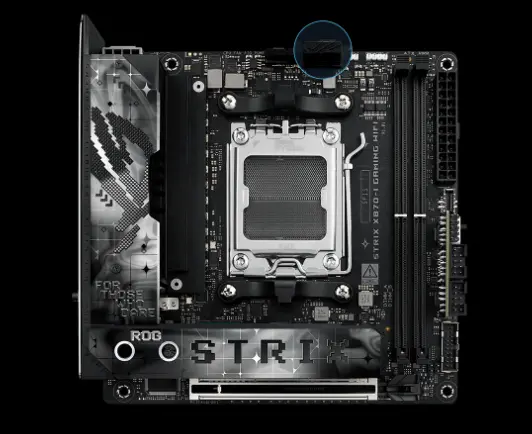

AM5 DDR5 Mini-ITX Motherboard
The ROG Strix X870-I Gaming WiFi packs cutting-edge performance into a compact mini-ITX design, complemented by the ROG Strix Hive II for intuitive system control. It offers PCIe 5.0 slots for graphics and storage, dual-channel DDR5 memory support, and a high-quality power delivery system to handle high-end gaming and demanding multitasking. Advanced thermal solutions ensure consistent performance, while WiFi 7 provides lightning-fast wireless connectivity. This motherboard is built to meet the power and bandwidth needs of next-generation AI-enabled PCs.
Performance:

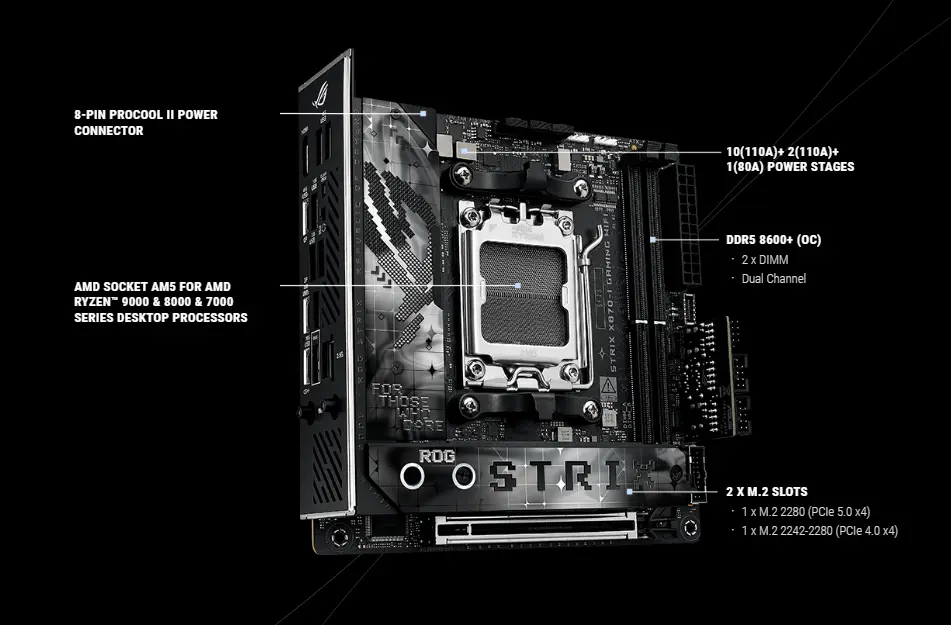

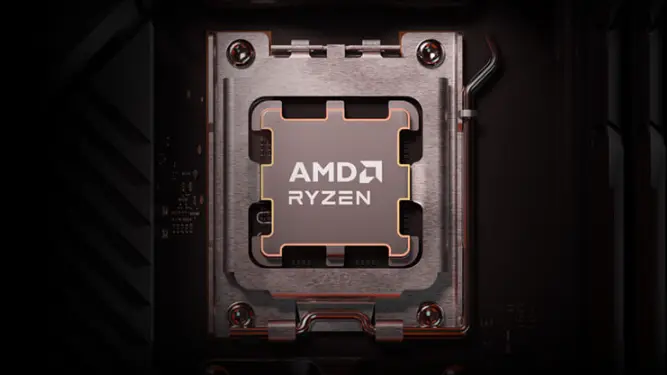

Equipped with an 8-pin ProCool II power connector, this motherboard supports AMD Socket AM5 and is compatible with Ryzen™ 9000, 8000, and 7000 Series desktop processors. Its 10+2+1 power stage layout (110A for 10 phases, 110A for 2 phases, and 80A for 1 phase) ensures stable and efficient power delivery. It supports dual-channel DDR5 memory with speeds up to 8600+ MHz (overclocked) via two DIMM slots. Storage capabilities include two M.2 slots—one supporting PCIe 5.0 x4 (2280) and the other PCIe 4.0 x4 (2242-2280).
Cooling:

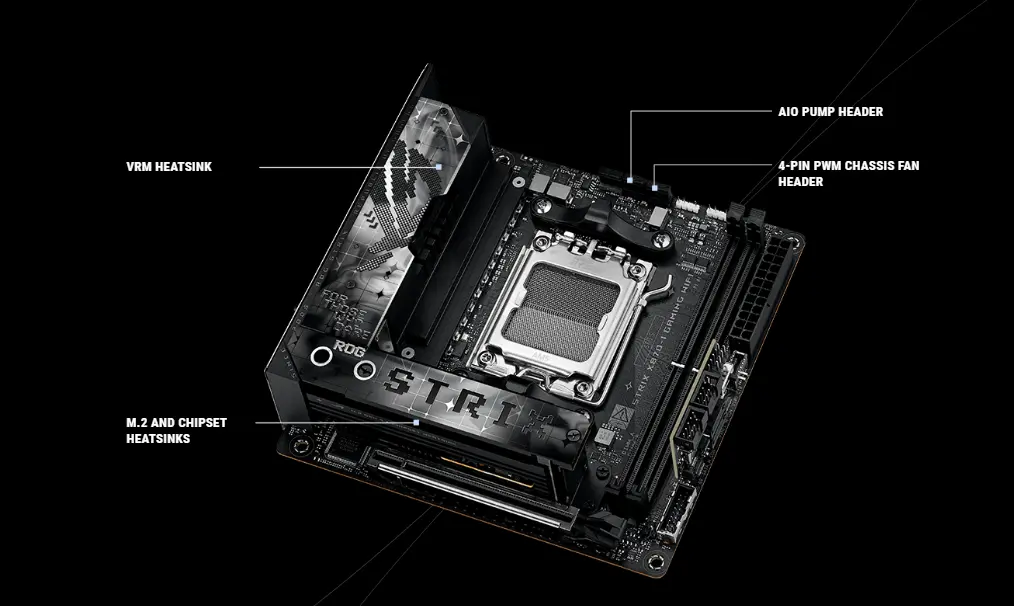

Thermal performance is optimized with a VRM heatsink, M.2 and chipset heatsinks, an AIO pump header, and a 4-pin PWM fan header, ensuring components remain cool under load.
Gaming Immersion:

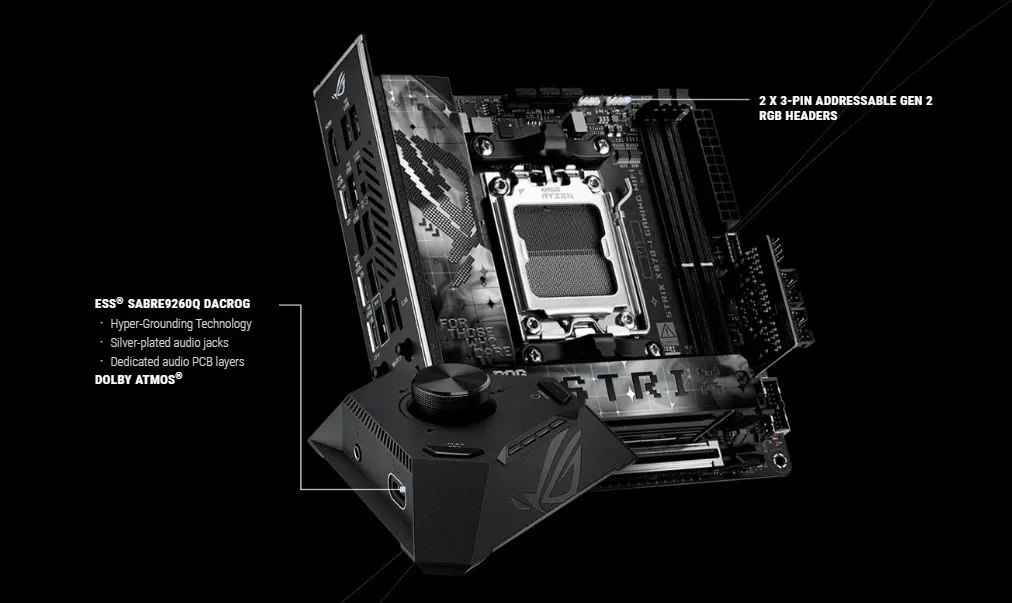

For immersive gameplay, the board includes an ESS® SABRE9260Q DAC with Hyper-Grounding, silver-plated audio jacks, and dedicated audio PCB layers for crystal-clear sound. It supports Dolby Atmos® for realistic 3D audio and provides two 3-pin Addressable Gen 2 RGB headers for dynamic lighting customization.
Connectivity:

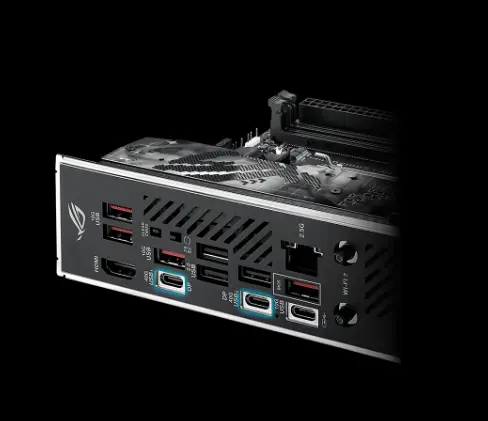

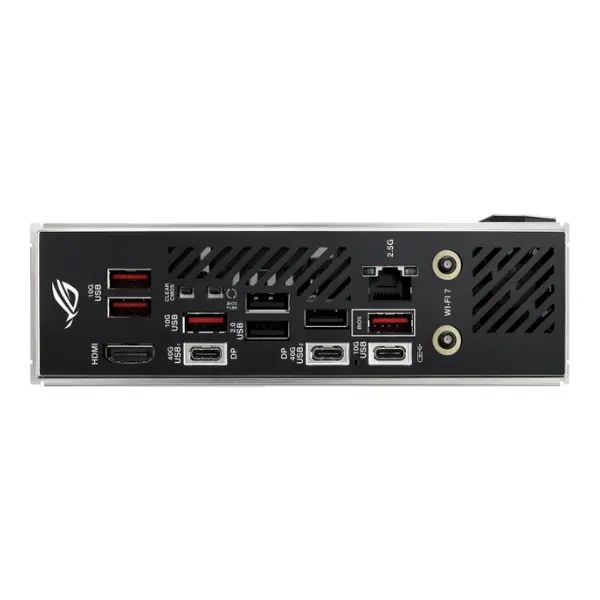

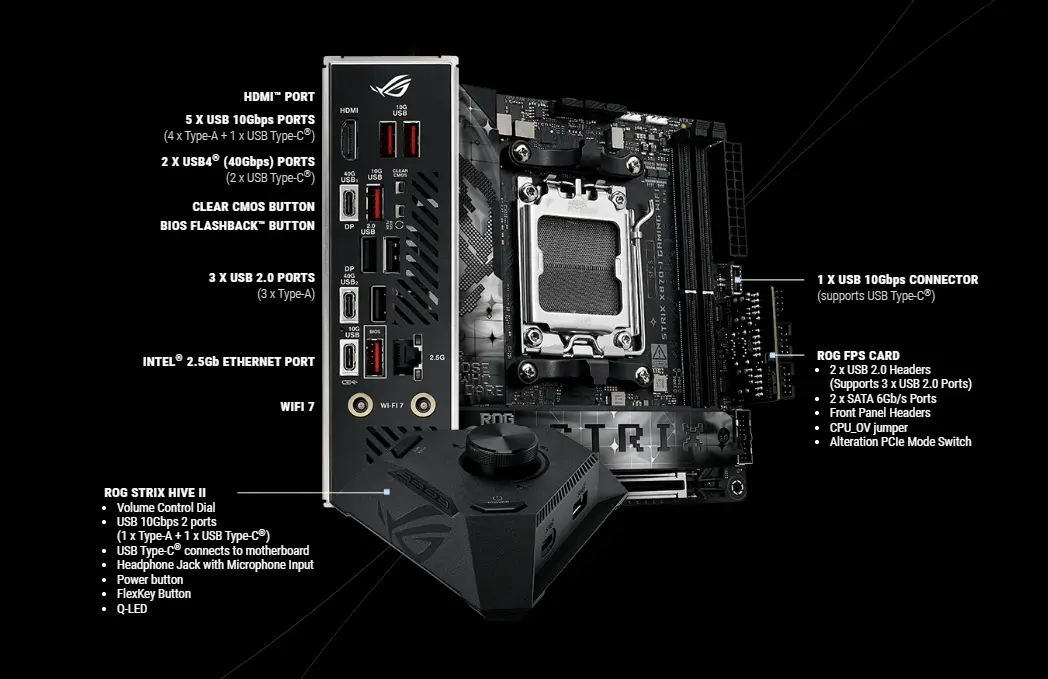

The motherboard offers a comprehensive array of ports: HDMI™, five USB 10Gbps ports (four Type-A and one Type-C®), two USB4® 40Gbps Type-C® ports, and three USB 2.0 ports. It also features Intel® 2.5Gb Ethernet, WiFi 7, and onboard controls like Clear CMOS, BIOS FlashBack™, FlexKey, Q-LED, and a CPU_OV jumper with PCIe mode switch. The ROG Strix Hive II adds a volume dial, two extra USB 10Gbps ports (Type-A and Type-C®), a headphone/mic jack, a USB Type-C® link to the board, and a power button. The ROG FPS Card expands connectivity with two USB 2.0 headers (supporting three ports), two SATA 6Gb/s ports, and front panel header support.
ASUS AI Intelligence

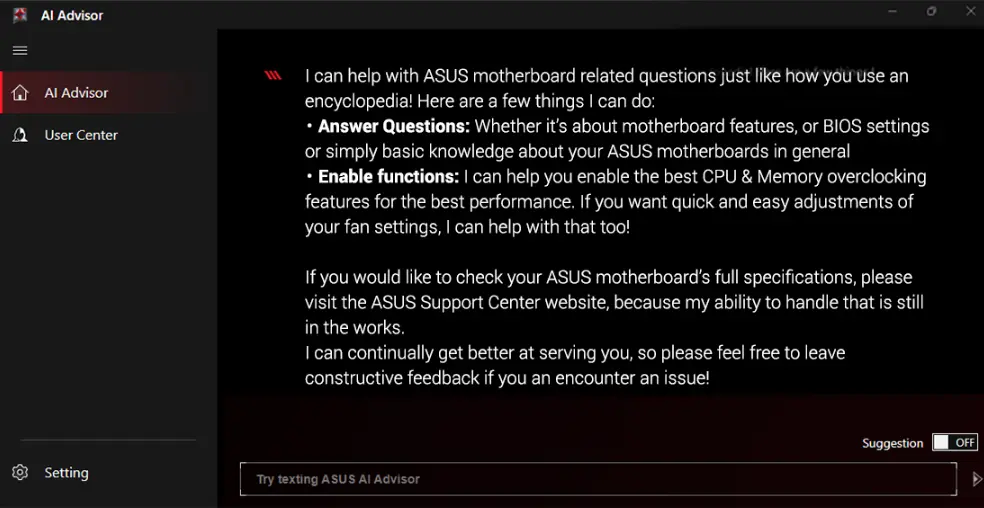

ASUS AI Advisor:
This intelligent assistant interprets natural-language questions or scenarios to help users easily understand and utilize the motherboard’s advanced features.

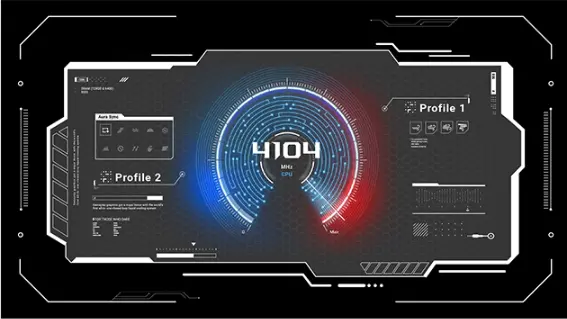

AI Overclocking:
Automatically profiles the CPU and cooling system to determine the best overclocking settings, helping you reach peak performance.
AI Cooling II:
One-click optimization to balance system temperatures and fan noise for a quieter, more efficient build.
AI Networking II:
Continuously optimizes network performance using smart technologies, ensuring reliable and high-speed connectivity powered by WiFi 7.

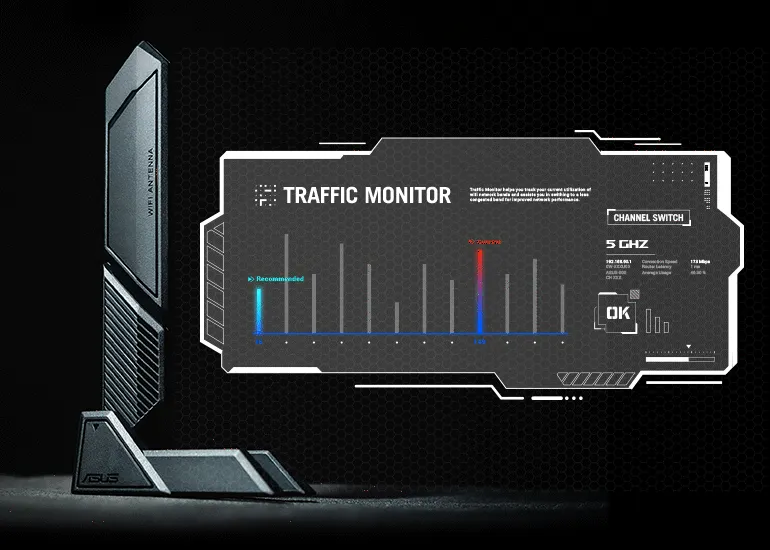

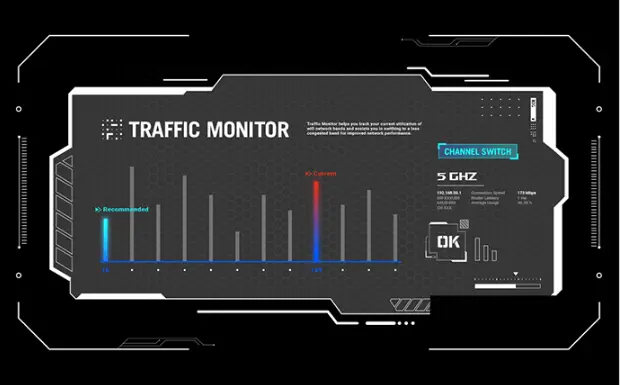

Traffic Monitor:
Armoury Crate includes a built-in Traffic Monitor that shows real-time WiFi channel usage. With this information, users can easily switch to a less crowded channel by clicking the “Channel Switch” button*, enhancing overall wireless performance and reducing interference.
Fast Check:

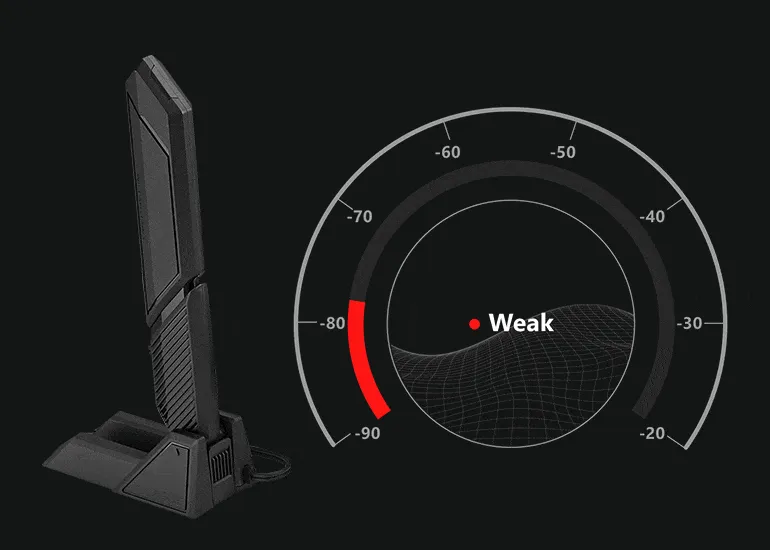

Using Armoury Crate’s Fast Check feature, users can quickly assess their current WiFi signal strength, allowing for immediate insight into wireless connectivity quality.

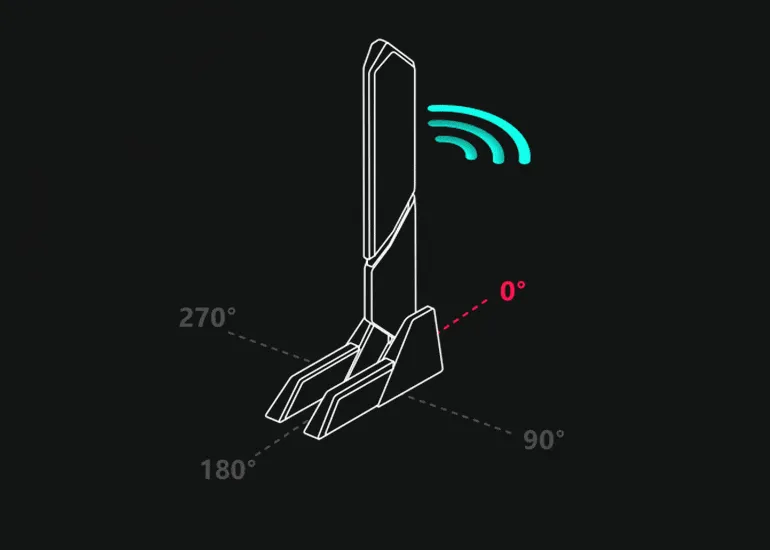

Direction Finder:
With Armoury Crate’s Direction Finder*, users can determine the best positioning for their WiFi antennas to achieve maximum signal strength, optimizing wireless performance with ease.
GameFirst:
GameFirst is now seamlessly integrated into Armoury Crate, offering a more streamlined and user-friendly experience. This intelligent networking tool optimizes bandwidth allocation in real time using advanced algorithms tailored to different usage scenarios. The updated version also includes specialized support for NVIDIA® GeForce NOW, ensuring minimal latency and smoother cloud gaming experiences.
Performance
Overclocking

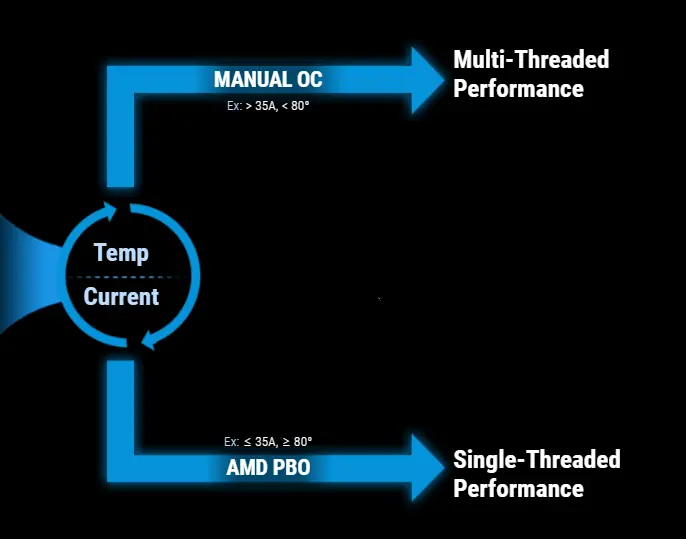

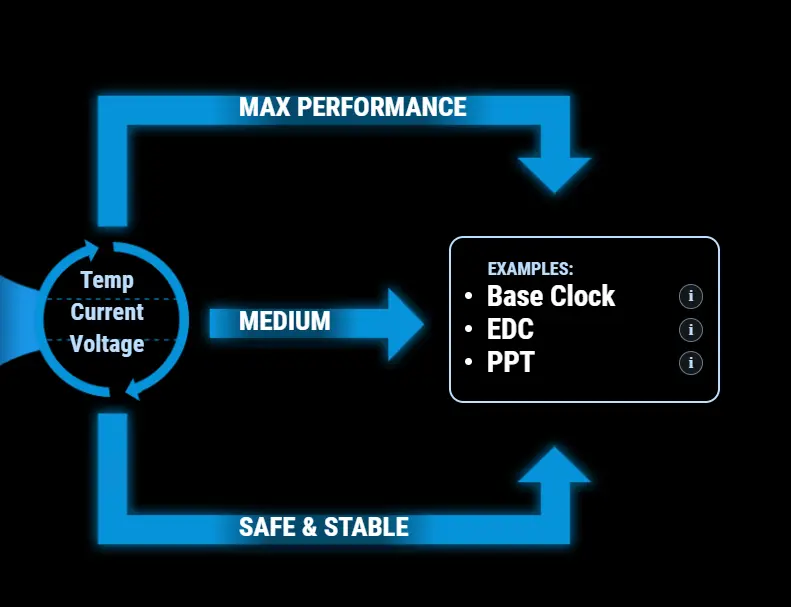

Dynamic OC Switcher:
Boost CPU performance by setting current and temperature thresholds that automatically switch between manual overclocking for multi-threaded tasks and Precision Boost Overdrive for single-threaded applications. The updated Overclocking Load Guard includes enhanced current protection to prevent system instability during overclocking.
Core Flex:
This innovative tool allows fine-grained control over CPU clocking, power, and thermal parameters. You can maximize base clock during light workloads and adjust CPU frequency based on temperature or current thresholds. The system supports advanced user-defined functions to independently manage power, current, and temperature limits.
PBO Enhancement:
AMD Precision Boost Overdrive (PBO) intelligently boosts CPU performance by increasing voltage and current within safe limits. By fine-tuning PBO parameters, the motherboard's robust power system can unlock even greater performance.
Memory
DDR5 Domination:
The ROG Strix X870-I is fully optimized for high-performance DDR5 memory, offering extensive support for AMD EXtended Profiles for Overclocking (EXPO), making it ideal for enthusiasts seeking top-tier memory speeds and stability.

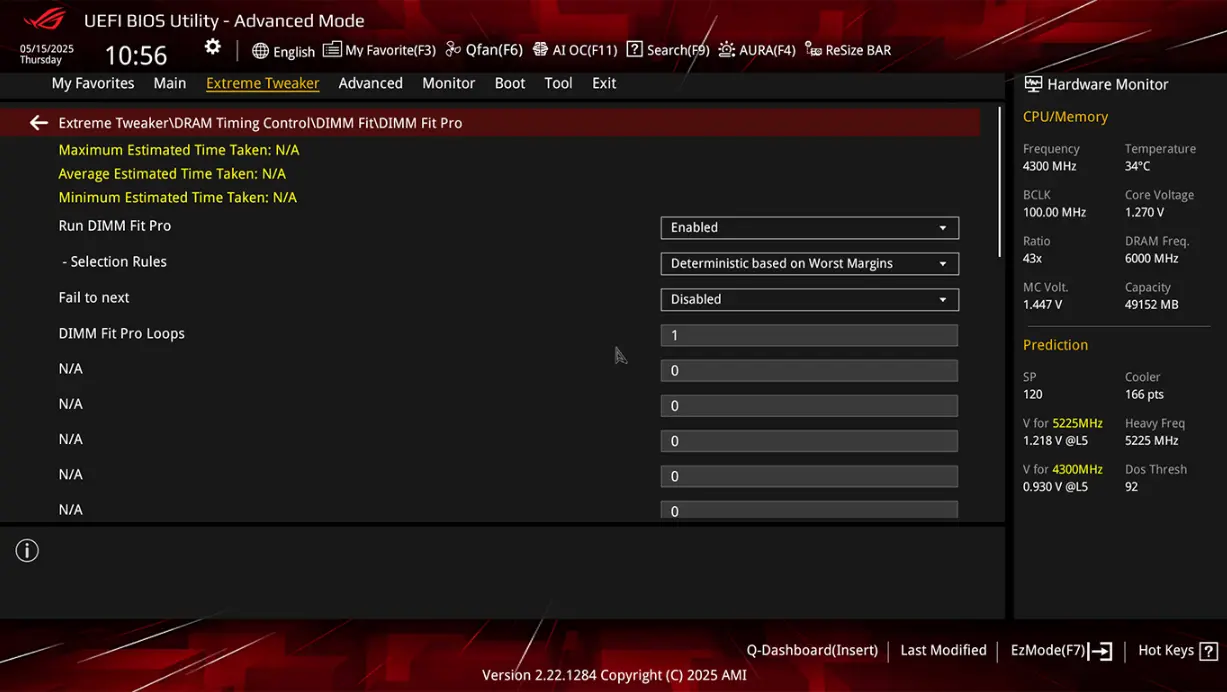

DIMM Fit / DIMM Fit Pro:
DIMM Fit is an ASUS-exclusive BIOS feature that evaluates individual memory modules to enhance performance and identify potential compatibility issues. DIMM Fit Pro builds on this with advanced tuning options, giving users greater control over memory settings for improved overclocking results.
AEMP:
ASUS Enhanced Memory Profile (AEMP) is a proprietary firmware tool designed specifically for memory modules with PMIC restrictions, enabling improved compatibility and performance tuning.
Power Solution
8-Pin ProCool II Power Connector:
The ProCool II power connector is precisely engineered for secure, stable contact with the PSU’s power cable. Its metal-reinforced design enhances heat dissipation and reduces electrical resistance for reliable power delivery.
Alloy Chokes And Durable Capacitors:
High-quality alloy chokes and long-lasting capacitors are built to withstand extreme conditions, delivering performance that exceeds industry standards for durability and efficiency.
10+2+1 Power Stages:
The VRM layout includes a 10+2+1 phase design, with each phase capable of handling up to 110 amps, ensuring clean and stable power delivery under heavy loads.
Ten-Layer PCB:
A ten-layer printed circuit board efficiently spreads heat away from voltage regulators, improving system stability and enabling greater overclocking potential for the CPU.
Cooling

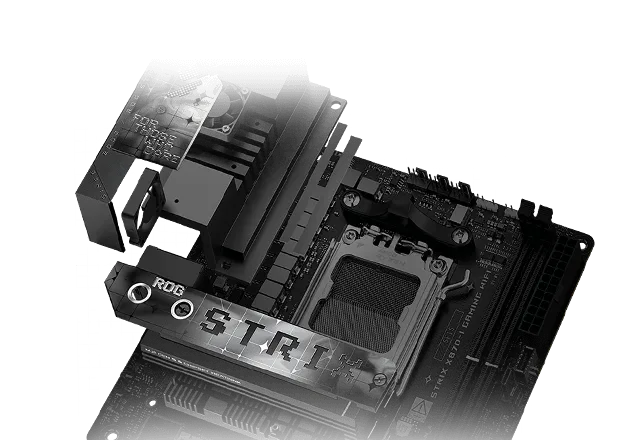

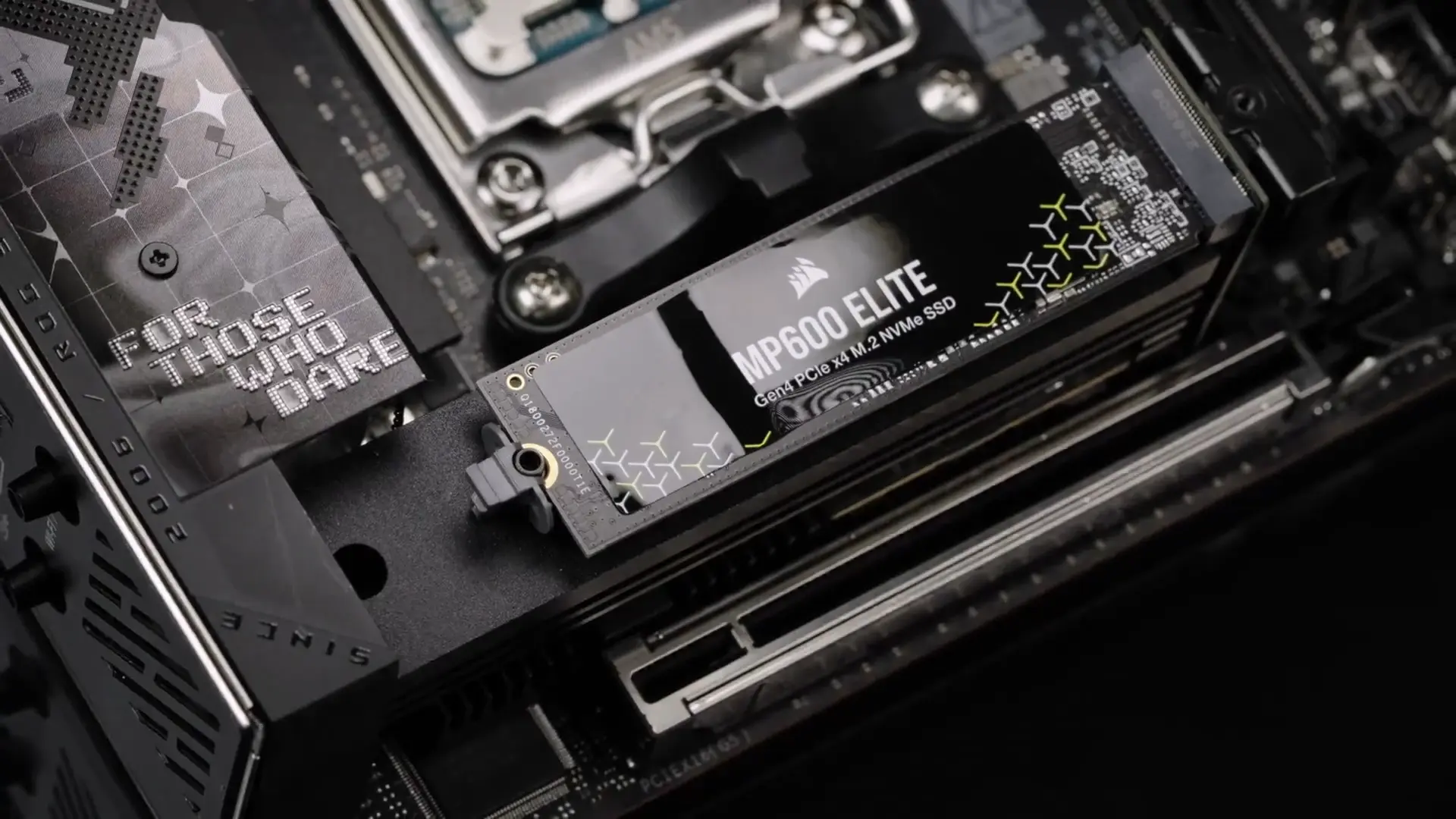

M.2 Aand Chipset Heatsinks:
To maximize space efficiency, the onboard M.2 slots and heatsinks are stacked over the chipset. An integrated fan ensures effective cooling for high-speed storage drives, keeping temperatures in check.

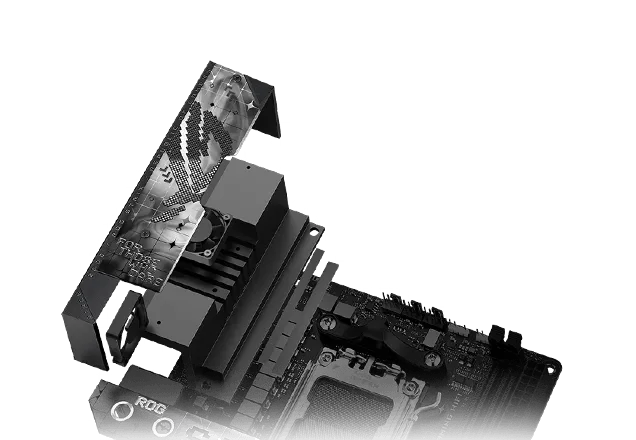

VRM Heatsinks:
The extended VRM heatsink, combined with an L-shaped backplate reaching the rear I/O, maximizes cooling surface area. A dedicated VRM fan provides active cooling to manage thermal output from high-performance AMD CPUs, while still allowing room for large air coolers.
High Conductivity Thermal Pads:
Premium thermal pads between the power stages and heatsinks improve heat transfer efficiency, lowering VRM temperatures for better performance and longevity.
CPU Fan Headers:
Two dedicated PWM/DC fan headers are provided for CPU coolers, ensuring reliable and flexible cooling options.
AIO Pump Fan Header:
A dedicated PWM/DC header supports all-in-one liquid cooling systems for efficient thermal management.
4-Pin Fan Headers:
The Strix X870-I features five chassis fan headers, each supporting auto-detection of PWM or DC fans.

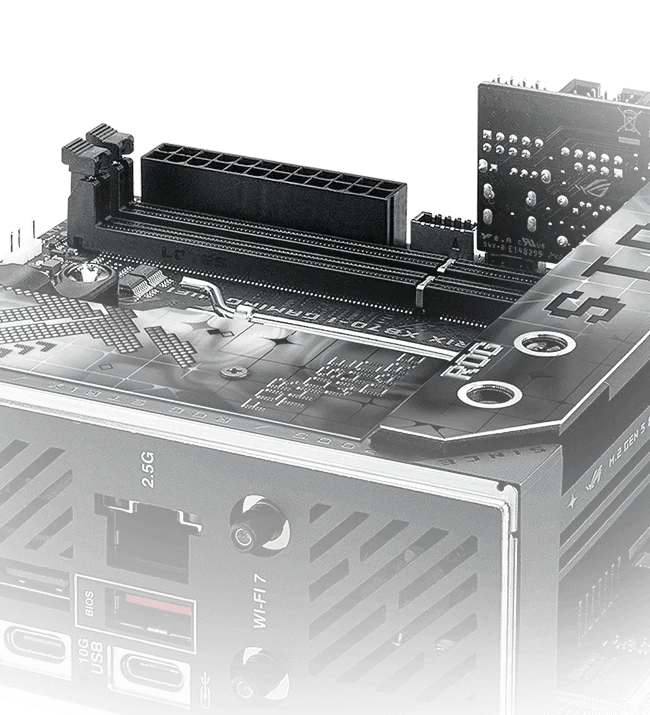

Leading Connectivity

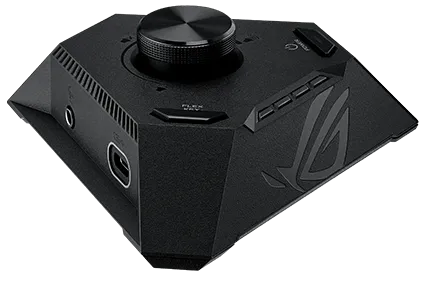

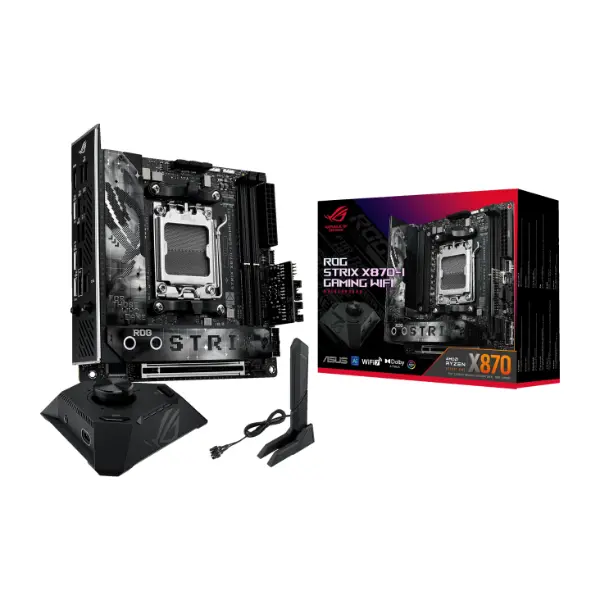

ROG Strix Hive II:
The ROG Strix Hive II is an exclusive add-on module that simplifies access to key hardware and software controls, enhancing user convenience with features like a volume dial, extra USB ports, and a power button.

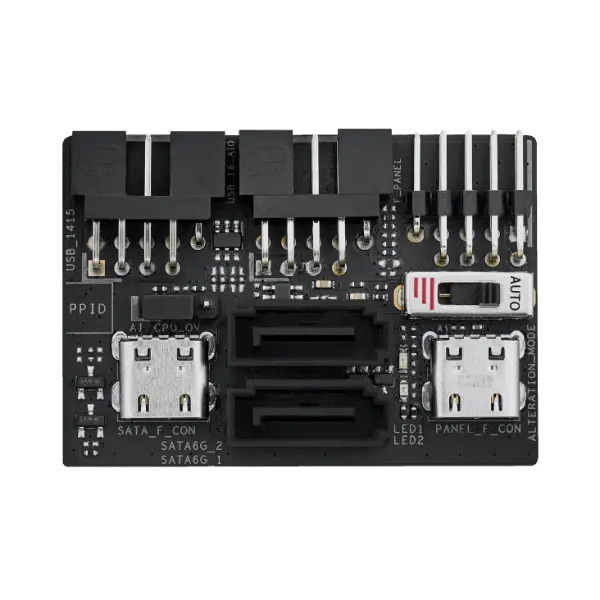

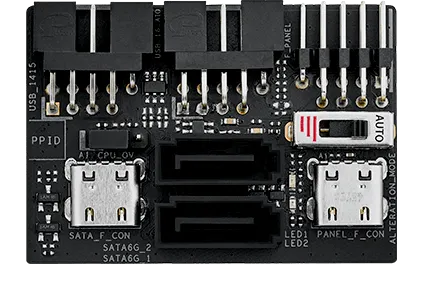

ROG FPS Card:
The ROG FPS Card relocates I/O headers to a vertical bracket, improving cable management and freeing up valuable space on the motherboard for easier builds.
WiFi 7:
Powered by the latest WiFi 7 technology, wireless speeds can be up to 4.8 times faster than WiFi 6*, thanks to innovations like 320 MHz bandwidth channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) ensures more stable connections and reduced latency, making it perfect for gaming, streaming, and next-gen IoT applications.

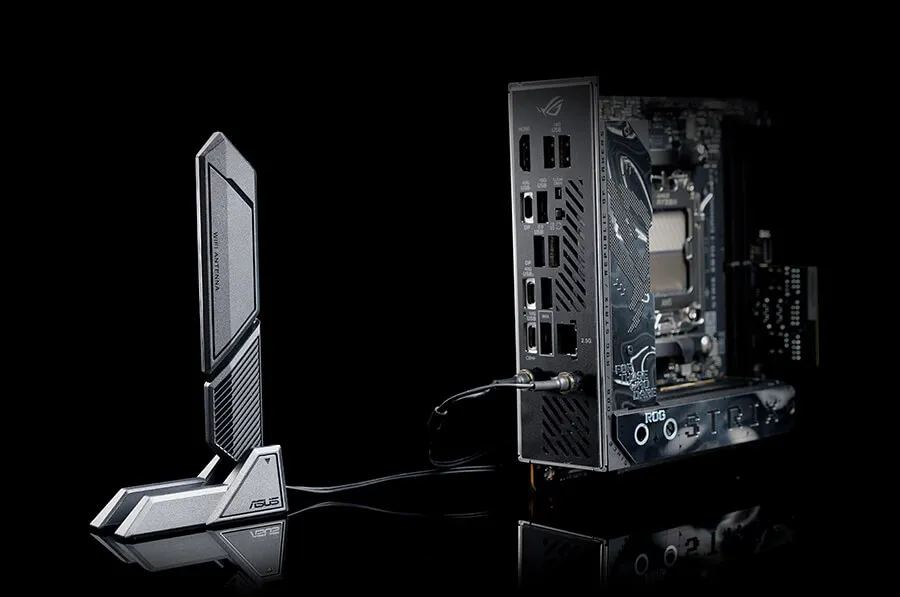

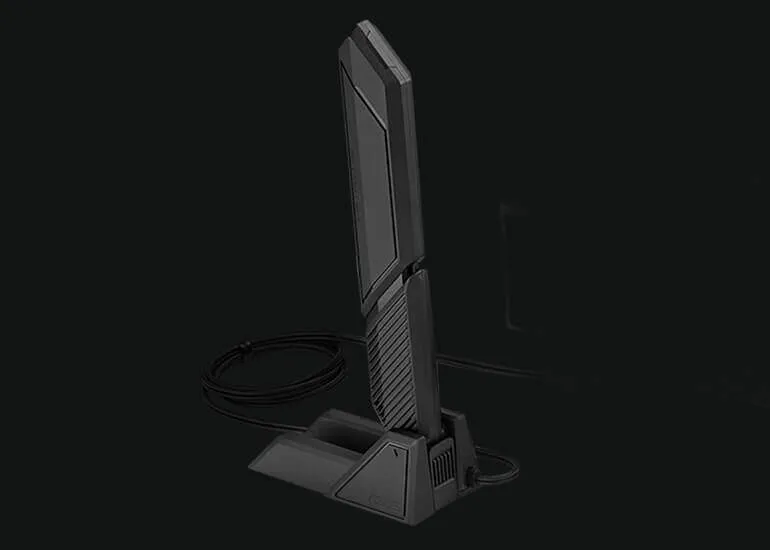

ASUS WiFi Q-Antenna:
Equipped with dual transceivers supporting 2.4GHz, 5GHz, and 6GHz bands, the WiFi Q-Antenna delivers faster data rates and improved signal reception over longer distances through directional sensitivity.
Intel 2.5Gb Ethernet:
Built-in Intel® 2.5Gb Ethernet offers a significant upgrade over standard Gigabit Ethernet, delivering 2.5 times faster wired speeds for smoother gaming, faster file transfers, and lag-free 4K streaming.
PCIe 5.0:

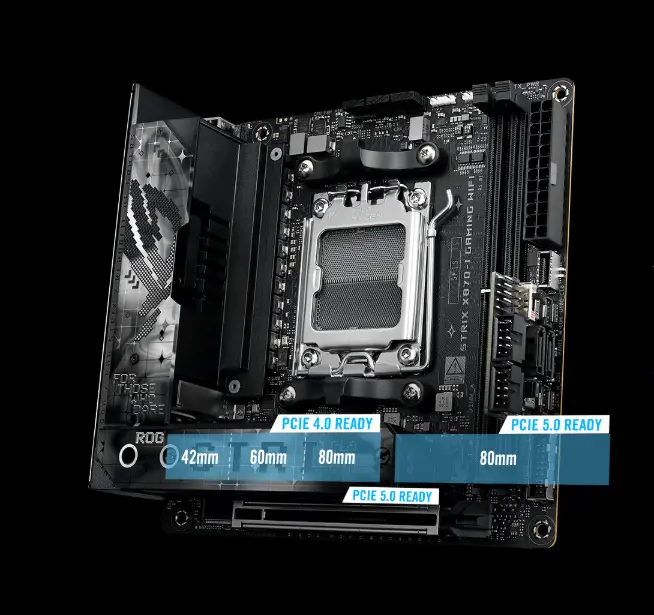

Fully supporting the PCIe 5.0 standard, the ROG Strix X870-I features a Gen 5 x16 graphics slot with SafeSlot reinforcement for heavy GPUs. One M.2 slot supports PCIe 5.0 for ultra-fast 16 GT/s speeds, while others deliver up to 8 GT/s via PCIe 4.0. All M.2 slots are covered with heatsinks to manage the thermal output of high-speed drives.
Dual USB4® Ports:
Each USB4® port delivers up to 40 Gbps of bi-directional bandwidth, ensuring ultra-fast data transfer speeds for the latest high-performance peripherals and storage devices. These ports also support external display output with resolutions up to 8K when using a single port, or dual 4K displays* for multi-monitor setups.
EZ PC DIY

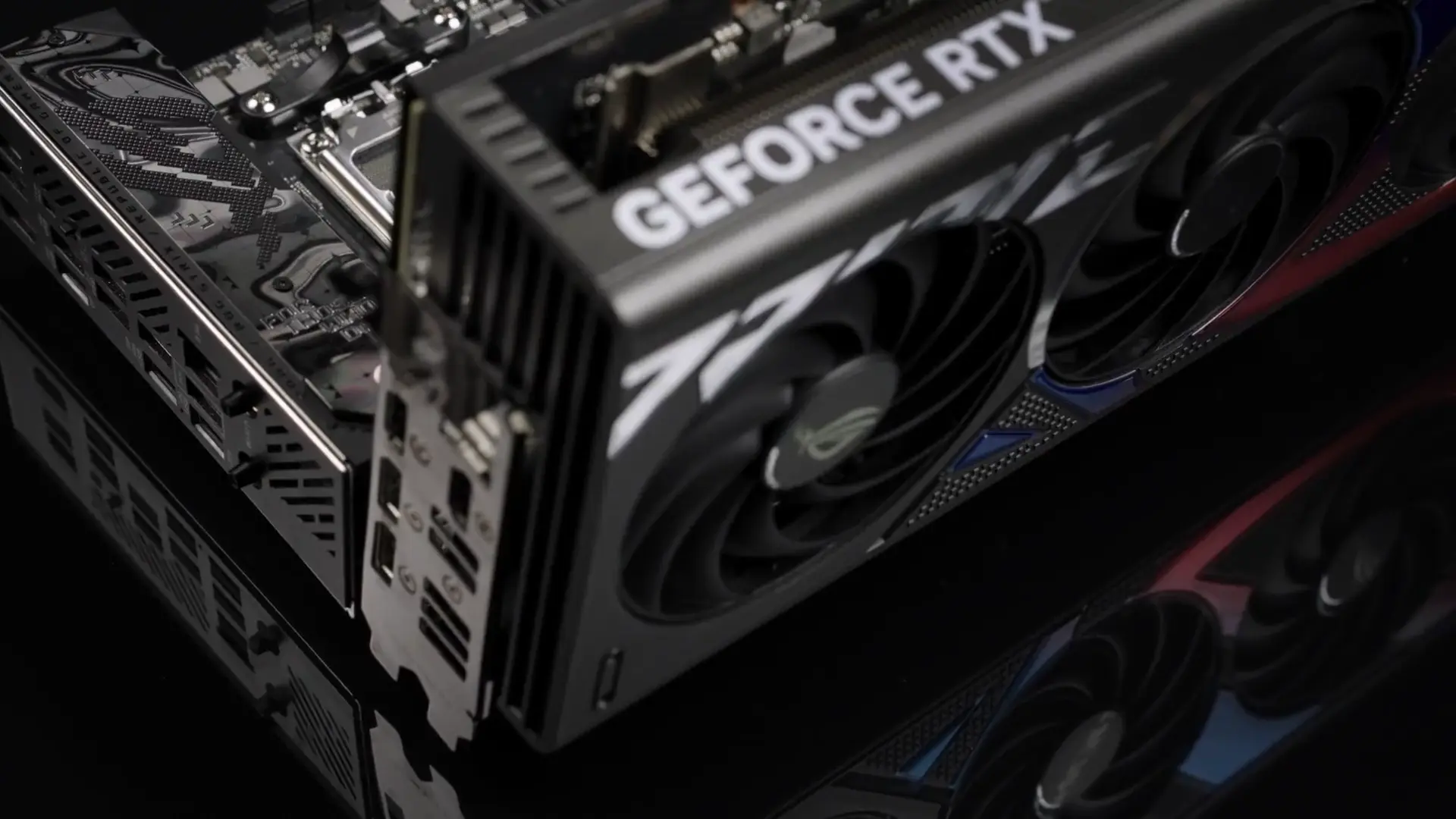

PCIe® Slot Q-Release Slim:
The PCIe® Slot Q-Release Slim allows you to easily remove your graphics card by simply tilting it toward the latch, which automatically unlocks it from the slot. This innovative design simplifies upgrades and maintenance without the need to manually press or fumble with a small latch.
New M.2 Q-Latch:
The M.2 Q-Latch enables tool-free installation and removal of M.2 SSDs with just a simple press, eliminating the need for screws and making drive swaps quick and hassle-free.

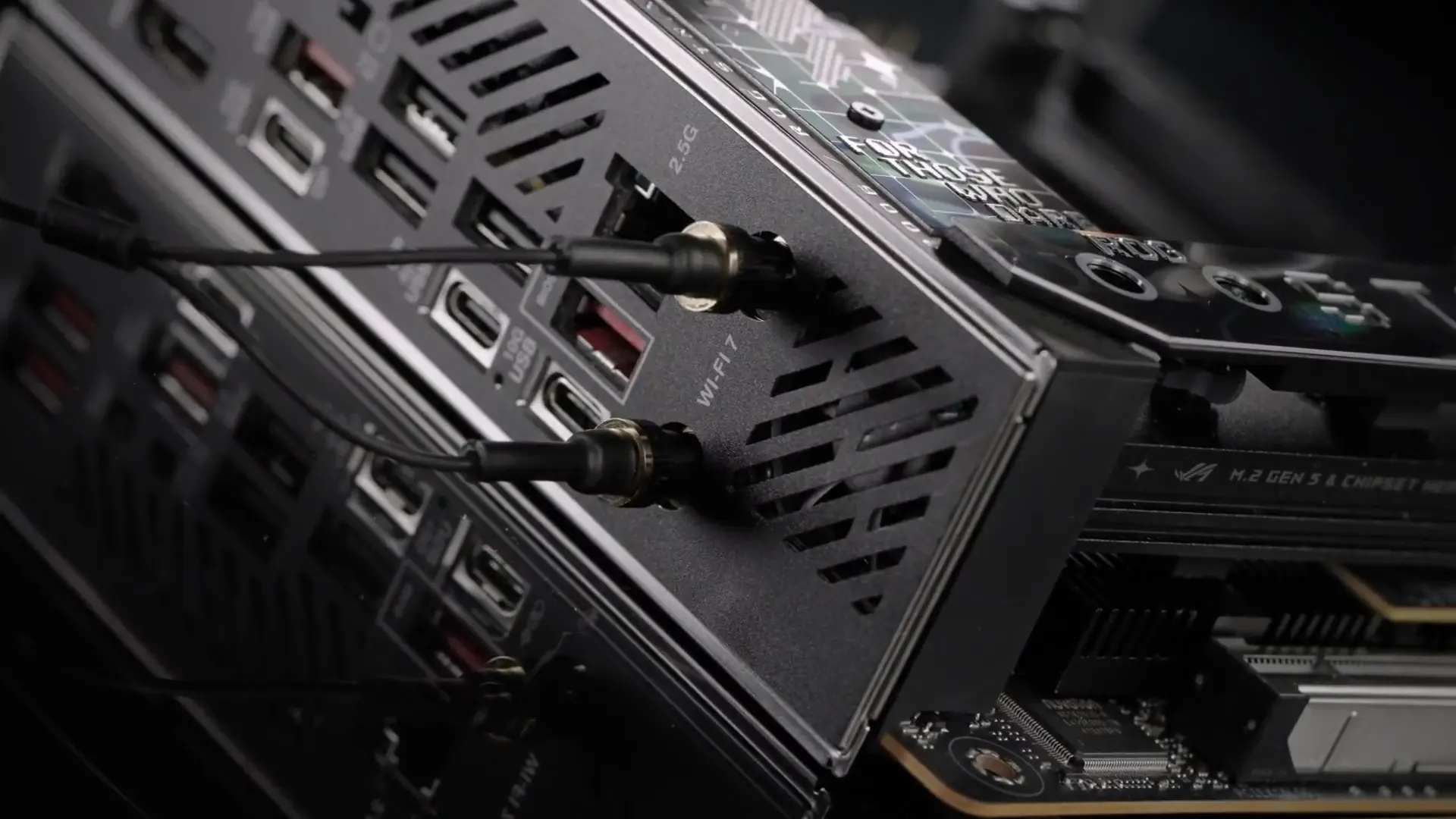

Q-Antenna:
With Q-Antenna, attaching your WiFi antennas is now faster and easier. Instead of twisting and tightening screws, simply snap the connectors into place for a secure fit—reducing installation time and ensuring consistent wireless performance.

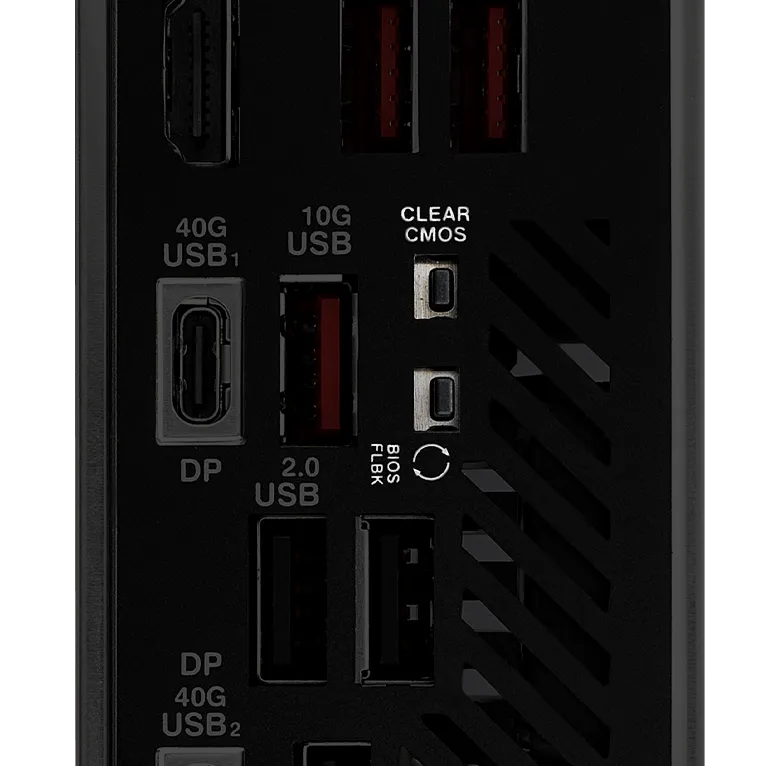

Clear CMOS & BIOS FlashBack™:
The Clear CMOS button instantly resets the BIOS to default settings and can also be used to reboot the system if incorrect settings have been applied.
BIOS FlashBack™ offers a simple and safe way to update BIOS without needing a CPU or memory installed. Just insert a FAT32-formatted USB drive with the BIOS file into the dedicated port and press the button to begin the update.
BIOS

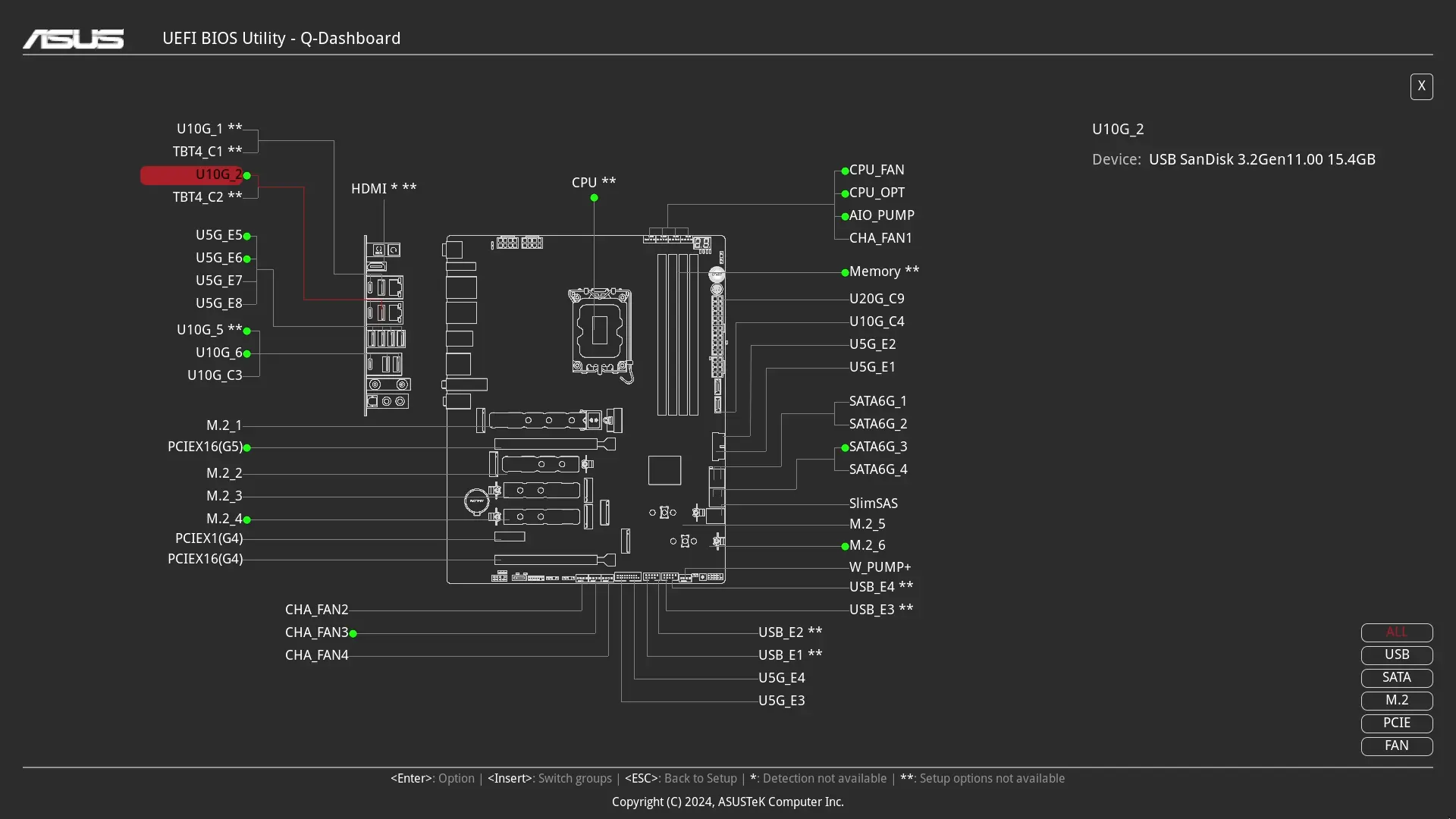

BIOS Q-Dashboard:
BIOS Q-Dashboard simplifies motherboard setup with an intuitive visual interface that displays hardware connections and corresponding BIOS settings. It removes the complexity from system configuration, making it easier than ever to optimize your build.

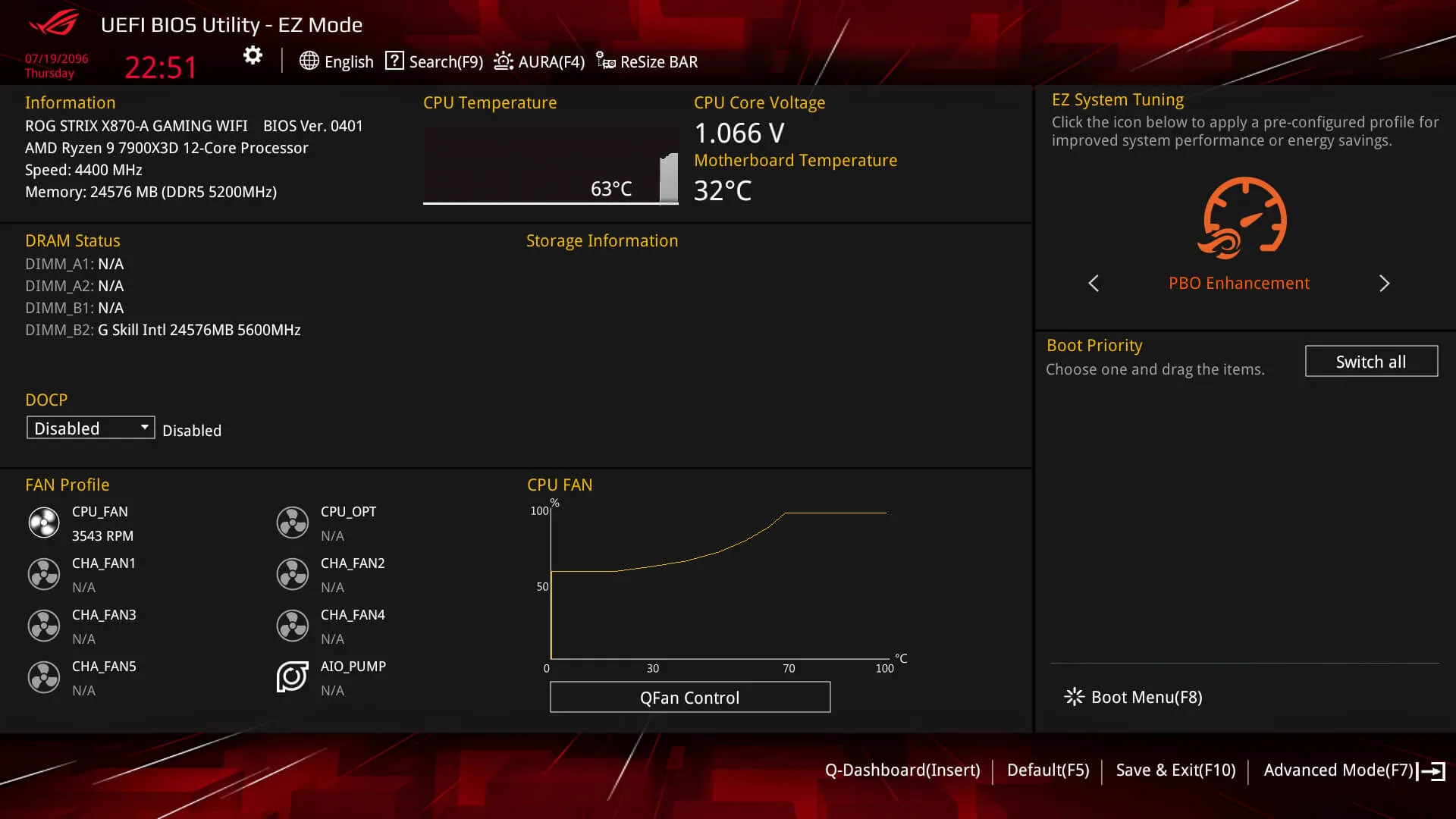

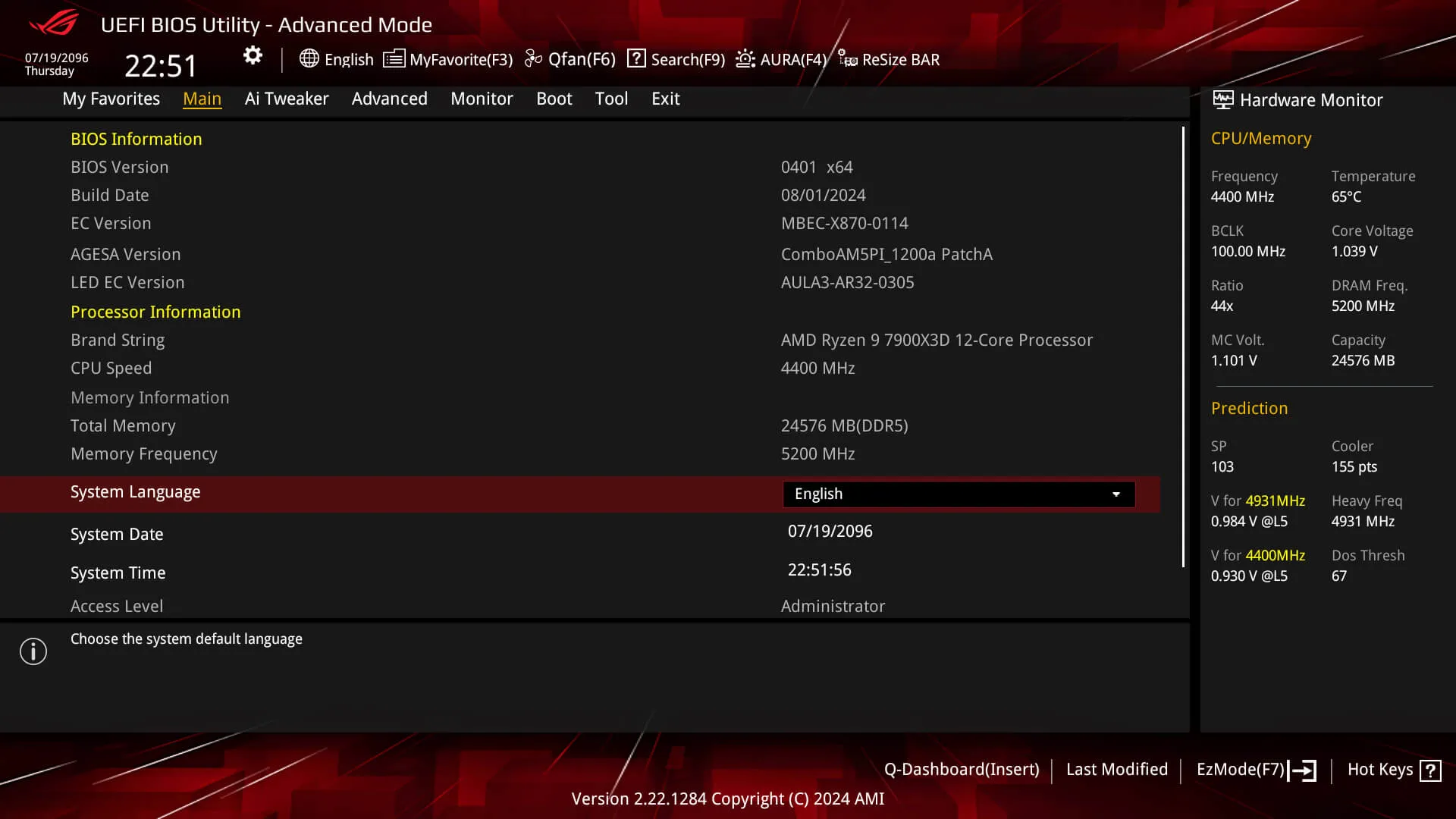

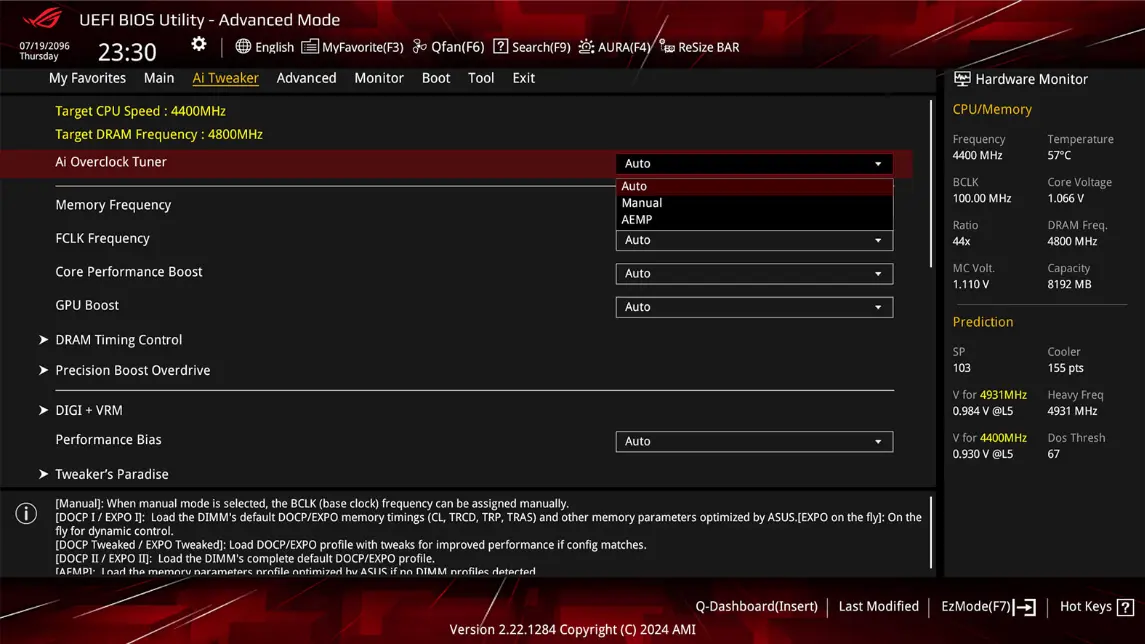

UEFI BIOS Full HD:
ASUS ROG UEFI BIOS is a powerful and user-friendly interface designed for both beginners and experienced users. It offers simplified settings for newcomers and advanced tuning options for overclockers and system builders, all displayed in crisp Full HD resolution.
Software Utilities
Dolby Atmos:
ROG and Dolby® have collaborated to deliver immersive 3D audio through Dolby Atmos. Unlike traditional surround sound, Atmos adds height to the soundstage, creating a more realistic and enveloping audio experience from all directions—above, below, and around you.
ASUS GlideX:
ASUS GlideX is a seamless cross-device and cross-platform solution that enhances productivity by enabling screen mirroring, extended desktop mode, and unified control across PCs, tablets, and smartphones via USB or WiFi. It supports file transfers, keyboard/mouse sharing, and even allows mobile cameras to be used as PC webcams. Compatible with Windows, macOS, Android, and iOS.

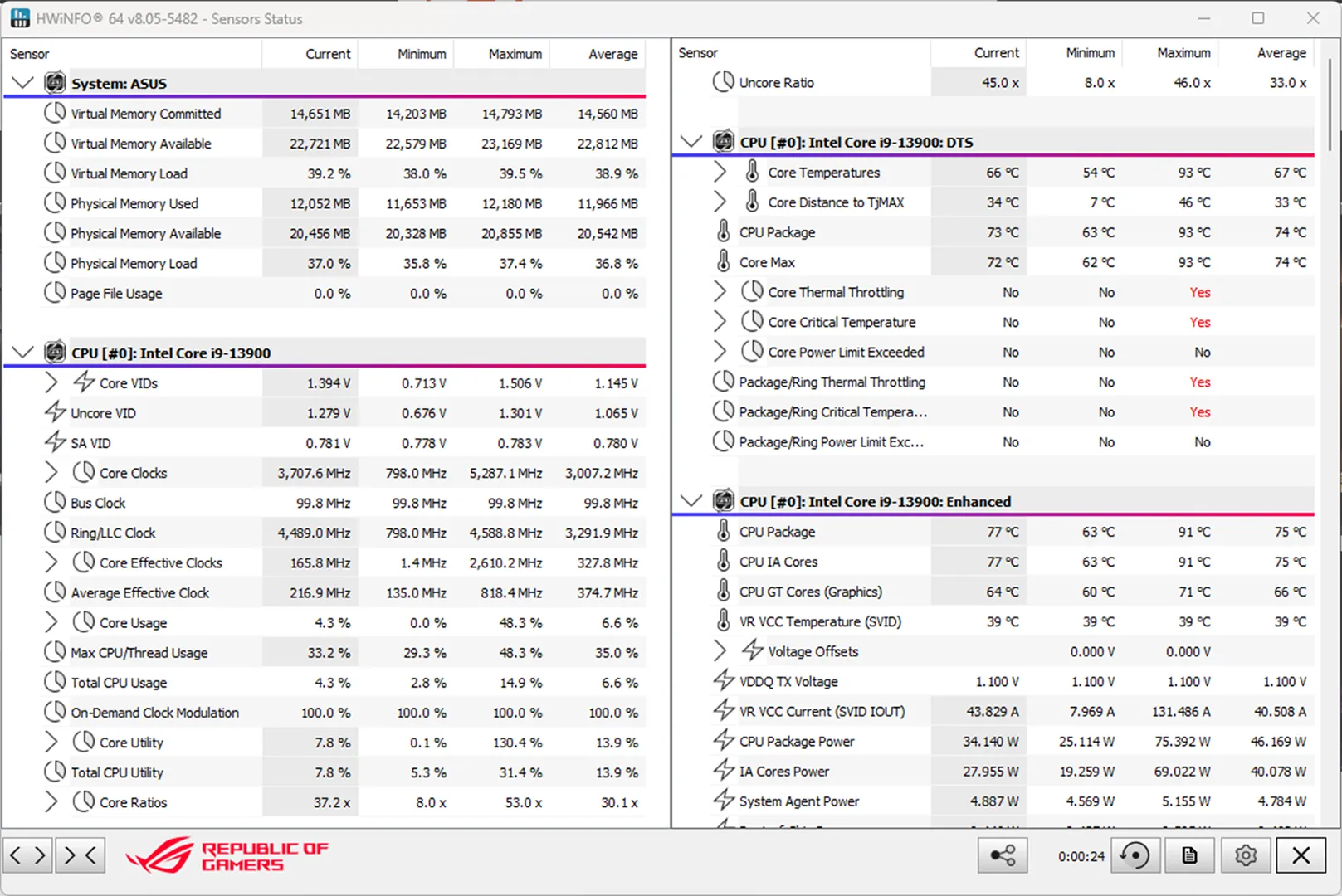

HWiNFO:
In collaboration with ASUS, HWiNFO provides a powerful system information and monitoring tool that delivers real-time insights into your hardware performance. It supports a wide array of components and is frequently updated to stay compatible with the latest technologies—all while maintaining the signature ROG aesthetic.

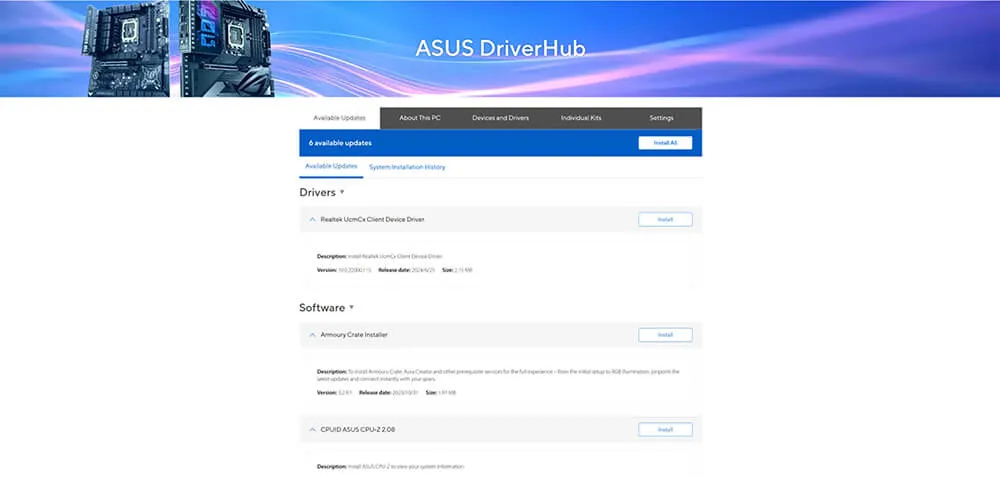

ASUS DriverHub:
ASUS DriverHub simplifies driver and utility management by automatically detecting and updating your ASUS motherboard drivers. It presents available updates in a clear list and supports one-click installation. Designed for easy post-OS-installation setup, DriverHub ensures your system remains optimized and up-to-date.

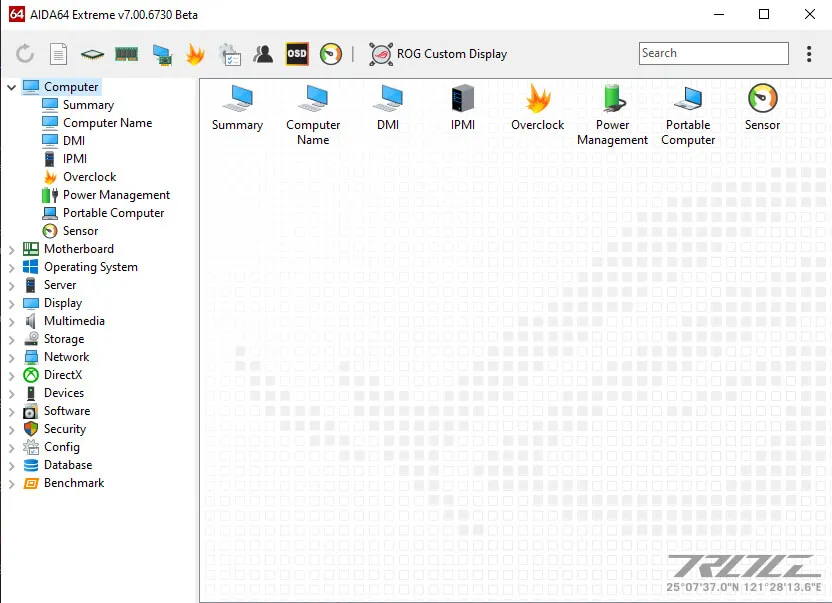

AIDA64 Extreme:
A 60-day trial of AIDA64 Extreme is included, offering in-depth system diagnostics, hardware and software information, and performance benchmarking. This tool allows you to monitor real-time sensor data such as voltages, temperatures, and fan speeds, which can be displayed on your desktop or shown on ROG AIO liquid cooler LCD panels.

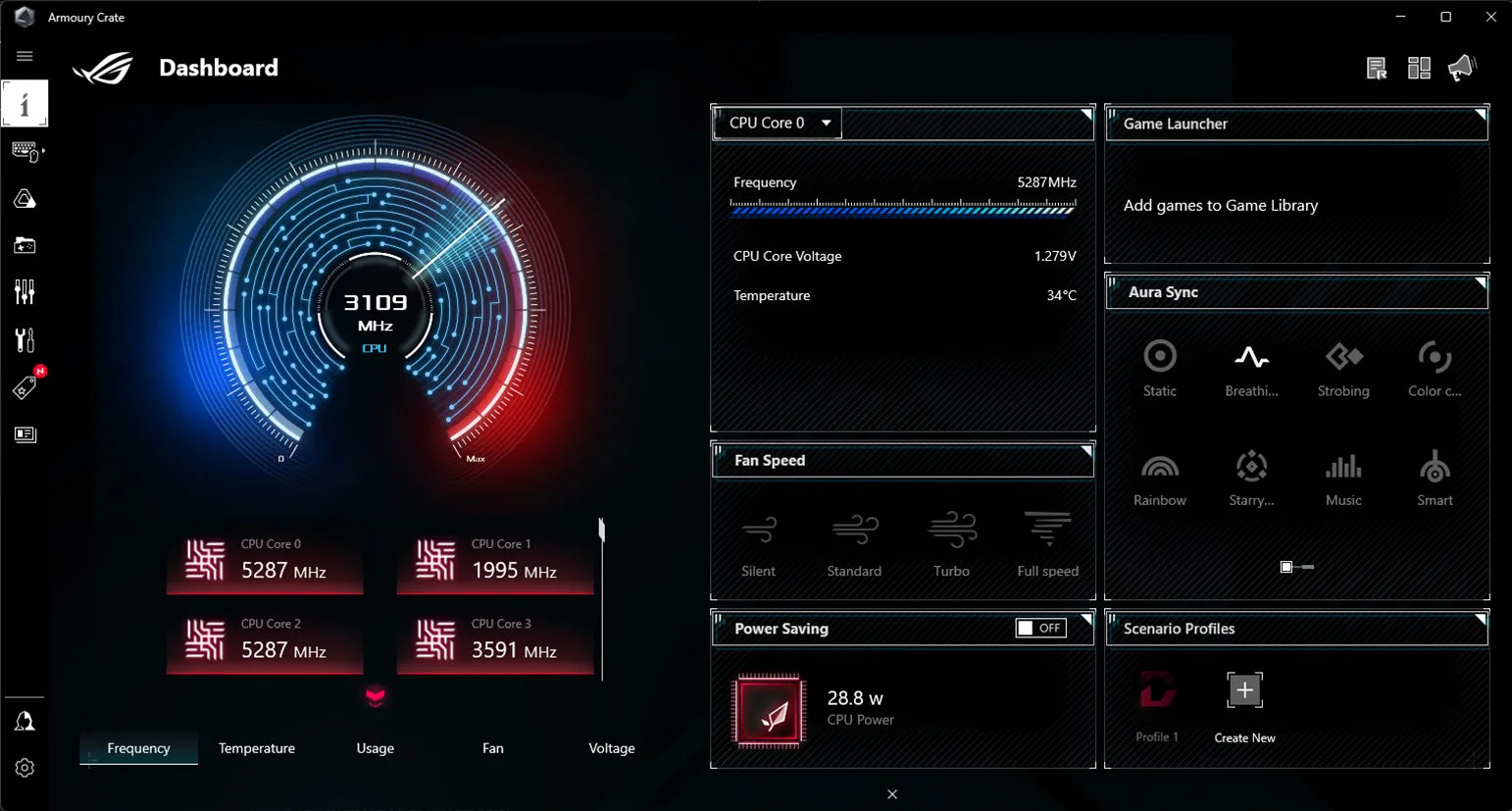

Armoury Crate:
Armoury Crate is a centralized software utility that lets you control and customize ASUS gaming hardware. It offers intuitive RGB lighting control with Aura Sync compatibility, allowing you to synchronize lighting across multiple devices. It also includes Fan Xpert4 for precise control over fans, pumps, and all-in-one (AIO) liquid cooling systems.
Play In Style
Undeniably ROG Strix:
The motherboard's I/O shield and M.2 heatsink are designed with a perforated metal mesh that either highlights the glow of internal RGB lighting or blends into the background for a sleek, stealthy look. Featuring bold cyber-styled text and sharp, aggressive lines, the X870-I proudly carries the ROG Strix identity.

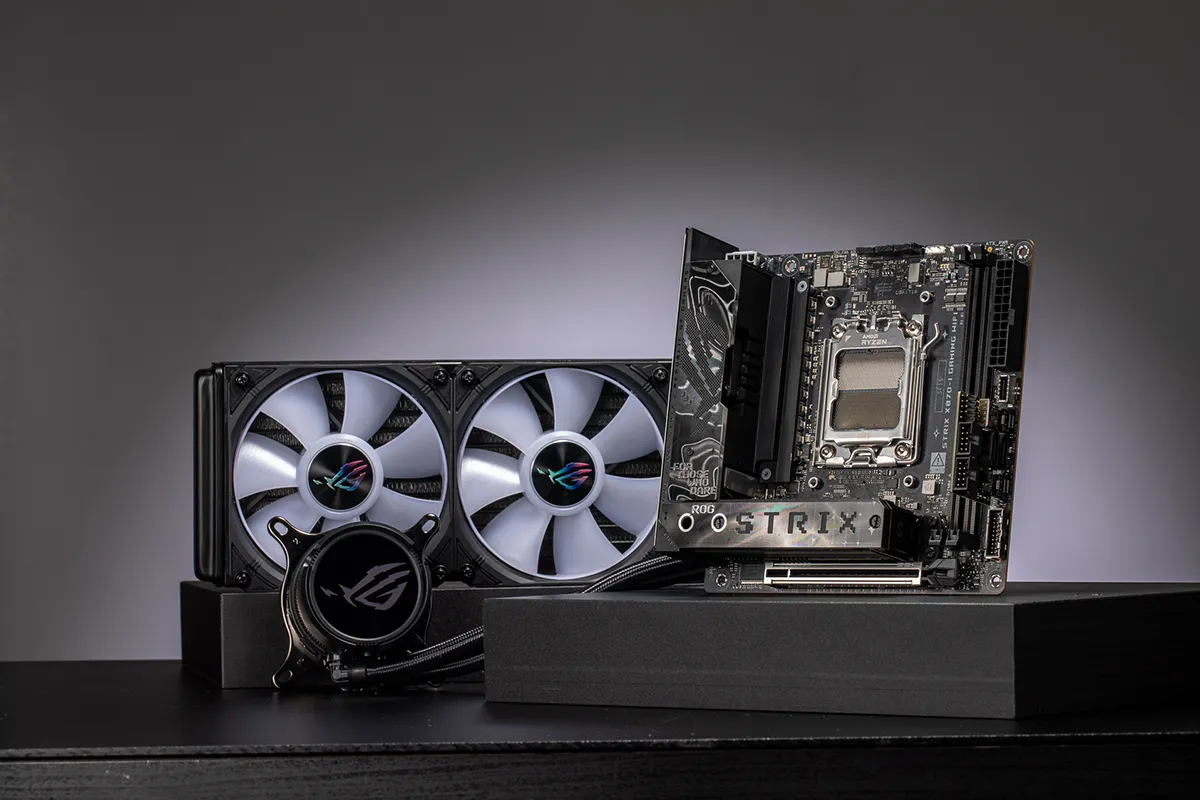

Cooler Compatibility:
ASUS AIO coolers are engineered to deliver exceptional cooling performance, high overclocking potential, striking visuals, and customizable features—perfectly tailored for X870 motherboards. Whether you're building for performance or aesthetics, ASUS AIO coolers help you bring your ultimate gaming rig to life.
The ROG Strix Ecosystem Awaits:
Elevate your setup with the ROG Strix ecosystem. Enjoy seamless compatibility and unified design across a wide range of components, including AIO coolers, cases, and gaming peripherals. ROG offers more customization and integration options than any other brand, giving you full control over your system's look and performance.
Build For The Most Advanced PC For Gaming And Creating:
When uncompromising performance is your goal, the ROG Strix X870 series delivers. Featuring onboard USB4®, powerful overclocking¹ capabilities, lightning-fast dual-channel DDR5 memory support, AMD EXPO™ technology, and full PCIe® 5.0 support for graphics and NVMe storage, this motherboard empowers you to run the most demanding games and tackle intensive creative projects with confidence. Paired with the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, it offers next-level performance for the most advanced gaming and productivity rigs.
