Asus Prime X870-P WiFi AM5 DDR5 ATX Motherboard

Asus Prime X870-P WiFi - Description

AM5 DDR5 ATX Motherboard

ASUS Prime series motherboards are meticulously engineered to unlock the full performance potential of AMD Ryzen™ 9000 series processors. Featuring a powerful power delivery system, advanced thermal management, and smart tuning capabilities, the PRIME X870-P WIFI motherboard offers PC enthusiasts and DIY builders a suite of performance enhancements through user-friendly software and firmware tools. Designed to support next-generation AI computing, it delivers the power and connectivity essential for intensive artificial intelligence workloads.

Performance:

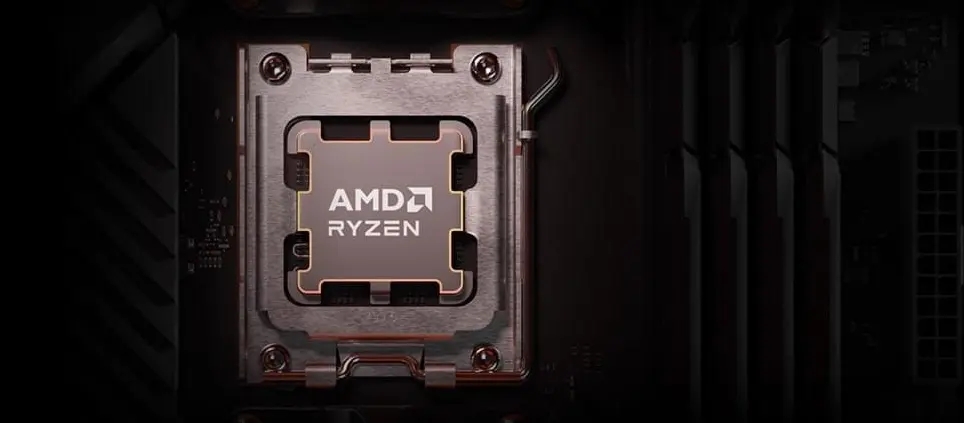

This AM5 socket motherboard is optimized for AMD Ryzen™ desktop processors, offering top-tier performance and expandability. It features a strong 14+2+1 power stage layout (each rated at 80A), four DDR5 DIMM slots supporting dual-channel memory, and multiple PCIe expansion slots — including one PCIe 5.0 x16 slot (with SafeSlot and Q-Release) and three PCIe 4.0 x16 slots running in x1 mode.

Cooling:

The board includes a comprehensive cooling system to maintain optimal operating temperatures. Dedicated heatsinks for the VRM and chipset, along with adaptable M.2 heatsink options, help manage heat from storage devices. For airflow control, there are several fan connectors: one for the CPU, one for CPU_OPT, one for an AIO pump, and three for chassis fans—ensuring effective thermal performance across the build.

Flexibility:

This platform provides versatile connectivity with numerous high-speed USB ports, including 2.5Gb Ethernet, one 10Gbps USB Type-A port, two 40Gbps USB Type-C ports with display support, and additional USB 5Gbps and 2.0 Type-A ports. HDMI is available for video output, and WiFi 7 ensures ultra-fast wireless networking. The BIOS FlashBack™ button simplifies firmware updates. Internal headers offer further expansion possibilities, such as one USB 10Gbps Type-C connector, one USB 5Gbps header (for two ports), two USB 2.0 headers (supporting up to four extra ports), and two SATA 6Gbps ports. Audio is handled via three standard audio jacks.

Customization:

For personalized aesthetics, the motherboard supports dynamic RGB lighting setups with three Addressable Gen 2 RGB headers. These enable synchronized lighting effects across compatible components, creating a fully tailored visual environment.

Performance

AI Solutions:

ASUS AI technologies, such as AI Networking II and AI Cooling II, enhance both connection speed and system efficiency.

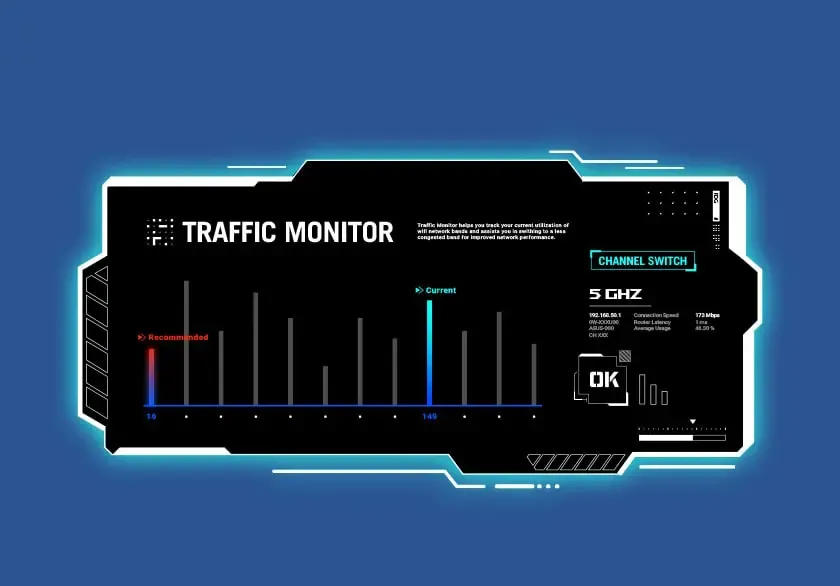

AI Networking II:

Optimizes network traffic to ensure stable, high-speed internet and maximize WiFi 7 performance.

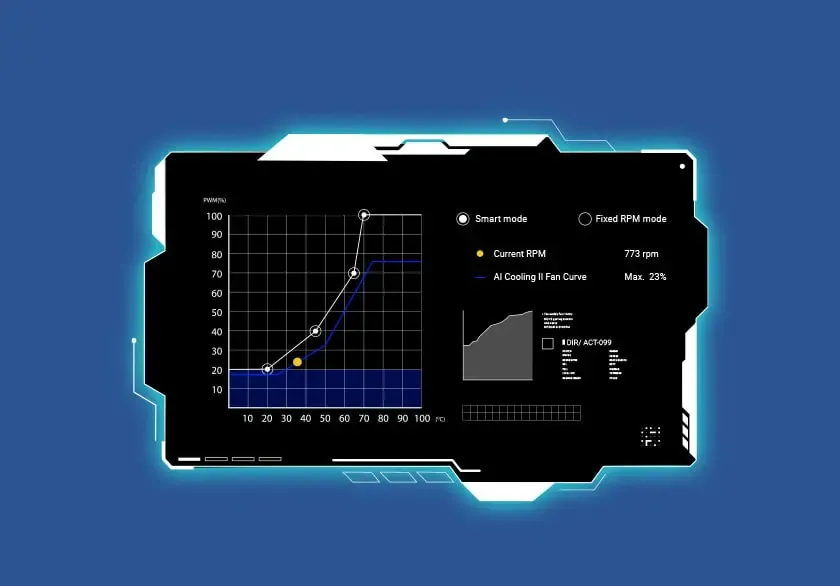

AI Cooling II:

Dynamically adjusts fan speeds based on CPU temperature to maintain cool operation and minimize noise.

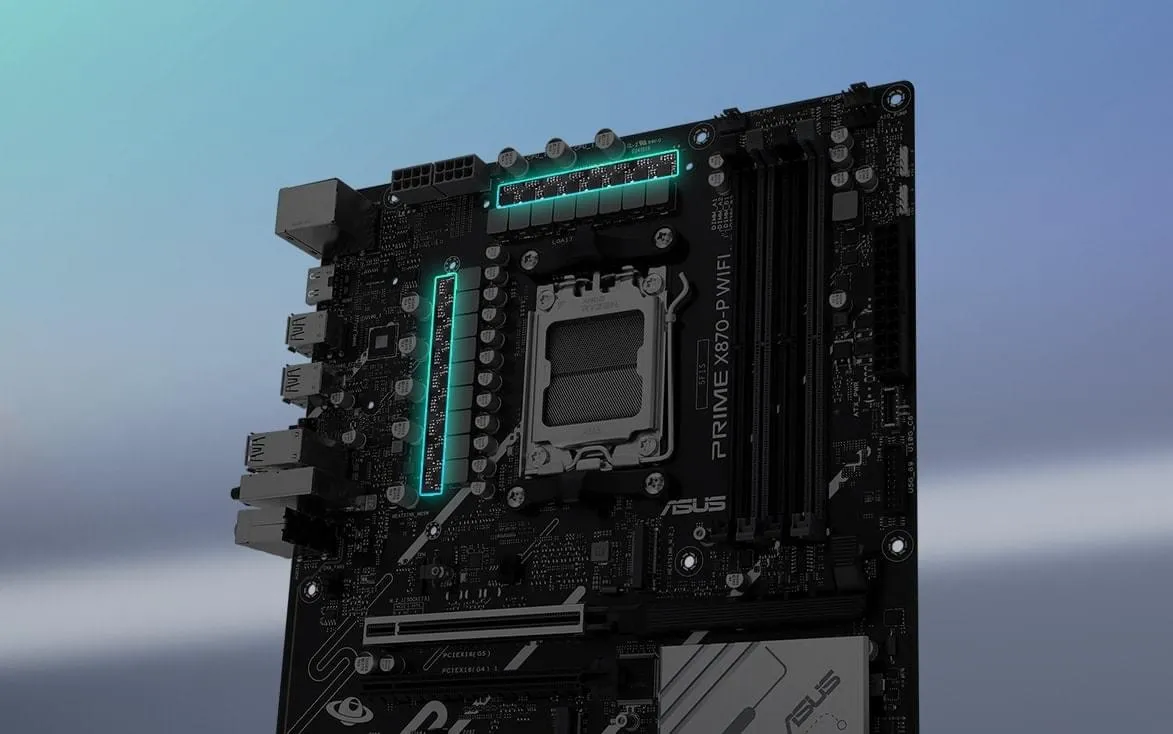

Robust power design:

Ensuring reliable power delivery is key to unleashing the potential of modern CPUs. The PRIME X870-P WIFI is built for high-core-count processors with its 14(80A) + 2(80A) + 1(80A) power stage design. Each stage integrates high- and low-side MOSFETs and drivers into compact packages capable of handling up to 80 amps each, delivering consistent power, efficiency, and stability for today’s and tomorrow’s Ryzen processors.

Eight-layer PCB design:

This multi-layered board improves signal integrity and heat dissipation around voltage regulators, enhancing system stability and increasing overclocking potential.

ProCool connectors:

ASUS-exclusive 8+8 pin ProCool power connectors provide a more robust link between the PSU and motherboard. Featuring solid-pin construction, these connectors handle higher currents than traditional hollow-pin designs and deliver direct 12V power to the CPU.

Power Saving:

Fine-tune your system's energy usage by adjusting CPU, lighting, and fan settings. This feature allows users to set CPU power limits, dim Aura lighting, switch fans to a power-saving profile, and activate Windows' built-in Power Saver plan—all helping reduce overall power consumption.

Digi+ VRM control:

Offers real-time adjustments for voltage regulation. The Digi+ voltage-regulator module (VRM) enables precise control over voltage droop, frequency switching, and power efficiency, ensuring optimal system performance under load.

Enhanced Memory & Storage Performance:

Enhanced DDR5 performance:

PRIME motherboards are built with extensive memory tuning capabilities to fully harness the performance of DDR5 memory modules. The PRIME X870-P WIFI supports a wide range of DDR5 RAM, from basic kits to high-speed overclocked configurations.

For standard DDR5 modules without EXPO™ (Extended Profiles for Overclocking), ASUS Enhanced Memory Profile (AEMP) automatically identifies the memory chips and applies optimized settings for improved performance.

For advanced users looking to push beyond default speeds, the motherboard offers full support for AMD EXPO™ technology and provides a comprehensive set of UEFI tools for fine-tuning memory performance.

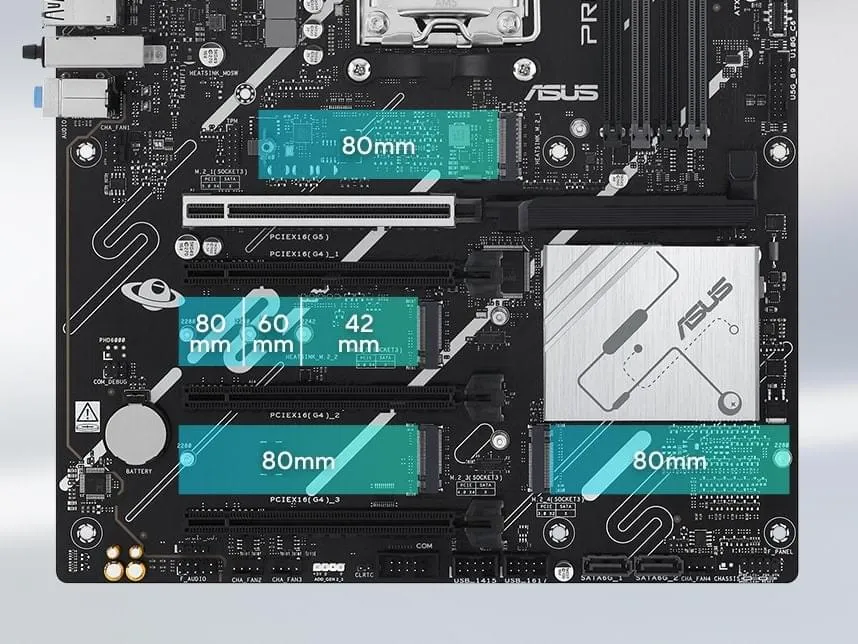

Four M.2 slots (up to 128 Gbps):

The PRIME X870-P WIFI includes four M.2 slots to accommodate a variety of storage options. One slot supports PCIe 5.0 for blazing-fast transfer rates of up to 128 Gbps, two slots operate at 64 Gbps via PCIe 4.0, and one runs at PCIe 3.0 speeds. This allows for rapid boot times and quick access to applications and files.

Cooling:

Cooler by design:

Engineered with multiple heatsinks and hybrid fan headers, the PRIME X870-P WIFI ensures your system remains cool and stable even under heavy loads. This thoughtful layout helps maintain optimal thermal conditions across components.

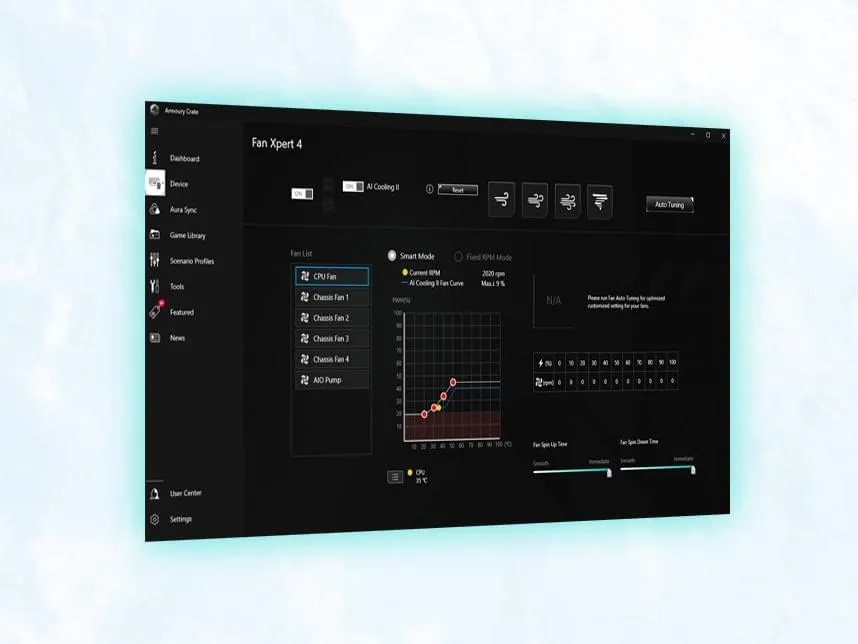

ASUS Fan Xpert 4:

This intelligent fan control software provides full management over case fans and AIO liquid coolers. With Auto-Tuning mode, ideal fan profiles can be set in a single click. Extreme Quiet mode adjusts fan speeds to minimize noise during light computing tasks. Fan settings can also be adjusted directly through the UEFI BIOS.

Cooler compatibility:

ASUS AIO coolers are designed to deliver exceptional cooling performance, enhanced overclocking potential, striking aesthetics, and customizable features—perfectly suited for new builds using the latest motherboards.

Flexibility

Empowering connections:

The PRIME X870-P WIFI delivers a broad selection of modern connectivity features, including WiFi 7, PCIe 5.0 support, Realtek 2.5Gb Ethernet, and a wide array of USB ports for versatile device compatibility.

WiFi 7:

Next-generation WiFi 7 technology enables ultra-fast connections with support for 160 MHz bandwidth in the 6 GHz band and 4096 QAM modulation. Multi-Link Operation (MLO) improves connection stability and reduces latency by utilizing 2.4 GHz, 5 GHz, and 6 GHz bands simultaneously, offering broader coverage and higher throughput.

USB 40Gbps Type-C® ports:

Each USB Type-C port delivers up to 40Gbps bidirectional bandwidth, ideal for connecting ultra-fast peripherals and external drives. Both ports also support dual external 4K display outputs.

PCIe 5.0 slot:

With support for the latest processors, this motherboard features a PCIe 5.0 x16 slot that doubles data transfer speeds compared to PCIe 4.0. It maintains backward compatibility with older PCIe devices while improving signal integrity and connector reliability.

Customization

Personalization:

From intuitive BIOS adjustments to dynamic RGB lighting controls, the PRIME X870-P WIFI enhances personalization and usability for a tailored system experience.

UEFI BIOS:

The user-friendly UEFI interface offers straightforward configuration for beginners and advanced tuning options for experienced users.

ASUS GlideX:

Allows seamless cross-device screen sharing and control between PCs, tablets, and smartphones via wired or wireless connections across different platforms.

ASUS DriverHub:

Simplifies driver installation and updates with automatic detection and one-click setup, ensuring smooth and efficient system operation.

Armoury Crate:

Centralized software utility for managing Aura Sync RGB lighting and ASUS-connected devices. Includes product registration and firmware update notifications.

Aura Sync:

Offers full control over RGB lighting across compatible components for a unified and immersive visual setup.

Addressable Gen 2 RGB headers:

Three onboard Addressable Gen 2 RGB headers automatically detect connected LED counts and adjust lighting effects accordingly for seamless synchronization.

DIY friendly:

ASUS has incorporated several tools and design enhancements to streamline the PC building process and make component installation more user-friendly.

Q-Antenna:

Simplifies WiFi antenna attachment with a snap-in design that eliminates the need for screw-based installation, offering faster setup and reliable performance.

PCIe Slot Q-Release:

Quickly unlock the first PCIe slot with a simple tap, making it easier to install or remove graphics cards and other expansion cards.

M.2 Q-Latch:

ASUS’ innovative M.2 mounting solution allows tool-free installation and removal of M.2 SSDs. The latch-based mechanism secures the drive firmly and releases it with a single press.

Q-LED Core:

Color-coded LED indicators help diagnose hardware issues during the Power-On Self-Test (POST), allowing for quicker troubleshooting and resolution.

Pre-Mounted I/O Shield:

The motherboard comes with a factory-fitted I/O shield that protects rear panel ports, streamlines the PC building process, improves system functionality, and gives your build a clean, finished look—ideal for both first-time builders and experienced DIY enthusiasts.

BIOS FlashBack:

Keep your system up to date with BIOS FlashBack™ technology. Simply save the updated BIOS file onto a FAT32-formatted USB drive, plug it into the dedicated BIOS FlashBack™ port, and press a button to update the BIOS—no need for a CPU, RAM, or GPU to be installed.

SafeSlot:

Built to handle the incredible speeds of PCIe 5.0—twice as fast as PCIe 4.0—SafeSlot is a reinforced PCIe slot created using advanced SMT (Surface Mount Technology) manufacturing. It offers improved retention and durability for your graphics card or expansion cards, ensuring stable performance and enhanced data transfer rates.

Build for the most advanced pc for gaming and creating:

When speed and performance are non-negotiable, ASUS X870/X870E motherboards rise to the challenge. Featuring onboard USB 4.0, powerful overclocking capabilities, dual-channel DDR5 memory support with faster speeds, AMD EXPO™ technology, and full PCIe 5.0 support for GPUs and NVMe storage, these boards deliver the power needed for the most demanding games and intensive creative workloads. Paired with AMD Ryzen™ 9000, 8000, or 7000 Series processors, the ASUS X870/X870E platform unlocks next-level performance for gaming, streaming, and professional creation.
