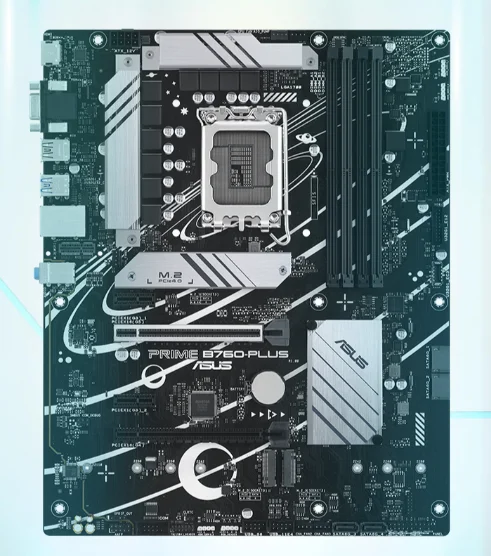

ASUS Prime B760-PLUS LGA1700 DDR5 ATX Motherboard

ASUS Prime B760-PLUS - Description

LGA1700 DDR5 ATX Motherboard

The ASUS Prime Series motherboards are designed to maximize the capabilities of 13th Gen Intel® Core™ processors, offering a reliable platform for high-performance computing. The PRIME B760-PLUS features a durable power architecture, advanced cooling technologies, and intelligent optimization tools, allowing users and PC builders to fine-tune system performance through user-friendly software and firmware.

High-Speed Connectivity:

The ASUS Prime B760-PLUS offers versatile connectivity and excellent expandability with HDMI, DisplayPort, and VGA outputs, multiple USB 3.2 and USB 2.0 ports, Realtek 2.5Gb Ethernet, and three audio jacks. It supports DDR5 memory, three PCIe 4.0 M.2 slots, PCIe 5.0 expansion, four SATA 6Gb/s ports, Thunderbolt™ (USB4®) header support, and Aura Sync RGB lighting, providing a flexible platform for high-performance systems with future-ready upgrade options.

FLEXIBILITY:

The ASUS PRIME B760-PLUS includes a wide range of intelligent control features that allow users to fine-tune system settings with ease. Its flexible optimization tools help customize performance to match different workloads, delivering a smoother and more efficient computing experience.

Intelligent Control:

ASUS Intelligent Control simplifies system optimization by automatically managing advanced tuning and enhancing key system settings. It provides easy-to-use optimization tools for first-time PC builders while also offering advanced customization options for experienced users seeking greater control.

All-Around Energy Efficiency:

The Power Saving feature helps reduce energy consumption through a range of intelligent settings. Users can limit CPU power usage, switch Aura lighting to a lower-power mode, adjust fan performance for greater efficiency, and activate the built-in Windows Power Saver plan to maximize overall energy savings.

Flexible Air- and Liquid-Cooling Controls:

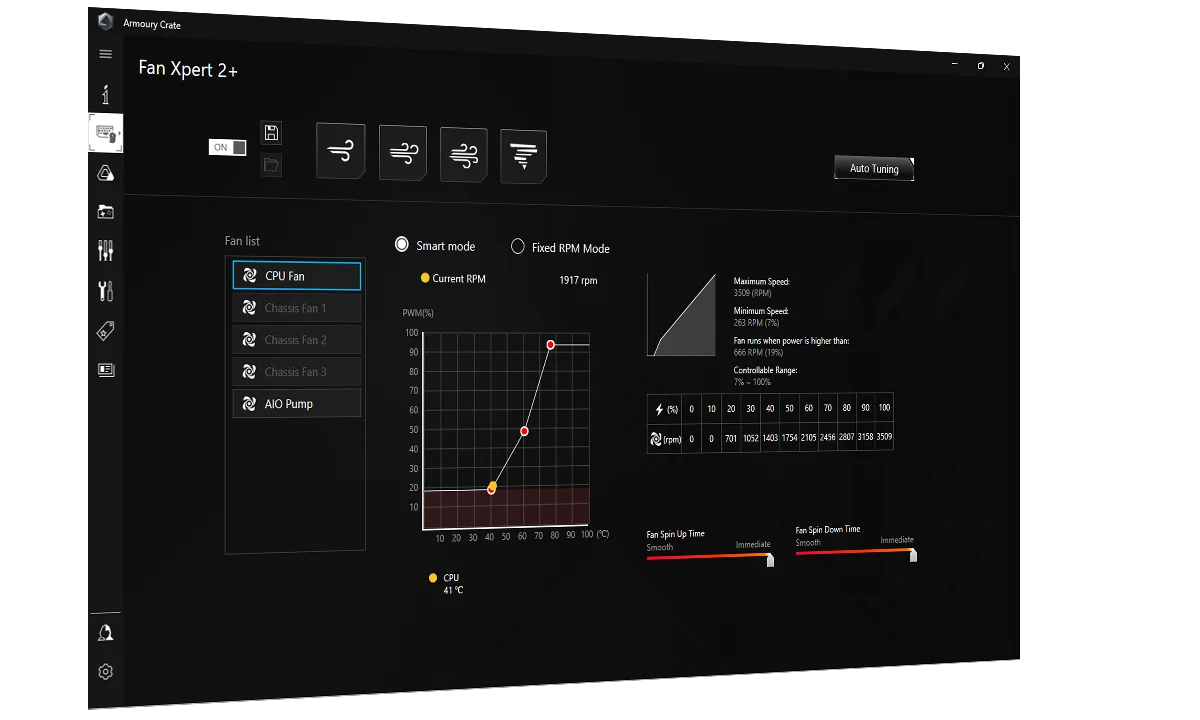

ASUS Fan Xpert 2+ gives users complete control over system fans and AIO liquid coolers. With one-click Auto-Tuning, it automatically adjusts cooling settings for optimal performance, while Extreme Quiet mode lowers fan speeds during light workloads for quieter operation. Users can also manage cooling settings directly through the UEFI BIOS.

Precise Digital Power Control:

The Digi+ VRM technology provides precise, real-time control of CPU power delivery by automatically adjusting voltage, frequency, and power efficiency. It also enables advanced CPU tuning to improve overall system stability and maximize performance.

UEFI BIOS:

The ASUS UEFI BIOS offers an intuitive interface for configuring and optimizing your system with ease. It includes simple setup options for first-time PC builders, along with advanced controls and customization features for experienced users seeking maximum performance.

Advanced Tuning for Serious Tweakers:

The intuitive UEFI BIOS Advanced Mode gives experienced users complete control over system settings. A built-in search function helps you quickly locate the options you need, while advanced tuning tools allow precise adjustments to optimize performance. You can also save and transfer BIOS configurations between different versions or share your custom profiles with others for added convenience.

Quick and Simple Setup:

EZ Mode provides instant access to essential system information, key settings, and real-time hardware status, making initial setup simple and efficient. Guided wizards, drag-and-drop controls, and one-click optimization help you configure your PC with minimal effort. The intuitive graphical fan control lets you fine-tune cooling performance by adjusting fan curves with your mouse, while Aura On/Off (Stealth) Mode allows you to enable or disable Aura Sync RGB lighting and onboard LEDs for a clean, understated appearance.

COOLING:

The ASUS PRIME B760-PLUS motherboard is designed with multiple integrated heatsinks and versatile hybrid fan headers to provide efficient cooling. This advanced thermal design helps maintain stable performance and reliable operation, even during demanding workloads and extended system use.

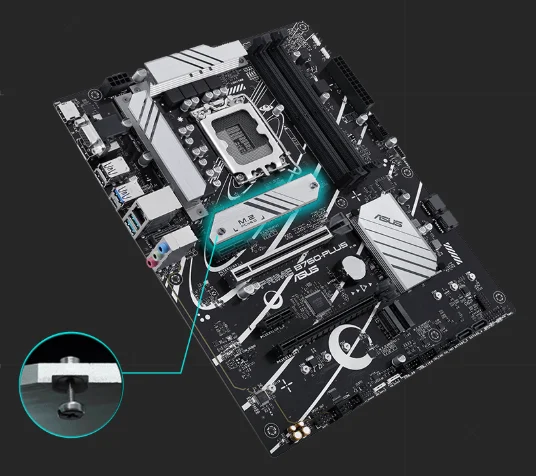

M.2 Heatsink:

The integrated M.2 heatsink helps prevent thermal throttling during extended data transfers, allowing your M.2 SSD to maintain consistent performance under heavy workloads. It is secured with captive screws that remain attached to the heatsink when removed, reducing the risk of misplaced or dropped screws during installation or maintenance.

VRM Heatsinks and Thermal Pads:

Large VRM heatsinks paired with high-quality thermal pads efficiently dissipate heat from the MOSFETs, improving cooling performance and helping maintain stable power delivery during demanding workloads.

Cooler by Design:

The ASUS PRIME B760-PLUS offers flexible cooling management through Fan Xpert 2+ software and the UEFI BIOS, allowing you to easily monitor, customize, and optimize fan settings for efficient cooling and stable system performance.

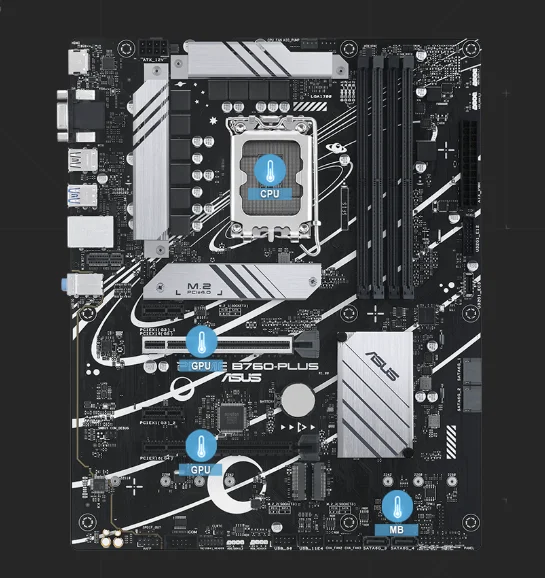

Multiple Temperature Sources:

Each fan header can intelligently monitor up to three thermal sensors, enabling more accurate and responsive cooling. With Fan Xpert 2+, you can also synchronize fan operation with compatible ASUS graphics card temperatures, optimizing airflow for demanding CPU- and GPU-intensive workloads.

AIO Pump Header:

A dedicated PWM/DC fan header is provided for self-contained liquid cooling systems, ensuring reliable power delivery and precise cooling control for all-in-one (AIO) water coolers.

Smart Protection:

Each fan header is equipped with a dedicated integrated circuit that helps protect against overheating and overcurrent, ensuring reliable operation and enhanced system safety.

4-Pin PWM/DC Fan:

Every onboard fan header automatically detects whether a PWM or DC fan is connected, allowing seamless compatibility and optimized fan control without manual configuration.

PERFORMANCE:

The ASUS PRIME B760-PLUS motherboard is engineered to support the performance demands of 13th Gen Intel® Core™ processors, delivering the power and bandwidth needed for modern computing. With stable power delivery, intelligent cooling, and flexible high-speed connectivity, it provides a reliable foundation for productivity, multitasking, and everyday performance.

Robust Power Design:

Reliable power delivery is essential for maximizing the performance of Intel® processors. The ASUS PRIME B760-PLUS is engineered with a robust power design to support high-core-count CPUs, ensuring stable operation and consistent performance during demanding workloads.

ProCool Connector:

The ASUS PRIME B760-PLUS features 8-pin power connectors that deliver a direct 12V power supply from the PSU to the processor for stable and efficient operation. Built with solid-pin contacts, these connectors support higher current capacity than traditional hollow-pin designs, improving power delivery and long-term reliability.

Six-Layer PCB Design:

The multi-layer PCB is designed to improve heat dissipation for critical components, enhancing thermal efficiency and providing a more stable platform for sustained high-performance operation and CPU tuning beyond standard clock speeds.

AEMP II for Ultimate DDR5 Performance:

ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware technology designed for PMIC-restricted DDR5 memory modules. By analyzing the capabilities of both the processor and installed memory, it automatically applies optimized memory settings to boost performance while maintaining reliable system stability.

Using an advanced memory training process, AEMP II simplifies memory tuning beyond default specifications, allowing users to improve performance with minimal effort. Whether paired with entry-level memory or high-speed DDR5 kits, it helps maximize memory potential while ensuring smooth and stable operation.

ASUS OptiMem II:

ASUS OptiMem II improves memory performance by optimizing the motherboard's PCB trace layout, allowing the latest Intel® processors to access memory bandwidth more efficiently. By carefully routing memory signals across multiple PCB layers and reducing electrical interference, it enhances signal integrity for more reliable data transmission. This results in better memory stability and compatibility, lower latency at the same voltage, and greater support for higher memory frequencies, helping the system deliver faster and more consistent performance.

Three M.2 Slots (up to 64 Gbps):

The ASUS PRIME B760-PLUS features three M.2 slots with support for PCIe 4.0 transfer speeds of up to 64 Gbps, delivering fast storage performance for modern SSDs. This high-speed connectivity helps reduce system boot times, accelerate application loading, and improve overall system responsiveness for everyday computing and demanding workloads.

PCIe 5.0 Slot:

PCIe 5.0 delivers up to twice the bandwidth of PCIe 4.0, providing the performance needed for next-generation graphics cards and other high-bandwidth devices. It also enhances signal integrity for more reliable data transmission, supports backward-compatible expansion card connectors, and maintains compatibility with earlier PCI Express generations, ensuring greater flexibility for future upgrades.

USB 3.2 Gen 2x2 Type-C®:

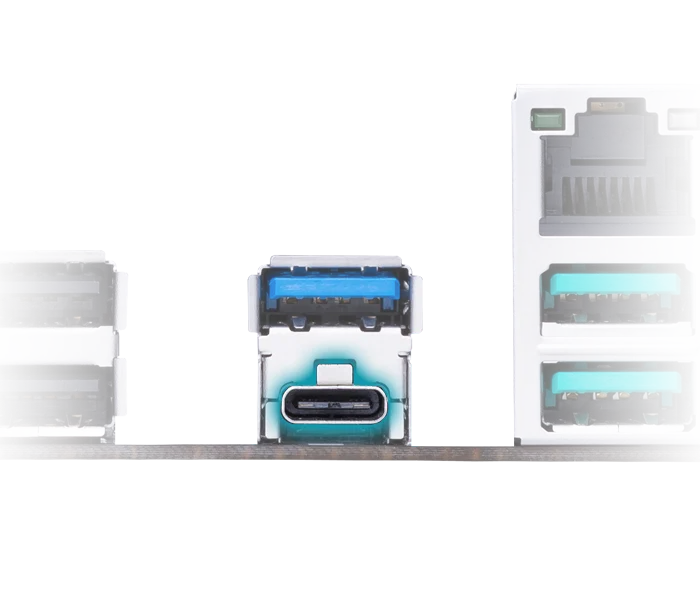

The ASUS PRIME B760-PLUS provides a wide selection of USB ports to support modern peripherals and high-performance devices. It includes a rear USB 3.2 Gen 2x2 Type-C® port that delivers transfer speeds of up to 20 Gbps, enabling fast data transfers and efficient connectivity for compatible storage devices and accessories.

Front USB Type-C®:

The ASUS PRIME B760-PLUS offers a comprehensive range of USB ports for connecting a wide variety of peripherals. A front-panel USB 3.2 Gen 1 Type-C® connector provides data transfer speeds of up to 5 Gbps, delivering fast and convenient access for compatible devices and everyday accessories.

Thunderbolt™ 4 (USB4® compliant):

The ASUS PRIME B760-PLUS includes a Thunderbolt™ (USB4®) header that supports USB4® connectivity through a compatible ASUS expansion card. This enables bi-directional data transfer speeds of up to 40 Gbps over a single cable, along with fast device charging. It also supports daisy-chain connectivity for multiple displays and can drive up to two 4K monitors, making it an excellent solution for high-performance peripherals and multi-display setups.

Realtek 2.5 Gb Ethernet:

The ASUS PRIME B760-PLUS features Realtek 2.5Gb Ethernet for fast, low-latency wired networking with reduced CPU overhead and improved TCP/UDP throughput, while ASUS LANGuard enhances network reliability by incorporating advanced signal-coupling technology and premium anti-EMI components to deliver more stable connections and better overall network performance.

CUSTOMIZATION:

The ASUS PRIME B760-PLUS enhances the overall user experience with premium onboard audio for clear, high-quality sound and intuitive Aura Sync RGB lighting controls, allowing you to personalize your system with customized lighting effects that match your style.

Outstanding Audio:

The ASUS PRIME B760-PLUS combines advanced onboard audio technologies with high-quality components to deliver clear, immersive sound, providing an enhanced listening experience for gaming, entertainment, and everyday use.

Audio Shielding:

Dedicated audio shielding separates the analog and digital signal paths to minimize electrical interference, helping deliver cleaner, more accurate audio with improved overall sound quality.

Dedicated Audio PCB Layers:

Dedicated PCB layers for the left and right audio channels help preserve signal integrity, ensuring balanced, consistent sound quality with reduced interference across both channels.

Premium Audio Capacitors:

Delivers rich, natural sound with outstanding clarity and accuracy, creating an immersive listening experience for music, movies, and games.

Aura Sync Outshine the Competition:

ASUS Aura Sync provides comprehensive RGB lighting control, allowing you to customize built-in LEDs and compatible RGB devices connected to the motherboard. With a variety of lighting effects and synchronization support for a wide range of Aura Sync-compatible hardware, you can create a unified and personalized system appearance.

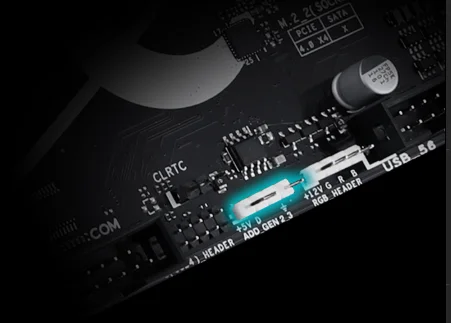

Addressable Gen 2 Headers:

The ASUS PRIME B760-PLUS features three Addressable Gen 2 RGB headers that automatically detect the number of LEDs on compatible RGB devices, enabling optimized lighting effects through Aura Sync software. These headers also maintain backward compatibility with existing Aura RGB components, providing greater flexibility for both new and older lighting accessories.

Armoury Crate:

ASUS Armoury Crate provides a centralized interface for managing Aura Sync RGB lighting and customizing settings across compatible ASUS devices. It also allows you to configure supported peripherals, such as keyboards and mice, while offering convenient access to product registration, software updates, and the latest ASUS news—all from a single, easy-to-use application.

Q-LED Core:

The Q-LED Core diagnostic feature uses the motherboard's power LED to display different light patterns during the Power-On Self-Test (POST), helping identify common hardware issues. Fast blinking indicates a memory (DRAM) detection problem, slow blinking signals a graphics card (VGA) issue, very slow blinking points to a missing boot device, and a solid light confirms that the system has completed the startup process successfully.

SafeSlot Core+:

With PCIe 5.0 delivering twice the bandwidth of PCIe 4.0, ASUS has optimized its SMT manufacturing process to support higher-speed data transmission through the reinforced SafeSlot Core+ design. This technology adds a durable metal reinforcement to the PCIe slot, providing improved strength and stability to keep expansion cards securely installed.

Overvoltage Protection:

The ASUS PRIME B760-PLUS features a premium power protection design with integrated voltage regulators that help safeguard the motherboard from potential damage caused by unstable power supplies or unexpected voltage spikes, ensuring safer and more reliable system operation.

Stainless-Steel Back I/O:

The stainless-steel rear I/O panel features a corrosion-resistant coating with chromium oxide protection, providing up to three times greater durability than standard panels and ensuring long-lasting reliability in various environments.
