AMD Ryzen 5 5600X Processor - Asus Prime B550M-K motherboard - Crucial 16GB 2 x

8GB 3200GHz Ballistix Ram - Crucial P2 500GB M.2 2280 SSD - ASUS TUF GeForce RTX

3060Ti OC Edition 8GB GDDR6 - Cougar MX440 Mesh RGB +650W 80+ Bronze PSU

Gaming Case

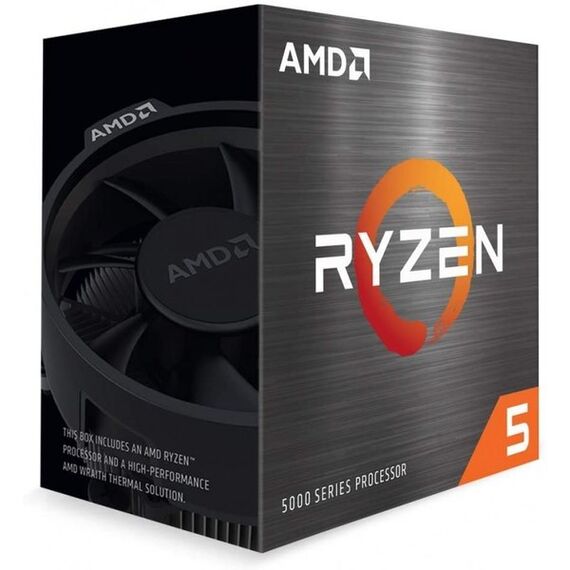

AMD Ryzen 5 5600X Processor:

Specifications# of CPU Cores 6

# of Threads 12

Base Clock 3.7GHz

Max Boost Clock

Up to 4.6GHz

Total L2 Cache 3MB

Total L3 Cache 32MB

Unlocked Yes

CMOS TSMC 7nm FinFET

Package AM4

PCI Express® Version PCIe 4.0

>span class="spec-footnote-link" data-toggle="tooltip" data-delay="{" hide":="" 500}"="" data-html="true" data-placement="bottom" data-original-title="

AMD`s product warranty does not cover damages caused by overclocking, even when overclocking is enabled via AMD hardware and/or software. GD-26.

" data-redactor-style-cache="font: inherit; padding: 0px; overflow: visible; transition: all 0.2s ease 0s; border-width: initial !important; border-style: none !important; border-color: initial !important;">Default TDP / TDP 65W

Max Temps 95°C

*OS Support Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer.

System MemorySystem Memory Specification Up to 3200MHz

System Memory Type DDR4

Key FeaturesSupported Technologies AMD "Zen 3" Core Architecture AMD StoreMI Technology AMD Ryzen™ Master Utility

AMD Ryzen™ VR-Ready Premium

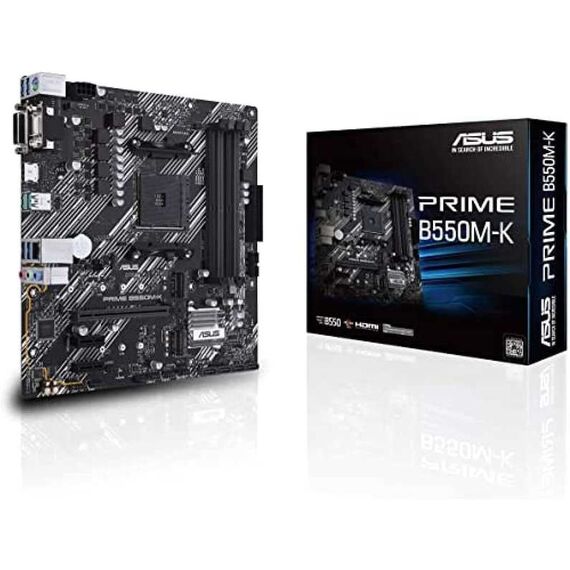

Asus Prime B550M-K micro ATX motherboard:

AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Comprehensive cooling: PCH heatsink and Fan Xpert 2+

Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A

5X Protection III: Multiple hardware safeguards for all-around system protection

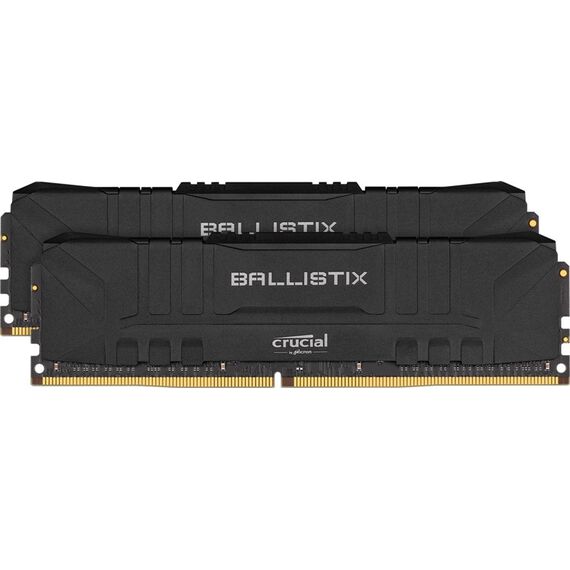

Crucial Ballistix 16GB Kit (2 x 8GB) DDR4-3200MHz Ram:

Modern Design:

Anodized aluminum heat spreader available in black, white, or red. Low-profile form factor is ideal for smaller or space-limited rigs.

Bold RGB Effects:

Customize your rig’s color scheme with 16 RGB LEDs in 8 zones on each Crucial Ballistix RGB module.

Ideal for laptop gamers:

Crucial Ballistix SODIMM memory is ideal for laptop gamers and performance enthusiasts. Aluminum heat spreader included for thermal management in a compact space.

Redefine Game Performance:

XMP 2.0 support and pre-defined profiles let you overclock2 to extract maximum performance. Select the JEDEC default profile for standard performance.

Compatibility Tested:

We work with AMD and Intel, as well as motherboard designers and system builders, to ensure our memory is optimized for high performance.

Precision Parts:

As the manufacturer of memory components, we do more than bin parts. We optimize performance at the die level.

Crucial P2 500GB M.2 2280 SSD:

Crucial P2 SSD:

Whether you're at work, playing games, or on the go, normal download speeds can ruin your best plans. The good news is that the Crucial® P2 SSD actually flies. With plenty of memory and NVMe  accelerated performance, the P2 has the speed and reliability you need to unlock the potential of your PC.  Impressive speeds up to 2400MB/s4

Do More. Wait Less:

Try the difference between NVMe ™. Crucial P2 improves PC performance by reducing startup time and speeding up data transfers.

Lasting Reliability:

Supported by thousands of certification hours, dozens of proficiency tests, award-winning Sifly state drives and 5-year limited warranty².

Peace of Mind:

Includes SSD management software for improved performance, data security, and firmware updates.

Specifications:

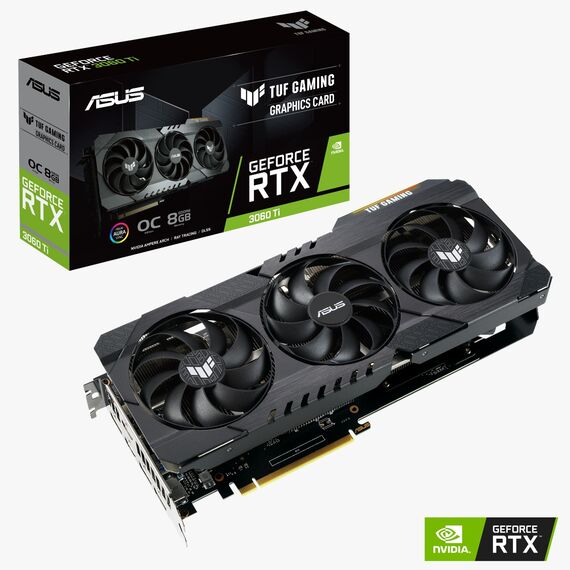

ASUS TUF GeForce RTX 3060Ti OC Edition 8GB GDDR6:

NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.

2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.

3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.

OC Edition: Boost clock 1785 MHz (OC mode)/ 1755 MHz (Gaming mode)

Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.

Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

Military-grade capacitors and other TUF components enhance durability and performance.

GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

BUILT TUF

The TUF GAMING GeForce RTX™ 3060 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, a thick heatsink keeps thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new “old faithful”, this card has your back.

FANS

AXIAL-TECH UPGRADES

TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA’s new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.

HEATSINK

MAXCONTACT To get heat up off the die and into the heatsink array, we’ve engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.

2.7-SLOT DESIGN

The heat spreader draws heat up into heat pipes that carry it through a fin stack that fills most of the card’s large, 2.7-slot footprint.

PCB

TUF COMPONENTS

Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.

FRESH SHROUD

An all-aluminum shroud adds robust protection to TUF Gaming graphics cards and a no-nonsense industrial design and grayscale colorway fits into any build with ease.

xIT’S COOLER OUT BACK

The underside of the card reveals a host of improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows customization of the card’s default performance profile without software.

FUNCTIONAL FRONT

The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. An 8-pin connector fulfills the power demands of the GeForce RTX 3060 Ti, and onboard LEDs light up if the power connectors are not plugged in correctly.

GPU TWEAK II

The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

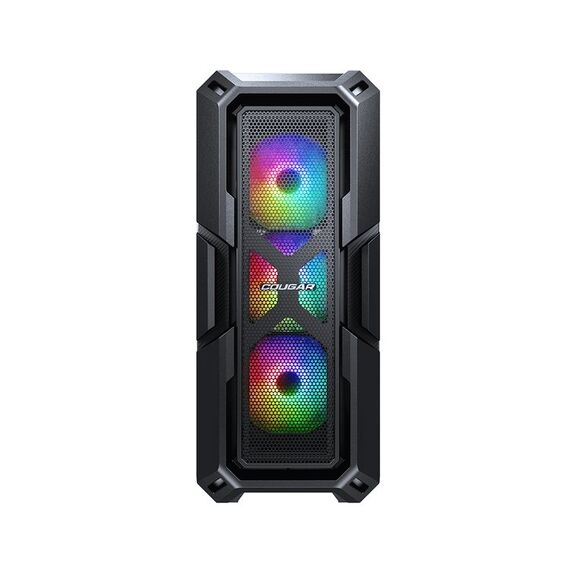

Cougar MX440 Mesh RGB +650W 80+ Bronze PSU Gaming Case:

Powerful medium tower with airflow and strong and solid style:

The MX440 mesh RGB design inherits the rugged style that is characteristic of COUGAR. With three RGB fans and a mesh front panel, it combines excellent airflow performance with excellent display backlight. In addition, it has a spacious and powerful interior that allows you to expand your device, high cooling efficiency and ample storage space.

Strength, Sturdy, and Superior Airflow:

The MX440 mesh RGB front panel features thick lines and a sturdy chassis. It is the chassis that brings a new concept of strength and durability to the gaming world. In addition, the mesh front panel provides excellent airflow and prevents advanced components from overheating.

Incredible RGB Lighting:

The MX440 mesh RGB comes with 3 RGB fans. With the dedicated RGB buttons, you have the freedom to control many of the great lighting effects you've prepared so far.

Massive Tempered Glass Left Panel:

A cable that hides the full-length power cover and a thick left tempered glass panel make it easy to build a professional system for a clean and tidy design.

Wider but More Compact and Powerful:

The 215mm width of the MX440 mesh RGB provides much more internal space with better cooling performance and cable management. However, its compact external dimensions do not occupy much desktop space. The MX440 Mesh RGB is ideal for full-sized ATX motherboards, 320mm graphics cards, four 2.5-inch hard drives and two 3.5-inch hard drives for maximum playback and high storage capacity.

Sufficient for Multiple USB Devices:

The top panel has two USB 3.0 ports and one USB 2.0 port, allowing you to easily connect multiple peripherals to charge your accessories. This not only improves the processing experience, but also frees all USB devices.

The MX440 mesh RGB internal space supports CPU air cooling up to 170mm in height, 360mm water cooling radiators, and advanced cooling components. Helps protect critical components from overheating.

Specifications:

Product Name MX440 Mesh RGB

Case Form Factor Mid Tower

Motherboard Type Mini ITX / Micro ATX / ATX

Dimensions (WxHxD) 215 x 505 x 424 (mm)

8.5 x 19.9 x 16.7 (in)

I/O Panel USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button

3.5" Drive Bay 2

2.5" Drive Bay 4 + 1 (converted from 3.5" drive bays) / (2 SSD trays included)

Expansion Slots 7

Cooling Fan Support Front 120mm x 3 / 140mm x 2 (120mm RGB Fans x 3 pre-installed)

* The RGB fans of MX440 series do not support synchronization with motherboards.

Top 120mm x 2

Rear 120mm x 1 / 140mm x 1

Maximun Number of Fans 6 Max.

Water Cooling Support Front 360mm / 280mm / 240mm / 140mm / 120mm

Top 240mm / 120mm

Rear 140mm / 120mm

Transparent Left Panel 4mm Tempered Glass

Max. Graphics Card Length 320 (mm) / 12.6 (in)

* Horizontal graphics card slots are compatible with RTX 3090/3080/3070.

Max. CPU Cooler Height 170 (mm) / 6.7 (in)

Max. PSU Length 150 (mm) / 5.9 (in)
