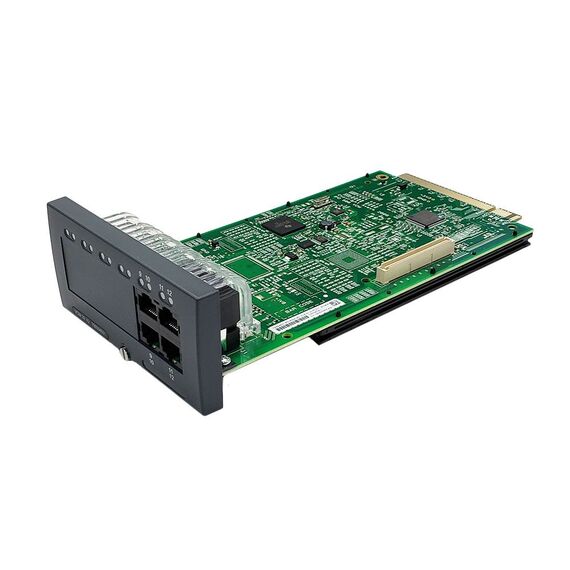

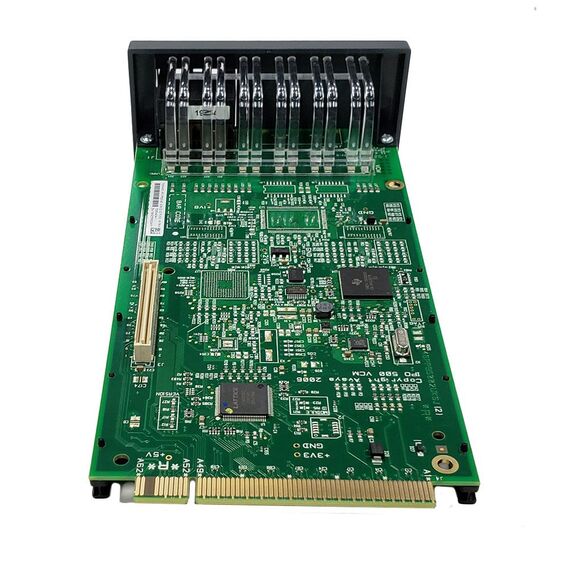

AVAYA IP500 VCM 64 V2 Base Card
AVAYA, IP500 VCM, 64, V2, Base Card,
This type of card is used to add voice compression channels to the control unit. Those channels are used for VoIP calls including IP extensions and or IP trunks. IP500 V2 control units support up to 148 voice compression channels, using IP500 VCM cards and IP500 Combination Cards.

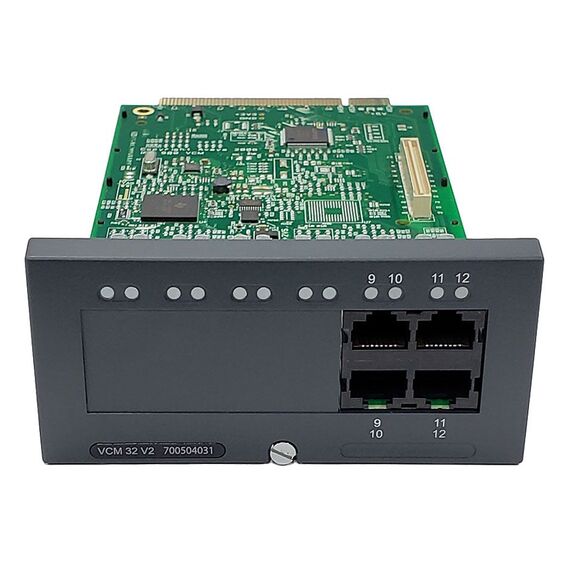

The cards are available in 32 channel and 64 channel variants. All the card variants have 4 RJ45 ports which are used for trunk connections when an IP500 trunk daughter card is fitted.
Supports:
Codecs G.711, G.729ab and G.723 with 64ms echo cancellation. The maximum number of simultaneous channels useable on an IP500 VCM base card is affected by the codec being used. The following table assumes that all calls using the VCM use the same codec. Note: Whilst IP500 VCM cards support G729b, it is not supported by other IP Office systems such as Linux based systems.
G.722 is supported by IP Office Release 8.0 and higher in systems with an IP500 VCM card or an IP500 Combination card.
| Codec | IP500 VCM 32 | IP500 VCM 64 |
| G.711 | 32 | 64 |
| G.729ab | 30 | 60 |
| G.723 | 22 | 44 |
| G.722 | 30 | 60 |
- Maximum per Control Unit: 2.
- IP500 Trunk Card Support: tick 1.
- IP Office Modes: Not supported in IP Office Basic Edition modes.
| Port Type | Ports | Features | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Not present | 1 to 8 | LEDs•LEDs 1 to 8 are unlabelled. They are used to indicate voice compression channel usage. Each LED lit represents 12.5% of the available voice compression channel capacity in use. •LED1 is also used for base card status:
| ||||||||
| Optional Trunk Card Ports | 9 to 12 | The card can be fitted with one trunk daughter card of any type. The trunk daughter card then uses ports 9 to 12 on the base card for its trunk connections. LEDsLED use depends on the type of daughter card installed on the base card: •LED 9 is also used for daughter card status.
|
|
| Name | Description | SAP Code |
| IP500 Voice Compression Modules | IPO IP500 MC VCM 32 | IP Office 500 Media Card Voice Coding Module 32 | 700417389 |
| IPO IP500 VCM 32 TAA | " Trade Agreements Act compliant variant. | 700501518 | |
| IPO IP500 MC VCM 64 | IP Office 500 Media Card Voice Coding Module 64 | 700417397 | |
| IP500 Voice Compression Modules V2 | IPO IP500 MC VCM 32 V2 | IP500 Media Card Voice Coding Module 32 V2 | 700504031 |
| IPO IP500 VCM 32 TAA V2 | " Trade Agreements Act compliant variant. | 700504033 | |
| IPO IP500 MC VCM 64 V2 | IP500 Media Card Voice Coding Module 64 V2 | 700504032 |
Performance figures, data and operation quoted in this document are typical and must be specifically confirmed in writing by Avaya before they become applicable to any particular order or contract. The company reserves the right to make alterations or amendments at its own discretion. The publication of information in this document does not imply freedom from patent or any other protective rights of Avaya or others. All trademarks identified by ™, ® or © are registered trademarks or trademarks respectively are the property of their respective owners.
