Hikvision DS-KIS603-P IP Video Intercom Kit + Hikvision DS-KH6320-WTE1 KH6 Series IP-Based Indoor Station
The Hikvision DS-KIS603-P IP Video Intercom Kit is designed to provide a seamless and secure communication system for residential and commercial properties. Equipped with an embedded Linux operating system, the kit ensures reliable performance and stability. The intercom system features a 2MP HD camera that offers high-definition video quality, supplemented by low illumination IR for effective night vision up to 3 meters. This ensures clear visibility and security in various lighting conditions.
Superior Video and Audio Capabilities
The intercom system supports advanced video technologies such as true Wide Dynamic Range (WDR), backlight compensation, and digital noise reduction, enhancing image clarity and reducing visual distortions. It captures a wide field of view with horizontal coverage of 129° and vertical coverage of 75°. The main stream delivers video at 1080p@30fps, while the sub stream provides D1@25fps. Audio features include a built-in omnidirectional microphone and loudspeaker, supporting two-way communication with noise suppression and echo cancellation, adhering to the G.711 U audio compression standard at a rate of 64 Kbps.
Robust Network and Interface Support
The Hikvision DS-KIS603-P is equipped with versatile network and interface options. It supports TCP/IP and RTSP protocols and features a 10/100 Mbps Ethernet connection, ensuring smooth and reliable data transmission. The device includes an RS-485 interface, four alarm inputs, a debugging port, grounding, and a tamper switch, enhancing its adaptability to various security setups.
Reliable and Durable Design
Built to withstand harsh environmental conditions, the hikvision intercom boasts an IP65 protection level, making it resistant to dust and water ingress. It operates efficiently in temperatures ranging from -40°C to 53°C (-40°F to 127.4°F) and in humidity levels of 10% to 95%. With a power consumption of less than 10 W, it supports both IEEE802.3af standard PoE and 12 VDC power supply options. The intercom system compact dimensions (138 mm × 65 mm × 27 mm) and surface mounting installation make it easy to install and integrate into various settings.

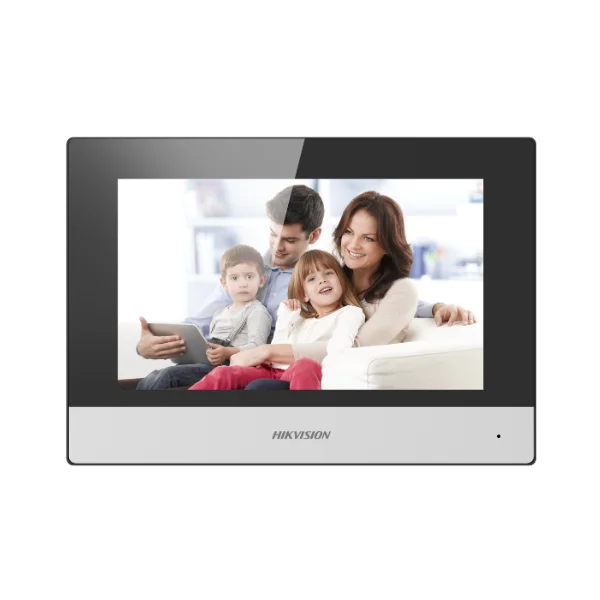

High-Resolution Indoor Station Display
The indoor station of the Hikvision DS-KIS603-P kit features a 7-inch colorful TFT capacitive touch screen with a resolution of 1024 × 600, providing a clear and user-friendly interface. The built-in omnidirectional microphone and loudspeaker ensure clear audio communication, supported by noise suppression and echo cancellation. Like the door station, the indoor unit also adheres to the G.711 U audio compression standard at a rate of 64 Kbps.
Extensive Network and Connectivity Features
The hikvision intercom supports both wired (10/100 Mbps Ethernet) and wireless (Wi-Fi 802.11 b/g/n) network connections, offering flexibility in installation and operation. It adheres to TCP/IP, SIP, and RTSP protocols, ensuring compatibility with various network configurations. The device also features an RS-485 interface, eight alarm inputs, two relay outputs, and a TF card slot supporting up to 32 GB (SD 2.0 or lower version), enabling extensive customization and expansion capabilities.
An Integrated Security Solution
The hikvision intercom combines advanced video, audio, and network technologies to provide a comprehensive security solution. Its robust design, high-definition camera, superior audio quality, and extensive network support make it an ideal choice for enhancing security and communication in residential and commercial properties.

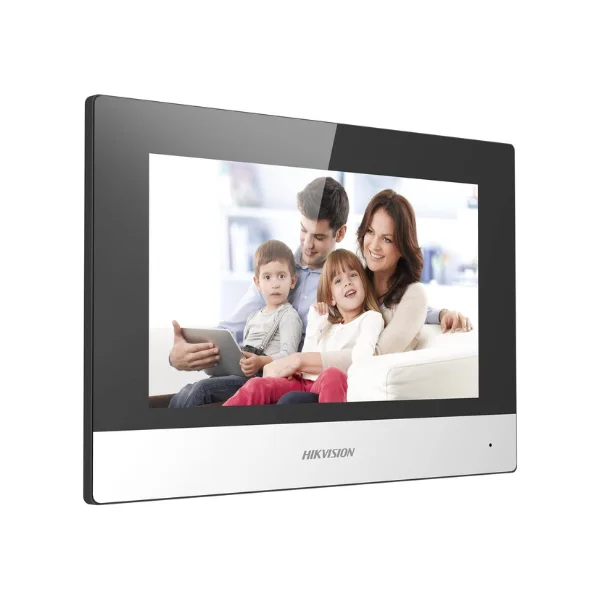

Hikvision DS-KH6320-WTE1 KH6 Series IP-Based Indoor Station
The Hikvision DS-KH6320-WTE1 KH6 Series IP-Based Indoor Station is a sophisticated communication device designed for seamless indoor security management. Operating on a Linux system with 32 MB ROM and 128 MB RAM, it is equipped with an embedded high-performance processor, ensuring efficient and reliable performance.
High-Resolution Display
The 7-inch capacitive touch screen of the Hikvision DS-KH6320-WTE1 offers a vibrant and clear display with a resolution of 1024 × 600. The colorful TFT screen enhances the user experience, making navigation and monitoring straightforward and visually appealing.
Superior Audio Quality
This indoor station boasts advanced audio features, including a built-in omnidirectional microphone and loudspeaker. With support for G.711U/G.711A audio compression standards and a 64 Kbps compression bitrate, it delivers clear and crisp audio. Additionally, noise suppression and echo cancellation technologies further enhance audio quality, ensuring smooth communication.
Extensive Capacity
The Hikvision DS-KH6320-WTE1 provides ample storage capacity, supporting up to 200 captured pictures and 200 alarm records with a TF card inserted. Without a TF card, it offers 2 MB RAM for picture storage. The device also supports up to 16 linked indoor extensions, 17 doorphone connections, and 16 network cameras, making it a versatile solution for various security setups.
Robust Network Connectivity
Featuring TCP/IP, SIP, and RTSP network protocols, the indoor station ensures reliable and fast communication. It supports 2.4 GHz Wi-Fi (IEEE802.11b/g/n) for wireless connectivity, enhancing installation flexibility. However, it does not support Bluetooth, 3G/4G, or Zigbee connections.
Comprehensive Device Interfaces
The intercom includes a variety of interfaces such as an RJ-45 network interface, RS-485 (half duplex), and support for a TF card up to 128 GB. It also features 8 alarm inputs, 2 alarm outputs, and 2 relays for lock control, offering extensive integration options for a comprehensive security system.
Durable and User-Friendly Design
Designed for indoor use, the video intercom hikvision can operate in temperatures ranging from -10 °C to 55 °C (14 °F to 131 °F) with a humidity range of 10% to 90% (non-condensing). The device is surface-mounted, making installation straightforward. It has a net weight of 355 g (0.8 lb) and a gross weight of 683 g (1.5 lb), ensuring it is lightweight and easy to handle.
Multilingual Support
The indoor station supports a wide range of languages, including English, Russian, German, Spanish, and many more. This multilingual support makes the video intercom hikvision accessible and user-friendly for a diverse range of users across different regions.
The video intercom hikvision is a robust and versatile communication device ideal for enhancing indoor security management. With its high-resolution display, superior audio quality, extensive capacity, and comprehensive network connectivity, it stands out as a reliable and efficient solution for modern security needs.
