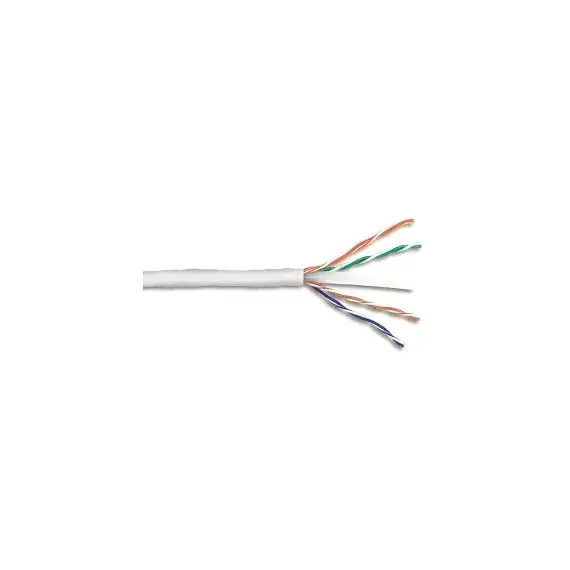

Schneider ACT4P6ULS3RWE Cat6 4pr LSZH UTP Cable 305m
ACT4P6ULS3RWE
شنايدر ACT4P6ULS3RWE كابل كات6 4pr LSZH UTP بطول 305م
اطلب عرض سعر
اتصل بنا
تواصل معنا عبر واتساب
طرق الدفع
الرجاء تسجيل الدخول حتى نتمكن من إخطارك بالرد
الماركة
شنايدر
شنايدر ACT4P6ULS3RWE
شنايدر ACT4P6ULS3RWE كابل كات6 4pr LSZH UTP بطول 305م
رئيسي:
| range | Actassi |
|---|---|
| product or component type | Copper cable |
| colour tint | White |
| cable shielding type | U/UTP |
تكميلية:
| type of cable | 4 pair cables |
|---|---|
| communication network category | 6 |
| minimum return loss | Guaranteed: 21.0 dB at 1 MHz Guaranteed: 24.0 dB at 4 MHz Guaranteed: 25.5 dB at 8 MHz Guaranteed: 26.0 dB at 10 MHz Guaranteed: 26.0 dB at 16 MHz Guaranteed: 26.0 dB at 20 MHz Guaranteed: 25.3 dB at 25 MHz Guaranteed: 24.6 dB at 31.25 MHz Guaranteed: 22.5 dB at 62.5 MHz Guaranteed: 21.1 dB at 100 MHz Guaranteed: 19.0 dB at 200 MHz Guaranteed: 18.3 dB at 250 MHz |
| attenuation | Guaranteed: 9.5 dB @ 25 kHz per 100 m cable Guaranteed: 10.7 dB @ 31.25 kHz per 100 m cable Guaranteed: 19.8 dB @ 100 kHz per 100 m cable Guaranteed: 32.8 dB @ 250 kHz per 100 m cable Guaranteed: 6 dB @ 10 kHz per 100 m cable Guaranteed: 15.4 dB @ 62.5 kHz per 100 m cable Guaranteed: 29 dB @ 200 kHz per 100 m cable Guaranteed: 8.5 dB @ 20 kHz per 100 m cable Guaranteed: 3.8 dB @ 4 kHz per 100 m cable Guaranteed: 5.3 dB @ 8 kHz per 100 m cable Guaranteed: 7.6 dB @ 16 kHz per 100 m cable Guaranteed: 2 dB @ 1 kHz per 100 m cable |
| power sum near-end crosstalk [PSNEXT] | Guaranteed: 75.3 dB at 1 MHz Guaranteed: 66.3 dB at 4 MHz Guaranteed: 61.8 dB at 8 MHz Guaranteed: 60.3 dB at 10 MHz Guaranteed: 57.2 dB at 16 MHz Guaranteed: 55.8 dB at 20 MHz Guaranteed: 54.3 dB at 25 MHz Guaranteed: 52.9 dB at 31.25 MHz Guaranteed: 48.4 dB at 62.5 MHz Guaranteed: 45.3 dB at 100 MHz Guaranteed: 40.8 dB at 200 MHz Guaranteed: 39.3 dB at 250 MHz |
| near end crosstalk [NEXT] | Guaranteed: 77.3 dB at 1 MHz Guaranteed: 68.3 dB at 4 MHz Guaranteed: 63.8 dB at 8 MHz Guaranteed: 62.3 dB at 10 MHz Guaranteed: 59.2 dB at 16 MHz Guaranteed: 57.8 dB at 20 MHz Guaranteed: 56.3 dB at 25 MHz Guaranteed: 54.9 dB at 31.25 MHz Guaranteed: 50.4 dB at 62.5 MHz Guaranteed: 47.3 dB at 100 MHz Guaranteed: 42.8 dB at 200 MHz Guaranteed: 41.3 dB at 250 MHz |
| input impedance | 100 Ohm (+/- 6) at 1…100 MHz |
| maximum loop resistance | 73.2 Ohm |
| capacitance unbalance | 330 pF / 100 m |
| maximum resistance unbalance | 5 >#/span### |
| wire insulation material | PE |
| conductor material | Solid bare copper |
| AWG gauge | AWG 23 |
| cable outer diameter | 6 mm |
| cable length | 305 m |
الوسط المحيط:
| ambient air temperature for operation | 75 °C |
|---|---|
| product certifications | IEC |
| flame retardance | LSZH |
| standards | ANSI/TIA/EIA-568-B ISO/IEC 11801 UL 444 |
وحدات التعبئة:
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 14.5 kg |
| Package 1 Height | 35 cm |
| Package 1 width | 27 cm |
| Package 1 Length | 33 cm |
الضمان التعاقدي:
| Warranty | 18 months |
|---|
