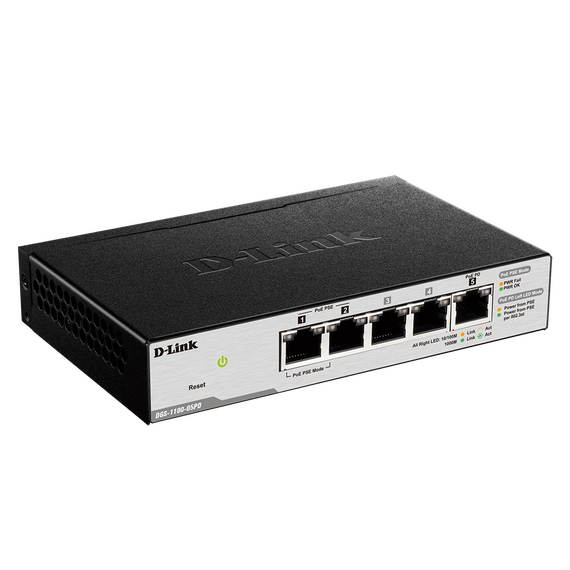

D-Link DGS-1100-05PD 5-Port Gigabit PoE and PoE Extender Smart Managed Switch

D-Link, DGS-1100-05PD, 5-Port, Gigabit, PoE, and, PoE, Extender, Smart, Managed, Switch,

• 2 x 10/100/1000BASE-T PoE ports
• 3 x 10/100/1000BASE-T PoE ports
• Powered by IEEE 802.3af/at Power of Ethernet through port 1
• Compact design for convenient placement
• Fanless design for silent operation
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management

Simple. Easy. Smart.

Web UI: Easy to use web interface to access management features.

Power over Ethernet: Convenient installation of PoE devices in remote areas.

Management Software: Supports DNA and D-View for remote setup and management.

  Advanced Security Features:

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Simplify Network Management:

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Green Technology:

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

Easy Troubleshooting:

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Powered by PoE:

The DGS-1100-05PD can be powered by IEEE 802.3af/at Power over Ethernet through a PoE switch or injector, allowing for more flexible installation in remote areas with no readily available power outlets.
