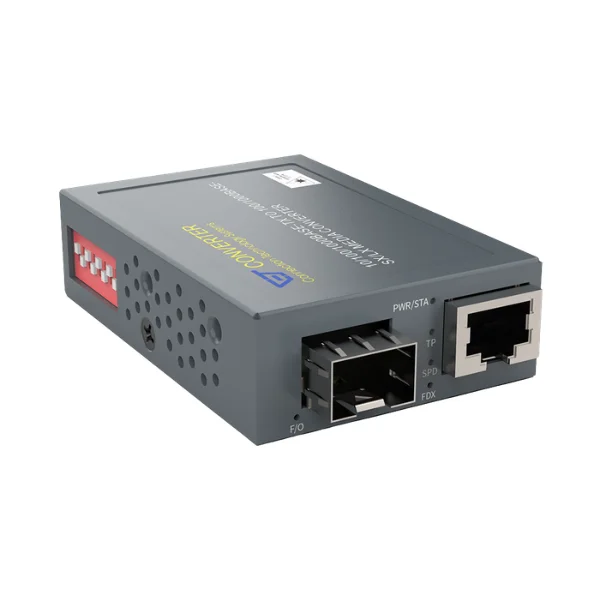

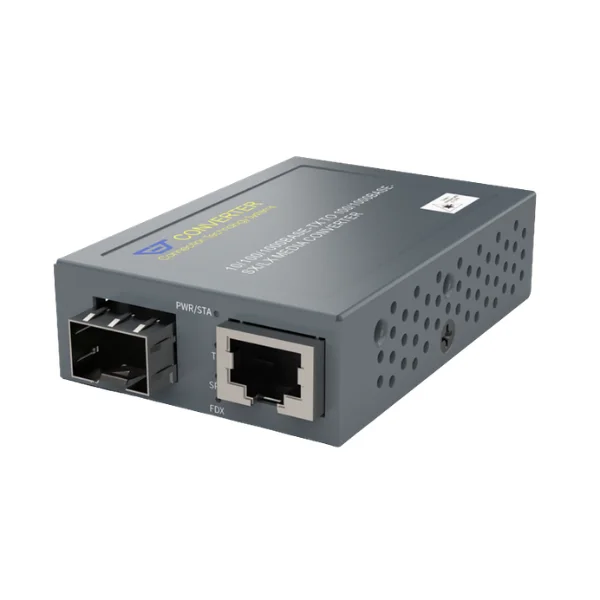

CTS MEDIA CONVERTER 10/100/1000BASE-T TO 1000BASE-X GIGABIT SM/SC/10KM / MCT-3002BTFC(SM-10)
الرجاء تسجيل الدخول حتى نتمكن من إخطارك بالرد
الماركة
CTS
SPECIFICATION
- Interface
- F/O Port:
- 1 x 1000Mbps (BTFX/W2X) or
1 x 100/1000Mbps (BTFX/W2X/SFP) - TP Port:
- 1 x 10/100/1000Mbps (RJ-45)
- Standards
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX/FX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3z 1000Base-X
- Forward/Filter Rate
- 10M: 14,880/14,880pps
- 100M: 148,800/148,800pps
- 1000M: 1,488,000/1,488,000pps
- Management
- DIP Switch Configuration
- Features
- Link Alarm
- H/W Specification
- Store and Forward Switching Mechanism
- Auto-Crossover for MDI/MDI-X in TP Port
- Auto-Negotiation in TP Port
- Full/Half Duplex Mode Operation
- Mac Address Table : 2K
- Memory Buffer : 128K Bytes
- Jumbo Frame up to 9k bytes
- Compatible with MCT-RACK-18 Series
- LED
- Power, FDX, Status, Speed, F/O, TP
- Power Requirement
- Power Adaptor :
- - AC Input : 100VAC~240VAC
- - Frequency Range : 50~60Hz
- - DC Output : 3.3V
- Power Max. Consumption : 2.3W
- Environmental Condition
- Operating Temperature: 0℃ ~ 50℃
- Storage Temperature: -20℃ ~ 60℃
- Humidity: 5% ~ 90%, non-condensing
- Dimension & Weight
- Size: 51 x 74 x 20mm (WxDxH)
- Weight: 0.1Kg
- EMC/Safety
- FCC Class A, CE
