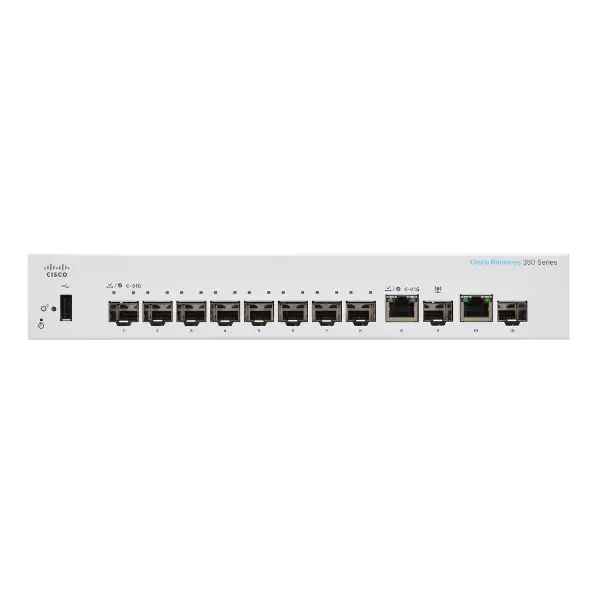

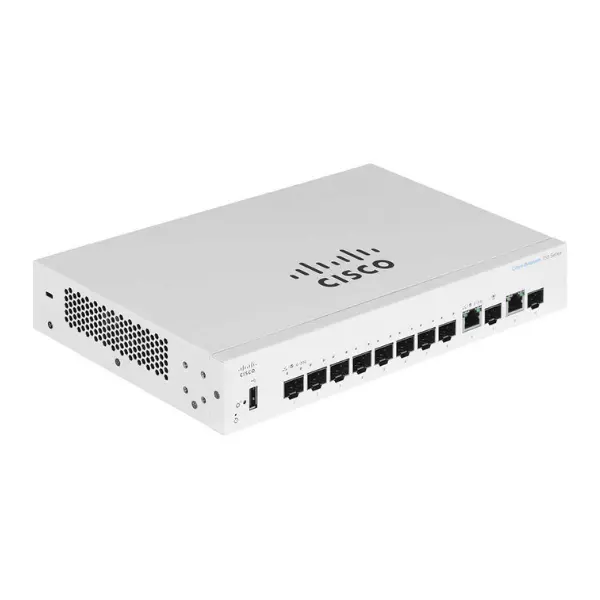

Cisco

CBS350-8S-E-2G

 8-port Gigabit

 SFP Managed

 Switch with 2 Gigabit

 Copper/SFP Combo Ports

The Cisco Business 350 Series Switches, part of the Cisco Business line of network solutions, is a portfolio of affordable managed switches that provides a critical building block for any small office network. Intuitive dashboard simplifies network setup, and advanced features accelerate digital transformation, while pervasive security protects business critical transactions. The Cisco Business 350 Series Switches provide the ideal combination of affordability and capabilities for small office and helps you create a more efficient, better-connected workforce.

Quick Specs:

Product Code:

CBS350-8P-E-2G

Capacity in Millions of Packets per Second (mpps) (64-byte packets)

14.88

Switching Capacity in Gigabits per Second (Gbps)

20.0

Total System Ports

10 x Gigabit Ethernet

RJ-45 Ports

8 x Gigabit Ethernet

Combo Ports (RJ45 + Small form-factor pluggable [SFP])

2 x Gigabit Ethernet combo

Packet Buffer

1.5 MB

Product Details:

High Reliability and Resiliency:

In a growing business where availability 24 hours a day, 7 days a week is critical, you need to ensure business continuity and that employees can always access the data and resources they need. The Cisco Business 350 Series Switches support dual images, allowing you to perform software upgrades without having to take the network offline or worry about the network going down during the upgrade.

IPv6 Support:

As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco Business 350 Series Switches can support the transition to the next generation of networking. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future.

Advanced Layer 3 Traffic Management

The Cisco Business 350 Series Switches enable a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide dynamic Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.

Compact Design:

The sleek and compact design for the Cisco Business 350 Series Switches provide additional deployment flexibility, including outside wiring closet installation such as retail stores, open plan offices, and classrooms without disturbing the environment.

Supported Modules
Table 2 shows the Supported SFP/SFP+ modules of Cisco Business 350 Series Managed Switches.

SKU

Media

Speed

Maximum distance

MGBSX1

Multimode fiber

1000 Mbps

500 m

MGBLX1

Single-mode fiber

1000 Mbps

10 km

MGBLH1

Single-mode fiber

1000 Mbps

40 km

MGBT1

UTP cat 5e

1000 Mbps

100 m

GLC-SX-MMD

Multimode fiber

1000 Mbps

550 m

GLC-LH-SMD

Single-mode fiber

1000 Mbps

10 km

GLC-BX-U

Single-mode fiber

1000 Mbps

10 km

GLC-BX-D

Single-mode fiber

1000 Mbps

10 km

GLC-TE

UTP cat 5e

1000 Mbps

100 m

SFP-H10GB-CU1M

Copper coax

10 Gig

1 m

SFP-H10GB-CU3M

Copper coax

10 Gig

3 m

SFP-H10GB-CU5M

Copper coax

10 Gig

5 m

SFP-10G-SR

Multimode fiber

10 Gig

26 m - 400 m

SFP-10G-LR

Single-mode fiber

10 Gig

10 km

SFP-10G-SR-S

Multimode fiber

10 Gig

26 m - 400 m

SFP-10G-LR-S

Single-mode fiber

10 Gig

10 km
