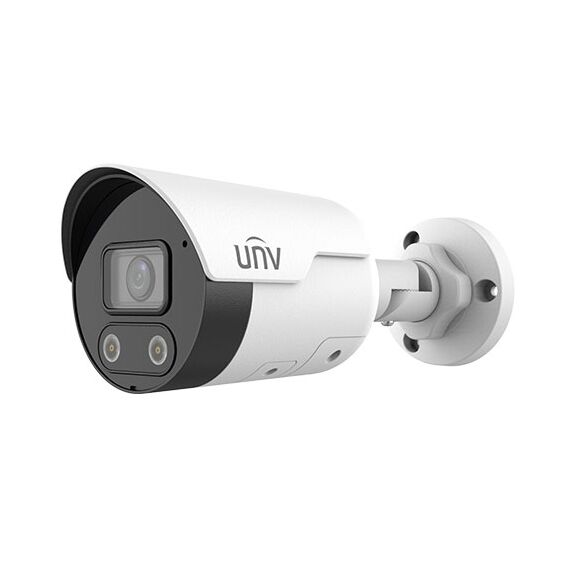

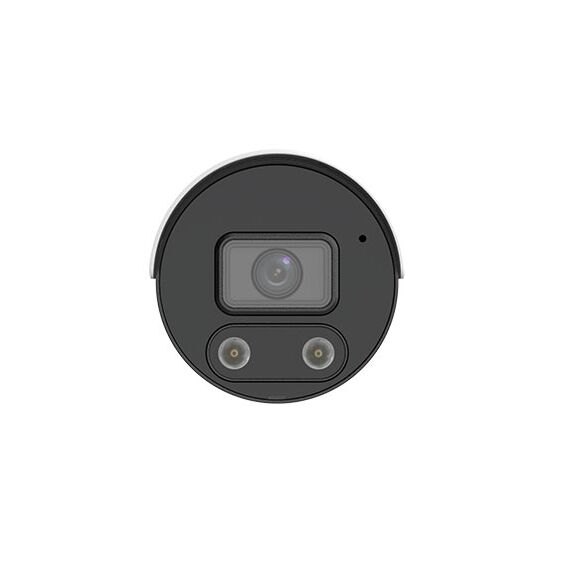

IPC2122LE-ADF40KMC-WL 2MP 4mm HD Color Hunter Mini IR Fixed Bullet Network Camera UNV

اكتب تقييم

الكود:

MU/IPC2122LE-ADF40KMC-WL/09022022

UNV

كاميرا بروتوكول الإنترنت ، أو كاميرا IP ، هي نوع من كاميرات الفيديو الرقمية التي تتلقى بيانات التحكم وترسل بيانات الصورة عبر شبكة IP. يتم استخدامها بشكل شائع للمراقبة ولكن على عكس كاميرات الدوائر التلفزيونية المغلقة التناظرية ، فإنها لا تتطلب جهاز تسجيل محلي ، فقط شبكة منطقة محلية.

اطلب عرض سعر

اتصل بنا

تواصل معنا عبر واتساب

طرق الدفع

المواصفات
الوصف
المرفقات
تقيمات

الماركة

UNV

Part Number

IPC2122LE-ADF40KMC-WL

Camera Technology

IP CAMERA

Indoor / outdoor

INDOOR

مواصفات الدي في ار

Model

IPC2122LE-ADF40KMC-WL

Camera

Sensor

1/2.8", 2.0 megapixel, progressive scan, CMOS

Lens

4.0mm@F1.6

DORI Distance Lens (mm)

4.0

DORI Distance Detect (m)

62.1

DORI Distance Identify (m)

6.2

DORI Distance Observe (m)

24.8

DORI Distance Recognize (m)

12.4

Angle of View (H)

87.5°

Angle of View (O)

92.4°

Angle of View (V)

46.3°

Adjustment angle

Rotate: 0° ~ 360° , Tilt: 0° ~ 90°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour: 0.002Lux ( F1.6, AGC ON) 0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~6 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Supported

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N/A

HLC

Supported

BLC

Supported

Smart

Behavior Detection

Cross line, intrusion(based on human body detection)

General Function

Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Network

Protocols

IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Client

EZStation, EZView, EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Audio

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8KHZ

Interface

Built-in Mic

Supported

Built-in Speaker

Supported

Network

10/100M Base-TX Ethernet

Storage

Edge Storage

Micro SD, up to 128 GB

Network Storage

ANR,NAS(NFS)

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption

Max 9.0W

Dimensions (Ø x H)

191×75×74mm (7.5”×2.9”×2.9”)

Net Weight

0.41kg (0.90lb)

Material

Metal

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Ingress Protection

IP67

Reset Button

N/A

IPC2122LE-ADF40KMC-WL

2MP HD Color Hunter Mini IR Fixed Bullet Network Camera

• High quality image with 2MP, 1/2.8"CMOS sensor • 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps; • Ultra 265, H.265, H.264, MJPEG • 120dB true WDR technology enables clear image in strong light scene • Support 9:16 Corridor Mode • Built-in Mic & Speaker • Smart IR, up to 30m (98ft) IR distance • White Light, up to 30m (98ft) white light distance • Supports 128 G Micro SD card • IP67 protection • Support PoE power supply • 3-Axis
