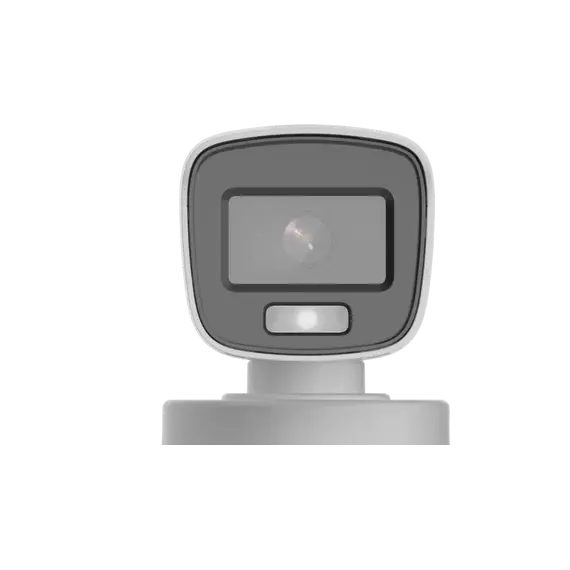

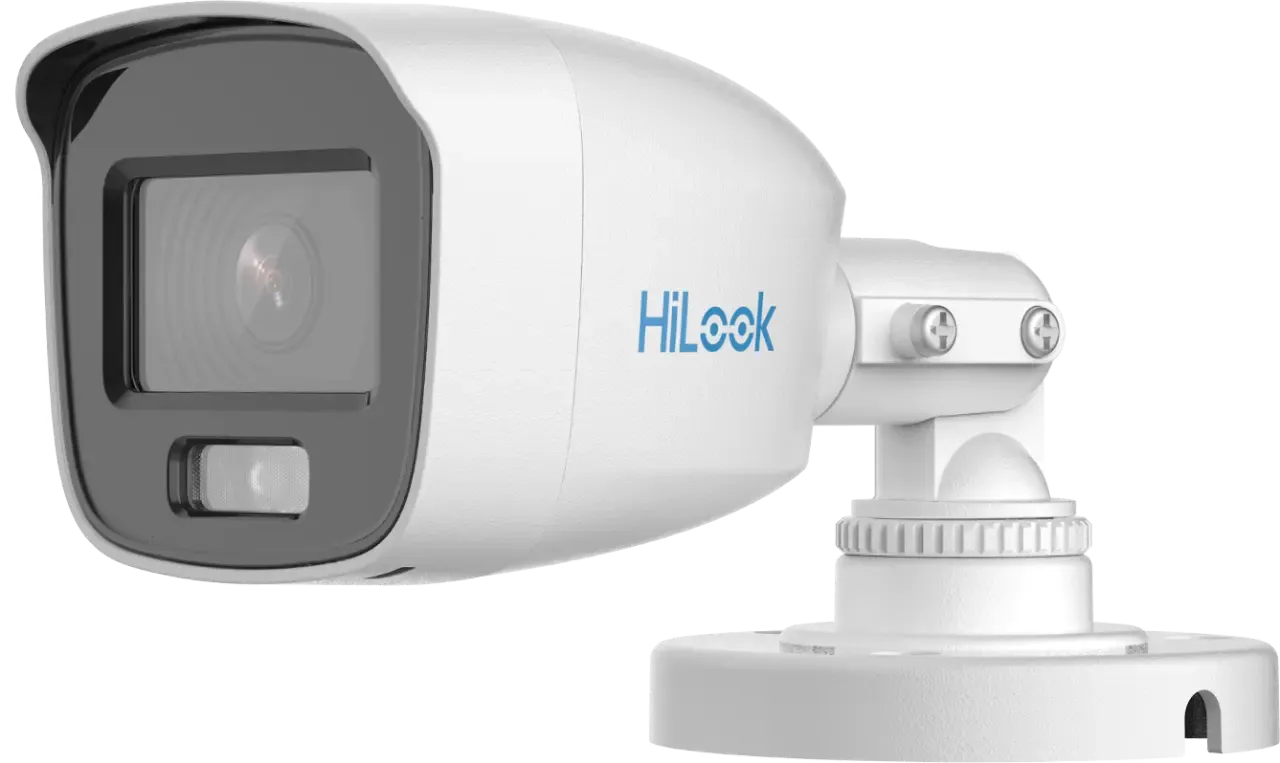

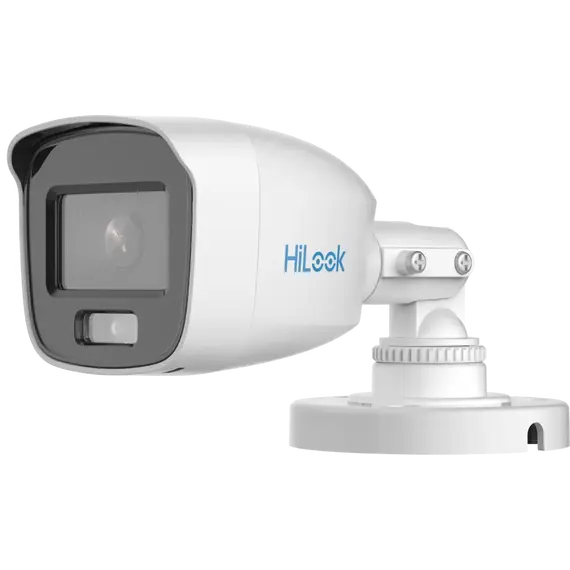

Hilook THC-B129P

2 MP ColorVu Mini Bullet Camera

High quality imaging with 2 MP, 1920 × 1080 resolution

24/7 color imaging with F1.0 aperture

3D DNR technology delivers clean and sharp images

2.8 mm, 3.6 mm, 6 mmfixed focal lens

Up to 20 m white light distance for bright night imaging

One port for four switchable signals (TVI/AHD/CVI/CVBS)

Water and dust resistant (IP66)

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Signal System

PAL/NTSC

Frame Rate

TVI: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

AHD:1080p@25fps/30fps

CVBS: PAL/NTSC

Min. Illumination

0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens Mount

M12

Light Alarm

Solid Light Alarm (White Light)

Day & Night

24/7 Color Imaging

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Lens

Lens Type

2.8 mm/3.6 mm/6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°

3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

6 mm, horizontal FOV: 52°, vertical FOV: 29°, diagonal FOV: 61°

Illuminator

Supplement Light Type

White Light


Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT

Image Settings

Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR;BLC;HLC;Global

White Light

Auto/Off

AGC

Yes

Day/Night Mode

Color

White Balance

Auto/Manual

Noise Reduction

3D DNR/2D DNR

Language

English

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Condition

-40°C to 60°C (-40°F to140°F), humidity: 90% or less (non-condensing)

Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.

Consumption

Max. 2.4 W

Material

Plastic

White Light Range

Up to 20 m

Dimension

162.7 mm × 70 mm × 70 mm (6.41" × 2.75" × 2.75")

Weight

Approx. 152.5 g (0.34 lb.)

Approval

Protection

IP66
