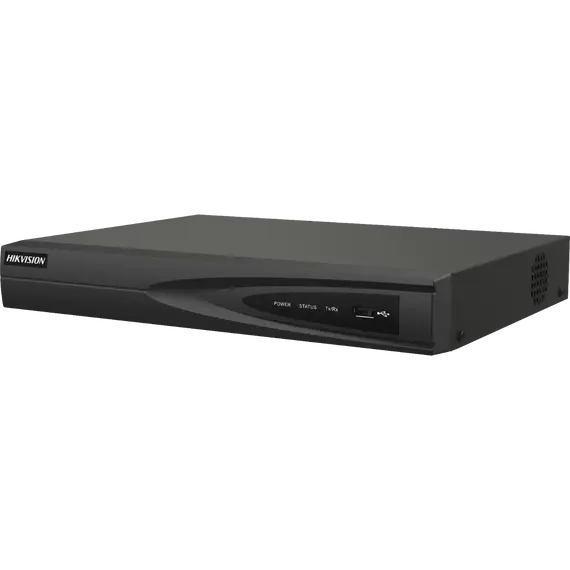

Hikvision DS-7608NI-K1/8P

8-ch 1U 8 PoE 4K NVR

Up to 8-ch IP camera inputs

H.265+/H.265/H.264+/H.264 video formats

Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity

Up to 80 Mbps incoming bandwidth

Motion Detection 2.0

Human/Vehicle Analysis

4-ch

Recording

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726

Video And Audio

IP Video Input

8-ch

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

80 Mbps

HDMI Output

1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format

H.265+/H.265/H.264+/H.264

Recording Resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Decoding Capability

1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps);1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

Synchronous Playback

8-ch

Network

Remote Connection

32

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

Interface

8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

≤ 75W

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 8 TB capacity for each disk

USB Interface

2 × USB 2.0

Alarm In/Out

N/A (4/1 is optional)

General

Power Supply

48 VDC, 1.88 A

Consumption

≤ 10 W (without HDD and PoE off)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

320 × 240 × 48 mm (12.4" × 9.4" × 1.9")

Weight

≤ 1 kg (without HDD, 2.2 lb.)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
