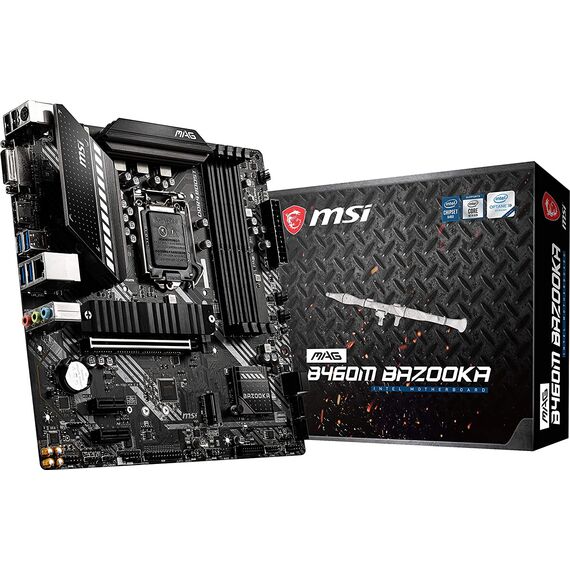

MSI MAG B460 BAZOOKA
الرجاء تسجيل الدخول حتى نتمكن من إخطارك بالرد
الماركة
MSI
Motherboard
CPU SOCKET ( MOTHERBOARD )
LGA1200
Motherboard Chipset
B460
| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket | |
| Chipset | Intel B460 | |
| BIOS | 1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 Multi-language | |
| Form Factor | mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) | |
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio | |
| Expansion Slots | ||
| PCI | 1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4x DDR4 memory slots | |
| Supported Memory | Intel Core i7/i9 Support DDR4-2933 Memory (Max.) Intel Core i5 (Below) Supports DDR4-2666 Memory (Max.) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) | |
| Maximum Mamory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz | |
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | |
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN Controller | |
| Supported Storage | 4x SATA 6Gb/s ports 1 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1 M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready 2 Supports Intel Smart Response Technology for Intel Core processors | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector | |
| DVI-D (s) | 1 x DVI-D Port | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |
| Others | ||
| Special Features | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 4x EZ Debug LED | |
