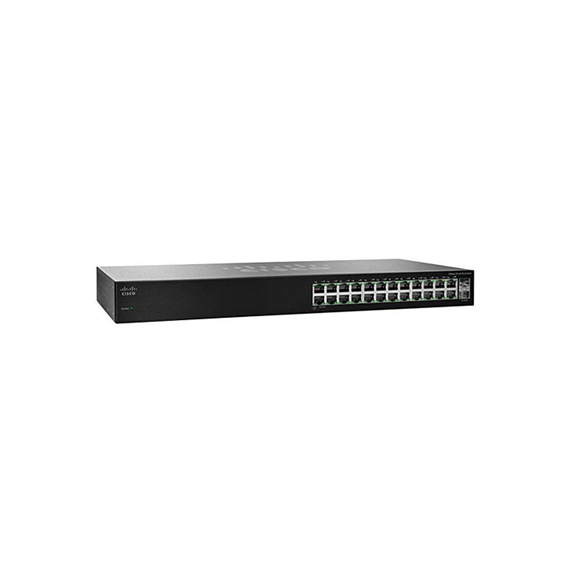

Cisco Switch 24 Port Unmanaged Gigabit PoE+ 12x PoE+ Ports (100W) / SG110-24HP
Cisco Switch 24 Port Unmanaged Gigabit PoE+ 12x PoE+ Ports (100W) / SG110-24HP
- Sixteen (24) 10/100/1000 Gigabit ports with automatic medium dependent interface (MDI) and MDI crossover (MDI-X); auto negotiated port for connecting.
- Twelve (12) PoE+ Power over Ethernet ports for up to 15.4W per port, total PoE budget of 100W.
- Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link.
- Compact desktop form factor that offers a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room.
- Includes advanced Cisco traffic-handling features to keep your applications running at peak performance.
- Includes cable diagnostic feature and Loop Detection
- Integrated QoS intelligence on the switch automatically prioritises delay-sensitive services such as voice or video.
- Works right out of the box, with no software to install and nothing to configure.
Key Features
Power-over-Ethernet
The Cisco SG110-24HP switches comes with twelve (12) PoE+ ports. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other solutions by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly, and at a lower cost. The total PoE budget of the Cisco SG110-24HP switch is 100W.
General | |
Device type | Switch - 24 ports - unmanaged |
Enclosure type | Rack-mountable - 1U |
Ports | 22 x 10/100/1000 + 2 x combo SFP |
Power over Ethernet (PoE) | PoE |
Performance | Switching capacity: 48 Gbps ¦ Forwarding performance (64-byte packet size) : 35.7 Mpps |
MAC address table size | 8000 entries |
Jumbo frame support | Yes |
Features | Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet |
Compliant standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x, 802.3af |
Status indicators | Power, link/activity, PoE, cable diagnostics, loop detection |
Expansion and Connectivity | |
Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x SFP (mini-GBIC) - PoE |
Power | |
Power device | Power supply - internal |
Voltage required | 100-240V AC/50-60 Hz universal input |
Electric current required | N/A |
Miscellaneous | |
Width | 17.4 in |
Depth | 8 in |
Height | 1.7 in |
Weight | 5.05 lbs |
Fanless | No |
Compliant standards | UL 60950, FCC CFR47 Part 15, CSA 22.2 |
Localization | Chinese (simplified), German, French, Italian, Spanish, Japanese |
Software/System Requirements | |
OS required | N/A |
Manufacturer Warranty | |
Service and support | Limited lifetime warranty |
Service and support details | Limited warranty - replacement - lifetime ¦ Limited warranty - power supply and fans - 1 year ¦ Technical support - phone consulting - 1 year |
Environmental Parameters | |
Min operating temperature | 32 °F |
Max operating temperature | 104 °F |
Humidity range operating | 10 - 90% (non-condensing) |
Min storage temperature | -4 °F |
Max storage temperature | 158 °F |
Humidity range storage | 10 - 90% (non-condensing) |
