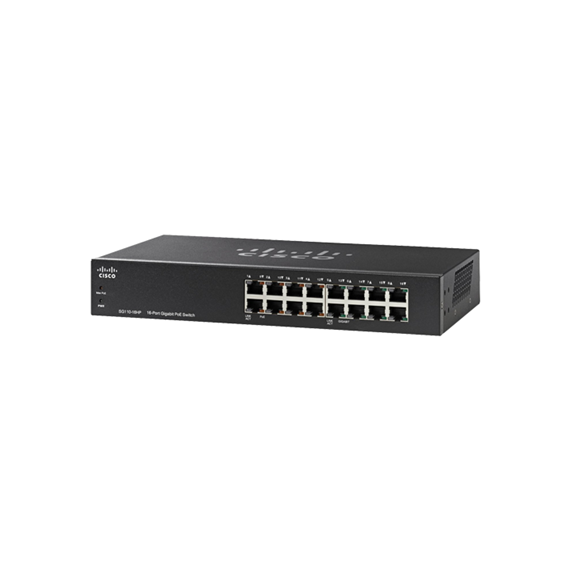

Cisco 16 Port Unmanaged Gigabit PoE+ Switch 8x PoE+ Ports (64W) / SG110-16HP

Write a review
AE6/2/2019MAE
4,870 EGP
Cisco
Out of stock

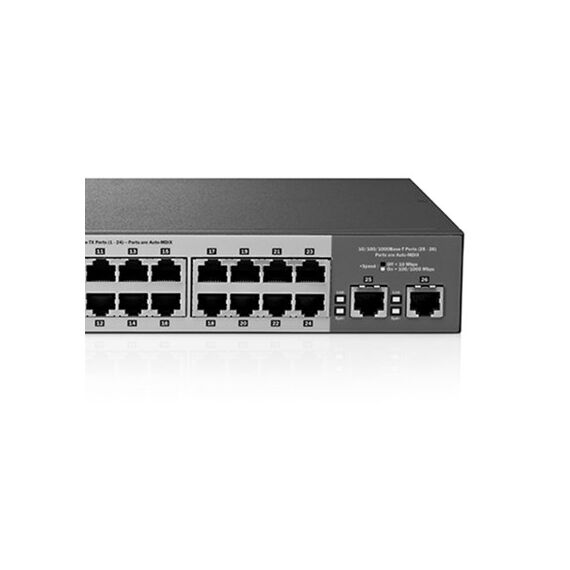

HP 1410-24-2G ProCurve 24-Port Unmanaged Fast Ethernet Switch w/ 2x Gigabit Ports / J9664A

Reward points: 2435 points
Get a quote
Call Us
Chat us on Whatsapp
Payment Methods
  • Sixteen (16) 10/100/1000 Gigabit ports with automatic medium dependent interface (MDI) and MDI crossover (MDI-X); auto negotiated port for connecting.
  • Eight (8) PoE+ Power over Ethernet ports for up to 30W per port, total PoE budget of 64W.
  • Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link.
  • Compact desktop form factor that offers a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room.
  • Includes advanced Cisco traffic-handling features to keep your applications running at peak performance.
  • Includes cable diagnostic feature and Loop Detection
  • Integrated QoS intelligence on the switch automatically prioritises delay-sensitive services such as voice or video.
  • Works right out of the box, with no software to install and nothing to configure.
Brand:
Cisco
Switch Specification
Switch Type
Unmanaged
Placement Options
Rackmount
Ports
16-18
Power
PoE+

Performance

Switching capacity

  • 32 Gbps

Forwarding capacity

Forwarding rate in million packets per second (mpps) (based on 64-byte packets)

  • 23.8 mpps

Layer 2 Switching

Head-of-line (HOL) blocking

  • HOL blocking prevention

Jumbo Frame

  • Yes

Cable diagnostics

  • Yes

Loop detection

  • Yes

Quality of Service (QoS)

Priority levels

  • 4 hardware queues

Scheduling

  • Priority queuing and weighted round-robin (WRR)

Class of service

  • 802.1p priority based

Product Specifications

Ports

  • 16x RJ-45 connectors for 10BASE-T/100BASE-TX; Automatic medium dependent interface (MDI) and MDI crossover (MDI-X); auto negotiated port for connecting 10-, 100-, 1000- Mbps devices.
  • 8x PoE+ Power over Ethernet ports for up to 30W per port, total PoE budget of 64W.

PoE

  • 8x PoE ports with 64W dedicated power budget

Switch housing

  • Metal

Cabling type

  • Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; 1000BASE-T recommended

Standards

  • 802.3 10BASE-T Ethernet
  • 802.3u 100BASE-TX Fast Ethernet
  • 802.3ab 1000BASE-T Gigabit Ethernet
  • 802.3z Gigabit Ethernet
  • 802.3x flow control
  • 802.1p priority
  • IEEE 802.3az, Energy Efficient Ethernet

Environmental

Dimensions W x H x D

  • 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm)

Unit weight

  • 4.15 lb. (1.43 kg)

Power

  • 100-240VAC, 50-60 Hz, internal, universal

Certifications

  • UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature

  • 32° to 104°F (0° to 40°C)

Storage temperature

  • -4° to 158°F (-20° to 70°C)

Operating humidity

  • 10% to 90%, relative, non-condensing

Storage humidity

  • 10% to 90%, relative, non-condensing

Package Contents

  • Cisco SG110-16HP Switch (110 Series)
  • Power cord/power adapter
  • Mounting hardware
  • Quick-start guide

Minimum Requirements

  • Category 5 Ethernet network cable
  • TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network

Warranty

  • Limited lifetime
