TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch 4-Port PoE

1,250 EGP
In stock
Reward points: 625 points
Brand :
TP-Link
Model :
TL-SG1005P
Switch Specification
Placement Options
Desktop
Ports
5-8
Power
PoE

TP-Link TL-SG1005P

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch 4-Port PoE

5 RJ45 ports 10/100 / 1000Mbps
With four PoE ports, transfer data and power in one cable
Working with IEEE 802.3af compliant PD modules expands the home and office network.
802.1p / DSCP QoS ensures smooth, secure emotional traffic
No need to configure and install


Applications:

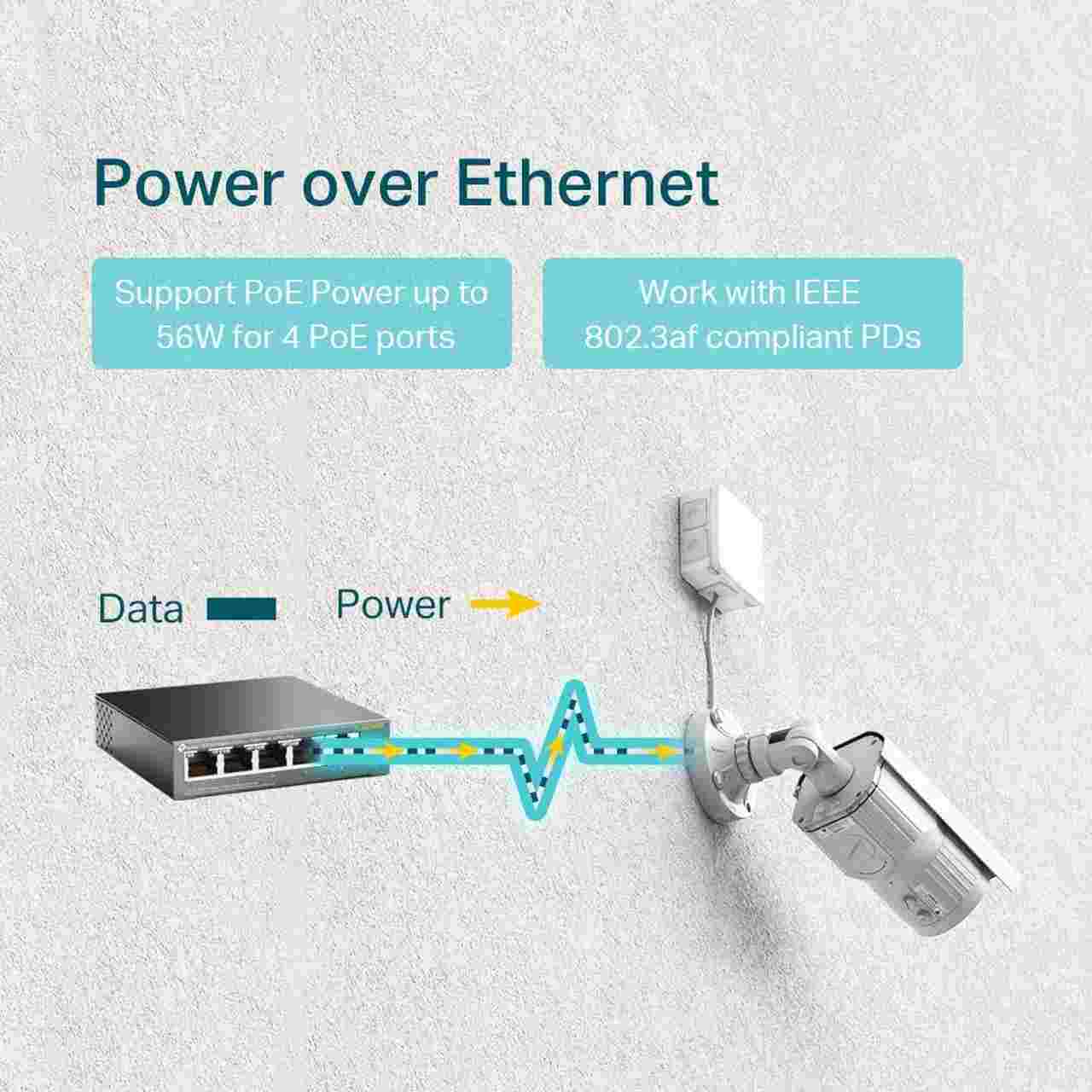

Power over Ethernet:

4 of 5 Auto Random RJ45 ports (ports 1-4) Switch Support Ethernet Power (Po). PoE ports can automatically detect and supply power to these IEEE 802.3af compliant Powered Devices (PDs).

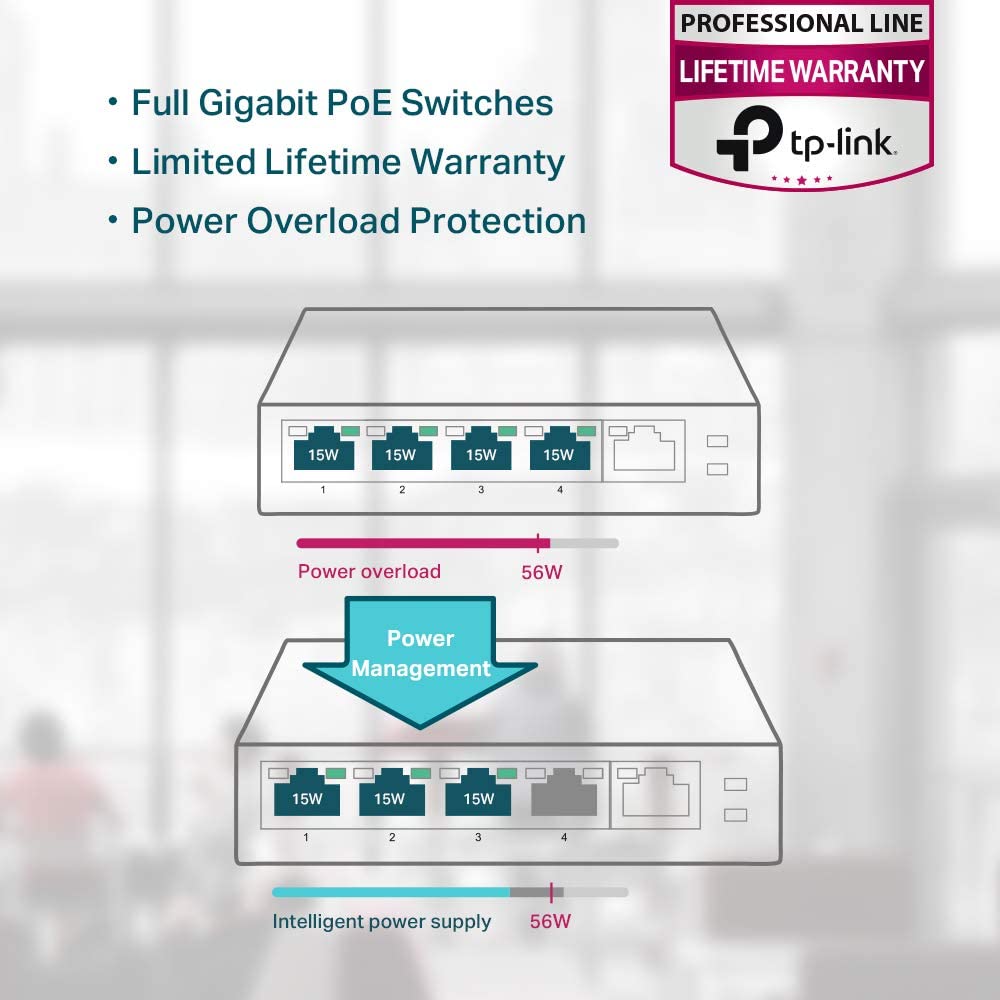

Intelligent Power Management:

When the total power consumption exceeds 56 watts, the smart power management will lower the low priority port to provide power to the high priority port and prevent the device from overloading.


Advanced Functions for Higher Performance:

Qos: Administrators may prioritize traffic based on service quality, such as making audio and video applications clear and responsive.
IGMP: IGMP Snooping improves multimedia traffic delivery to provide better network performance, especially for applications such as IPTV.


Sturdy Metal Casing:

Compact and rugged metal housing and enclosed RJ45 desktop / wall mount will suit your needs in any location. In addition, the fan design ensures a smooth operation.


Specifications:

HARDWARE FEATURES
Interface 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
Backbound Bandwidth 10Gbps
Mac Address Table 2K
Dimensions ( W x D x H ) 100 × 98 × 25 mm
Max Power Consumption 4.0W(no PD load)
64.4W(with 56W PD load)
Max Heat Dissipation 13.5BTU/h(no PD load)
219.9BTU/h(with 56W PD load)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store-And-Forward
OTHERS
Certification FCC, RoHS
Package Contents TL-SG1005P, Power Adapter, Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing

TL-SG1005P Datasheet (TL-SG1005P_Datasheet.pdf, 356 Kb) [Download]
