Tp-Link TL-SF1008P 8-Port 10/100Mbps 4-Port POE+ Desktop Switch

OM/06092018MAE
1,400 EGP
In stock
Reward points: 700 points
Chat Us With Whatsapp
Call With Us
Delivery
Payment options

Tp-Link

TL-SF1008P

Tp-Link TL-SF1008P 8-Port 10/100Mbps 4-Port POE+ Desktop Switch

8 RJ45 10/100 Mbps ports
4 PoE + ports transmit data and power on separate cables
Works with IEEE 802.3af / compliant PDs
Supports up to 30 watts of power at one PoE port.
PoE Power supports up to 66W for all PoE * ports
Data and power range in extended mode up to 250 m
Prioritize mode for verifying the quality of encrypted applications is a top priority for ports 1-2.
No need to plug in and configure

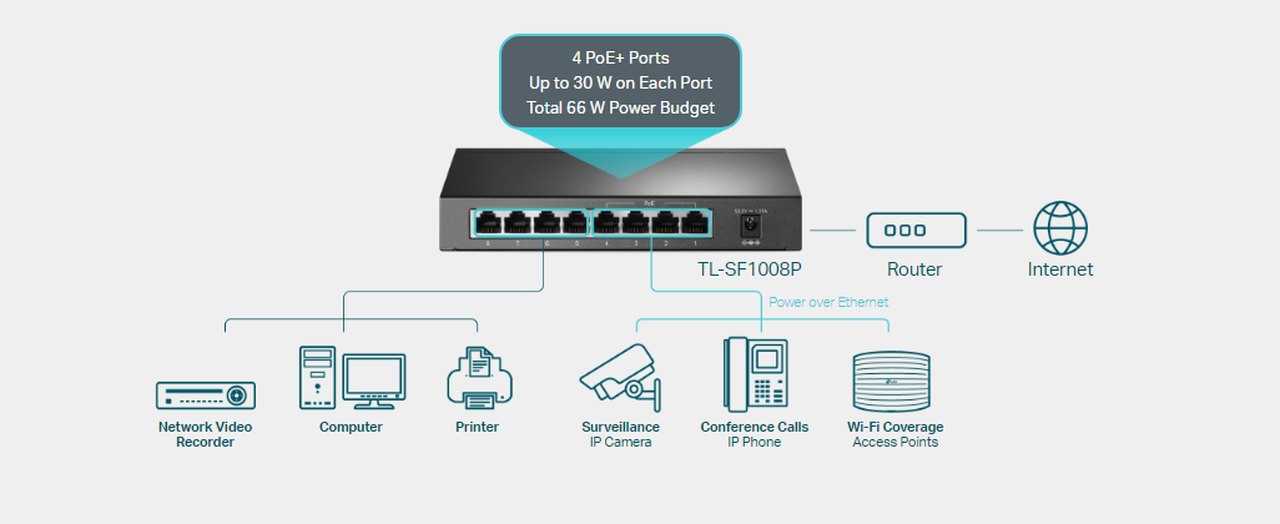

Dedicated 8-Port Switch with 4-Port POE+ (66 W Budget) for Numerous Applications:

802.3af / in PoE + Compatible supports up to 30W per PoE port. Only 4W budget PoE power * for 4 PoE ports * Unleashes a wide range of applications such as offices, bedrooms and small business monitoring. It is fully compatible with IP cameras, access points, IP phones, computers, printers and more.

Plug and Play, No Configuration Required:

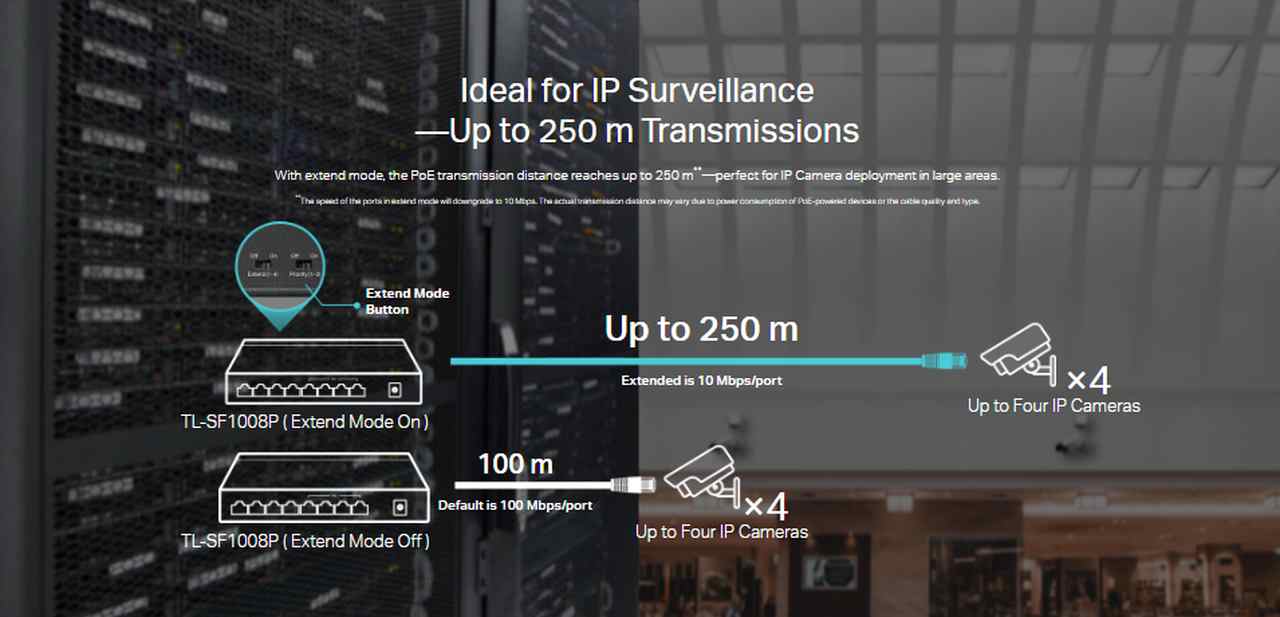

Ideal for IP Surveillance —Up to 250 m Transmissions:

In extended mode, the PoE transmission range is up to 250m, making it ideal for deploying IP cameras in large areas.

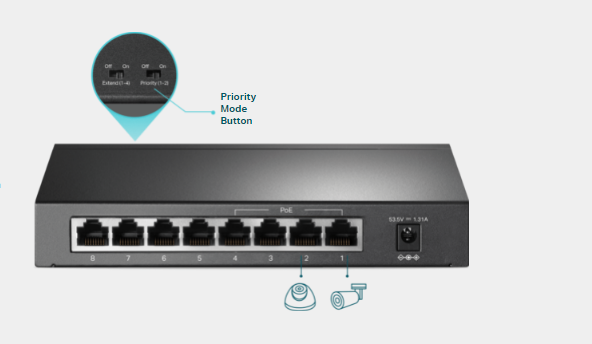

Priority Video Quality Guaranteed:

Confidential applications, such as critical business areas, take 1-2 priority up to a higher port when one-touch priority mode is enabled.

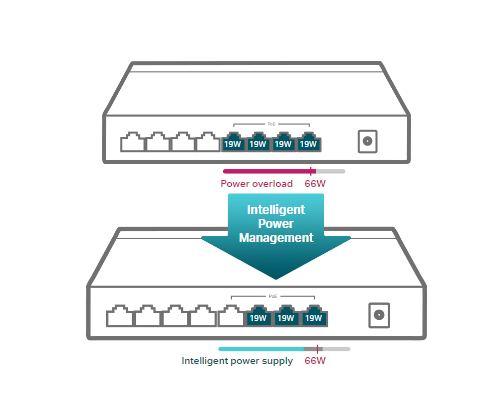

Intelligent Power Management:

When total power consumption exceeds 66 watts, smart power management eliminates the low priority port. This provides high priority power to the port and protects the device from power overload. It also automatically detects the required power and provides it to PoE devices, protecting your PoE and non-PoE devices from damage.

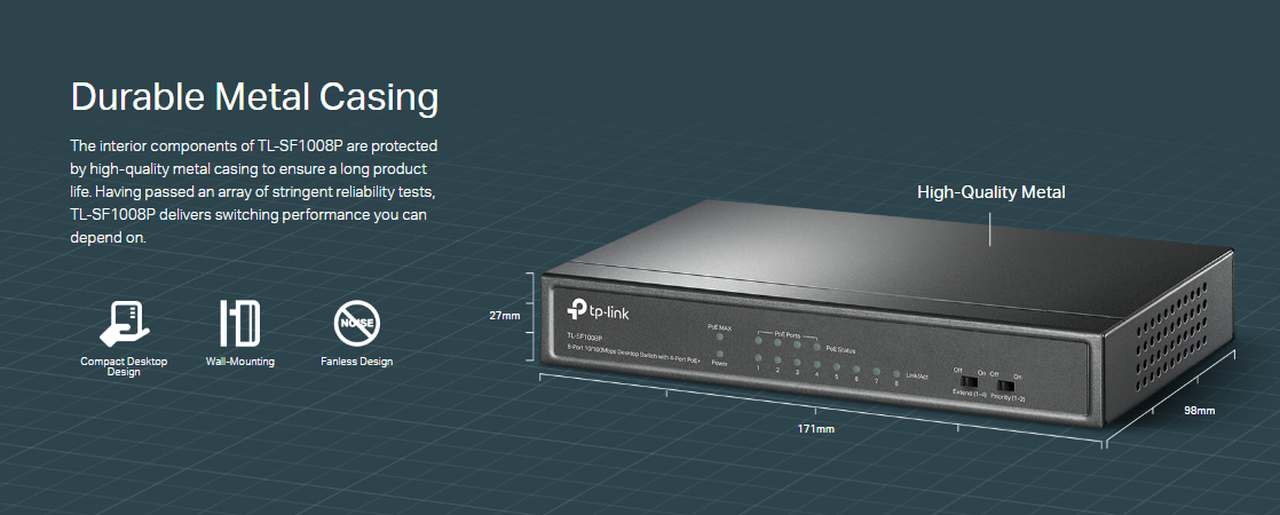

Durable Metal Casing:

The interior of the TL-SF1008P is protected by a high quality steel case, which ensures the long service life of the product. After passing a series of rigorous reliability tests, the TL-SF1008P offers the performance you can count on.

Specifications:

HARDWARE FEATURES
Interface 8× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate 1.1904 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 66 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.6 Gbps
Dimensions ( W x D x H ) 171 × 98 × 27 mm
Max Power Consumption 2.3 W (without power device connected)
73 W (with 66 W power device connected)
Max Heat Dissipation 7.8 BTU/h(no PD connected)
248.9 BTU/h(with 66 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SF1008P, Power Adapter, Installation Guide
Environment Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

TL-SF1008P datasheet (TL-SF1008P_datasheet.pdf, 470 Kb) [Download]
