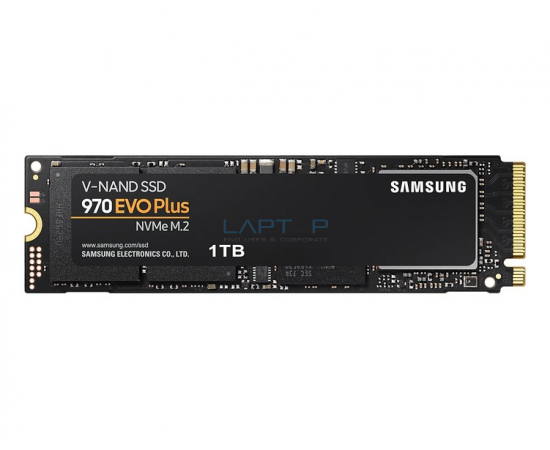

Samsung, 970 EVO Plus ,1TB SSD, Nvme M.2 Hard Drive,
Always Evolving SSD:
Best performance, design. Faster than the 970EVO, the 970EVO Plus features the latest V-NAND technology and firmware optimizations. This improves NVMe throughput for unmatched computing. Up to 2TB capacity, up to 1200TB reliability.
Level up Performance:
The 970 EVO Plus delivers sequential read / write speeds of up to 3500/3300 MB / s. This is 53% faster than the 970 EVO. The latest V-NAND memory, combined with improved firmware, a proven Phoenix controller, and intelligent TurboWrite technology, delivers faster NAND performance and higher power efficiency.
The next advance in NVMe SSD. The 970 EVO Plus features a compact M.2 (2280) form factor with up to 2TB, significantly increasing storage capacity and freeing up space for other components. With Samsung's innovative technology, you can do more and achieve more.
A new standard for sustainability. Get up to 1200TB with a 5-year limited warranty for long-term performance. The 970 EVO Plus offers outstanding reliability with the latest V-NAND technology and Samsung quality.
Reach a new level of self-confidence. Samsung's advanced nickel-plated heat spreader and controller on the 970 EVO Plus provide excellent heat dissipation. Dynamic heat shields automatically monitor and maintain optimum operating temperature to reduce performance degradation.
Improved disk management has become even easier. Samsung magicians will help you control your drive. An easy-to-use set of tools helps keep your drive up-to-date, monitor its health and speed, and even improve performance.
Capacity1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form FactorM.2 (2280)
InterfacePCIe Gen 3.0 x 4, NVMe 1.3
Dimension (WxHxD)80.15 x 22.15 x 2.38 (mm)
WeightMax 8.0 g Weight
Storage MemorySamsung V-NAND 3-bit MLC
ControllerSamsung Phoenix Controller
Cache MemorySamsung 1GB Low Power DDR4 SDRAM
GC (Garbage Collection)Auto Garbage Collection Algorithm
Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN SupportNot supported
Device Sleep Mode SupportYes
Sequential ReadUp to 3,500 MB/s * Performance may vary based on system hardware & configuration
Sequential WriteUp to 3,300 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32)Up to 600,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD32)Up to 550,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1)Up to 19,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1)Up to 60,000 IOPS * Performance may vary based on system hardware & configuration
Average Power Consumption (system level)* Average: 6 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage3.3 V ± 5 % Allowable voltage
Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
Operating Temperature0 - 70 ℃ Operating Temperature
Shock1,500 G & 0.5 ms (Half sine)
Installation KitNot Available
Management SWMagician Software for SSD management
5-year Limited Warranty or 600 TBW Limited Warranty
