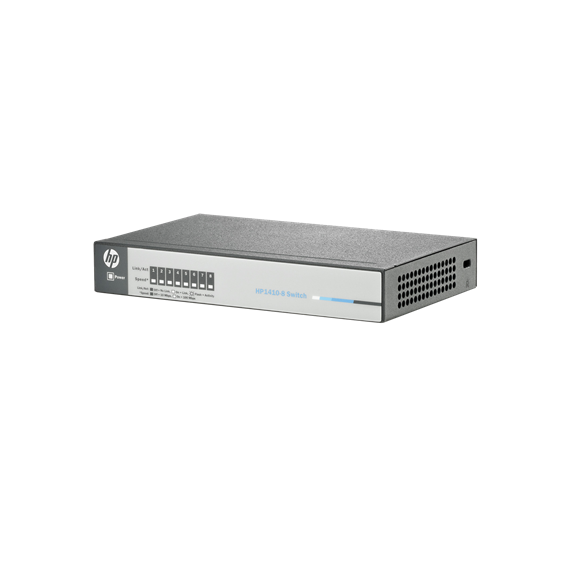

HP 1410-8 8 Port 10/100 Switch / J9561A
Please sign in so that we can notify you about a reply
Brand:
HP
Power
- 100-240 VAC
- 50 / 60 Hz
Input frequency
- 50/60 Hz
Input operating current
- 1.0 A
Input voltage
- 100 - 240 VAC
Power availability
- 1.0 A
Power consumption
- 12 W (maximum)
Weight
- 0.34 kg
Form factor
- .5U height
Ports
- 8 RJ-45 autosensing 10/100/1000 ports
- Supports a maximum of 8 autosensing 10/100/1000 ports
Latency
- 100 Mb Latency: < 3.6 µs
- 1000 Mb Latency: < 1.2 µs
Mobile telecommunications
- General protocols: IEEE 802.1p Priority
- IEEE 802.3x Flow Control
Switching capacity
- 16 Gbps
Throughput
- 11.9 Mpps
Address table size
- 4096 entries
General protocols
- IEEE 802.1p Priority
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet over twisted pair (10/100/1000 models only)
- IEEE 802.3i 10BASE-T Ethernet over twisted pair
- IEEE 802.3u 100BASE-TX Fast Ethernet, 100BASE-FX with auto negotiation
- IEEE 802.3x Flow Control
- IEEE 802.3z 1000BASE-X Gigabit Ethernet over fibre (10/100/1000 models only)
Dimensions
- Minimum dimensions (W x D x H) 15.6 x 9.65 x 2.45 cm
Memory and processor
- storage: 4 Kb EEPROM
- packet buffer size: 192 KB
Mounting
- Wall, desktop, and under-table mounting
